Product Number: 3015MF20-60

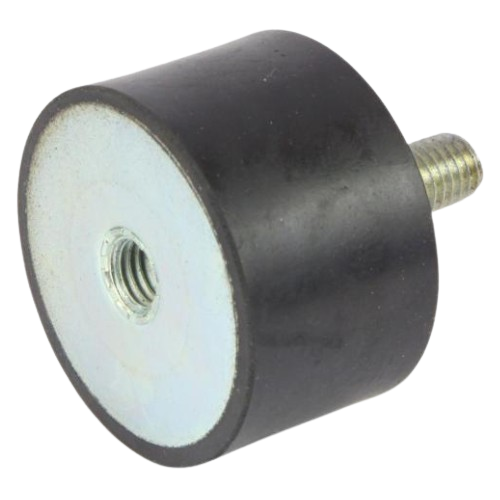

Balancing vibration isolation with structural support, the 3015MF20-60 is a 30 x 15 mm male-female rubber bobbin mount rated to a maximum load of 42.0 kg with a controlled deflection of 1.1 mm, figures that position this 60 Shore A grade as the practical middle ground for compact, lightly loaded machinery installations where neither excessive movement nor rigid restraint is desirable. Both threaded interfaces are M8, with the male stud at M8 x 20 mm projection and the female thread at M8, making fitment straightforward across many mounting configurations. Rubber-to-metal bonded construction gives the mount long-term durability without the need for adhesives or secondary fixings. The medium 60 Shore A rubber compound delivers a measured response across shear, compression and combined loading modes, reducing transmitted vibration and shock to protect both the mounted equipment and surrounding structures whilst improving operator comfort over sustained duty cycles. Where the application calls for custom metallurgy, oil-resistant rubbers or high-temperature compounds, these options are available on request. The mount suits lighter-duty installations across a broad spread of industries: instruments and sensitive equipment requiring controlled isolation, air-conditioning units, exhaust mountings, and general industrial machinery where the 42.0 kg load ceiling and 1.1 mm deflection characteristic deliver reliable, predictable performance without over-engineering. Sectors including power generation, agriculture, marine and automotive regularly specify this geometry for exactly this class of application.
Male Female Bobbin Mounts referred to as Type B Bobbin or Type 2 Bobbins. They are a low-cost solution to reducing vibration & shock and are used in applications where a bolt fixing is required. They can be used in either Shear of Compression or a combination of both and can be produced with different thread variations. Many additional sizes are also offered, and the Bobbins can also be produced in Stainless Steel and Oil Resistant & High Temperature rubber compounds.
Applications include - General Purpose mounts, where a Male / Female connection is required. Suitable for a wide range of applications & industries which may include Diesel Engines, Generator Sets, Instrumentation, Industrial Machines & Equipment. Weight ranges from 1kg to 2000Kg per mount.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

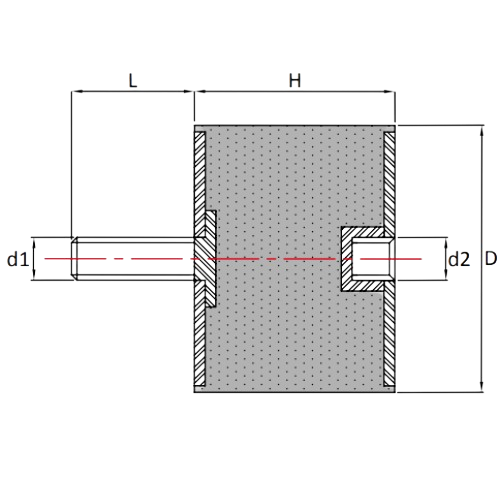

| Mount Dimension (D) | 30mm |
|---|---|
| Height (H) | 15mm |
| Thread size (V) | M8 |
| Bolt Length (I) | 20mm |
| Max Load (Kg) | 42 |
| Deflection (mm) | 1.1 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2008MM18-70 | 2515FF06-70 | 3025FF08-70 | 4020MF25-45 | 2520FF06-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 08mm | 15mm | 25mm | 20mm | 20mm |
| Size | 20x08mm | 25x15mm | 30x25mm | 40x20mm | 25x20mm |
| Deflection | 0.8 | 1 | 2.1 | 1.6 | 1.6 |
| Diameter | 20mm | 25mm | 30mm | 40mm | 25mm |
| Diameter Range | 11-25mm | 11-25mm | 26-50mm | 26-50mm | 11-25mm |
| Length Range | Up to 10mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
| Shore Hardness | 70 | 70 | 70 | 45 | 70 |
| Thread | M6 | M6 | M8 | M10 | M6 |
| Show More | |||||
A. The mount measures 30 mm in diameter by 15 mm in height. The male stud is M8 with a 20 mm projection (d1 x L: M8 x 20) and the female thread is M8 (d2: M8).
A. The 3015MF20-60 has a maximum load rating of 42.0 kg and a deflection of 1.1 mm, making it suited to lighter, compact installations requiring a measured, controlled response.
A. This mount uses a 60 Shore A rubber compound — the medium grade in the range. It provides a balance between vibration isolation and load support, sitting between the softer 45 Shore A (greater deflection, lighter loads) and the firmer 70 Shore A (higher load capacity, less movement).
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility across different mounting orientations and installation types.
A. Typical applications include air-conditioning units, exhaust mountings, instruments, and general industrial machinery and equipment. Industries served include power generation, agriculture, marine, automotive, construction and off-highway, and railway and mass transit.
A. Yes. The 30 x 15 mm geometry is also available as the 3015MF20-45 (45 Shore A, softer) and 3015MF20-70 (70 Shore A, firmer). Larger formats include the 3020MF20-60, 4040MF20-60, 100100MF44, 10050MF44, 10055MF44, 10060MF44, 10075MF44, and 1008MF10.
A. Yes — stainless steel metal components, oil-resistant rubbers, high-temperature rubber compounds, and additional or custom sizes are available on request.
