Product Number: 5040FF10-60
Balancing vibration isolation with dependable structural support, the 5040FF10-60 is a female-female bobbin anti-vibration mount sized at 50 x 40 mm with M10 internal threads at both ends and a 60 Shore A rubber hardness, the mid-range grade in this geometry that suits compact or load-sensitive installations where neither extreme of softness nor firmness is appropriate. With a maximum load rating of 95.0 kg and a rated deflection of 3.5 mm, it occupies the practical middle ground between maximum isolation and maximum load-carrying capacity, making it particularly well-suited to lighter, sensitive machinery where some movement compliance is required without sacrificing positional stability. Constructed using rubber-to-metal bonded technology, the mount is engineered to operate effectively in shear, compression, or a combination of both loading directions. The 60 Shore A grade delivers controlled deflection that dampens vibration and shock at moderate loads, characteristics valued in applications such as instrumentation, air-conditioning units, generator sets, and smaller industrial equipment where transmitted vibration affects either performance accuracy or operator comfort. The rubber compound is formulated for resilience across typical workshop and industrial environments, and stainless steel construction along with oil-resistant and high-temperature rubber variants are available on request for more demanding service conditions. The female-female thread configuration provides a straightforward through-fastening interface, allowing the mount to be installed between a base frame and equipment chassis without exposed male studs.
Female Female Bobbins, also referred to as Type C Bobbins or Type 3 Bobbins are a low cost Anti Vibration Mount, suitable for reducing vibration & shock and a vast array of different applications. They should be used in either Shear or Compression or in a combination, however like all bobbins, not put into tension. Bobbins are available with many different thread Sizes, ranging from M3-M24 and in various lengths. Additional Bobbin Mounts sizes are available on request and can be produced in various grades of Stainless Steel and Oil & High Temperature resistant rubbers.
Applications include - Female / Female Bobbins are a general purpose mounting solution, popular in many different applications & industries including IC Engines, Generating Sets, electronics & various types of Industrial Equipment. Weight ranges from 1kg to 2000Kg per Bobbin.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimension (D) | 50mm |
|---|---|
| Height (H) | 40mm |
| Thread Size (d) | M10 |
| Max Load (kg) | 95 |
| Deflection (mm) | 3.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Anti-Vibration Mount - Male - Female Bobbin Range, M10, Max Load 94Kg - 5040MF25-60
£14.04
£13.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|

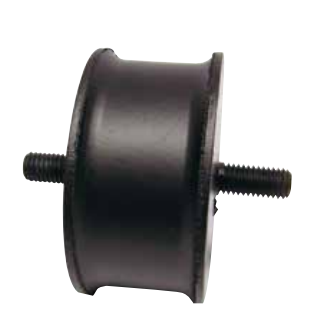

| PRODUCT NUMBER | 5040MF25-60 | 4025MM25-70 | 6045FF10-45 | 6045FF12-45 | PR464025-70 |
| Type | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount | Bobbin Mount |
| Length | 25mm | 45mm | 45mm | ||
| Height | 40mm | ||||
| Size | 50x40mm | 40x25mm | 60x45mm | 60x45mm | 46mm |
| Deflection | 3.5 | 2.1 | 4 | 4 | |
| Diameter | 40mm | 60mm | 60mm | ||
| Diameter Range | 26-50mm | 51-100mm | 51-100mm | ||
| Length Range | 11-25mm | 26-50mm | 26-50mm | ||
| Mount Dimension | 50mm | ||||
| Shore Hardness | 70 | 45 | 45 | 70 | |
| Size Range | 26-50mm | ||||
| Thread | M10 | M10 | M10 | M12 | M10 |
| Show More | |||||
A. The 5040FF10-60 is rated to a maximum load of 95.0 kg with a rated deflection of 3.5 mm.
A. The mount measures 50 mm diameter by 40 mm height with M10 female threads at both ends.
A. A 60 Shore A grade represents the mid-range of rubber hardness. It provides a balance between vibration isolation and load-bearing rigidity — softer grades give greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A grade suits lighter, compact or sensitive installations where some compliance is required without excessive deflection.
A. The mount may be loaded in shear, compression, or a combination of both loading directions.
A. It is suited to air-conditioning units, exhaust mountings, diesel engines, generator sets, instruments, and general industrial machinery and equipment. Industries served include power generation, agriculture, marine, automotive, construction and off-highway, and railway and mass transit.
A. Yes. The same 50 x 40 mm M10 female-female geometry is available in a softer 45 Shore A grade (SKU 5040FF10-45) and a firmer 70 Shore A grade (SKU 5040FF10-70). Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, plus additional and custom sizes, are available on request.
