Product Number: PH20.V4-E
Variations

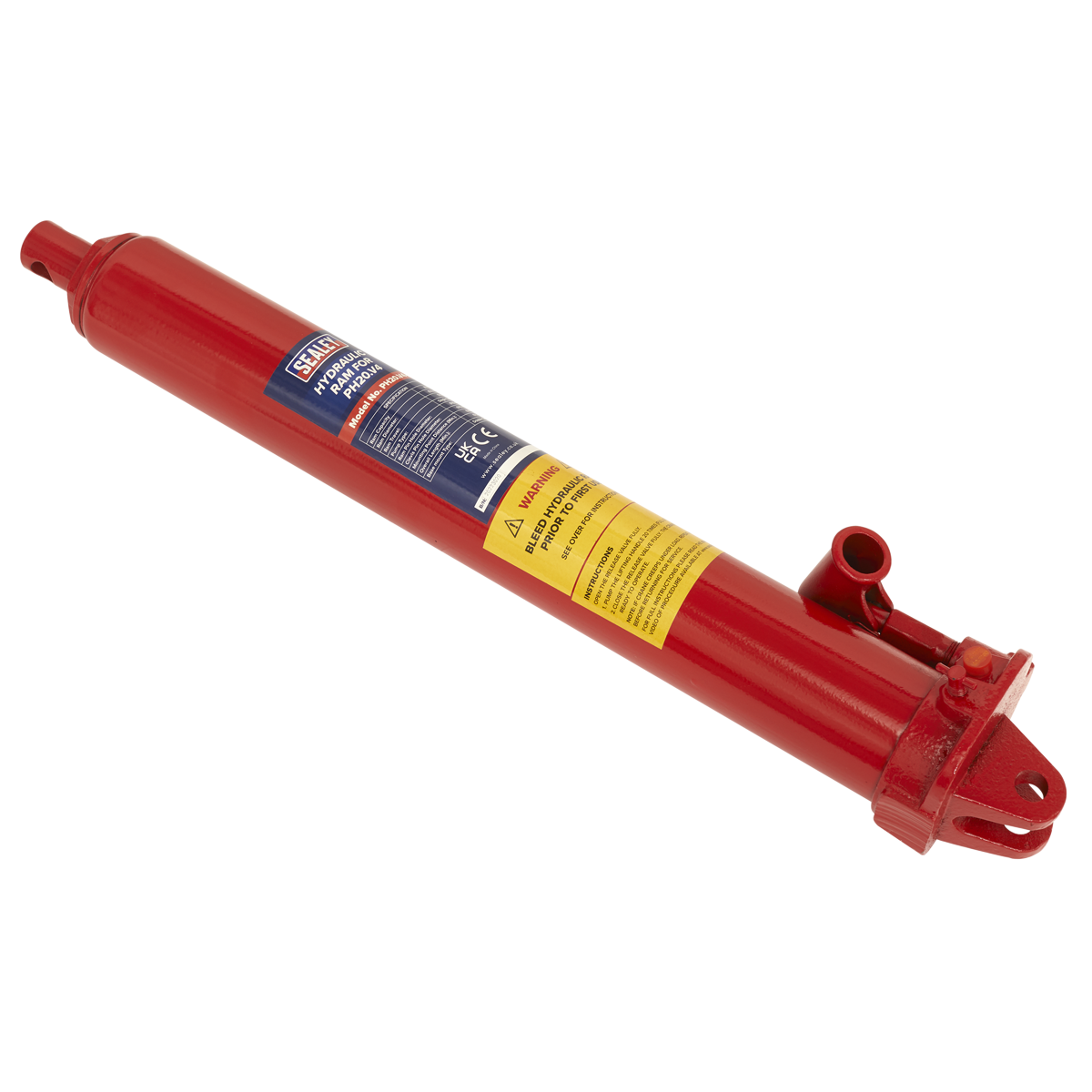

A worn or damaged hydraulic ram on your engine crane can compromise lifting capacity and safety, bringing workshop operations to a halt. The Sealey PH20.V4-E is a direct replacement hydraulic ram designed specifically for the PH20.V4 engine crane, restoring full lifting performance without the need to replace the entire unit. It offers a ram capacity of 8,000kg, a ram travel of 502mm, and an overall minimum length of 670mm. The single-speed pump type keeps operation straightforward, and the double clevis base mount ensures secure fitment. The ram diameter is 33.9mm, with both the ram pin hole and clevis pin hole diameters at 16.4mm and a minimum mounting point distance of 636mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH20.V4-E |
|---|---|
| Brand | Sealey |
| Nett Weight | 11.8kg |
| Ram Capacity | 8000kg |
| Ram Diameter | 33.9mm |
| Ram Travel | 502mm |
| Pump Type | Single Speed |
| Ram Pin Hole Diameter | 16.4mm |
| Clevis Pin Hole Diameter | 16.4mm |
| Mounting Point Distance (Min.) | 636mm |
| Overall Length (Min.) | 670mm |
| Base mount Type | Double Clevis |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SG1000 Portable Gantry Crane Adjustable 1 Tonne
£766.86
£751.82
2% OFF
Free delivery in UK Mainland
|
Sealey SG1000KIT Portable Gantry Crane 1 Tonne Combo with Trolley & Chain Block
£904.84
£887.10
2% OFF
Free delivery in UK Mainland
|
Sealey CTI120 Compact Rechargeable Tyre Inflator & Power Bank
£71.11
£69.72
2% OFF
Free delivery in UK Mainland
|
Draper 94078 Expert Turbo Smoke Diagnostic Machine Pipe Vacuum Leak Detector
£397.52
£389.73
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03679 | 03683 | 03692 | 03845 | 03849 | 09807 | CB1000 | SG1000 | SG1000KIT | CTI120 | 30630 | 94078 | PK2000 | PK3000 | PK1000 |
A. The PH20.V4-E is a replacement hydraulic ram designed specifically for the Sealey PH20.V4 engine crane.
A. The ram capacity is 8,000kg.
A. The ram travel is 502mm and the overall minimum length is 670mm.
A. It uses a single-speed pump.
A. The ram diameter is 33.9mm, both the ram pin hole and clevis pin hole diameters are 16.4mm, the minimum mounting point distance is 636mm, and the base mount type is double clevis.
A. The PH20 is the engine crane model associated with this product line. The PH20.V4-E is a spare part specifically for the PH20.V4 variant of that crane. Please contact Parts for Machines for confirmation of compatibility with other PH20 versions.
A. No. The PH20.V4-E is a hydraulic ram designed exclusively for the Sealey PH20.V4 engine crane and is not intended for use with trolley jacks or axle stands.
A. Both the ram pin hole diameter and the clevis pin hole diameter are 16.4mm.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
