Product Number: PH20
Variations

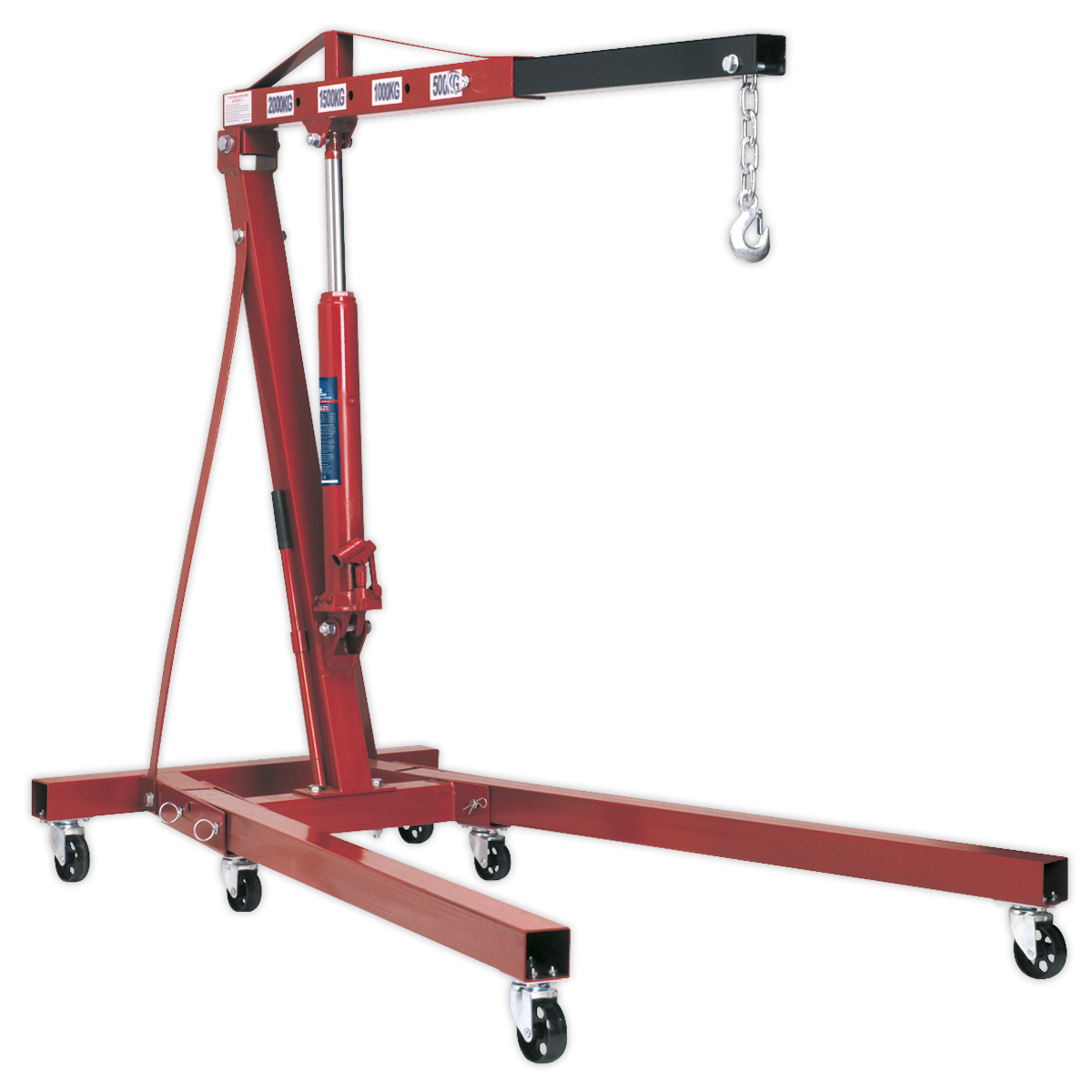

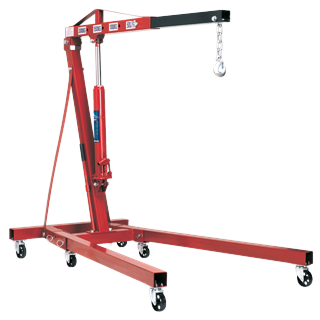

When you need serious lifting capacity without sacrificing workshop space, the Sealey PH20 is a 2-tonne folding engine crane built for heavy-duty use. At jib Position 1 (860mm), the PH20 lifts up to 2000kg and with a maximum lift height of 1820mm at that position, it handles demanding engine and drivetrain work with confidence. Extending the jib to Position 2 (1020mm) gives 1500kg capacity, Position 3 (1180mm) gives 1000kg, and Position 4 (1340mm) gives 500kg. When the job is done, the crane folds for easy storage, freeing valuable workshop space. Six heavy-duty castor wheels make repositioning effortless, and side access to the hydraulic pump keeps operation safe when handling heavy loads. The crane is 1750mm long, stands 1460mm with jib down, and 1565mm with legs folded. Delivered in knock-down form for reduced freight cost. Please note: this item is heavy and extra assistance must be provided at the delivery point to help its safe delivery.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH20 |
|---|---|
| Brand | Sealey |
| Height Jib Down | 1440mm |
| Height Legs Folded | 1540mm |
| Height of Frame | 195mm |
| Length Legs Extended | n/a |
| Length of Jib Position 1 | 930mm |
| Length of Jib Position 2 | 1110mm |
| Length of Jib Position 3 | 1200mm |
| Length of Jib Position 4 | 1460mm |
| Length of Jib Position 5 | n/a |
| Length | 1750mm |
| Lifting Capacity in Position 1 | 2000kg |
| Lifting Capacity in Position 2 | 1500kg |
| Lifting Capacity in Position 3 | 1000kg |
| Lifting Capacity in Position 4 | 500kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 2060mm |
| Max. Lift Ht at Jib Position 2 | 2190mm |
| Max. Lift Ht at Jib Position 3 | 2330mm |
| Max. Lift Ht at Jib Position 4 | 2490mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 77kg |
| Rear Width | 850mm |
| Width Front Frame | 1055mm |
| Width Inside Front Frame | 915mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-folding-engine-crane-2tonne.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey Viking PFC101S Industrial Engine Crane 1 Tonne Folding
£832.86
£816.53
2% OFF
Free delivery in UK Mainland
|
Sealey SC10LR Engine Crane 1 Tonne Long Reach Extendable Legs
£402.89
£394.99
2% OFF
Free delivery in UK Mainland
|
Sealey PH5 Low Profile Engine Crane 0.5 Tonne
£161.31
£158.15
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | PFC101S | SC10LR | PH5 | SC10 | 20129 | 09807 | 03692 | 13349 |
A. The PH20 lifts a maximum of 2000kg (2 tonnes) at jib Position 1 (860mm extension). Capacity reduces as the jib extends: 1500kg at Position 2 (1020mm), 1000kg at Position 3 (1180mm), and 500kg at Position 4 (1340mm).
A. The maximum lift height at jib Position 1 is 1820mm.
A. Yes. The PH20 is specifically designed to fold for easy storage, freeing valuable workshop space when not in use. With legs folded, the height is 1565mm, and the jib-down height is 1460mm.
A. The PH20 is delivered in knock-down form for reduced freight cost and will require assembly on arrival.
A. The PH20 runs on six heavy-duty castor wheels for easy manoeuvrability around the workshop.
A. Pump access is from the side of the crane, allowing safe handling of heavy loads.
A. The overall length is 1750mm, jib-down height is 1460mm, legs-folded height is 1565mm, and the frame height is 185mm.
A. Yes. Related versions include the PH20.V4-E, SPC1000, and SPC2000. Please check those individual listings for their specific specifications and differentiators.
A. Yes. If you need a lower-capacity alternative, the PFC101S, SC10, and SC10LR are similar products that perform the same engine-crane function. Please check those listings for full specifications.
A. Please contact us within 48 hours of delivery with photos. We will arrange a replacement or refund as appropriate.
