Product Number: 94078

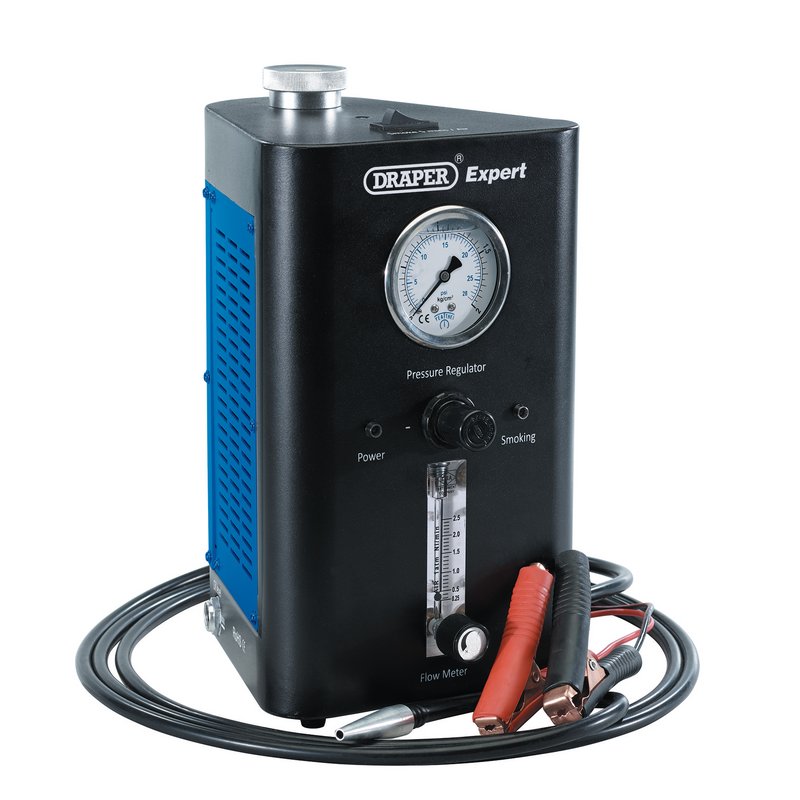

Diagnosing intake, vacuum, and turbo system leaks is time-consuming without the right equipment. The Draper Expert Turbo Smoke Diagnostic Machine (SKU 94078) addresses this directly by using mineral oil and workshop air to generate smoke that travels through connected vehicle systems, pinpointing leaks quickly and delivering fast test results across all car systems. The machine features variable air and smoke pressure control across a working range of 3–20psi, alongside an easy-to-read test pressure gauge and an oil level indicator window, so the operator always has a clear view of operating status. A five-minute duty cycle is built in to ensure the device runs for longer during sustained diagnostic sessions, and a generator protection temperature of 239°F provides an added safeguard. The unit operates on a 12V DC vehicle battery connection and weighs 4.0kg, making it compact and straightforward to position in the workshop or at the roadside. The vapour output hose extends to 3m for flexible reach around the vehicle. Operating temperature range is 0°F to 140°F. The unit ships inside a convenient carry case and includes a comprehensive accessory kit: 23 plastic cap plugs, a 31–81mm standard cone adaptor, battery cable with crocodile clips, a smoke outlet hose, an air intake adaptor, and a hook. Two operating modes are supported: a smoke cycle with the five-minute duty cycle and a continuous air cycle.
This smoke diagnostic machine for turbo systems is a huge time saver, efficiently pinpointing leaks throughout all car systems and delivering fast test results. It uses mineral oil and workshop air to generate smoke to detect leaks while connected to the vehicle. The machine features variable air/smoke pressure control, an easy to read test pressure gauge and oil level indicator. For maximum efficiency it has a five-minute duty cycle which ensures the device runs for longer. The unit can run up to 20psi. The machine is compact, lightweight and connects to a 12V vehicle battery. Supplied inside a convenient case packed with accessories including 23 plastic plugs, a 31-81mm cone adaptor, battery cable with crocodile clips, a smoke outlet hose, an air intake adaptor and hook.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Voltage | 12V DC |
|---|---|
| Pressure | 3-20psi |
| Operating temperature | 0℉ to 140℉ |
| Generator protection temperature | 239℉ |
| Vapour output hose | 3m |
| Operating mode | Smoke 5 min cycle/Air cycle |
| Weight | 4.0kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
94078ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 94079 Expert Turbo/EVAP Smoke Diagnostic Machine Pipe Vacuum Leak Detector
£545.61
£534.91
2% OFF
Free delivery in UK Mainland
|
Sealey VS870 Smoke Diagnostic Tool - Automotive Leak Detector
£561.73
£550.72
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 94079 | VS870 | 53400800 | 48325 | GO2114 | GO2100PRO |
A. The Draper Expert Turbo Smoke Diagnostic Machine is designed to pinpoint leaks throughout all car systems, including turbo and intake circuits. It uses mineral oil and workshop air to generate smoke that travels through connected vehicle systems, making leaks visible.
A. The machine operates across a pressure range of 3–20psi, with variable air and smoke pressure control so the operator can adjust output to suit the system under test.
A. The unit connects directly to a 12V DC vehicle battery via the supplied battery cable with crocodile clips, so no separate mains power supply is required.
A. The operating temperature range is 0°F to 140°F. A generator protection temperature of 239°F is built in to safeguard the unit during use.
A. The machine is supplied in a carry case with a comprehensive accessory kit comprising 23 plastic cap plugs, a 31–81mm standard cone adaptor, a battery cable with crocodile clips, a smoke outlet hose (3m), an air intake adaptor, and a hook.
A. The machine supports two operating modes: a smoke cycle and an air cycle. The smoke cycle incorporates a five-minute duty cycle, which ensures the device can run for longer during diagnostic sessions.
