Product Number: PH400

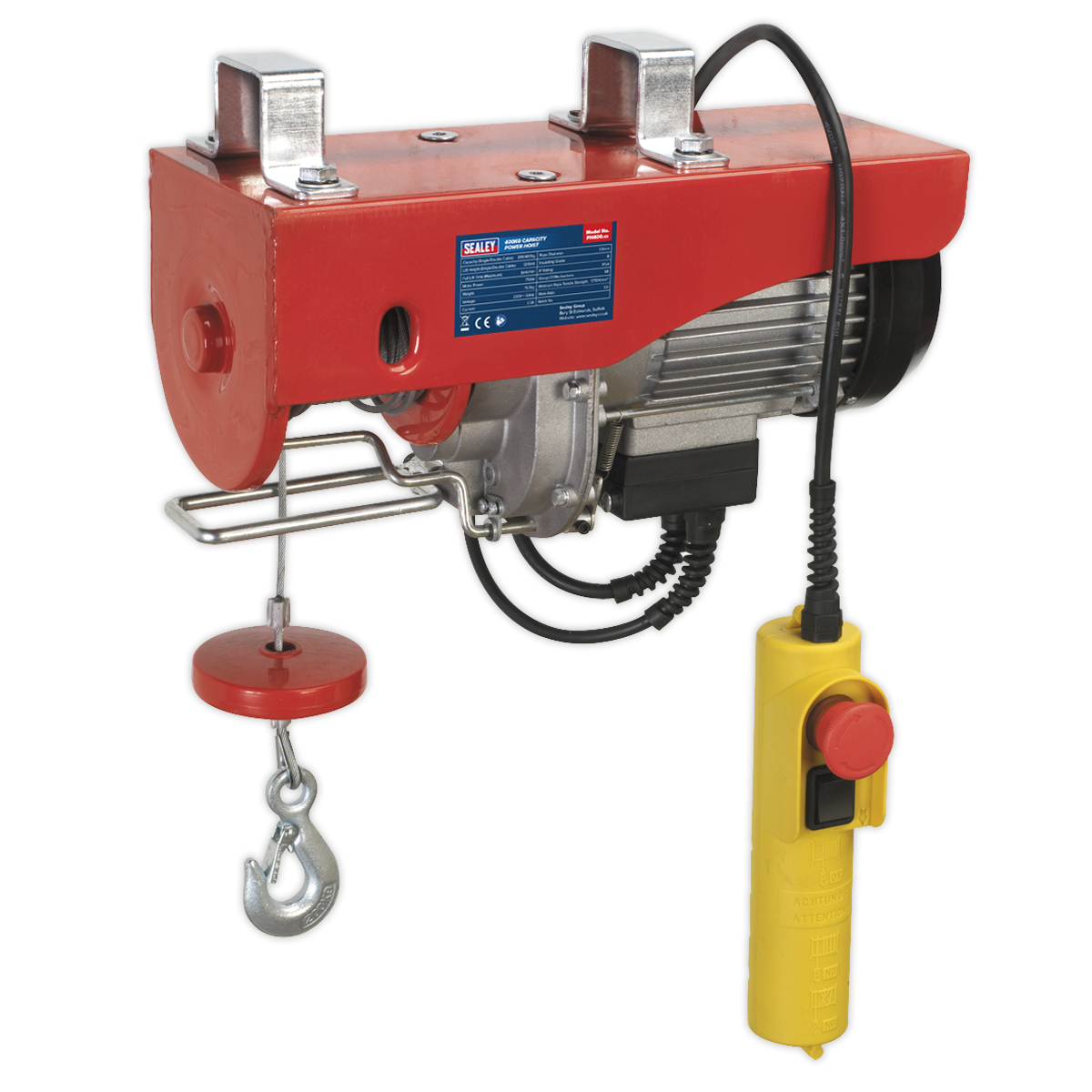

Lifting heavy loads safely and efficiently in a garage or workshop demands reliable, certified equipment. The Sealey PH400 is a 230V single-phase power hoist with a 400kg double-cable capacity (200kg single cable), approved to EU and UK Lifting Gear Regulations. A powerful 750W motor drives lift speeds of up to 8m/min, while a thermal overload switch protects the motor from damage during demanding use. The auto-stop system automatically halts the hoist at its full lift height, preventing overrun and protecting both the load and the equipment. A remote control is included so the operator can position themselves at a safe distance during lifting. The PH400 achieves a lift height of 6m on double cable and 12m on single cable, with a minimum rope tensile strength of 1770N/mm². IP54-rated for protection against dust and water ingress, it carries a Group M1 mechanism classification and Insulating Grade B. Two mounting brackets are included for straightforward installation to a suitable support arm note that the support bar itself is not included and must be sourced separately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH400 |
|---|---|
| Brand | Sealey |
| Capacity (Double Cable) | 400kg |
| Capacity (Single Cable) | 200kg |
| Current | 3.3A |
| Group of Mechanisms | M1 |
| Insulating Grade | B |
| IP Rating | IP54 |
| Lift Height (Double Cable) | 6m |
| Lift Height (Single Cable) | 12m |
| Lift Speed (Maximum) | 8m/min |
| Minimum Rope Tensile Strength | 1770N/mm² |
| Motor Power | 750W |
| Nett Weight | 16.0kg |
| Rope Diameter | 3.8mm |
| Voltage | 230V~50Hz |
| Work Rate | S3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SG2000KIT Portable Gantry Crane 2 Tonne Adjustable with Hoist Combo Kit
£1,454.40
£1,425.88
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SG2000KIT | VS528 | MGS-30D | MGP-10D | MGP-10 | MGS-10D |
A. The PH400 has a capacity of 400kg on double cable and 200kg on single cable.
A. The PH400 achieves a lift height of 6m on double cable and 12m on single cable.
A. Yes, the PH400 is approved to both EU and UK Lifting Gear Regulations.
A. Yes, the PH400 is fitted with a remote control so the hoist can be operated from a safe distance.
A. The PH400 is fitted with a 750W motor.
A. The PH400 carries an IP54 rating, offering protection against dust and water ingress.
A. Yes, the PH400 is fitted with a thermal overload switch and an automatic stop system that halts the unit at its full lift height.
A. No, the support bar is not included. Two mounting brackets are included to allow installation to a suitable support arm.
