Product Number: CB500
Variations

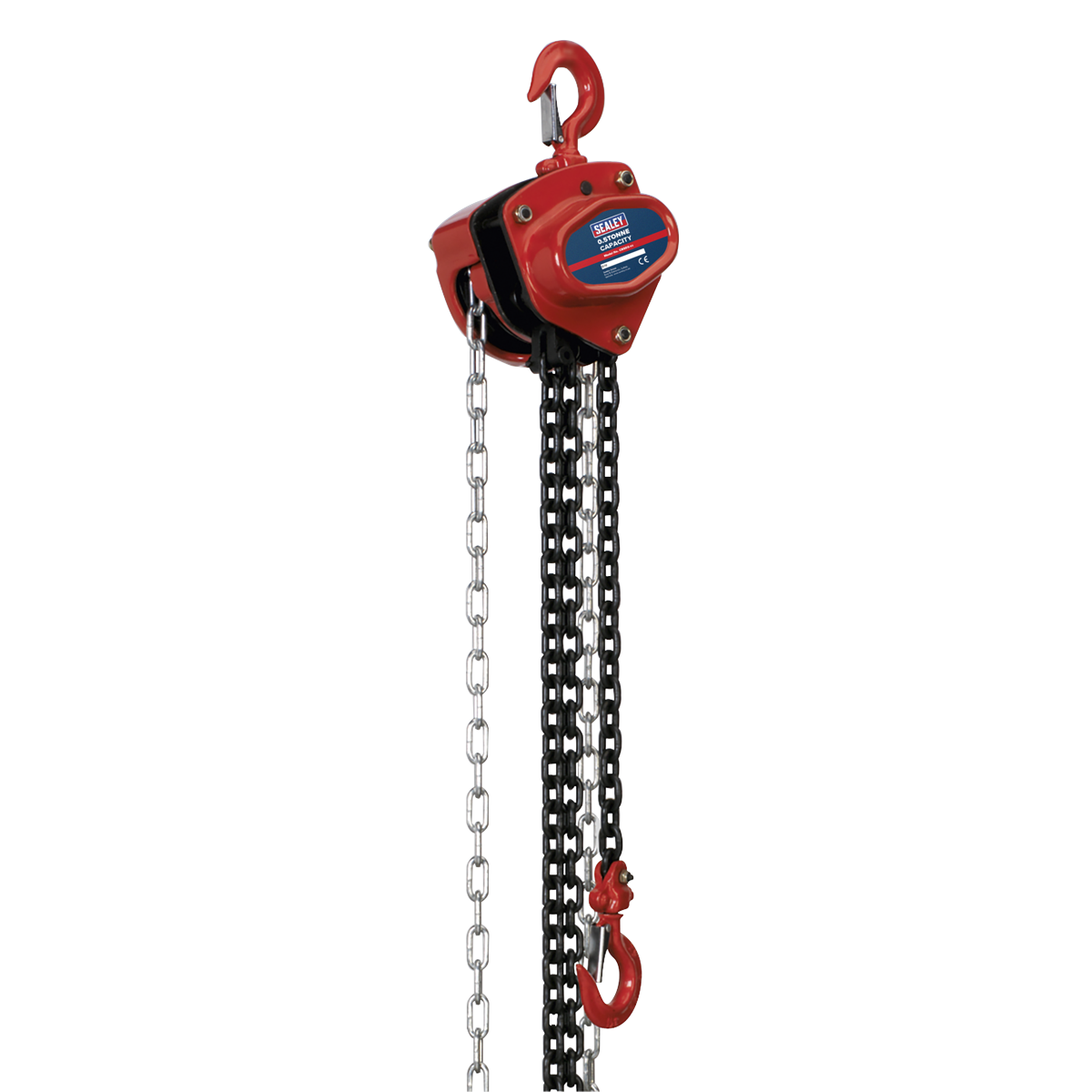

Lifting heavy loads safely in confined spaces requires equipment that is both compact and engineered to perform under pressure. The Sealey CB500 Chain Block offers a 500kg safe working load with a standard lift of 2.5m, making it a practical solution for workshops, garages, and industrial applications where overhead clearance is limited. A reduced-size gear housing keeps the overall head room requirement to just 350mm. Power comes from a heat-treated and ground triple-spur geared shaft and pinion, while a double pawl and spring mechanical load brake adds a layer of safety by preventing uncontrolled lowering. All chains are manufactured from hardened alloy material, and the forged steel load hooks feature enlarged openings with safety latches for secure attachment. The hook aperture is 25mm, maximum hook capacity is 35mm diameter, and the unit requires just 249N of pulling effort to operate. The CB500 has been tested to a 750kg test load, giving confidence in its rated 500kg working capacity.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | CB500 |
|---|---|
| Brand | Sealey |
| Capacity | 500kg |
| Head Room | 295mm |
| Hook Aperture | 25mm |
| Load Chain Diameter | Ø6mm |
| Maximum Hook Capacity Ø | 35mm |
| Nett Weight | 10kg |
| Pulling Effort | 23.5kgf |
| Safe Working Load | 500kg |
| Size (W x D) | 127 x 131mm |
| Standard Lift | 2.5m |
| Test Load | 750kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CB5000 | CB3000 | 03845 | MGS-30D | MGP-10D | MGP-10 |
A. The CB500 has a safe working load of 500kg and has been tested to a 750kg test load.
A. The standard lift is 2.5 metres.
A. The compact gear housing requires a minimum head room of 350mm.
A. The CB500 features a double pawl and spring mechanical load brake to prevent uncontrolled lowering, forged steel load hooks with safety latches, and hardened alloy chains throughout.
A. The pulling effort required is 249N.
A. The hook aperture is 25mm and the maximum hook capacity diameter is 35mm. The hooks are forged steel with safety latches.
A. Yes, the CB500E is a variant in the same chain block range. Please refer to the CB500E product listing or contact Parts for Machines for specification details.
A. All chains are manufactured from hardened alloy material.
A. The CB500 is fitted with a heat-treated and ground triple-spur geared shaft and pinion.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
