Product Number: ATV1000W

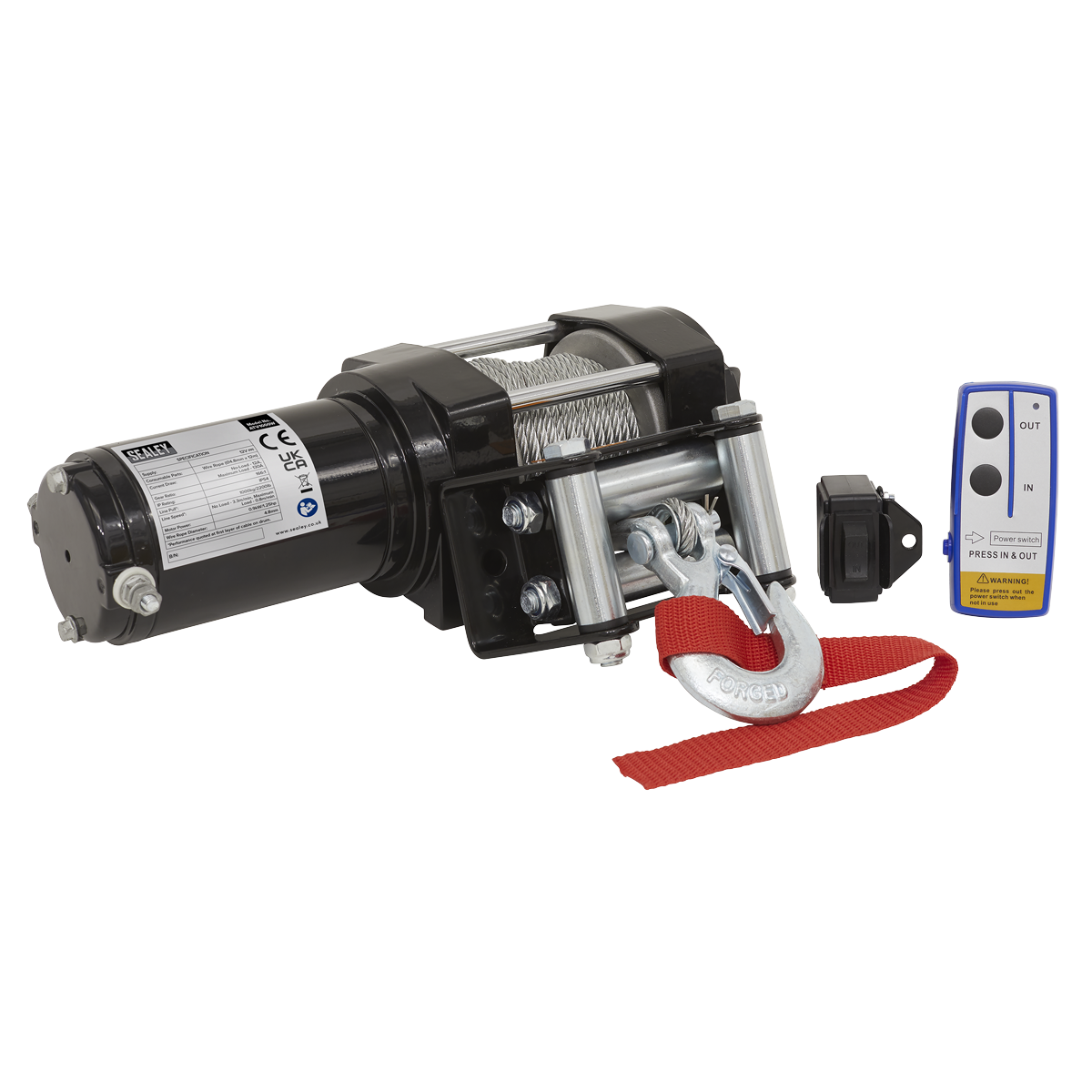

Recovering or repositioning an ATV in challenging terrain demands a reliable, purpose-built winch capable of handling serious loads. The Sealey ATV1000W is designed for mounting directly to an ATV and delivers a 1000kg (2200lb) line pull using a 3-stage planetary gearing mechanism with a 166:1 gear ratio. Powered by a 0.9kW (1.25hp) permanent magnet DC motor running on 12V, it draws 12A at no load and up to 118A at maximum load. The pull-and-turn clutch allows for quick engagement and disengagement, while the 4-way roller fairlead ensures even distribution of the 4.8mm diameter wire rope across the drum. Line speed reaches 3.3m/min at no load and 0.8m/min at maximum load, with 12 metres of wire rope supplied. A wireless remote control is included for operation from a safe distance. Performance figures are quoted at the first layer of cable on the drum.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ATV1000W |
|---|---|
| Brand | Sealey |
| Consumable Parts | Wire Rope (Ø4.8mm x 12m) |
| Current Draw | No-Load - 12A, Maximum Load - 118A |
| Gear Ratio | 6.91736111111111 |
| Line Pull* | 1000kg/2200lb |
| Line Speed* | No Load - 3.3m/min, Maximum Load - 0.8m/min |
| Motor Power | 0.9kW/1.25hp |
| Nett Weight | 8.5kg |
| Note | *Performance quoted at first layer of cable on drum. |
| Supply | 12V |
| Wire Rope Diameter | Ø4.8mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATV1000W.WR | Sealey ATV1000W.WR Wire Rope 4.8mm x 12m for ATV1000W Winch | 1 Unit |
£20.70
£20.29
|
Add |
|
ATV1135.WR | Sealey ATV1135.WR Replacement Wire Rope 4.8mm x 15.2m for ATV1135 Recovery Winch | 1 Unit |
£27.13
£26.60
|
Add |
|
SRW5450.WR | Sealey SRW5450.WR Wire Rope 9.2mm x 26m for SRW4300 & SRW5450 Winches | 1 Unit |
£99.49
£97.50
|
Add |
|
RW8180.WR | Sealey RW8180.WR Wire Rope 13mm x 25m for RW8180 Recovery Winch | 1 Unit |
£169.27
£165.88
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey RW8180KIT Wireless Winch Combo Kit - 8180kg 12V Recovery Winch
£1,038.06
£1,017.30
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | SRW4300 | RW8180KIT | 24441 |
| Type | Recovery Winche | Recovery Winche | Recovery Winche |
| Brand | Premier | Premier | |
| Gear Ratio | 196.6:1 | 21.5006944444444 | |
| Model No | SRW4300 | RW8180KIT | |
| Nett Weight | 40kg | *Performance quoted at first layer of ca | |
| Weight (kg) | 40 | 69 | 74 |
A. The ATV1000W has a line pull of 1000kg (2200lb), quoted at the first layer of cable on the drum.
A. It operates on a 12V supply using a 1.2hp permanent magnet DC powered motor.
A. It uses a 3-stage planetary gearing mechanism with a gear ratio of 166:1.
A. The winch comes with 4.8mm diameter wire rope measuring 12 metres in length.
A. Yes, a wireless remote control is included for use at safe distances.
A. Line speed is 3.3m/min at no load and 0.8m/min at maximum load, quoted at the first layer of cable on the drum.
A. The winch features a pull and turn clutch for engagement and disengagement.
A. Current draw is 12A at no load and 118A at maximum load.
A. The ATV1000W features a 4-way roller fairlead for even distribution of cable onto the drum.
