Product Number: ATV1135KIT

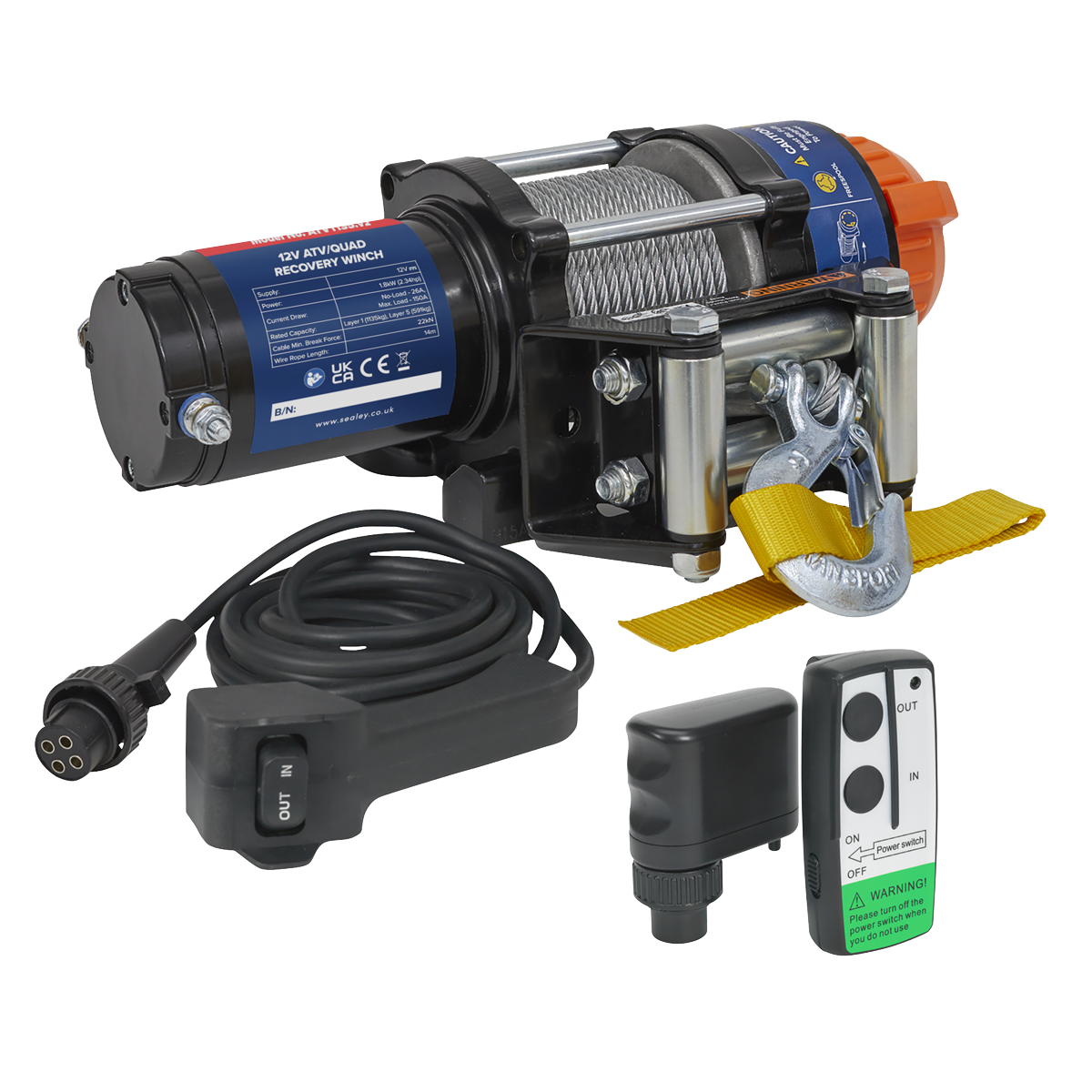

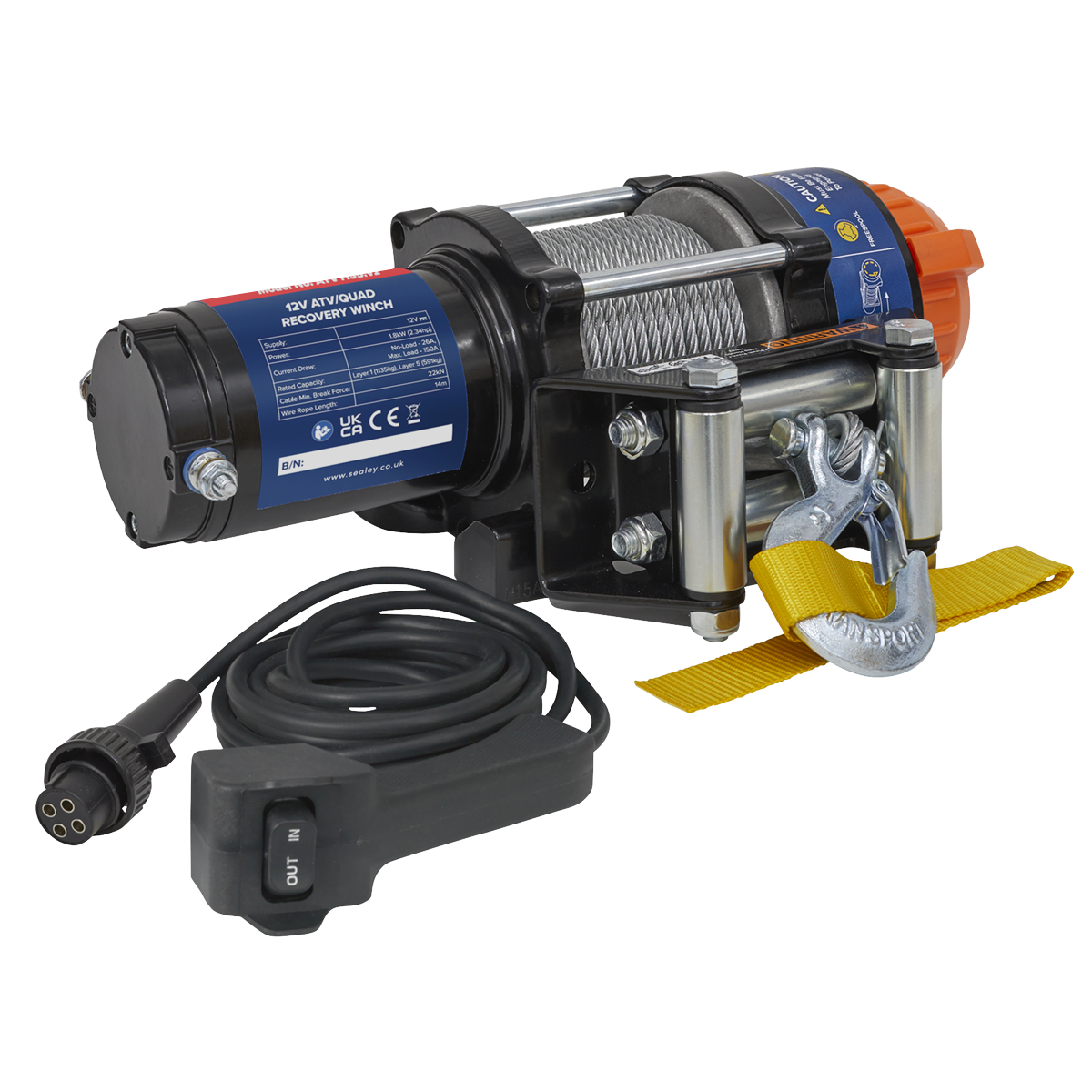

Recovering a stuck ATV or quad bike without a reliable winch can be dangerous and time-consuming. The Sealey ATV1135KIT combines the ATV1135 high-speed winch with a wireless remote control system, giving you 1,135kg (2,500lb) line pull from a 1.8kW (2.34hp) 12V DC permanent magnet motor. The wireless remote uses a 4-pin plug-and-play receiver compatible with all makes of winch, letting the operator stand well clear of the load or remain seated in the cab where no restrictions apply. The winch features a 3-stage planetary gear system with a 180:1 gear ratio, a automatic spring brake for reliable full-load operation, and a sliding ring gear clutch. High quality wire rope feeds through a 4-way roller fairlead. The IP67-rated motor and gearbox are housed in a heavy-duty all-weather casing built for the toughest conditions. Rated capacity is 1,135kg on layer 1 and 591kg on layer 5. Line speed is 4.8m/min at no load and 1.6m/min at maximum load. Current draw is 26A at no load and 150A at maximum load. Minimum cable brake force is 22kN. Compatible consumable parts include the ATV1135.WR wire rope (4.8mm x 15.2m) and ATV1135.DR Dyneema rope (4.9mm x 15.2m), both sold separately. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ATV1135KIT |
|---|---|
| Brand | Sealey |
| Cable Minimum Brake Force | 22kN |
| Consumable Parts | ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Current Draw | No-Load - 26A, Maximum Load - 150A |
| Gear Ratio | 7.50069444444444 |
| Line Pull* | 1135kg(2500lb) |
| Line Speed* | No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power | 1.8kW(2.34hp) |
| Nett Weight | 11.9kg |
| Note | *Performance quoted at first layer of cable on drum |
|
Rated Capacity:Layer 1: 1135kg, Layer 5: 591kg
|
|
| Supply | 12V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATV1135.WR | Sealey ATV1135.WR Replacement Wire Rope 4.8mm x 15.2m for ATV1135 Recovery Winch | 1 Unit |
£27.13
£26.60
|
Add |
|
SRW5450.WR | Sealey SRW5450.WR Wire Rope 9.2mm x 26m for SRW4300 & SRW5450 Winches | 1 Unit |
£97.19
£95.28
|
Add |
|
RW8180.WR | Sealey RW8180.WR Wire Rope 13mm x 25m for RW8180 Recovery Winch | 1 Unit |
£176.91
£173.44
|
Add |
|
ATV1000W.WR | Sealey ATV1000W.WR Wire Rope 4.8mm x 12m for ATV1000W Winch | 1 Unit |
£20.70
£20.29
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SRW4300KIT Self Recovery Wireless Winch 4300kg Combo Kit
£573.56
£562.31
2% OFF
Free delivery in UK Mainland
|
Sealey SRW5450KIT Self-Recovery Wireless Winch Combo Kit 5450kg 12V
£637.88
£625.37
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | SRW4300KIT | SRW5450KIT | 24441 |
| Brand | Premier | Sealey | |
| Gear Ratio | 196.6:1 | 196.6:1 | |
| Model No | SRW4300KIT | SRW5450KIT | |
| Nett Weight | 40.15kg | 40.6kg | |
| Weight (kg) | 15 | 40.6 | 74 |
A. The winch delivers a maximum line pull of 1,135kg (2,500lb), measured at the first layer of cable on the drum. Rated capacity reduces to 591kg at layer 5.
A. The winch operates on a 12V DC supply, drawing 26A at no load and up to 150A at maximum load.

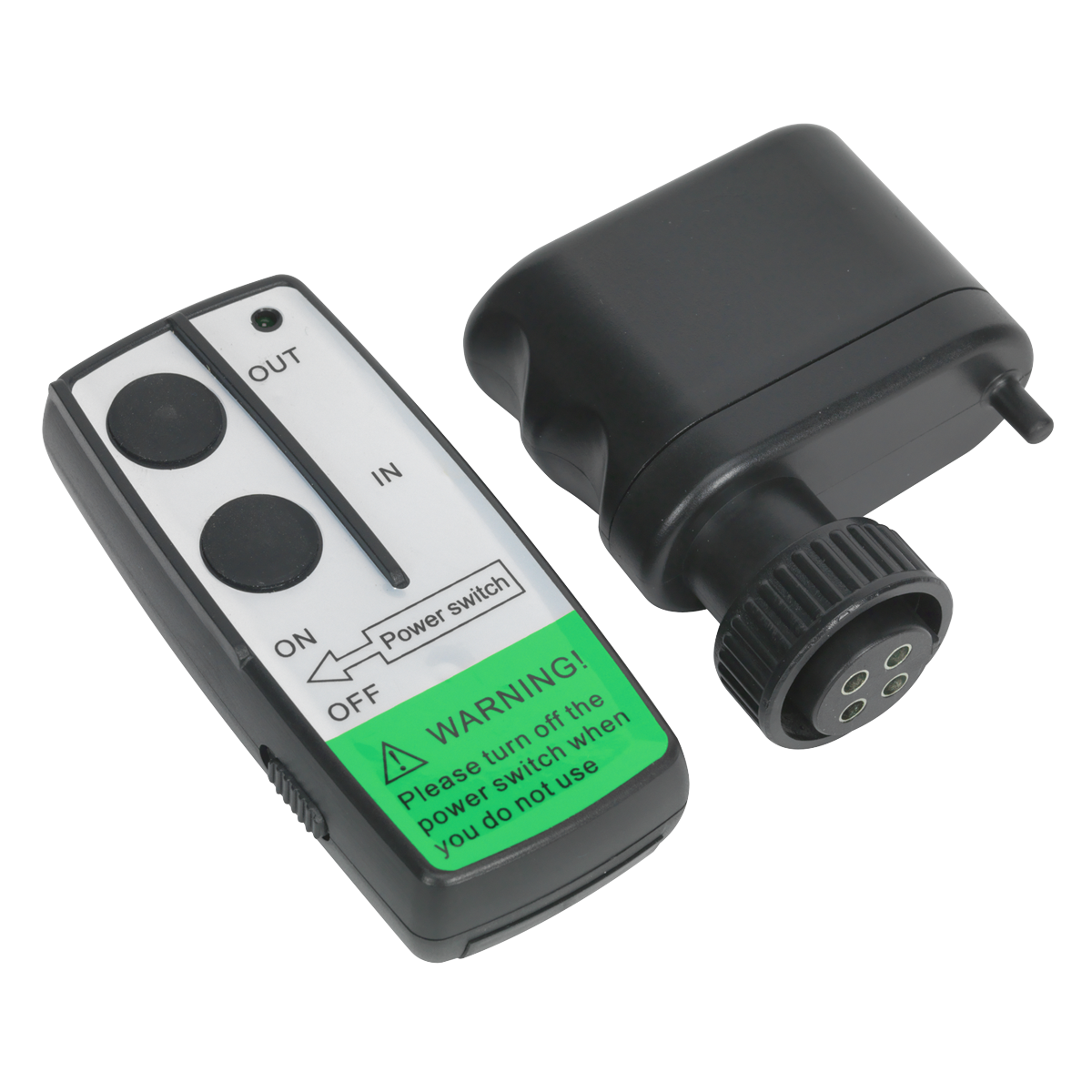

A. The wireless remote control uses a 4-pin plug-and-play receiver that is compatible with all makes of winch, allowing the operator to stand well clear of the load or remain seated in the cab provided no restrictions apply.
A. Line speed is 4.8m/min at no load and 1.6m/min at maximum load. Performance is quoted at the first layer of cable on the drum.
A. Yes. The motor and gearbox are IP67 rated and housed in a heavy-duty all-weather casing designed for tough conditions.
A. Two compatible consumable ropes are available: ATV1135.WR wire rope (Ø4.8mm x 15.2m) and ATV1135.DR Dyneema rope (Ø4.9mm x 15.2m), both designed specifically for the ATV1135.
A. The winch uses a 3-stage planetary gear system with a gear ratio of 180:1.
A. The minimum cable brake force is 22kN, provided by the automatic spring brake which is reliable in full load operation.
A. Yes, the ATV1135KIT is backed by a 3-year guarantee.
