Product Number: SRW4300

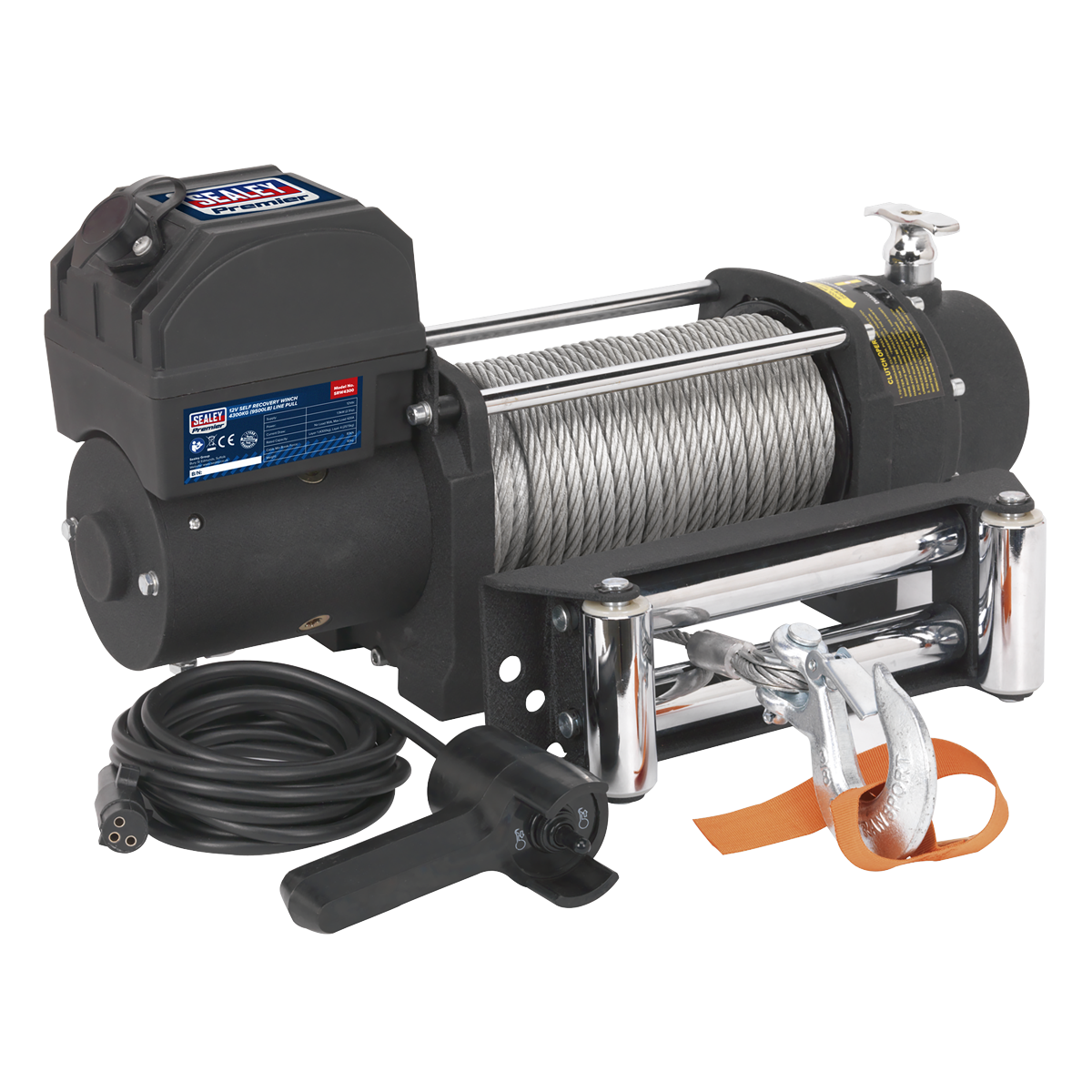

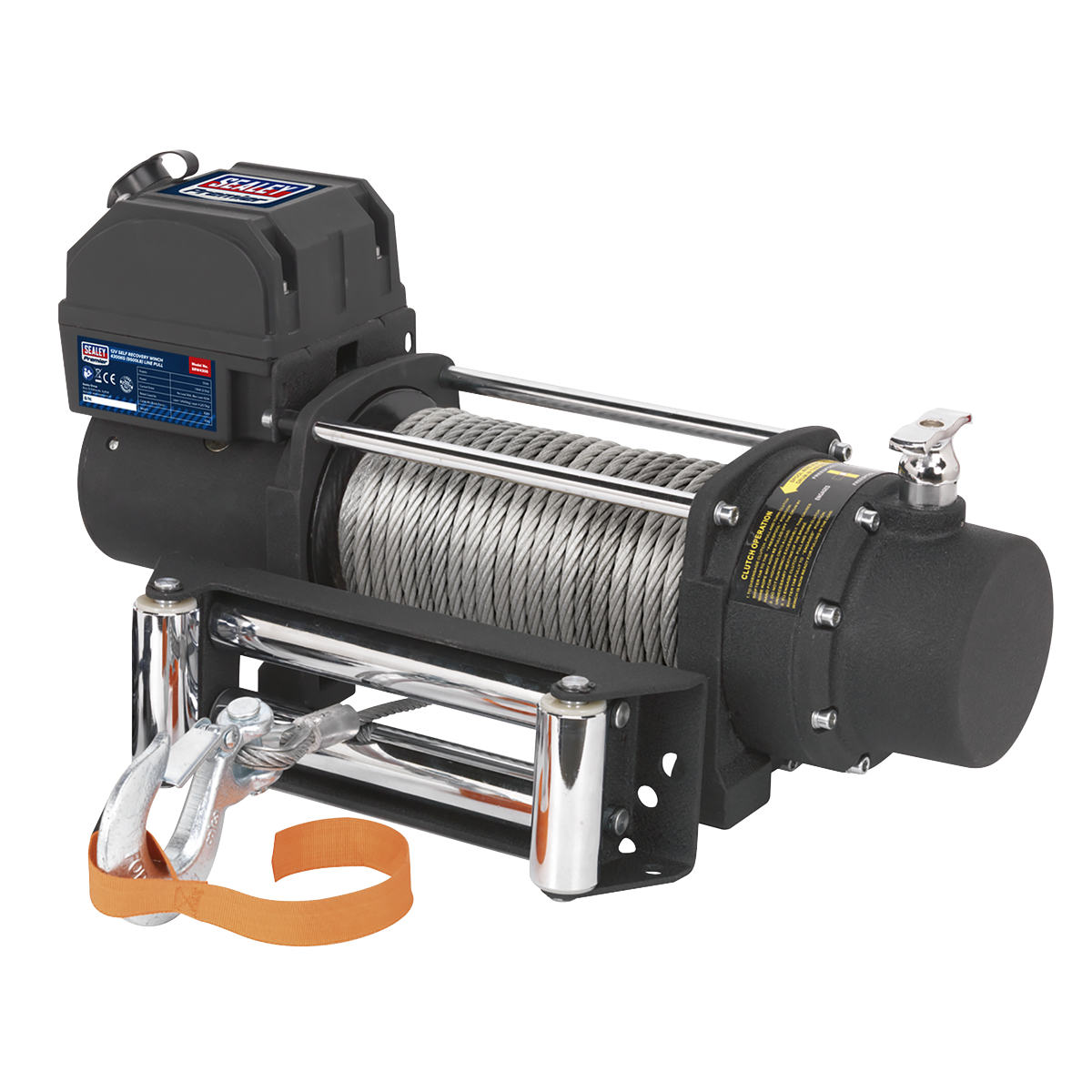

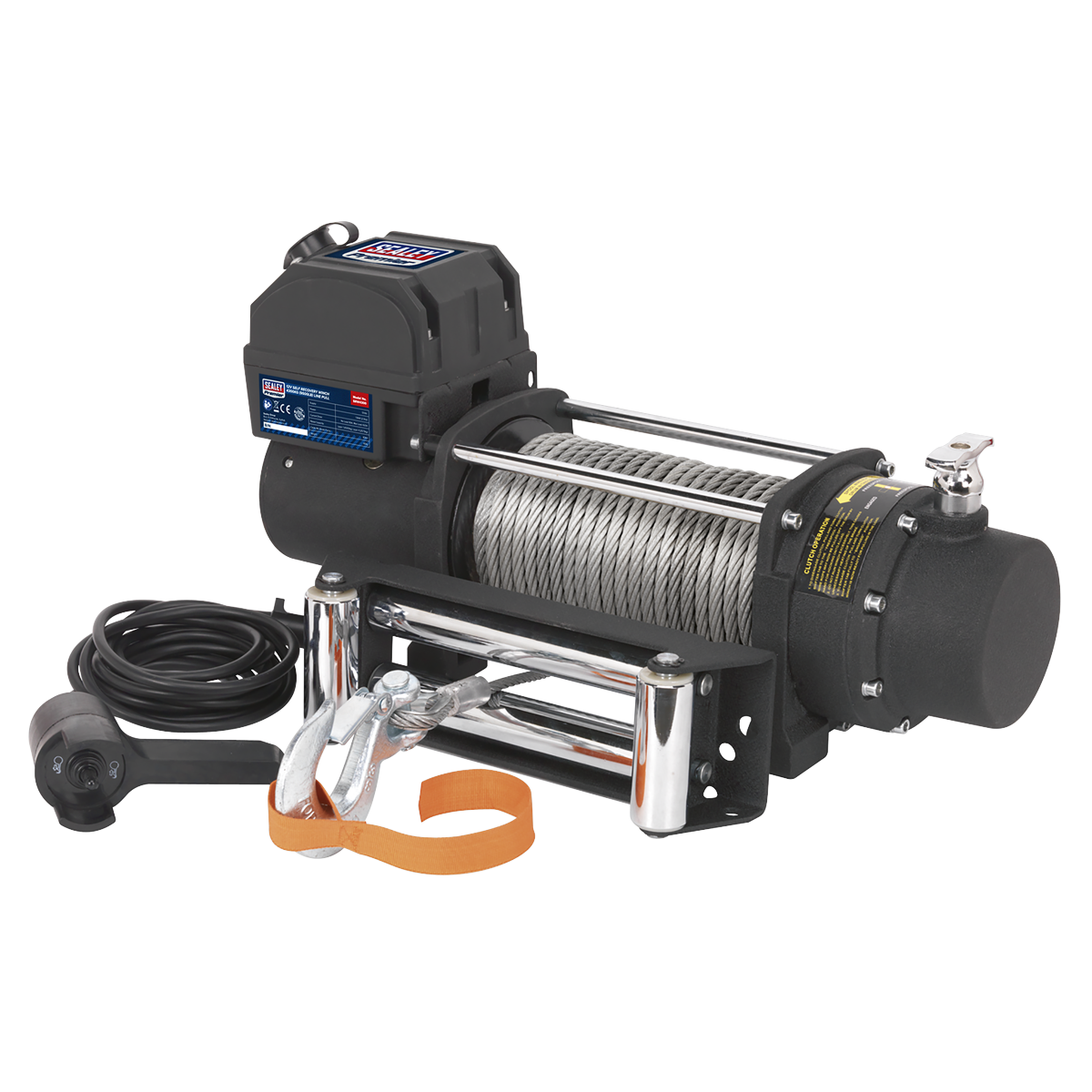

Getting stuck off-road or in difficult terrain can quickly become a serious problem without the right recovery equipment. The Sealey SRW4300 self-recovery winch delivers 4300kg (9500lb) line pull on the first layer of cable, powered by a high-power 1.9kW 12V DC series wound motor drawing up to 420A at maximum load. Built for the toughest conditions, the heavy-duty all-weather housing and solenoids carry an IP67 rating, making this winch suitable for demanding off-road and self-recovery applications. Three-stage planetary gears use oversized components for greater torque, with a gear ratio of 196.6:1 and mechanical braking built in. The 26m wire rope (9.2mm diameter) feeds through a 4-way roller fairlead for smooth, even distribution onto the drum. Line speed reaches 4.3m/min under no load and 1.6m/min at maximum load. The remote control allows cable to be powered in and out from a safe distance, while ergonomic lift-and-turn free spool clutches make operation straightforward. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SRW4300 |
|---|---|
| Brand | Premier |
| Consumable Parts | SRW5450.WR, SRW5450.DR |
| Current Draw | No-Load - 90A, Maximum Load - 420A |
|
Gear Ratio:196.6:1
|
|
| Line Pull* | 4300kg(9500lb) |
| Line Speed* | No Load - 4.3m/min, Maximum Load - 1.6m/min |
| Motor Power | 1.9kW |
| Nett Weight | 40kg |
| Note | *Performance quoted at first layer of cable on drum |
| Supply | 12V |
| Wire Rope Diameter | 9.2mm |
| Wire Rope Length | 26m |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SRW5450.WR | Sealey SRW5450.WR Wire Rope 9.2mm x 26m for SRW4300 & SRW5450 Winches | 1 Unit |
£99.49
£97.50
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey RW8180KIT Wireless Winch Combo Kit - 8180kg 12V Recovery Winch
£1,038.06
£1,017.30
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | RW8180KIT | 24441 | ATV1000W |
| Type | Recovery Winche | Recovery Winche | Recovery Winche |
| Brand | Premier | Sealey | |
| Gear Ratio | 21.5006944444444 | 6.91736111111111 | |
| Model No | RW8180KIT | ATV1000W | |
| Nett Weight | *Performance quoted at first layer of ca | 8.5kg | |
| Weight (kg) | 69 | 74 | 8.5 |
A. The SRW4300 has a line pull of 4300kg (9500lb). Please note this performance is quoted at the first layer of cable on the drum.
A. The SRW4300 operates on 12V DC and uses a series wound motor rated at 1.9kW.
A. Current draw is 90A under no load and up to 420A at maximum load.
A. The wire rope is 26m long with a diameter of 9.2mm.
A. Yes. The SRW4300 features heavy-duty all-weather housing and solenoids and carries an IP67 rating.
A. Yes. A remote control is included, allowing the cable to be powered in and out from a safe distance.
A. The gear ratio is 196.6:1, achieved through 3-stage planetary gears using oversized components for greater torque plus mechanical braking.
A. Yes. The SRW4300KIT is available as a variant in the same product family. Please check the product listing for details on what is included in the kit.
A. Consumable parts available for the SRW4300 include SRW5450.WR and SRW5450.DR.
