Product Number: RW8180KIT

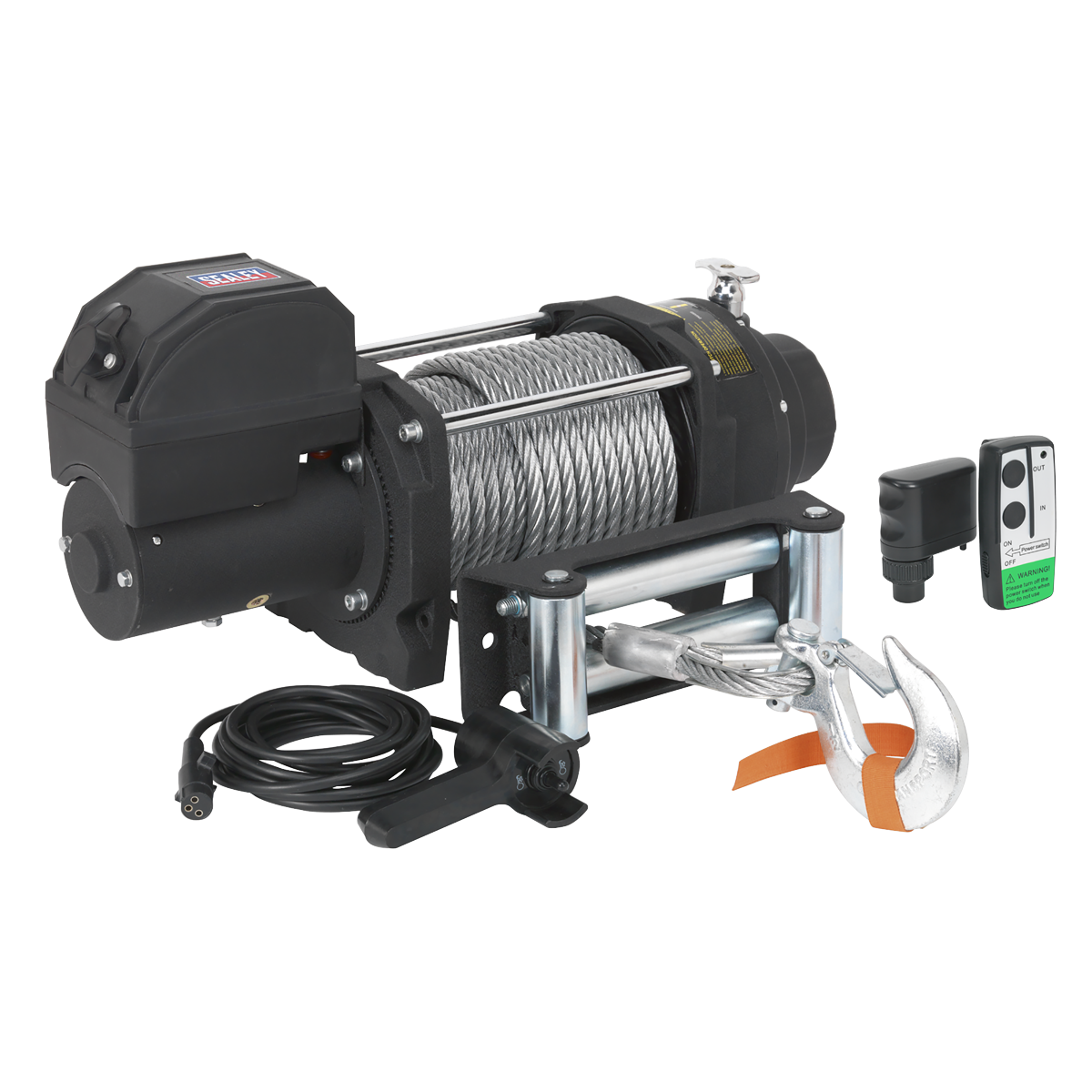

Recovery and off-road situations demand equipment that won't let you down under maximum load. The Sealey RW8180KIT is a wireless winch combo kit built around the RW8180, a heavy-duty 12V recovery winch rated at 8,180kg (18,000lb) line pull. At its heart is a 2.3kW 12V DC series wound motor paired with a 516:1 gear ratio 4-stage planetary gearbox using oversized components for greater torque, plus an automatic in-drum brake. The wireless remote control features a 4-pin plug-and-play receiver compatible with all makes of winch, letting the operator stand well clear or remain in the cab during operation. The winch is supplied with a 13mm x 25m wire rope (part RW8180.WR), latched hook, 4-way roller fairlead for smooth and even cable distribution onto the drum, and a plug-in handheld controller as standard. Weather-sealed solenoids and an ergonomic lift-and-turn free spool clutch complete the package. No-load current draw is 95A; maximum load current draw is 420A. Line speed is 3.5m/min at no load and 0.8m/min at maximum load. Weighs 69kg. Supplied with a 3-year guarantee. Ideal for flatbed pick-up trucks and other recovery vehicles.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | RW8180KIT |
|---|---|
| Brand | Premier |
| Consumable Parts | RW8180.WR - Wire Rope (Ø13mm x 25m) for RW8180 |
| Current Draw | No-Load - 95A, Maximum Load - 420A |
| Gear Ratio | 21.5006944444444 |
| Line Pull* | 8180kg(18000lb) |
| Line Speed* | No Load - 3.5m/min, Maximum Load - 0.8m/min |
| Motor Power | 2.3kW |
| Nett Weight | *Performance quoted at first layer of cable on drum |
| Note | 69kg |
| Supply | 12V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
RW8180.WR | Sealey RW8180.WR Wire Rope 13mm x 25m for RW8180 Recovery Winch | 1 Unit |
£169.27
£165.88
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 24441 | SRW4300 | ATV1000W |
| Type | Recovery Winche | Recovery Winche | Recovery Winche |
| Brand | Premier | Sealey | |
| Gear Ratio | 196.6:1 | 6.91736111111111 | |
| Model No | SRW4300 | ATV1000W | |
| Nett Weight | 40kg | 8.5kg | |
| Weight (kg) | 74 | 40 | 8.5 |
A. The winch is rated at 8,180kg (18,000lb) line pull.
A. It uses a 2.3kW 12V DC series wound motor with a 516:1 gear ratio 4-stage planetary gearbox using oversized components for greater torque.

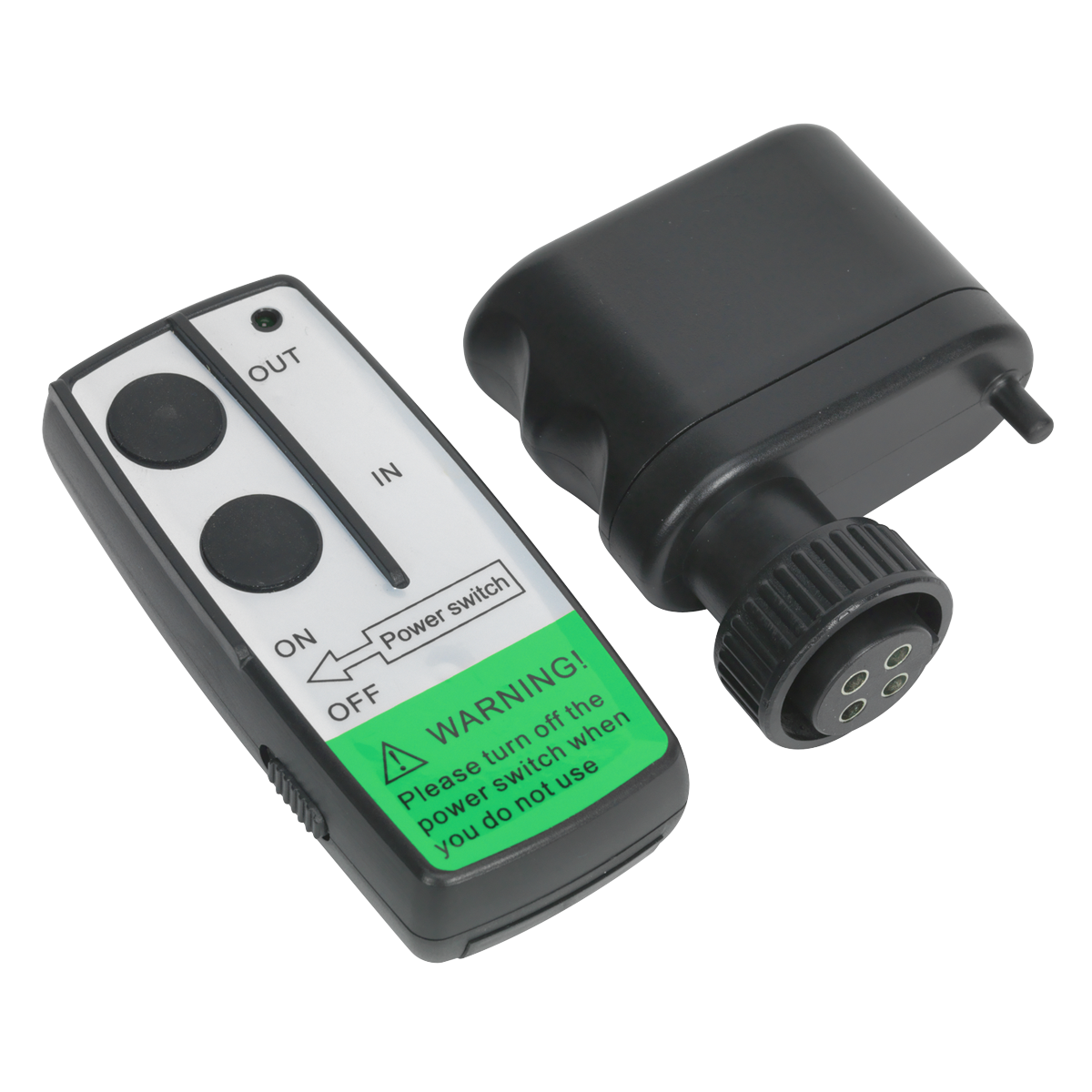

A. The wireless remote control has a 4-pin plug-and-play receiver that works with all makes of winch, allowing the operator to stand well clear or remain in the cab during operation.
A. The kit is supplied with a Ø13mm x 25m wire rope, latched hook, 4-way roller fairlead, plug-in handheld controller, and wireless remote control receiver.
A. No-load current draw is 95A and maximum load current draw is 420A. Line speed is 3.5m/min at no load and 0.8m/min at maximum load.
A. Yes. It is described as suitable for self-recovery and off-road use, and is also ideal for flatbed pick-up trucks and other recovery vehicles.
A. The supplied wire rope is Ø13mm x 25m. The replacement part number for the wire rope is RW8180.WR.
A. Yes. The RW8180KIT is supplied with a 3-year guarantee.
A. The unit weighs 69kg.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
