Product Number: ATV2040KIT

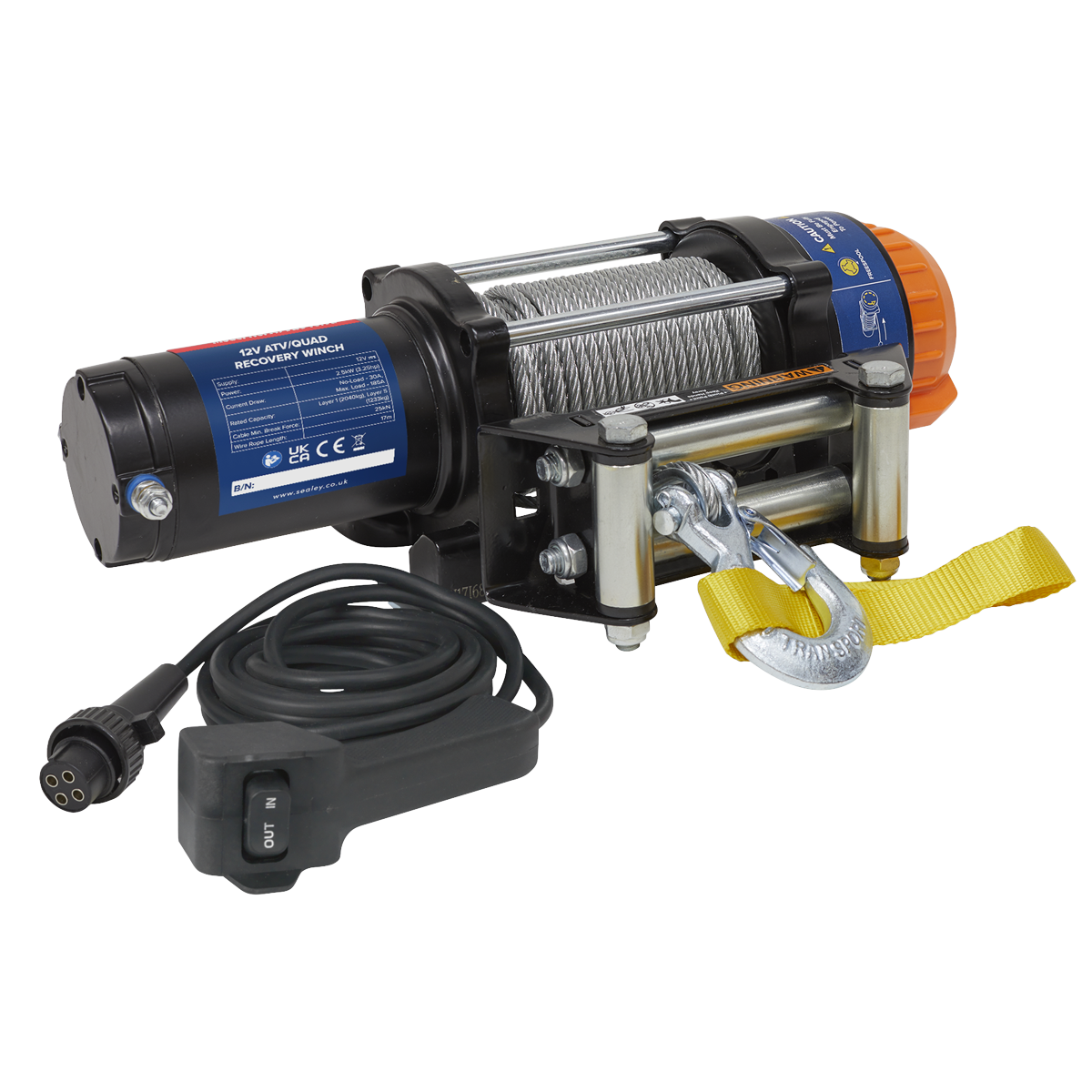

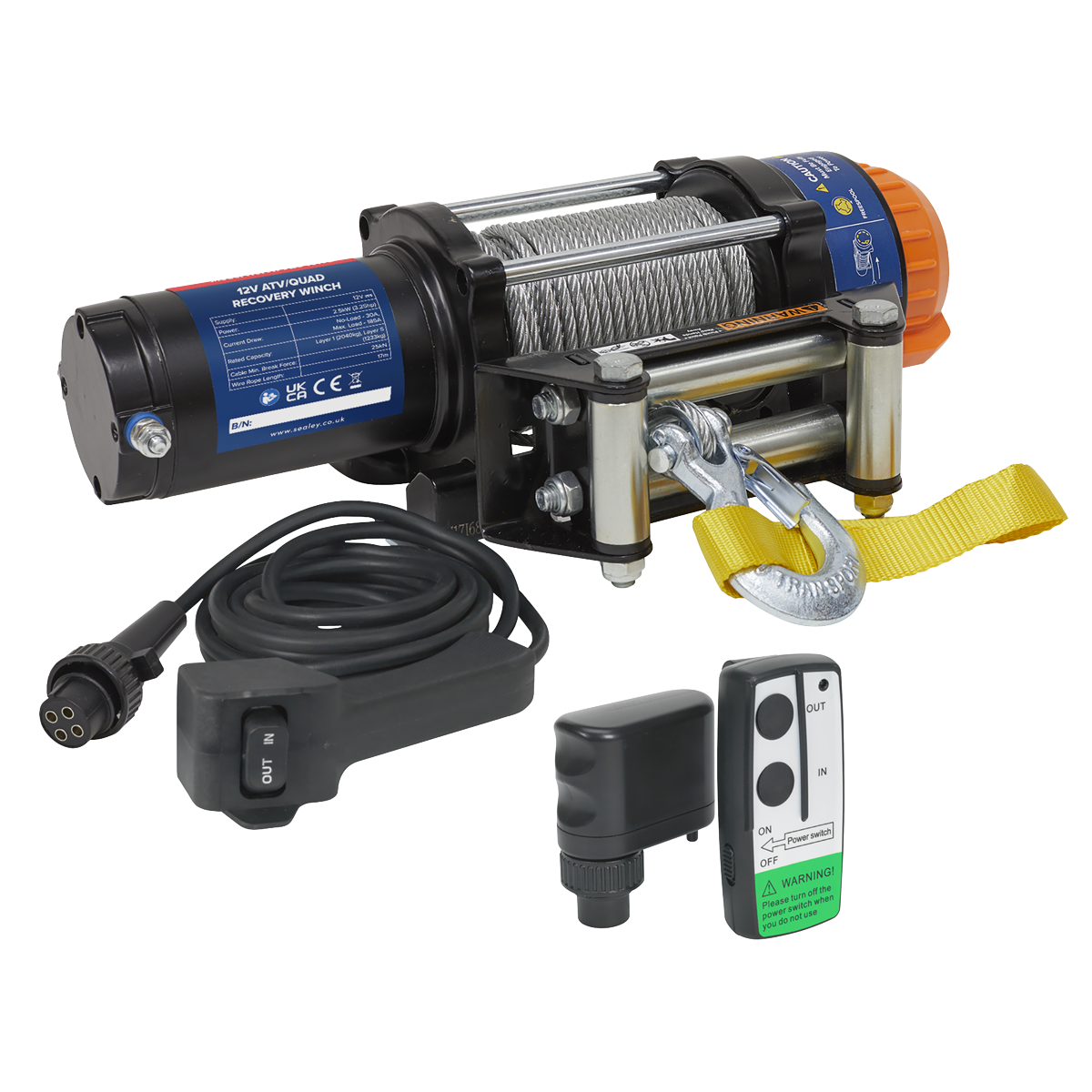

Recovering a stuck ATV or quad bike without a reliable winch or without being able to stand clear of the load puts both operator and vehicle at risk. The Sealey ATV2040KIT Wireless Winch Combo Kit addresses both problems. Designed and built with the toughest jobs in mind, it delivers 2040kg (4500lb) of line pull powered by a high-power 2.5kW (3.25hp) 12V DC motor with permanent magnet for first-class pulling performance. The wireless remote control features a 4-pin plug-and-play receiver that works with all makes of winch, allowing the operator to stand well clear of the load or remain in the cab where conditions allow significantly improving safety. A unique automatic spring brake ensures reliable performance under full load, while 3-stage planetary gears with a 180:1 gear ratio provide controlled pulling power. The high-quality wire rope feeds through a 4-way roller fairlead, and the motor and gearbox carry an IP67 rating for all-weather reliability. A sliding ring gear clutch and heavy-duty all-weather housing complete the package. Line speed is 4.5m/min at no load and 1.3m/min at maximum load, with current draw of 30A at no load and 185A at maximum load. Performance figures are quoted at the first layer of cable on the drum. Backed by a 3 Year Guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ATV2040KIT |
|---|---|
| Brand | Sealey |
| Consumable Parts | ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040 |
| Current Draw | No-Load - 30A, Maximum Load - 185A |
| Gear Ratio | 7.50069444444444 |
| Line Pull* | 2040kg(4500lb) |
| Line Speed* | No Load - 4.5m/min, Maximum Load - 1.3m/min |
| Motor Power | 2.5kW(3.25hp) |
| Nett Weight | 14.05kg |
| Note | *Performance quoted at first layer of cable on drum |
| Supply | 12V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATV2040.WR | Sealey ATV2040.WR Replacement Wire Rope 5.4mm x 17m for ATV2040 Winch | 1 Unit |
£32.50
£31.86
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey WDS1COMBO Winch Stand Deal - Display Stand with Winch Selection
£1,968.90
£1,929.52
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | WDS1COMBO | ATV1000W | 24441 |
| Type | Recovery Winche | Recovery Winche | Recovery Winche |
| Brand | Sealey | Sealey | |
| Gear Ratio | 6.91736111111111 | ||
| Model No | WDS1COMBO | ATV1000W | |
| Nett Weight | 8.5kg | ||
| Weight (kg) | 8.5 | 74 | |
A. The winch delivers a line pull of 2040kg (4500lb), measured at the first layer of cable on the drum.
A. Yes. It is specifically designed for ATV and quad bike mounting, offering a combination of performance and durability for these applications.

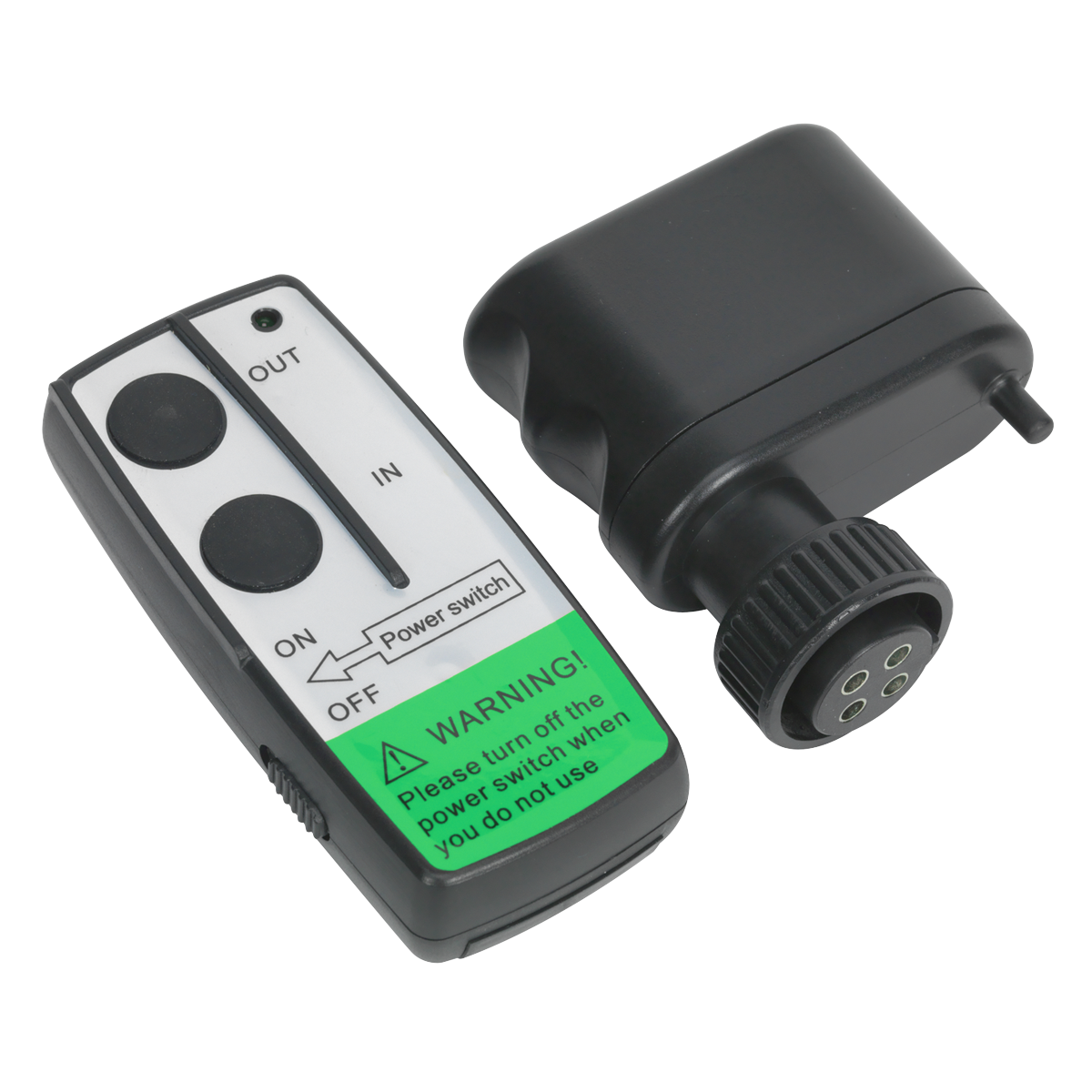

A. The wireless remote control uses a 4-pin plug-and-play receiver that is described as compatible with all makes of winch, allowing the operator to stand well clear of the load or sit in the cab, provided there are no restrictions.
A. The motor and gearbox are IP67 rated, providing protection for all-weather use.
A. Line speed is 4.5m/min at no load and 1.3m/min at maximum load. Current draw is 30A at no load and 185A at maximum load. Performance is quoted at the first layer of cable on the drum.
A. It uses a high-power 12V DC motor with permanent magnet rated at 2.5kW (3.25hp), with a 180:1 gear ratio via 3-stage planetary gears.
A. Yes. Compatible consumable parts listed are ATV2040.WR (wire rope Ø5.4mm x 17m for ATV2040) and ATV2040.DR (Dyneema rope Ø5.5mm x 17m for ATV2040).
A. Yes, the ATV2040KIT is backed by a 3 Year Guarantee.
A. The winch features a unique automatic spring brake that is reliable in full load operation, a sliding ring gear clutch, and a wireless remote that allows the operator to stand well clear of the load during operation.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
