Product Number: 03661

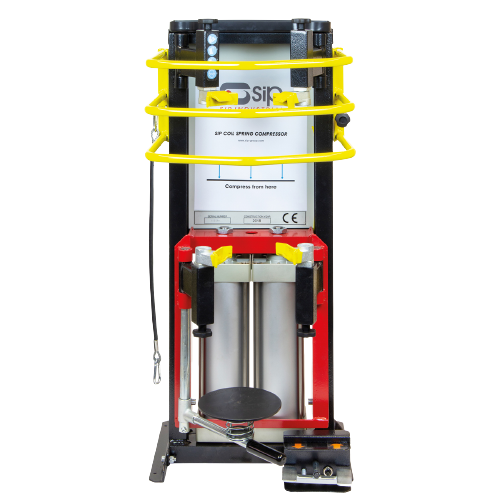

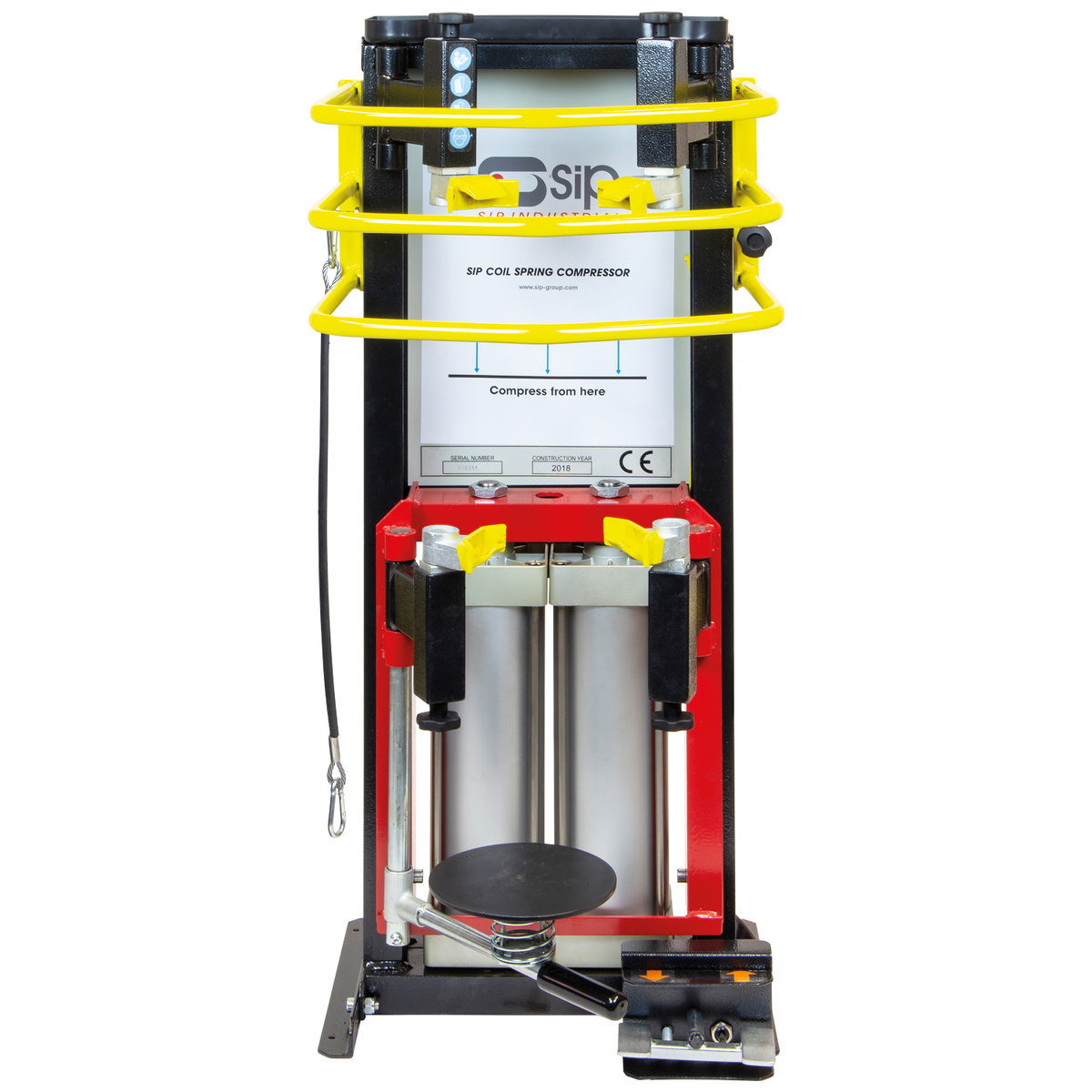

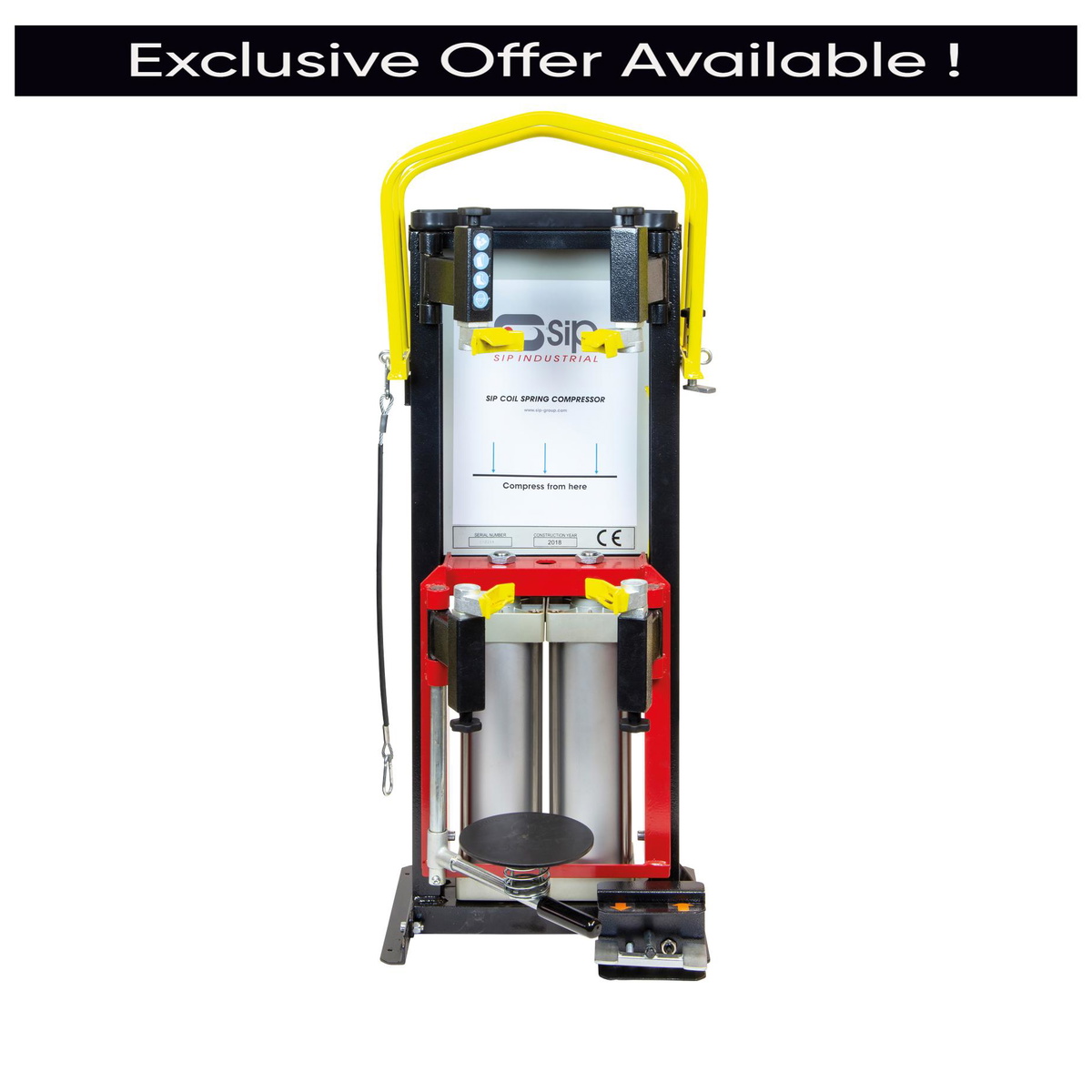

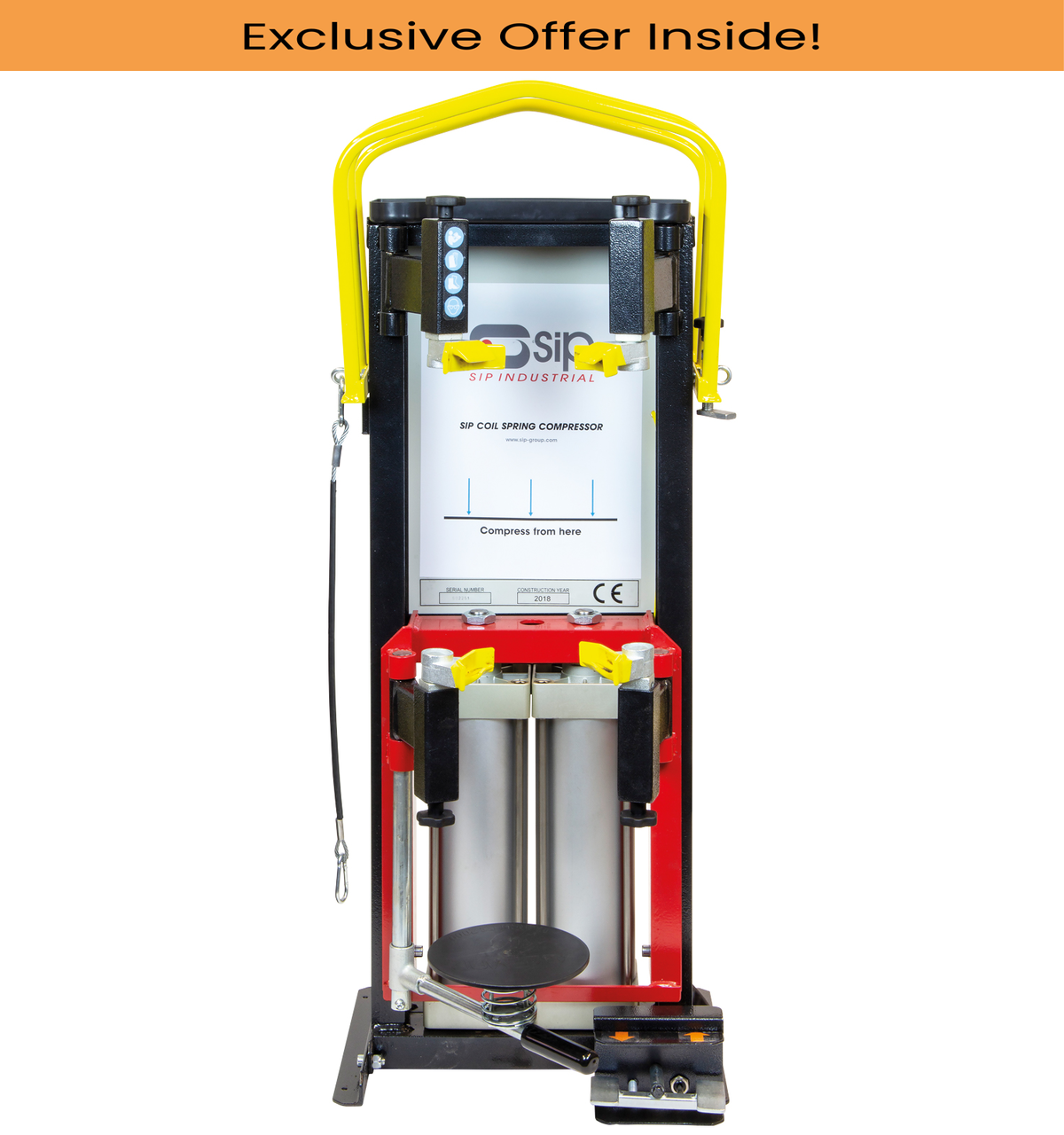

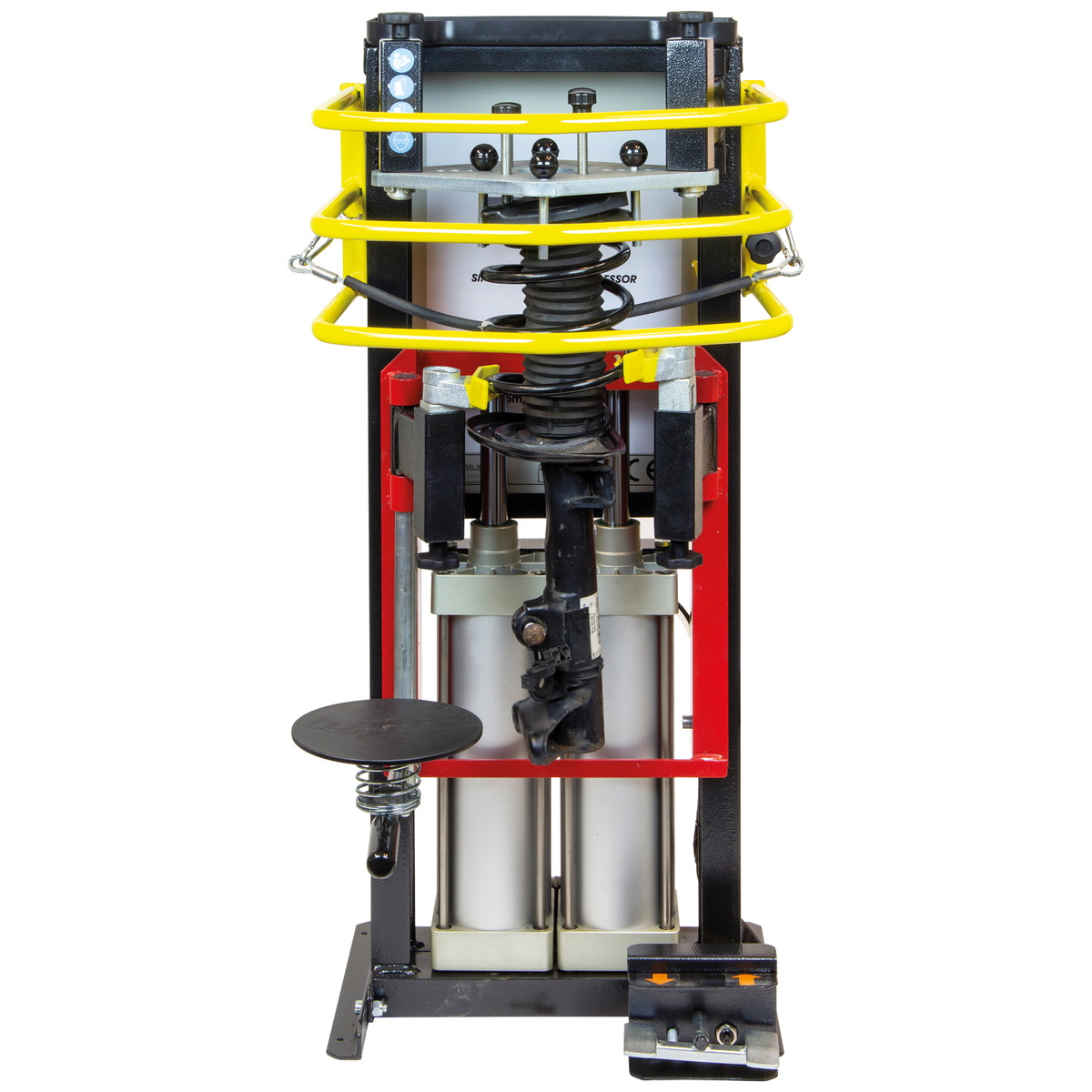

The SIP 03661 Pneumatic Coil Spring Compressor is a workshop-grade pneumatic tool designed to compress coil springs safely and powerfully across a variety of cars, SUVs and vans. With a maximum compression force of 2400kg (5291lb), it is built to handle demanding automotive suspension work in professional garages and workshops.

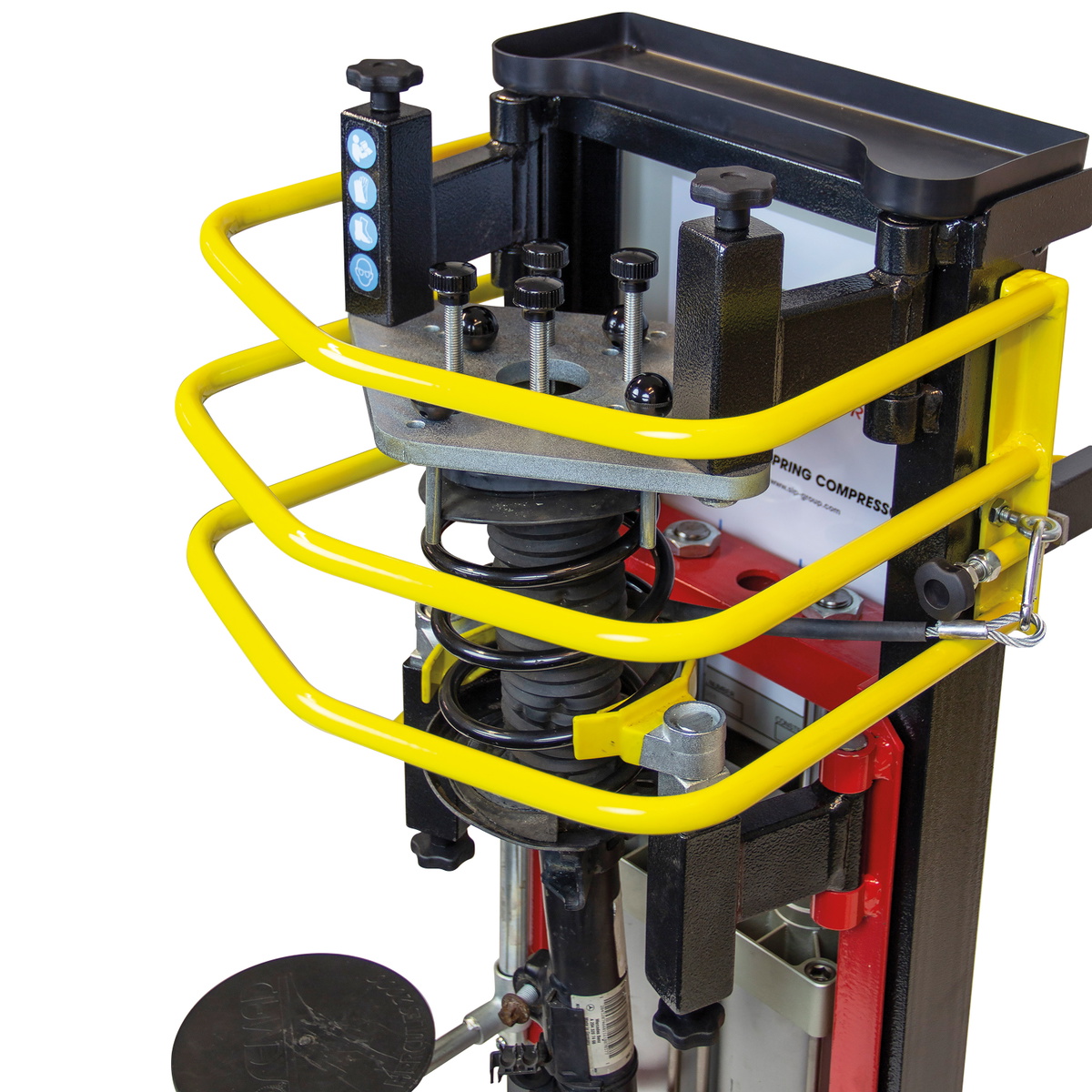

Safety is central to the design of the SIP 03661. A heavy-duty triple bar safety cage must be lowered and locked into position before the compressor will operate — an interlock that prevents use without this critical protection in place. A retention cable fitted with steel carabiners provides a further layer of security around the spring, helping to contain any spring should it become dislodged or damaged under load. The patented coil spring claws and a movable footplate beneath the spring work together to deliver secure, reliable load contact throughout the entire compression cycle.
The 2400kg compression force is generated by dual integrated pneumatic rams, with an air inlet pressure range of 73psi (5bar) to 145psi (10bar) via a 1/4" BSP female air inlet connection. An integrated foot pedal allows straightforward, hands-free operation during compression, keeping the operator's hands free to guide and manage the spring.
The SIP 03661 is backed by the SIP 2-Year Standard Silver Warranty and is manufactured in Italy.
Additional Information:
The SIP Pneumatic Coil Spring Compressor prioritises user safety first and foremost, incorporating a selection of robust and reliable safety components to ensure minimal risk of harm should a coil spring become dislodged or damaged while under load. A heavy-duty triple bar safety cage can be lowered and locked into position. Without the safety cage put down into place, this spring compressor will not operate. As an added layer of security around the spring, the frame of the compressor is built with a retention cable and steel carabiners which can be hooked into place. The combination of patented coil spring claws and a movable footplate underneath the spring provide secure and reliable load contact before, during and after compression. These safety features do not compromise the powerful 2400kg spring compression this compressor can offer, which is achieved by dual integrated pneumatic rams. Perfect for garages and workshops, and suitable for a variety of cars, SUVs and vans.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03661 |
|---|---|
| Max. Compression | 2400kg (5291lb) |
| Air Inlet Pressure | 73psi (5bar) - 145psi (10bar) |
| Air Inlet | 1/4" BSP (Female) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
03663 | SIP 03663 Universal Spring Compressor Top Plate | 1 Unit |
£292.84
£287.10
|
Add |
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant GO340 MECHANICAL COIL SPRING COMPRESSOR
£471.43
£462.19
2% OFF
Free delivery in UK Mainland
|
Sealey RE300 Air Operated Coil Spring Compressor 1000kg
£1,101.72
£1,079.69
2% OFF
Free delivery in UK Mainland
|
Sealey VS7011 Hydraulic Coil Spring Compressor 1000kg
£298.01
£292.05
2% OFF
Free delivery in UK Mainland
|
Sealey RE230UK Upgrade Kit - RE230 to RE231 Coil Spring Compressor
£157.88
£154.72
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GO340 | VS1824 | RE300 | VS7011 | RE230UK | RE250 |
| Type | Spring Compressor | Spring Compressor | Spring Compressor | Spring Compressor | Spring Compressor | |
| Brand | Sealey | Sealey | Sealey | Sealey | ||
| Drive Size (Inch) | 3 | |||||
| Length (mm) | 100 | 17 | 420 | 240 | 130 | 21 |
| Model No | 1824 | RE300 | VS7011 | RE230UK | RE250 | |
| Nett Weight | 63.4kg | 18.62kg | 12.86kg | 11.4kg | ||
| Weight (kg) | 6 | 93 | 63.4 | 62 | 86 | 11.4 |
| Show More | ||||||
A. The SIP 03661 delivers a maximum compression force of 2400kg (5291lb), achieved via dual integrated pneumatic rams.
A. The compressor requires an air inlet pressure between 73psi (5bar) and 145psi (10bar), connected via a 1/4" BSP female air inlet.
A. The SIP 03661 includes a heavy-duty triple bar safety cage that must be lowered and locked before the unit will operate, a retention cable with steel carabiners to secure the spring, patented coil spring claws for reliable load contact, and a movable footplate beneath the spring.
A. No — the compressor is designed so that it will not operate unless the triple bar safety cage has been lowered and locked into position.
A. The SIP 03661 is suitable for use on a variety of cars, SUVs and vans, making it well suited to general automotive workshop and garage use.

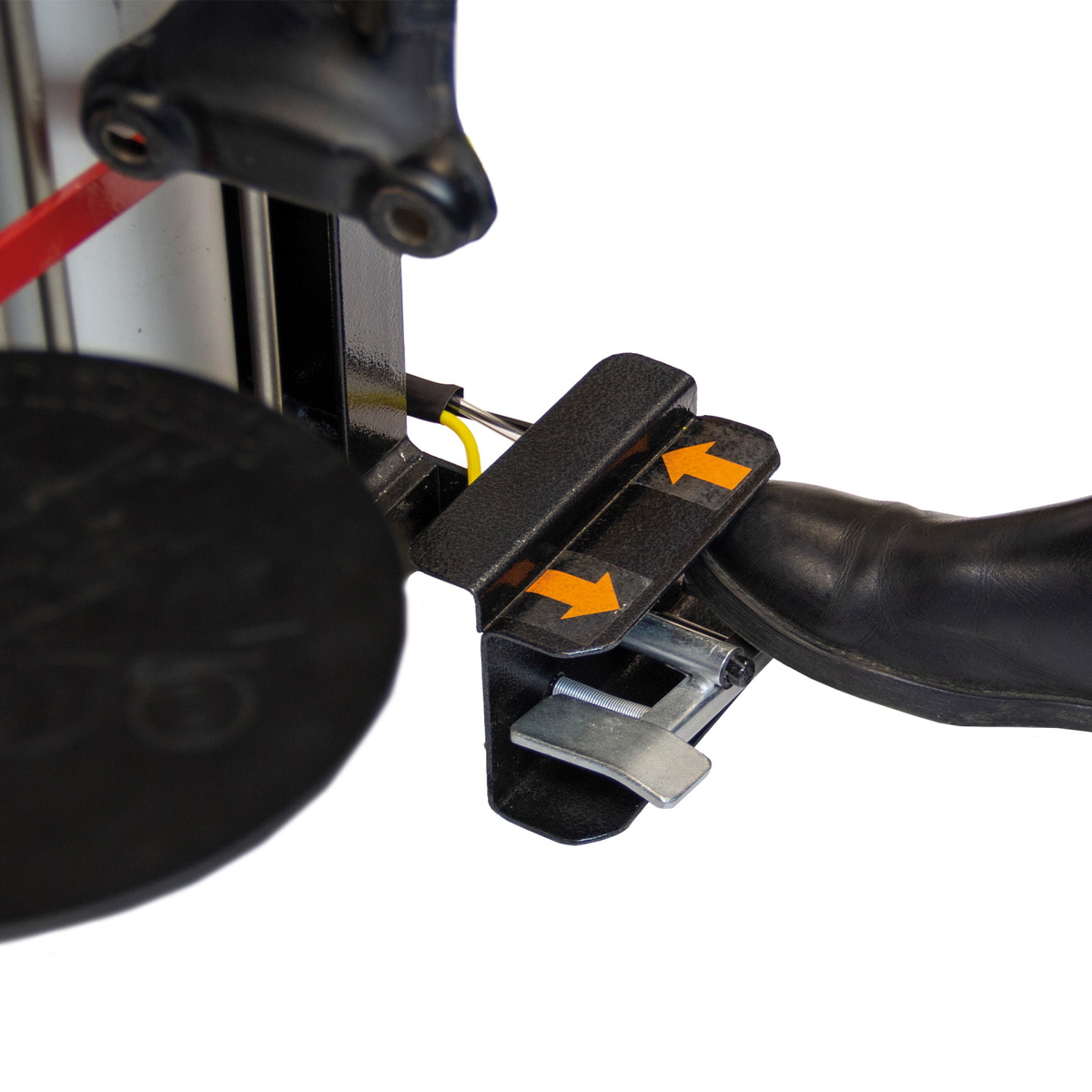

A. Compression is controlled via an integrated foot pedal, allowing straightforward and easy operation while keeping both hands free to manage the spring.
A. The SIP 03661 is covered by the SIP 2-Year Standard Silver Warranty.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.,
