Product Number: PP40PLUS
Variations

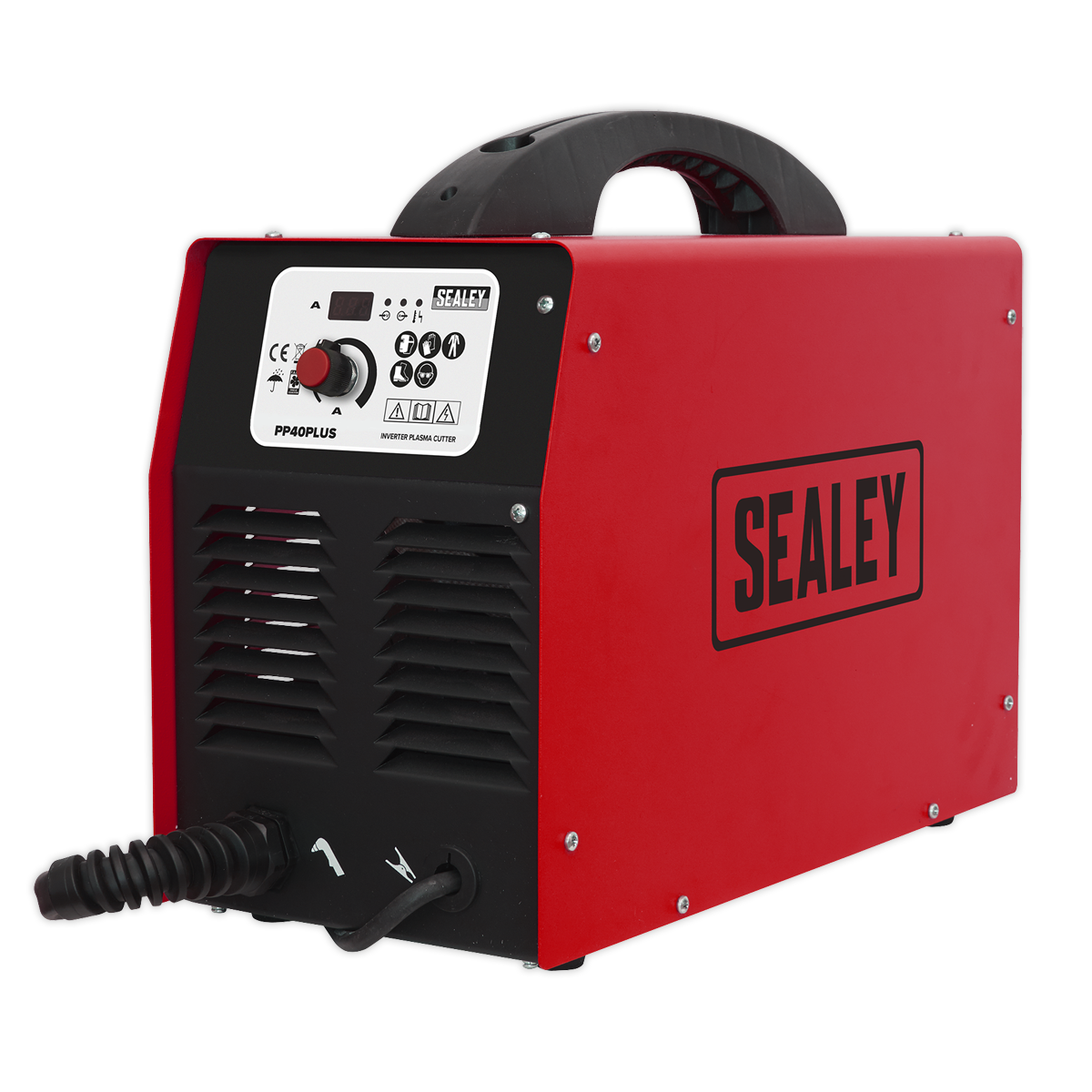

Plasma cutting away from a fixed air supply, or where space and weight matter, typically means managing a separate compressor alongside your cutting equipment. The Sealey PP40PLUS solves this by integrating the compressor directly into the unit, keeping the overall weight to just 18.5kg. The PP40PLUS is an IGBT inverter plasma cutter with a built-in compressor, eliminating the need for a secondary air supply unit. Power output is adjustable from 15 to 40A, displayed clearly on an LED readout with dial adjustment, and duty cycles are 60% at 25A, 30% at 35A, and 20% at 40A. Maximum cutting thickness is 10mm. It is suitable for cutting steel, stainless steel, galvanised steel, aluminium, copper, and brass. Because it uses air to strike the arc, it is suitable for use near electrical equipment. The unit is supplied with a built-in 4m plasma torch, earth cable, and 4m gas hose. Absorbed power is 6.9kW on a 230V supply. Insulation class is F and protection rating is IP21S. Consumables available separately include PP40PLUS.E electrodes (short, pack of 5) and PP40PLUS.N nozzles (short, pack of 5).
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PP40PLUS |
|---|---|
| Brand | Sealey |
| Nett Weight | 18.5kg |
| Power Output | 15-40A |
| Duty Cycle | 20% @ 40A 30% @ 35A , 60% @ 25A |
| Maximum Cutting Thickness | 10mm |
| Air Requirements | Integral Compressor |
| Air Pressure | n/a |
| Absorbed Power | 6.9kW |
| Supply | 230V* |
| Insulation | F |
| Protection | IP21S |
| Nett Weight | 18.5kg |
| Accessories* | Yes |
|
Replacement Consumables -
|
|
| Electrode, Short (Pack of 5) | PP40PLUS.E (x5) |
| Electrode, Long (Pack Qty) | |
| Nozzle, Short (Pack of 5) | PP40PLUS.N (x5) |
| Diffuser (Pack of 5) | PP40PLUS.D (x5) |
| Safety Cap (Pack of 2) | PP40PLUS.SC (x2) |
| Note | *To achieve maximum power a 32A supply may be required. |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
PP40PLUS.E | Sealey PP40PLUS.E Welding Electrodes Short Low Power - Pack of 5 | 1 Unit |
£21.75
£21.32
|
Add |
|
PP40PLUS.D | Sealey PP40PLUS.D Welding Diffuser for PP40PLUS - Pack of 5 | 1 Unit |
£50.65
£49.66
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke Plasma King 20CI Plasma Cutter with Built-in Air Compressor
£945.75
£927.21
2% OFF
Free delivery in UK Mainland
|
SIP 05683 Plasma Cutter with Internal Compressor 230V, Single Phase 25A
£551.40
£540.59
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 6016020 | PP25E | 05683 | CAP0951 |
| Input Supply | 400 | |||
| Input current | 20 | |||
A. No. The PP40PLUS features an integral compressor built into the unit, removing the need for a separate secondary compressor.
A. The PP40PLUS is adjustable from 15 to 40A. Duty cycles are 60% at 25A, 30% at 35A, and 20% at 40A.
A. The PP40PLUS has a maximum cutting thickness of 10mm.
A. It is suitable for cutting steel, stainless steel, galvanised steel, aluminium, copper, and brass.
A. Yes. Because it uses air to strike the arc rather than a high-frequency start, it is suitable for use near electrical equipment.
A. The PP40PLUS is supplied with a built-in 4m plasma torch, earth cable, and 4m gas hose.
A. Compatible consumables available separately include PP40PLUS.E short electrodes (pack of 5) and PP40PLUS.N short nozzles (pack of 5).
A. The PP40PLUS requires a 230V supply and has an absorbed power of 6.9kW. Insulation class is F and protection rating is IP21S.
A. Related variants within the same product line include PP40E, PP40E.N, PP40E.SC, and PP40PLUS.N. Contact Parts for Machines to confirm which version best suits your requirements.
