Product Number: WST10000

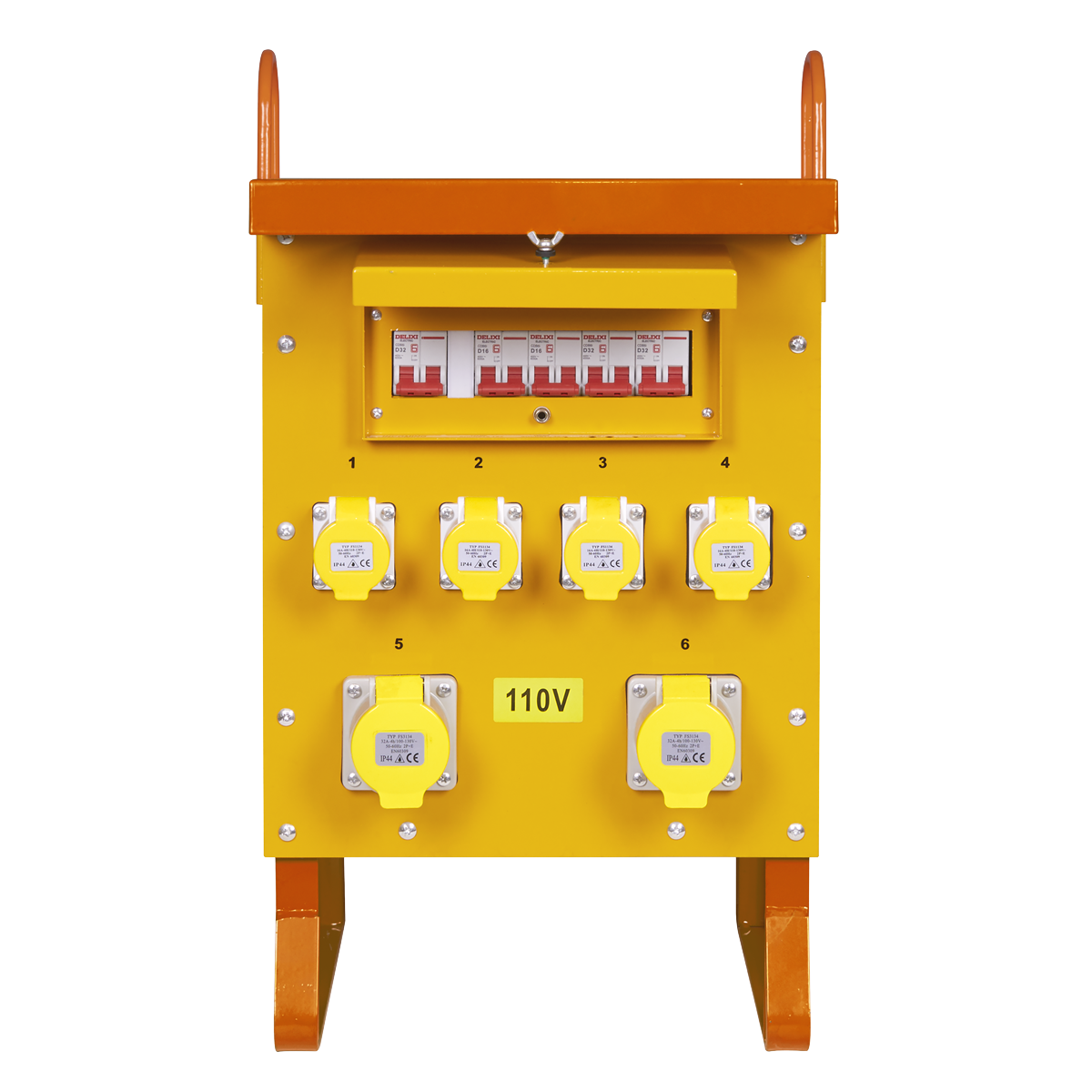

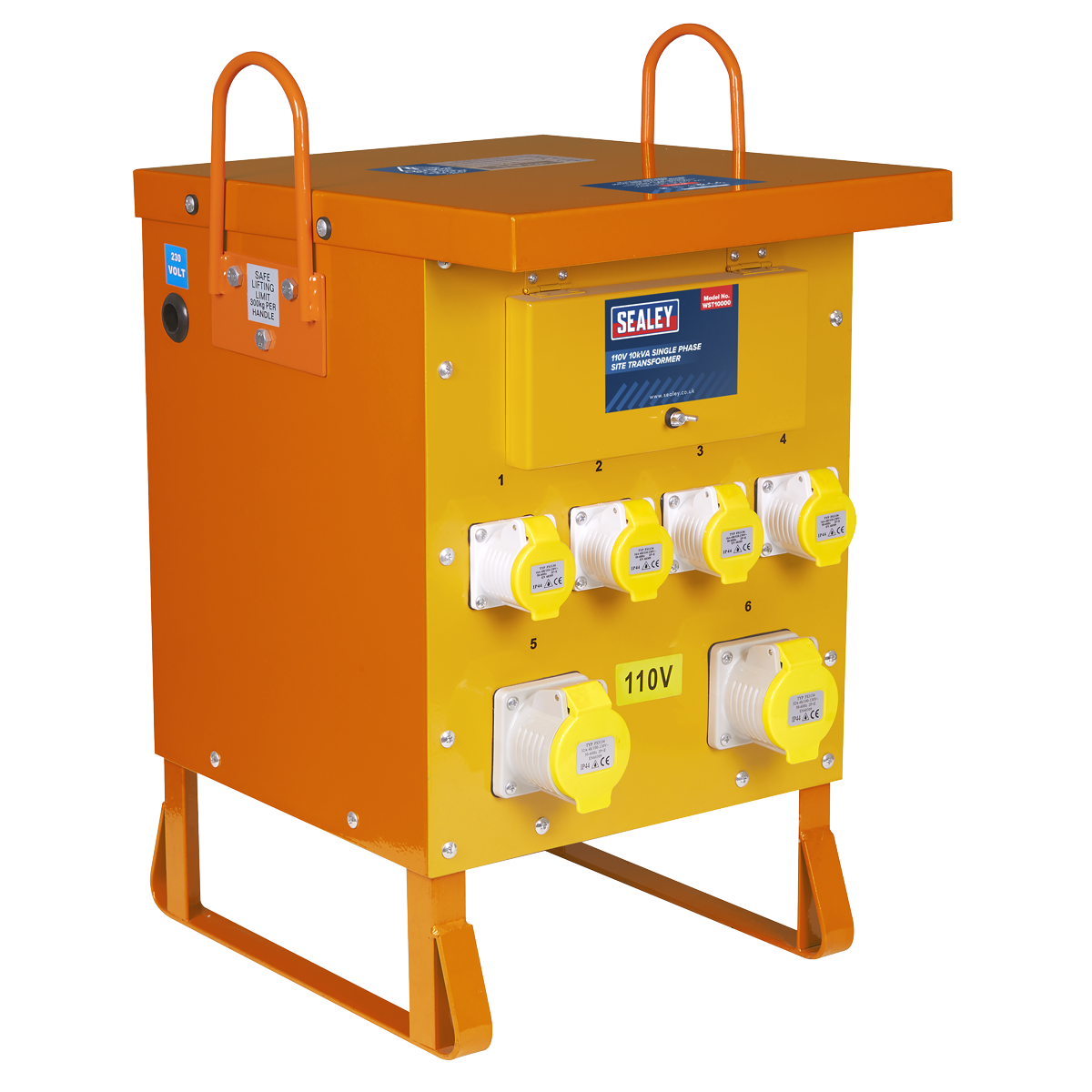

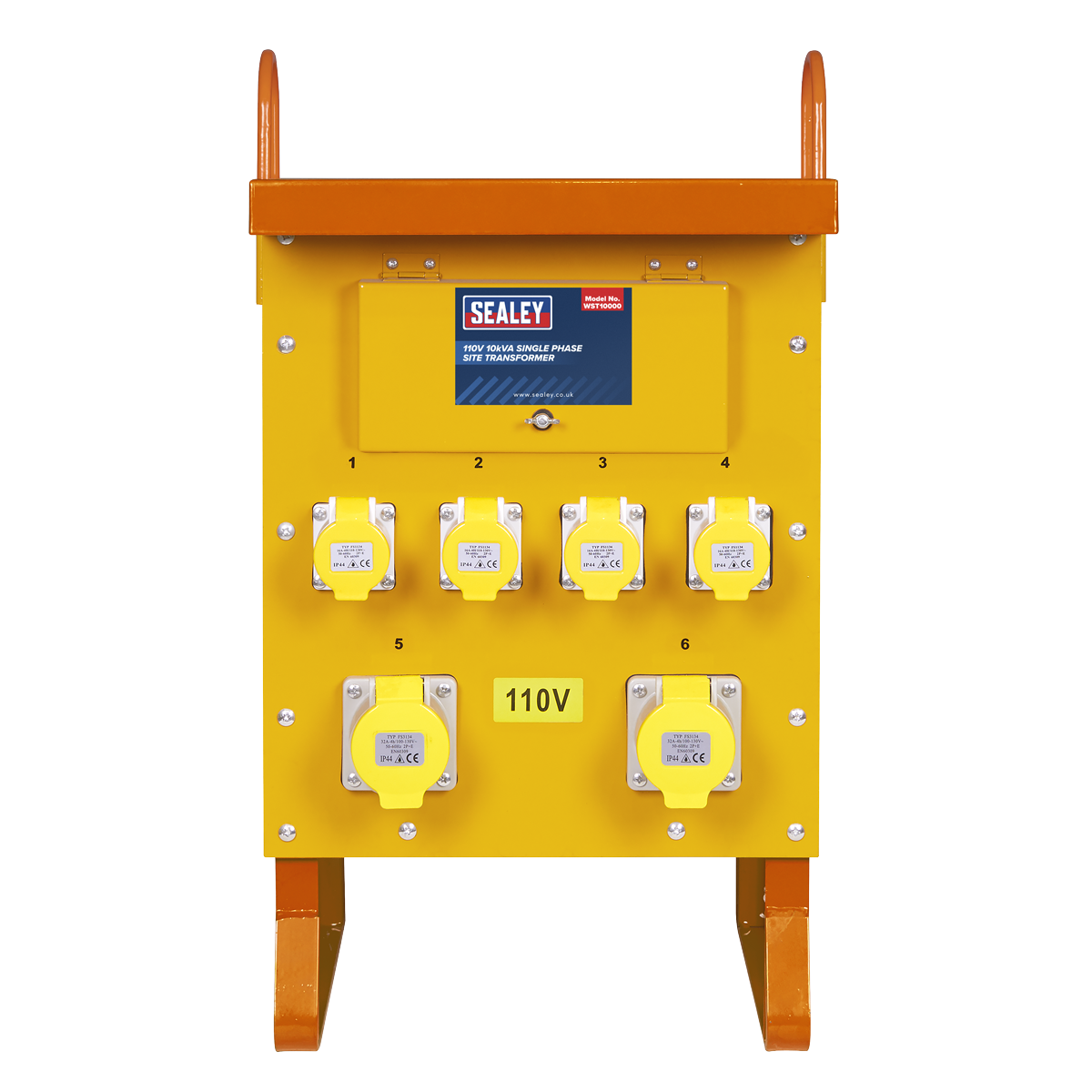

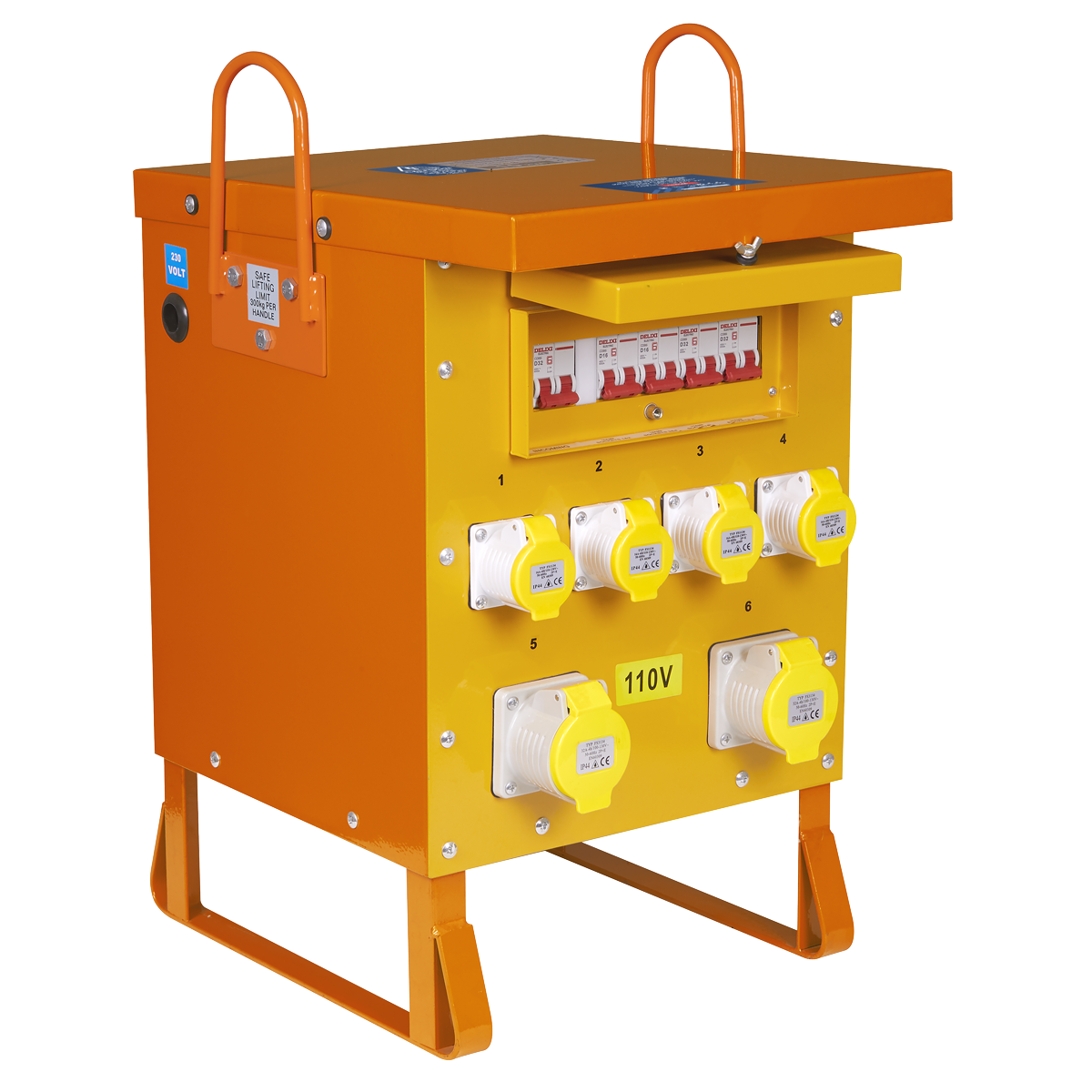

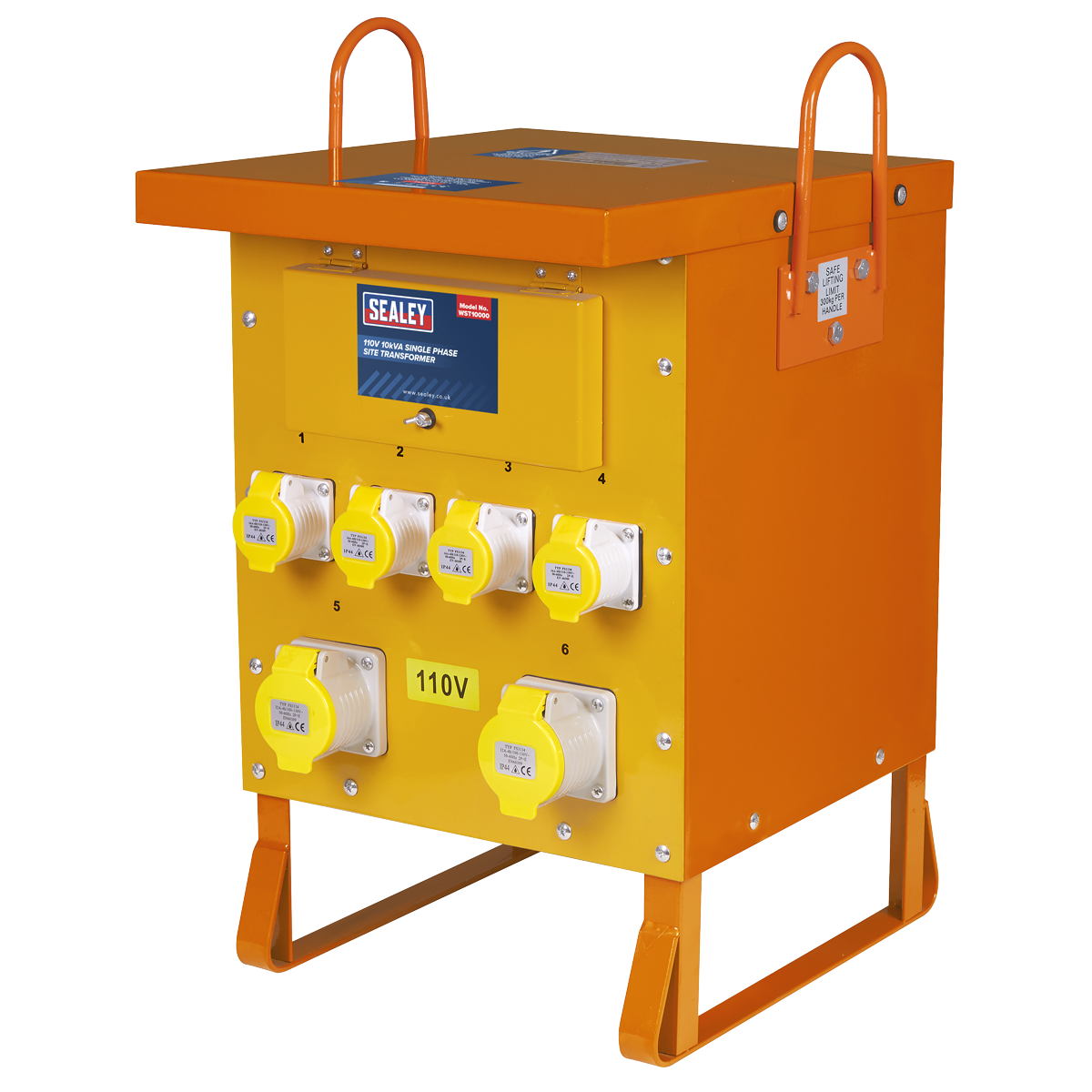

On construction sites where 230V mains power is unavailable or restricted, a reliable 110V site transformer is essential for running power tools and lighting safely. The Sealey WST10000 is a 10kVA single-phase site transformer with a continuous rating of 7000VA and a power factor of 0.93 COSφ, suitable for intermittent running of power tools and continuous running of lighting products within its specified capacity. The steel case carries an IP44 rating for protection against dust and water ingress, and is fitted with heavy-duty handles to aid positioning on site. Six output sockets are provided 2 x 32A/110V and 4 x 16A/110V giving flexible connection for multiple tools and lighting circuits simultaneously. A miniature circuit breaker is fitted, with MCB protection on both input and output: a single 32A 2-pole Type D MCB on the input, two 32A 2-pole Type D MCBs and two 16A 2-pole Type D MCBs on the output. The earth type is centre tapped to earth, in line with standard site transformer practice. Rated for an average temperature range of 20°C to 30°C.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | WST10000 |
|---|---|
| Brand | Sealey |
| Continuous Rating | 7000VA |
| Nett Weight | 69.52kg |
| Output | 4 x 110V ~ 16A |
|
2 x 110V ~ 32A
|
|
| Power Factor | 0.93 COSφ |
| IP Rating | IP44 |
|
Average Temperature: ta: 20°C – 30°C
|
|
| Earth Type | Centre Tapped to Earth |

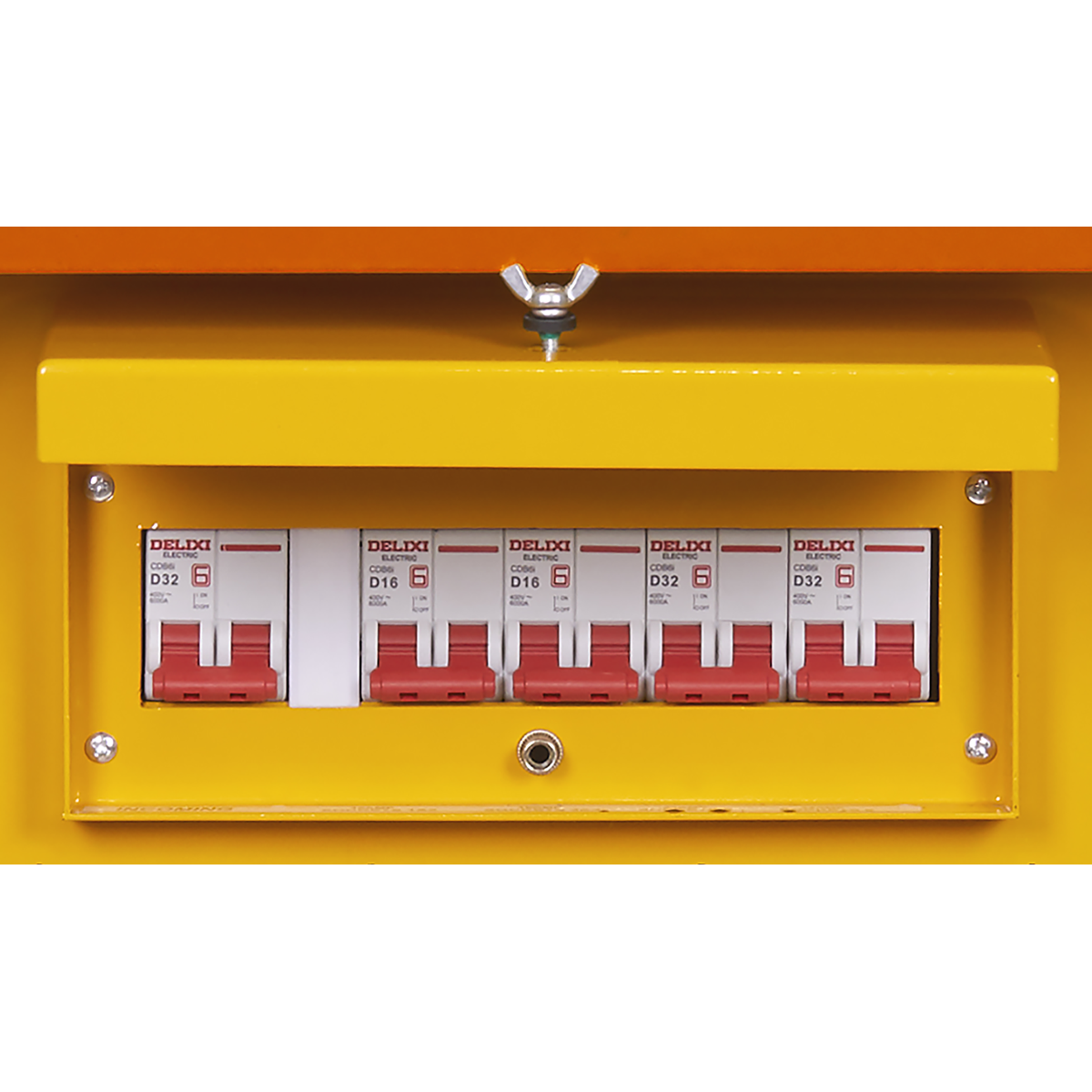

| MCB Input/OutputInput | 1 x MCB 32A 2-pole Type D |
| Output | 2 x MCB 32A 2-pole Type D + 2 x MCB 16A 2-pole Type D |

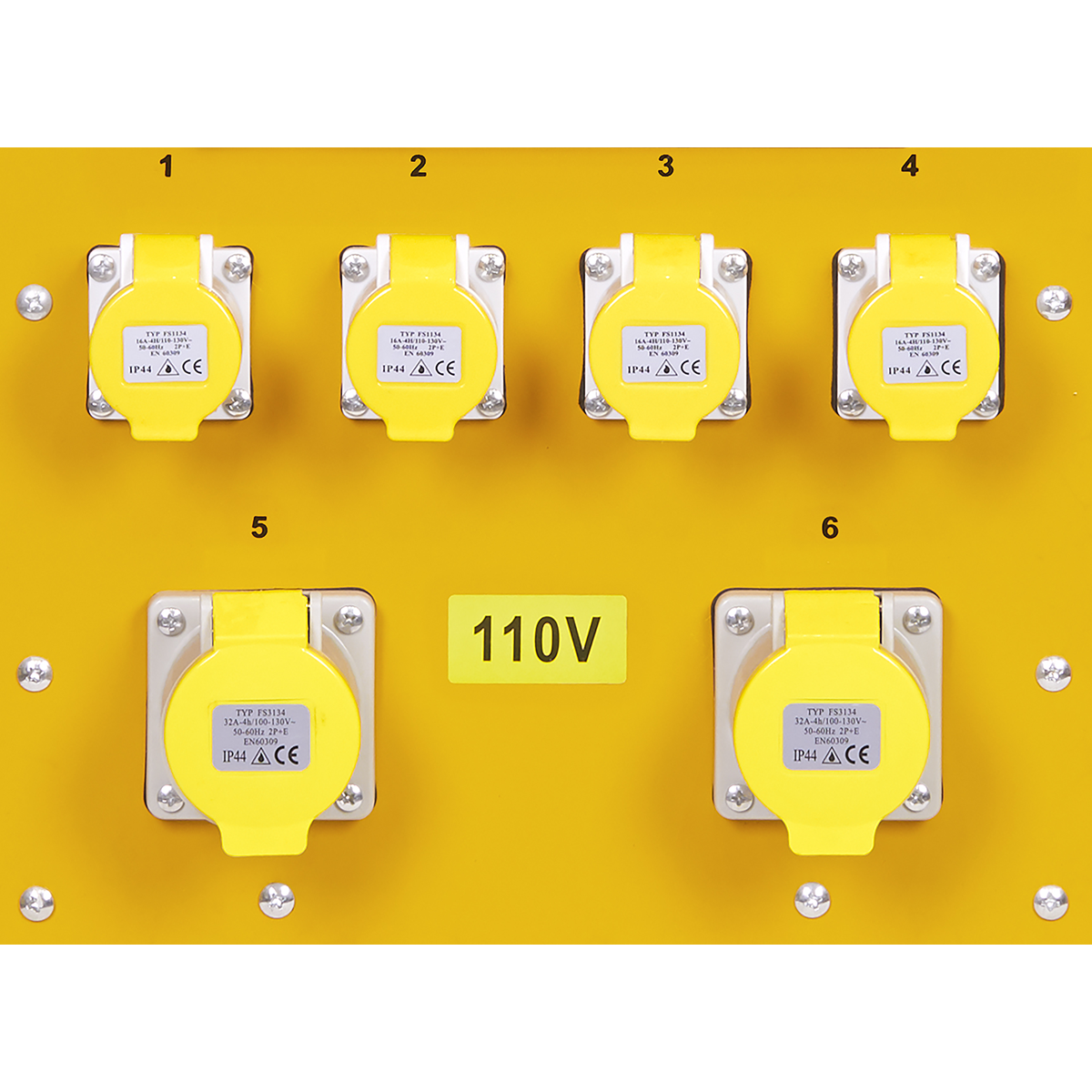

| Sockets | 2 x 32A/110V sockets 4 x 16A/110V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 35022 Defender E203010 110V 3kVA Transformer 16A
£79.10
£77.55
2% OFF
Free delivery in UK Mainland
|
Draper 36398 Defender E205100 110V 3.3kVA Power Pod Transformer 16A
£141.39
£138.62
2% OFF
Free delivery in UK Mainland
|
Sealey 5kVA Portable Vented Transformer 16/32A 110V WST5000MV/2
£243.22
£238.45
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 35022 | 36398 | WST5000MV/2 | WST5000 | 03715 | 03141 |
A. The WST10000 has a continuous rating of 7000VA.
A. The WST10000 is supplied with 2 x 32A/110V sockets and 4 x 16A/110V sockets, giving six output sockets in total.
A. The WST10000 carries an IP44 rating.
A. The WST10000 is rated for intermittent running of power tools and continuous running of lighting products within its specified capacity of 7000VA continuous rating.
A. The input is protected by a single 32A 2-pole Type D MCB. The output is protected by two 32A 2-pole Type D MCBs and two 16A 2-pole Type D MCBs.
A. The WST10000 uses a centre tapped to earth configuration, which is standard for 110V site transformers.
A. The power factor is 0.93 COSφ.
A. The WST10000 is rated for an average temperature range of 20°C to 30°C.
A. Yes. The steel case is fitted with heavy-duty handles to aid positioning.
A. This product is covered by the manufacturer's standard warranty. Please refer to the product listing for specific warranty terms.
