Product Number: 36398

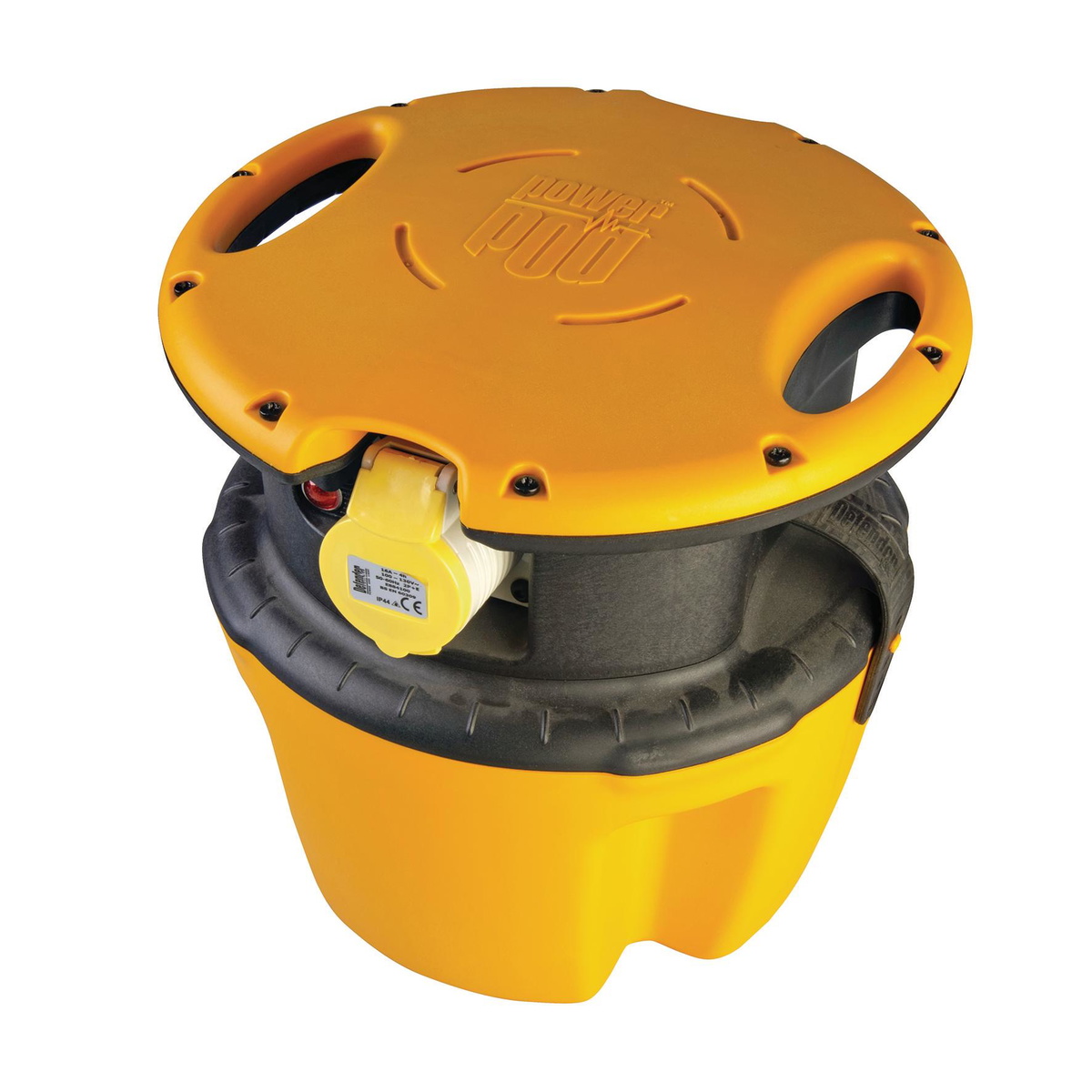

Site electrical safety demands a transformer that can withstand the rigours of harsh construction and industrial environments. The Defender E205100 Power Pod Transformer answers that need with a tough polycarbonate casing and an integrated lifting handle with cable tidy and securing strap, making it straightforward to position and re-site across a busy worksite. The unit accepts a 230–240V input and delivers a 110V centre-tapped-to-earth output, providing the additional safety standard required for portable site tools. Two recessed 16A output sockets support a broad range of equipment including corded drills, demolition hammers, bench grinders, 4.5-inch angle grinders, jigsaws, circular saws, industrial fans, dehumidifiers, fume extractors and numerous lighting products. The recessed socket design affords mechanical protection against accidental disconnection. The transformer is rated at 3,300VA intermittent duty with a 5-minutes-on, 15-minutes-off duty cycle, and 1,650VA continuous duty. Output current is 2 x 16A and the rated power factor is 0.93 cos. An IP44 ingress protection rating confirms resistance to solid particle ingress and water splashing from any direction. Dimensions are 280 x 280 x 285mm; weight is 18.4kg. Supplied complete with a 1.8m H07RN-F 3x1.5mm black rubber cable and a 13A BS plug for immediate mains connection. The unit is compliant with BSEN 61558-1, the relevant standard for safety isolating transformers. No additional adapters or cables are required to begin operation on site.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
36398ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 35022 Defender E203010 110V 3kVA Transformer 16A
£79.10
£77.55
2% OFF
Free delivery in UK Mainland
|
Sealey WST10000 110V 10kVA Single Phase Site Transformer
£633.93
£621.50
2% OFF
Free delivery in UK Mainland
|
Sealey 5kVA Portable Vented Transformer 16/32A 110V WST5000MV/2
£243.22
£238.45
2% OFF
Free delivery in UK Mainland
|
Sealey WST1500 Portable 110V Site Transformer 1.5kVA 230V Input
£90.11
£88.34
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 35022 | WST10000 | WST5000MV/2 | WST5000 | WST3000 | WST1500 |
A. The transformer steps down a 230–240V mains input to a 110V output. It provides two 16A output sockets, giving a total output current of 2 x 16A.
A. The intermittent duty rating is 3,300VA (3.3kVA) with a duty cycle of 5 minutes on and 15 minutes off. The continuous duty rating is 1,650VA (1.65kVA).
A. The two recessed 16A sockets support corded drills, demolition hammers, bench grinders, 4.5-inch angle grinders, jigsaws, circular saws, industrial fans, dehumidifiers, fume extractors, and numerous lighting products, among other 110V site equipment.
A. Centre-tapping to earth limits the voltage to earth to on each side of the supply, which is the recognised site safety practice for reducing the severity of electric shock. The unit is compliant with BSEN 61558-1, the standard covering safety isolating transformers.
A. The transformer carries an IP44 rating, indicating protection against solid objects greater than 1mm and against water splashing from any direction. The casing is constructed from polycarbonate, which is well suited to harsh site environments.
A. The unit is supplied with one E205100 3.3kVA Power Pod Transformer, two 16A sockets, one 1.8m H07RN-F 3x1.5mm black rubber cable, and one 13A BS plug.
