Product Number: 03587
Variations

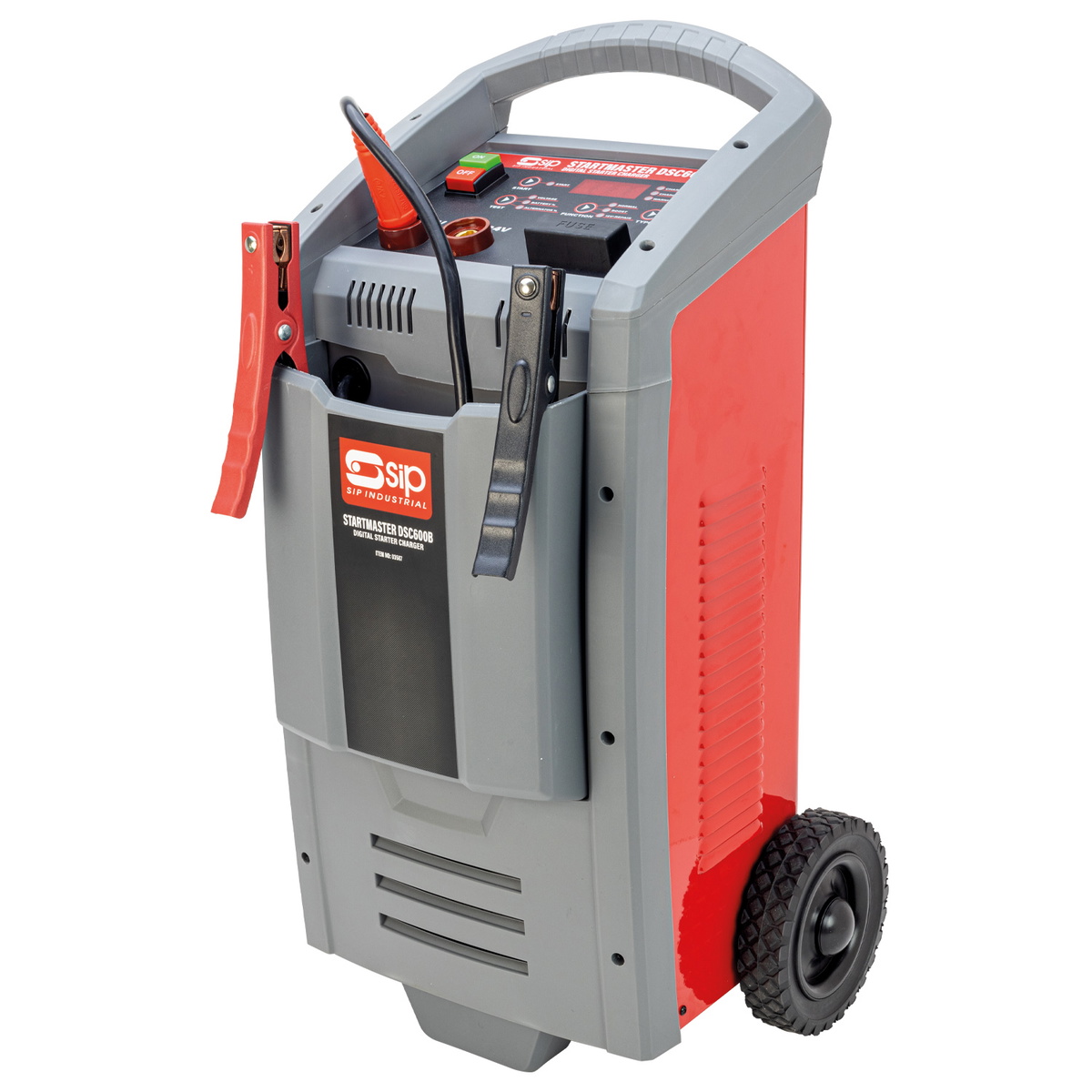

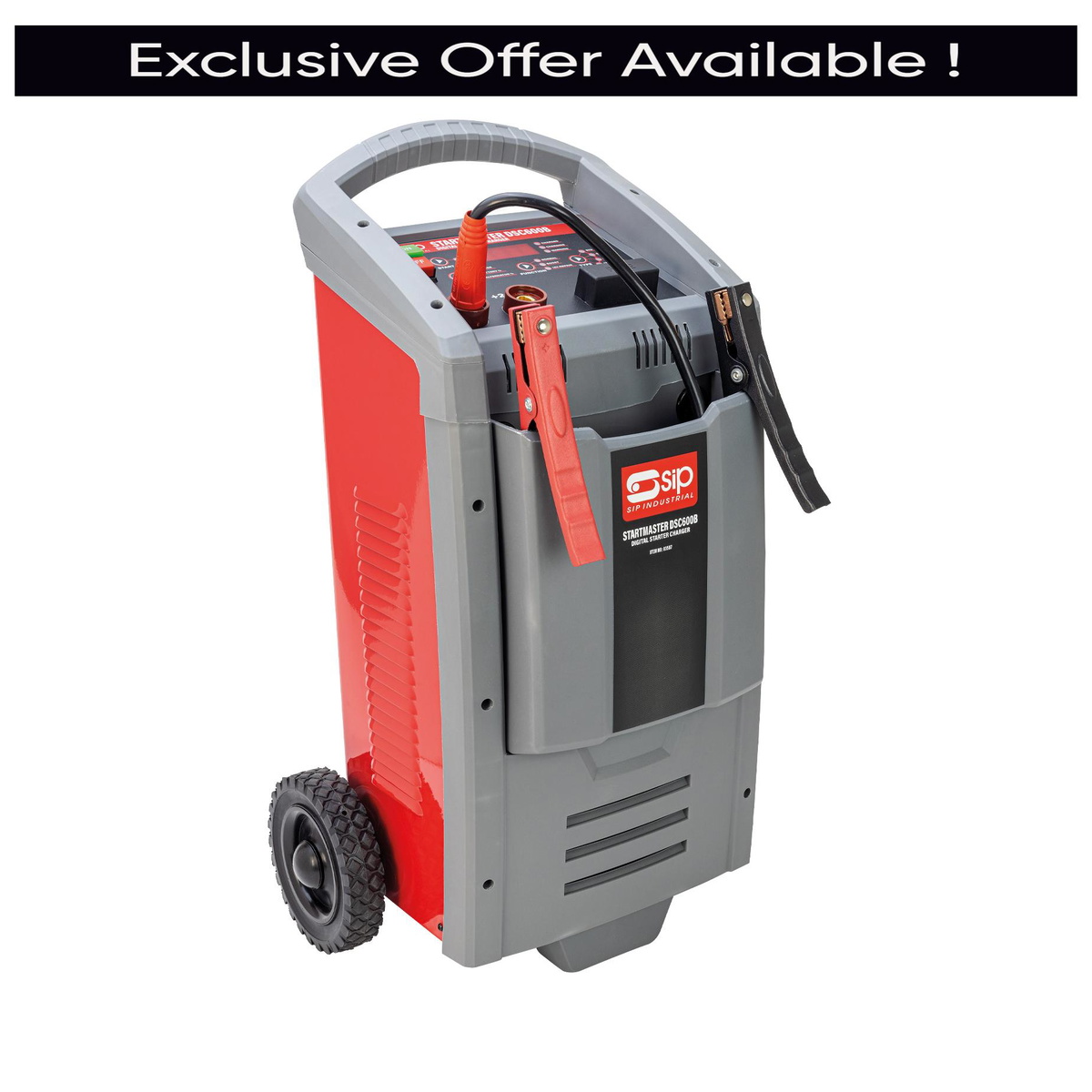

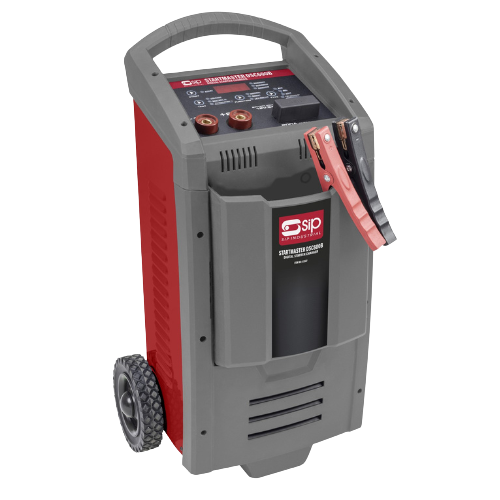

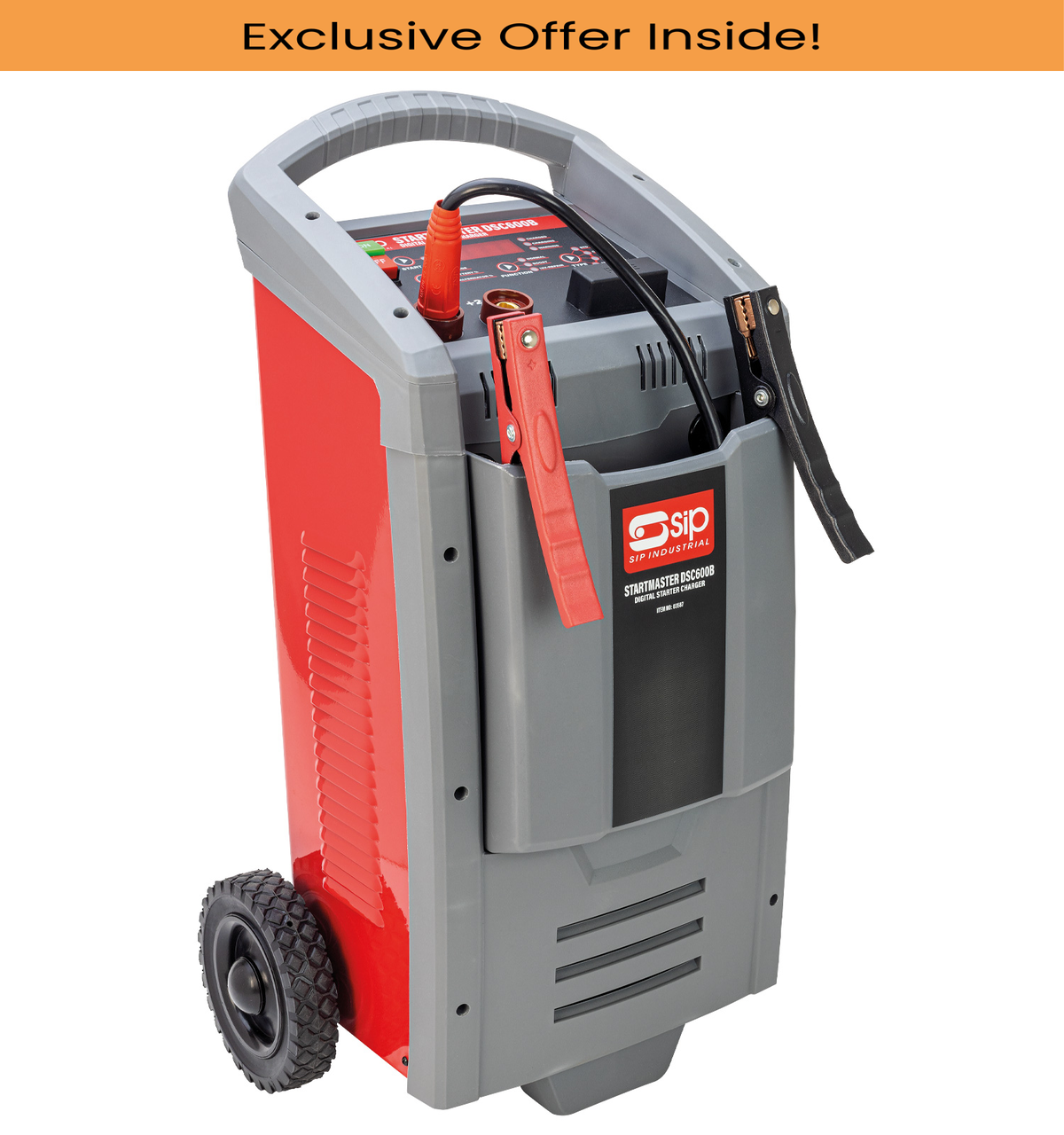

The SIP STARTMASTER DSC600B Digital Starter Charger (SKU 03587) is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types, making it ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments, including commercial vehicle batteries.

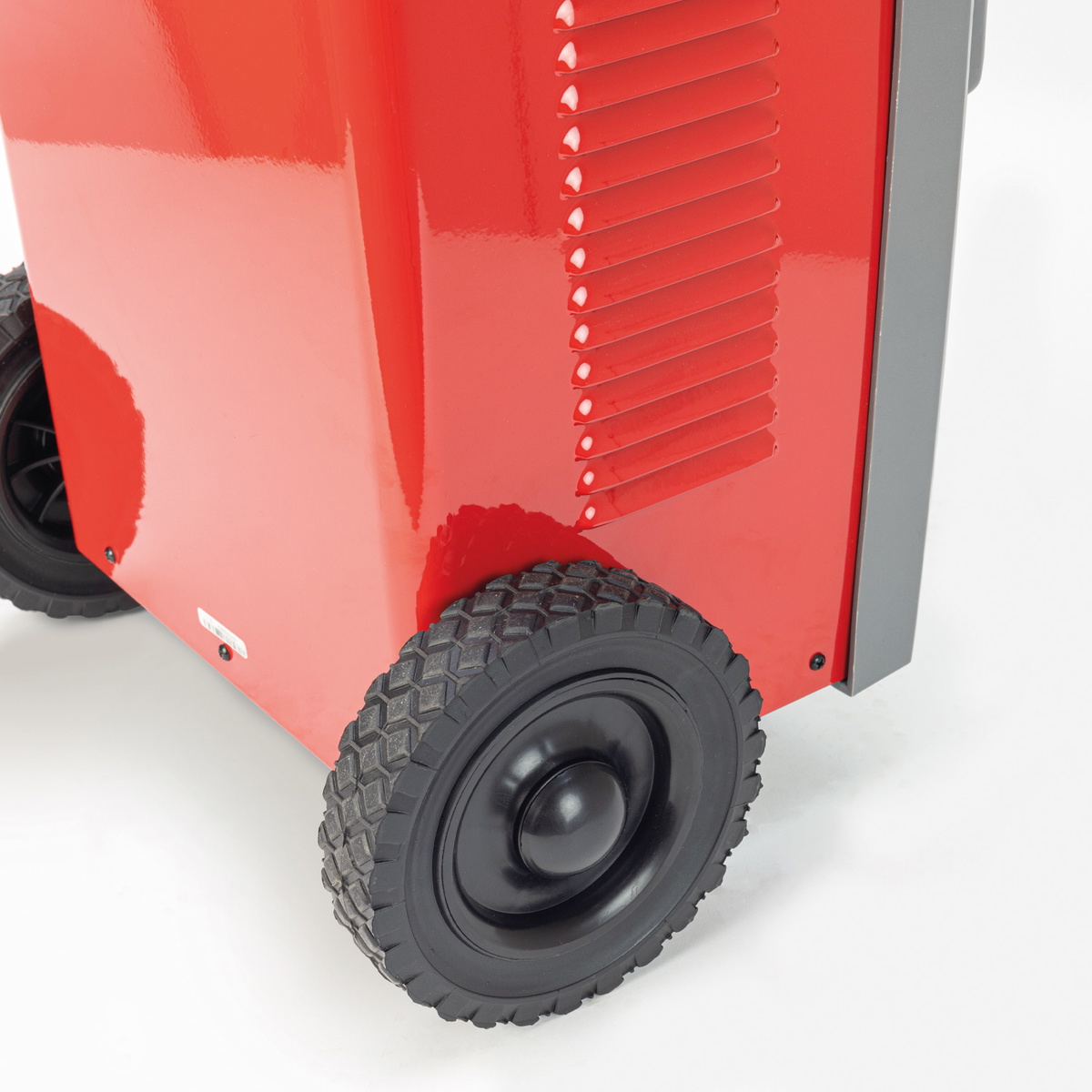

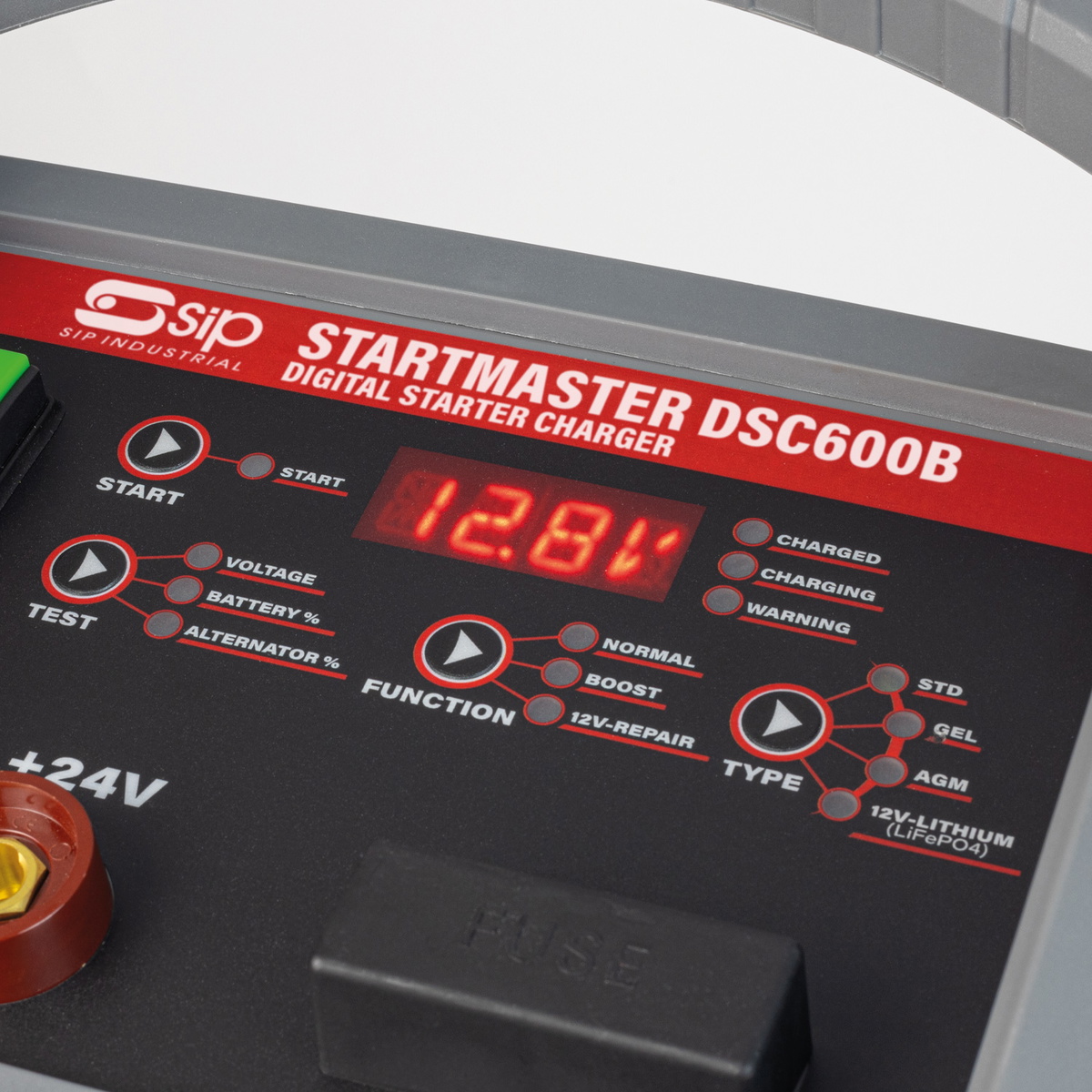

At the heart of the DSC600B is an intelligent microprocessor-controlled 10-step automatic charging cycle that diagnoses battery condition and voltage before initiating any charge. Battery auto-detect intelligently recognises 12v or 24v battery types, while low 1v detection improves the chances of recovering deeply discharged batteries. An Alternator Test mode indicates alternator working condition before charging or boosting is applied, and single-person operation enables one-user engine boost-starting. The unit is supplied with two 2-metre leads and clip clamps, and features an LED display screen with an intuitive soft-touch control panel. Wheel-mounted with a pull handle, the DSC600B offers outstanding workshop mobility.
The DSC600B accepts all 12v and 24v lead acid battery types — WET, MF, EFB, GEL, AGM and CA — as well as 12v 4-cell Lithium-Ion LiFePO4 batteries, with a maximum battery capacity of 550Ah. Charging current ranges from 10A to 30A continuously, with a boost charging current of 50A available for up to five minutes. For jump-start applications, the unit delivers a maximum start current of 620A on a fully discharged battery and 500A on a medium-charged battery. Input supply is 230v 50Hz with IP20 protection, and the unit operates within an ambient temperature range of 0°C to 20°C. Built-in safety features include an anti-spark system, reverse polarity and overcharge protection, and an automatic overheat alarm that restarts the unit once cooled.
This product carries the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP STARTMASTER DSC600B Digital Starter Charger is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types. Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC600B makes battery charging and boosting easier, faster and safer. Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03587 |
|---|---|
| Input Supply | 230v 50Hz |
| Battery Voltage | 12v / 24v |
| Functions | 10-Stage Charging, Boost & Support |
|
CHARGING
|
|
| Battery Types | All 12v/24v Lead Acid, 12v 4-cell Lithium-Ion LiFePO4 |
| Charging Input | Continuous; 2000w / 8A |
| Recommended Plug (not supplied) | 230v (13A) |
| Charging Current | 10A - 30A |
| Boost Charging Current (5min max.) | 50A |
| Battery Capacity | 550Ah |
|
JUMP START
|
|
| Start Voltage | >1v |
| Start Input (5sec) | 10kW / 44A |
| Recommended Plug (not supplied) | 230v (63A) |
| Fuse | 300A |
| Max. Start Current | 620A (fully discharged battery) / 500A (medium charged battery) |
| Protection / Ambient Temperature | IP20 / 0°C - 20°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05539 Startmaster PWT1400 Battery Starter Charger
£781.07
£765.75
2% OFF
Free delivery in Channel Island
|
SIP 05534 Startmaster PW520 Battery Starter Charger
£357.05
£350.05
2% OFF
Free delivery in UK Mainland
|
Sealey START320 Starter/Charger 320/45A 12/24V 230V
£233.58
£229.00
2% OFF
Free delivery in UK Mainland
|
Sealey START420 Starter/Charger 420/60A 12/24V 230V
£253.28
£248.31
2% OFF
Free delivery in UK Mainland
|
Sealey START660 Starter/Charger 660/100A 12/24V 230V
£293.36
£287.61
2% OFF
Free delivery in UK Mainland
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05539 | 05530 | 05534 | 03573 | 03574 | 05531 | 05532 | 05533 | 05536 | 05537 | 05538 | PW25-00013 | START320 | START420 | START660 |
| Warranty | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| Type | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Batteries | Charger | Charger | Charger |
| Voltage | 18 | ||||||||||||||
| Output Current | 10 | 15 | 45 | 60 | 100 | ||||||||||
| Brand | Sealey | Sealey | Sealey | ||||||||||||
| ITEM NO | 25 | ||||||||||||||
| Model No | START320 | START420 | START660 | ||||||||||||
| Nett Weight | 18.42kg | 18.52kg | |||||||||||||
| Voltage (V) | 230 | 230 | 230 | 12 | 12 | 230 | 230 | 230 | 230 | 230 | 230 | 18 | 24 | 24 | 24 |
| Weight (kg) | 42 | 52 | 23.4 | ||||||||||||
| Show More | |||||||||||||||
A. The DSC600B is compatible with all 12v and 24v lead acid battery types, including WET, MF, EFB, GEL, AGM and CA, as well as 12v 4-cell Lithium-Ion LiFePO4 batteries. It supports battery capacities up to 550Ah.
A. The DSC600B delivers a maximum start current of 620A on a fully discharged battery and 500A on a medium-charged battery. Start input is 10kW at 44A for a maximum of 5 seconds, and a 230v (63A) plug is recommended for jump-start use.
A. The DSC600B provides a continuous charging current of 10A to 30A at a charging input of 2000W at 8A. A boost charging current of 50A is available for a maximum of 5 minutes. A 230v (13A) plug is recommended for charging use.
A. The intelligent microprocessor-controlled 10-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle. It also includes battery auto-detect to recognise 12v or 24v battery type, and low 1v detection to improve recovery chances for deeply discharged batteries.

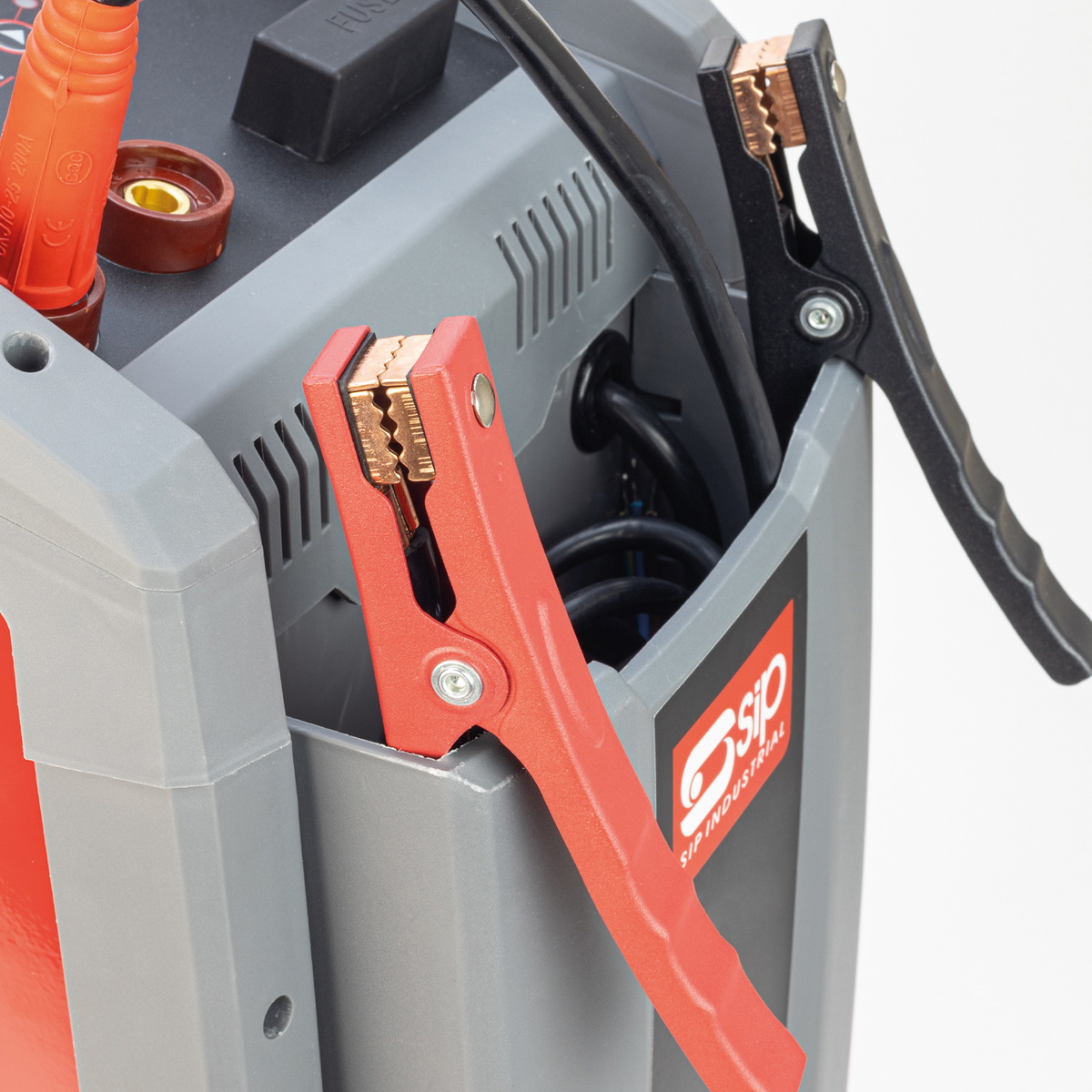

A. The DSC600B includes an anti-spark system to prevent sparks when connecting clips to battery terminals, reverse polarity and overcharge protection to ensure correct connection before operation, and an automatic overheat alarm that shuts the unit down and restarts it once it has cooled.
A. The DSC600B is ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments, and is suitable for charging commercial vehicle batteries operating on 12v or 24v systems.
A. Input supply is 230v 50Hz. The unit operates within an ambient temperature range of 0°C to 20°C and carries an IP20 protection rating. It is fitted with a 300A fuse and features an LED display with soft-touch control panel.
A. The SIP STARTMASTER DSC600B is covered by the SIP 2-Year Standard Silver Warranty.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
