Product Number: 03584
Variations

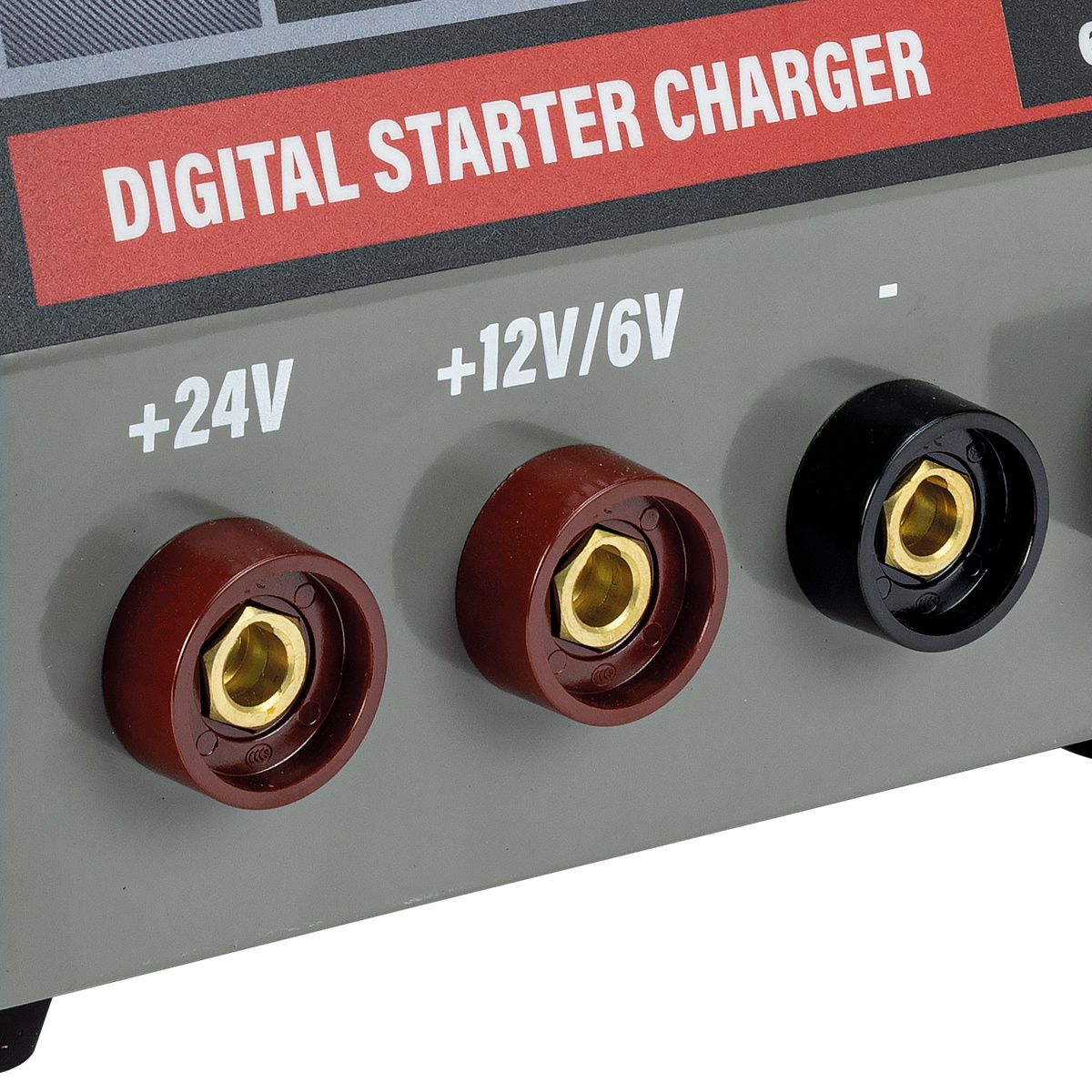

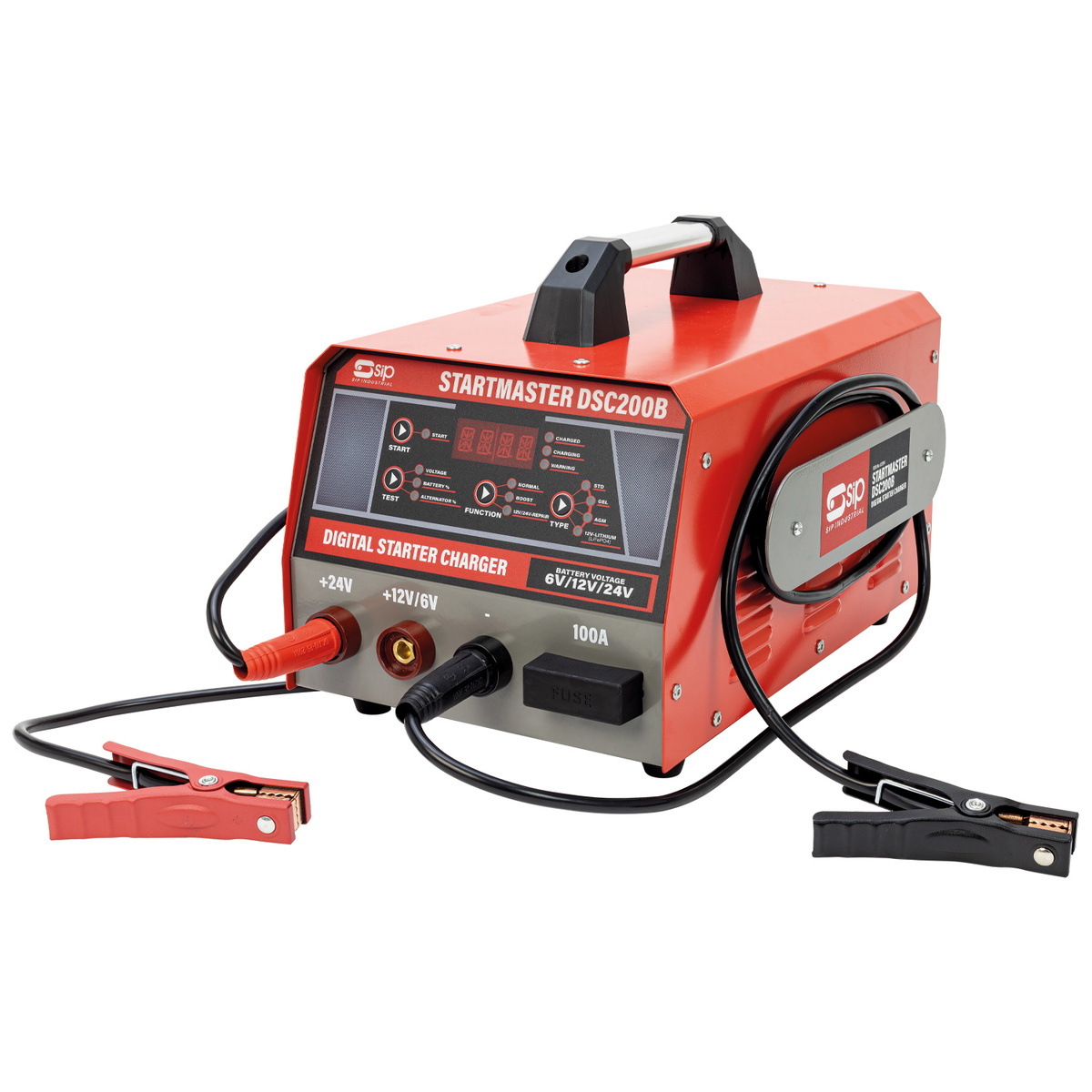

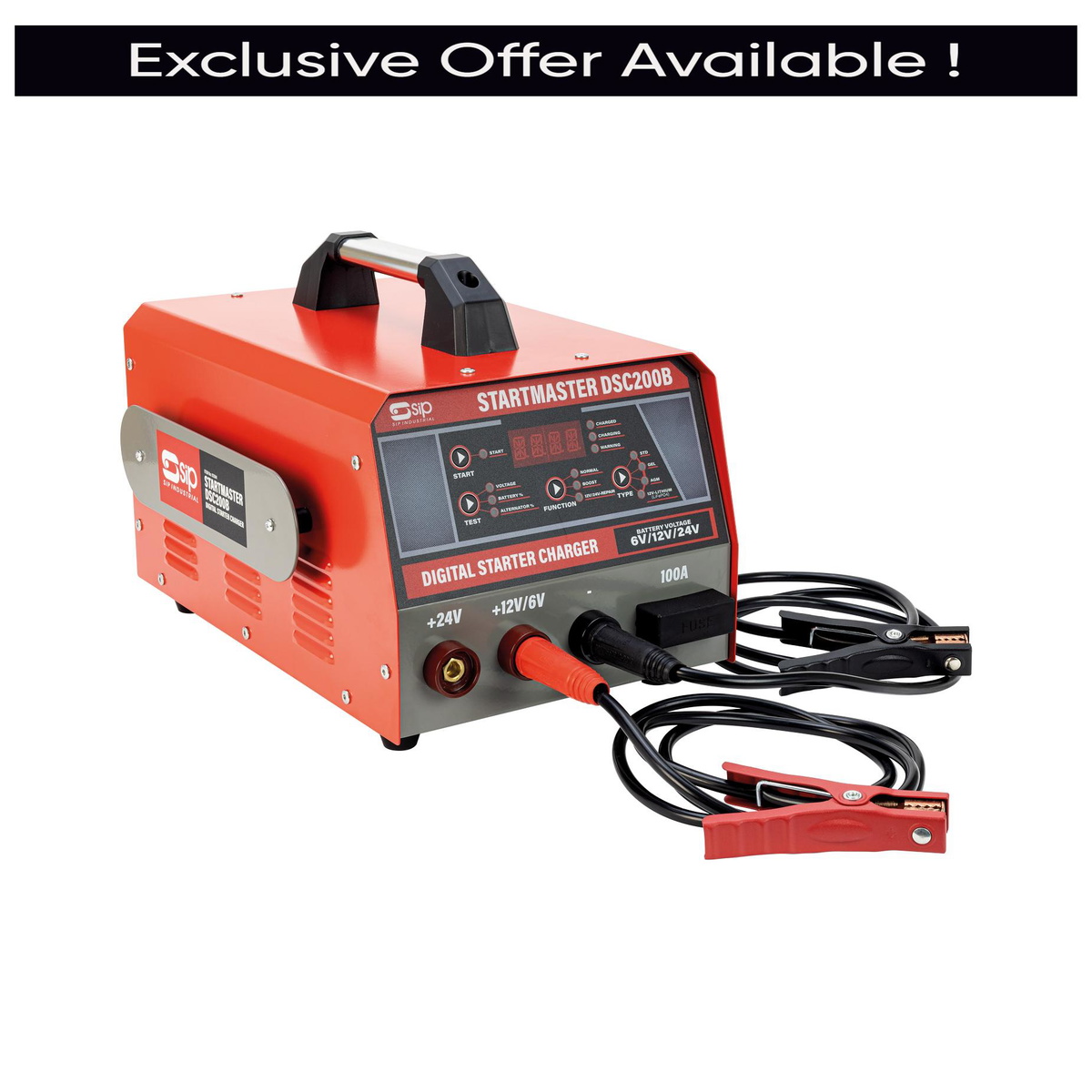

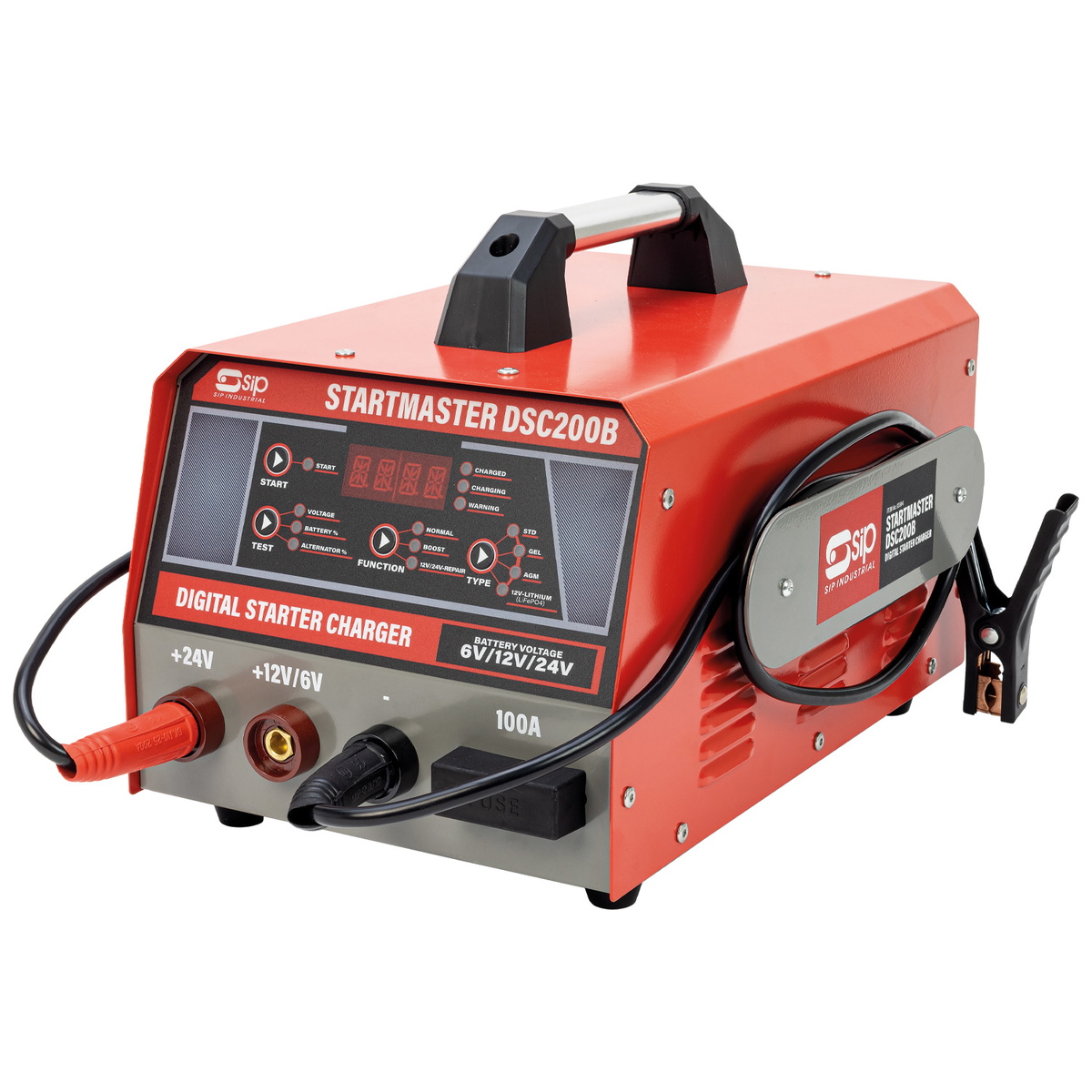

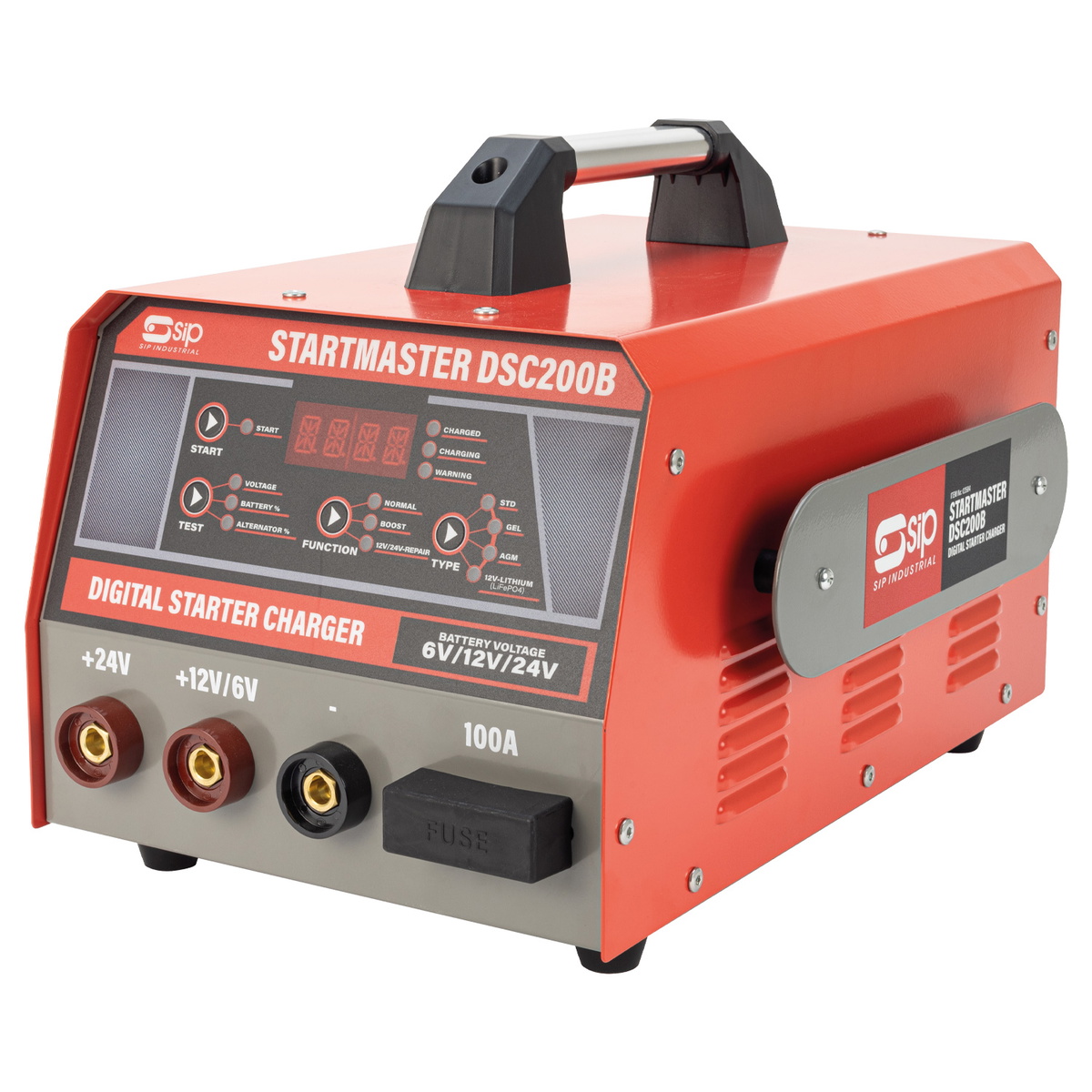

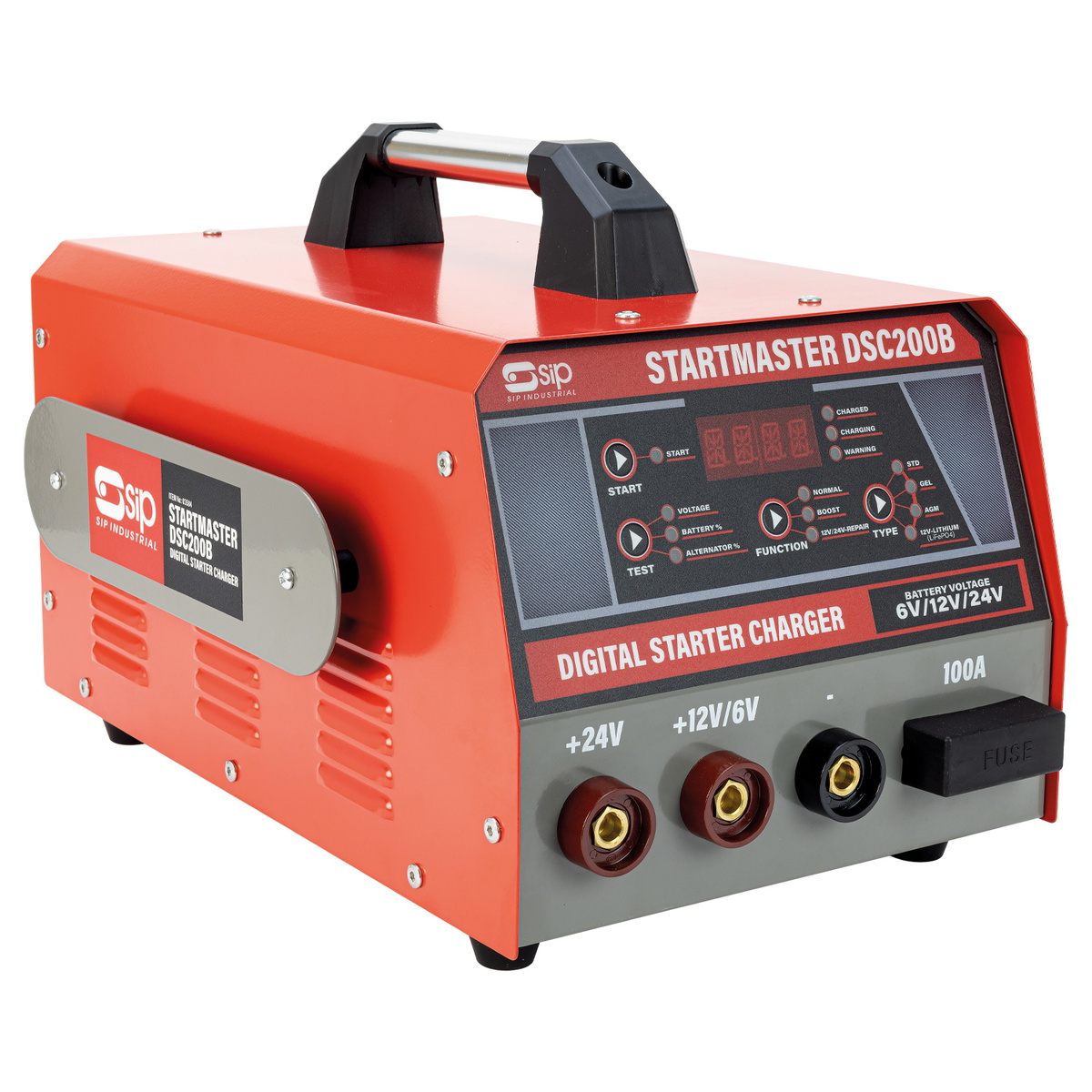

The SIP STARTMASTER DSC200B Digital Starter Charger (SKU 03584) is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types. Operating from a 230v 50Hz input supply, it supports 6v, 12v and 24v battery voltages and is ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments, including use with commercial vehicle batteries up to 350Ah capacity.
At the heart of the STARTMASTER DSC200B is an intelligent microprocessor with a 10-step automatic charging cycle that diagnoses battery condition and voltage before initiating a charge. Battery auto-detect intelligently recognises 6v, 12v or 24v type prior to charging or boosting. The unit accommodates all 6v/12v/24v lead acid chemistries — WET, MF, EFB, GEL, AGM and CA — as well as 12v 4-cell Lithium-Ion LiFePO4 batteries. Low 1v detection improves the chances of recovering deeply discharged batteries, whilst Alternator Test mode indicates alternator health and performance. A single-operator design allows one-person engine boost-start without assistance.
Charging current is rated at 5A for 6v batteries, 10A for 12v and 10A for 24v, with boost charging currents of 25A (6v), 25A (12v) and 20A (24v) available for up to five minutes. For jump-start operations the unit draws 4.5kW/20A for five seconds, delivering a maximum start current of 200A on a fully discharged battery or 150A on a medium-charged battery. Safety is addressed through an anti-spark connection system, reverse polarity and overcharge protection, and an automatic overheat alarm that restarts the unit once cooled. The unit is rated IP20 and operates between 0°C and 20°C ambient temperature.

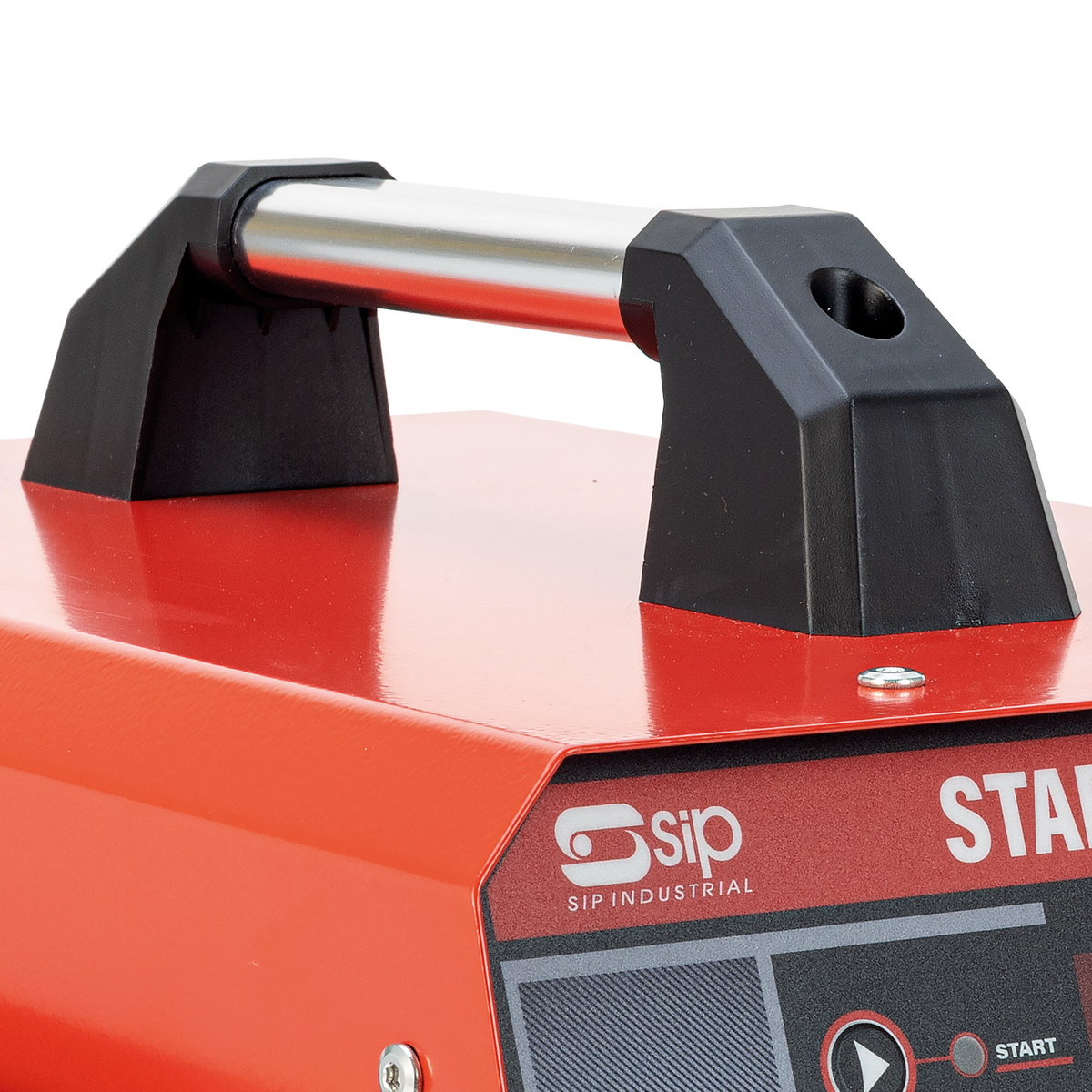

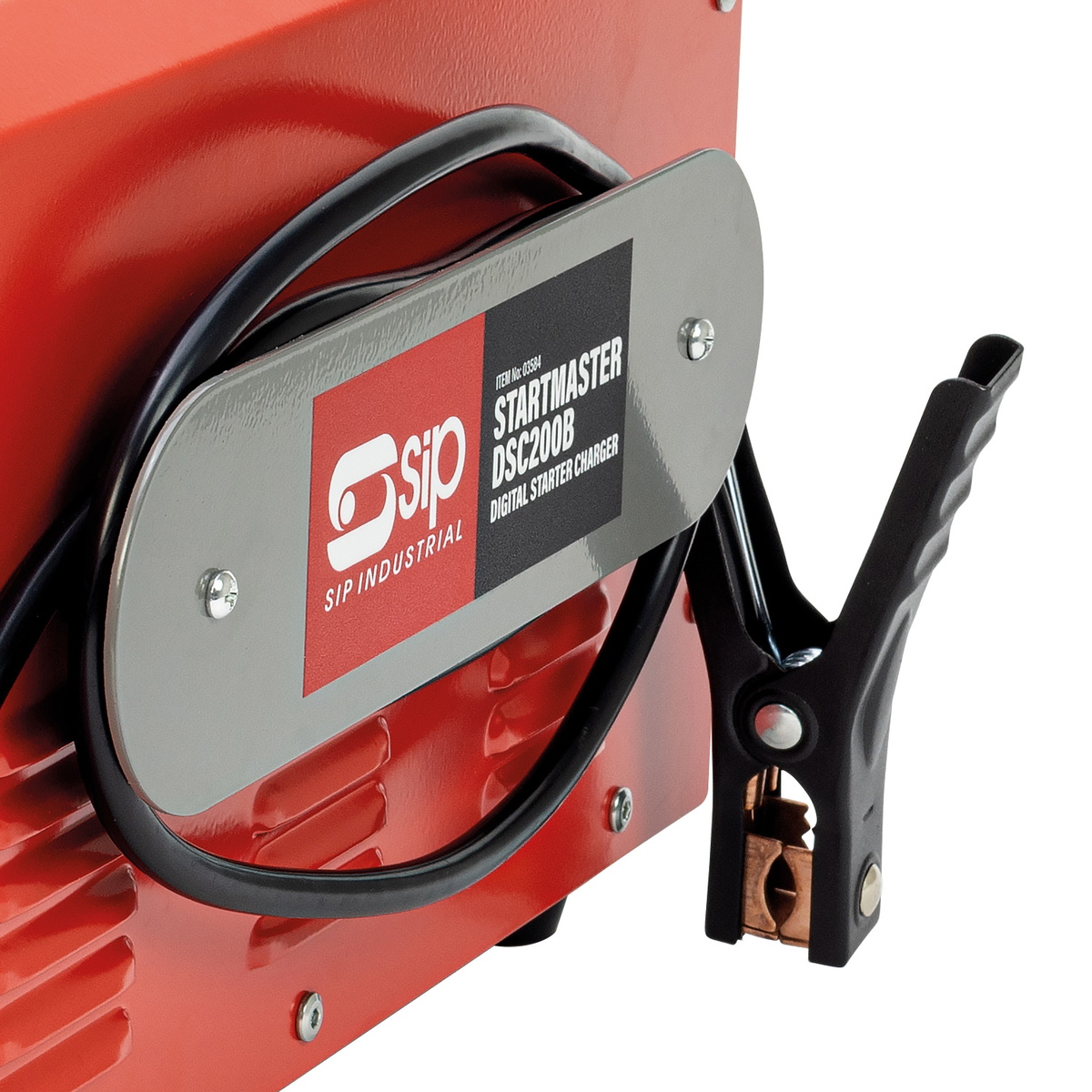

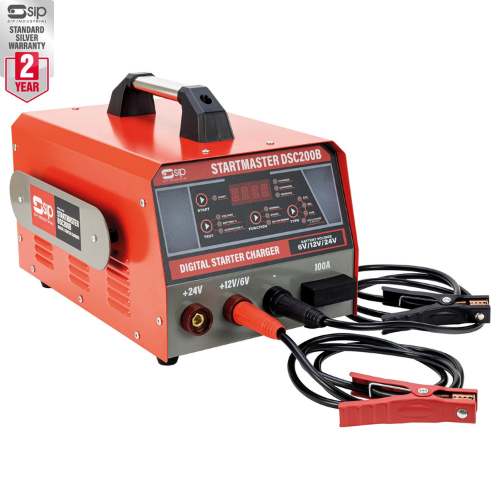

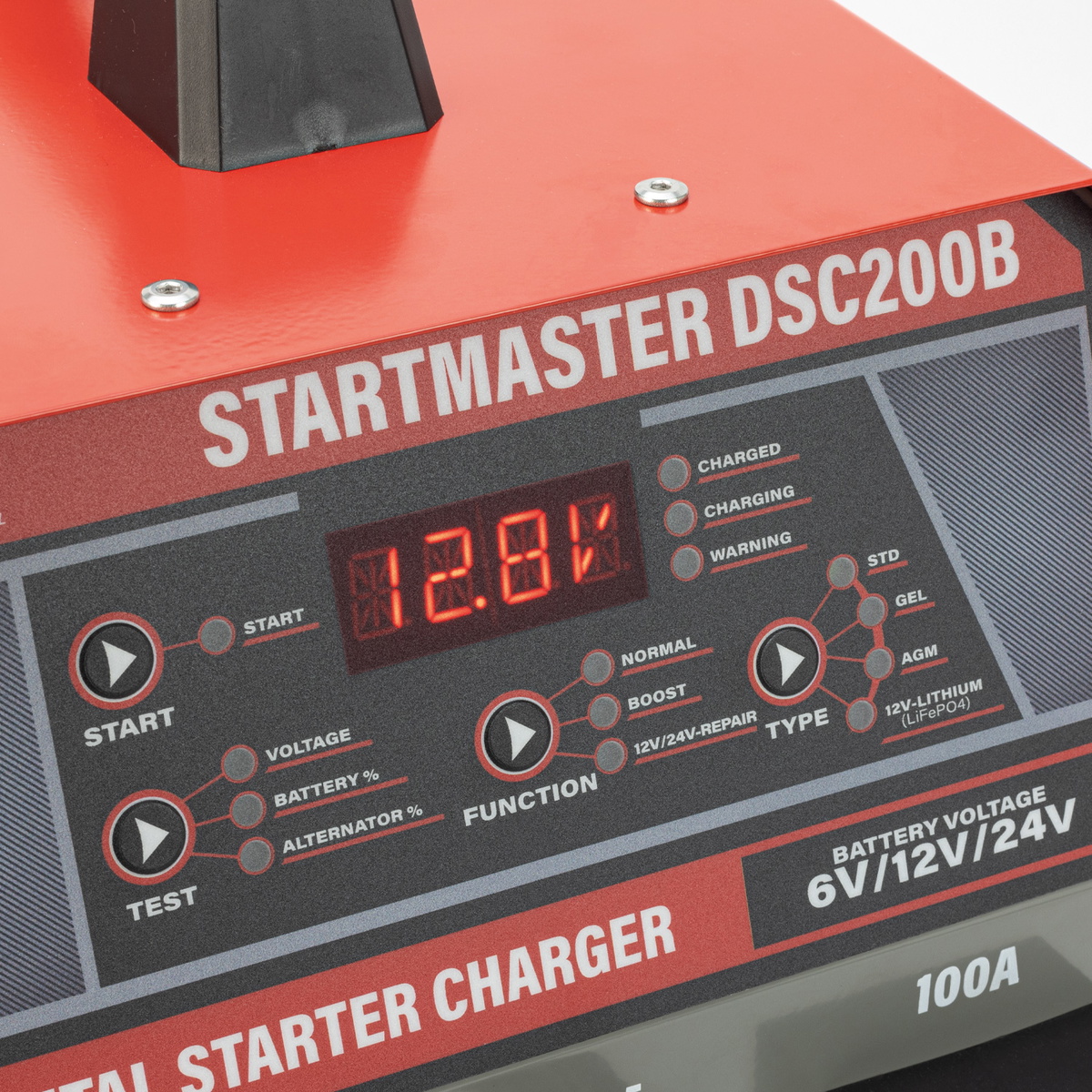

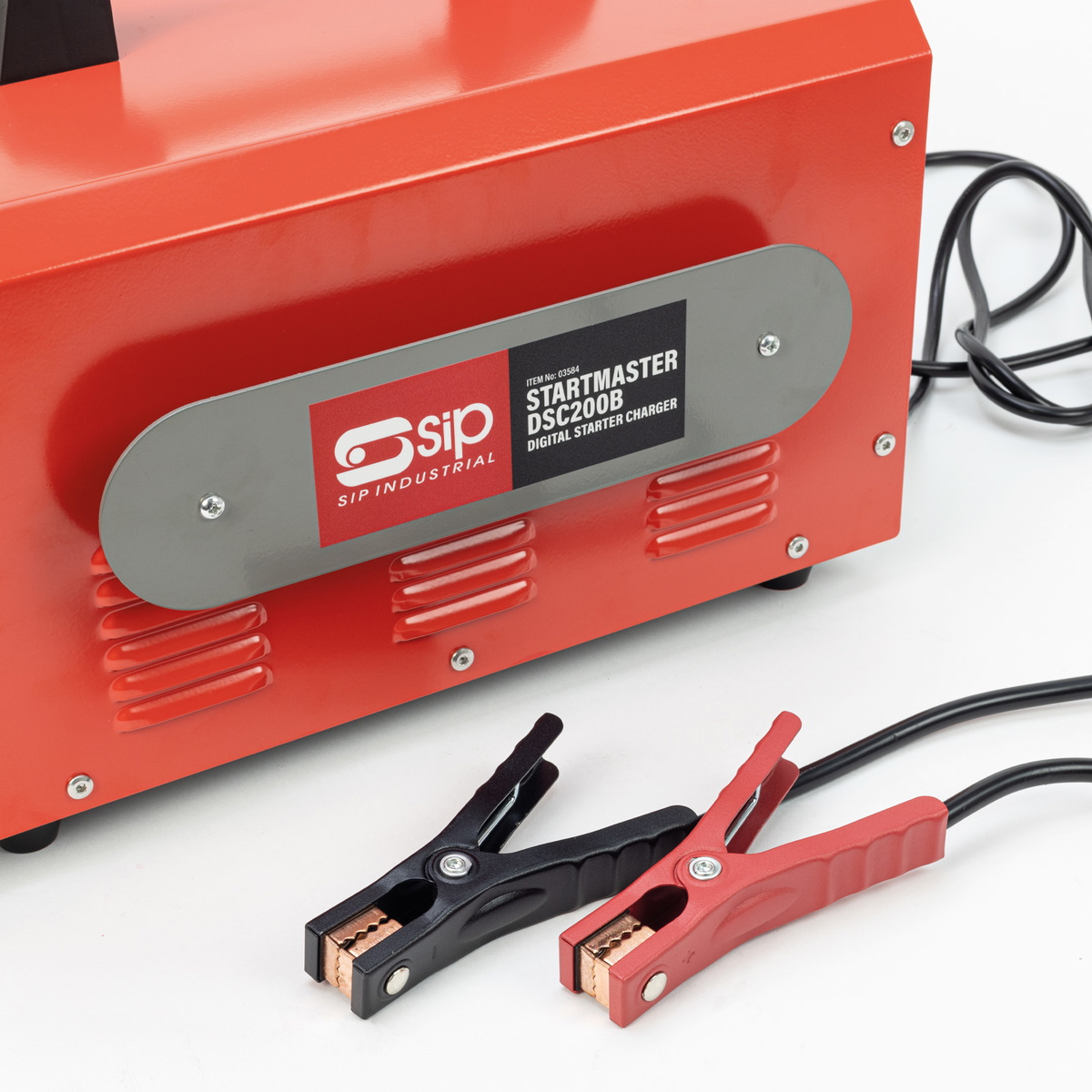

The STARTMASTER DSC200B is supplied with two 2-metre leads with clip clamps, an LED display screen, intuitive soft-touch control panel, cable tidy brackets and a carry handle. It is backed by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP STARTMASTER DSC200B Digital Starter Charger is a powerful bench-top digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types. Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC200B makes battery charging and boosting easier, faster and safer. Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03584 |
|---|---|
| Input Supply | 230v 50Hz |
| Battery Voltage | 6v / 12v / 24v |
| Functions | 10-Stage Charging, Boost & Support |
|
CHARGING
|
|
| Battery Types | All 6v/12v/24v Lead Acid, 12v 4-cell Lithium-Ion LiFePO4 |
| Charging Input | Continuous; 1000w / 4A |
| Recommended Plug (not supplied) | 230v (13A) |
| Charging Current | 5A (6v) / 10A (12v) / 10A (24v) |
| Boost Charging Current (5min max.) | 25A (6v) / 25A (12v) / 20A (24v) |
| Battery Capacity | 350Ah |
|
JUMP START
|
|
| Start Voltage | >1v |
| Start Input (5sec) | 4.5kW / 20A |
| Recommended Plug (not supplied) | 230v (32A) |
| Fuse | 100A |
| Max. Start Current | 200A (fully discharged battery) / 150A (medium charged battery) |
| Protection / Ambient Temperature | IP20 / 0°C - 20°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05539 Startmaster PWT1400 Battery Starter Charger
£781.07
£765.75
2% OFF
Free delivery in Channel Island
|
SIP 05534 Startmaster PW520 Battery Starter Charger
£357.05
£350.05
2% OFF
Free delivery in UK Mainland
|
Sealey START320 Starter/Charger 320/45A 12/24V 230V
£233.58
£229.00
2% OFF
Free delivery in UK Mainland
|
Sealey START420 Starter/Charger 420/60A 12/24V 230V
£253.28
£248.31
2% OFF
Free delivery in UK Mainland
|
Sealey START660 Starter/Charger 660/100A 12/24V 230V
£293.36
£287.61
2% OFF
Free delivery in UK Mainland
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05539 | 05530 | 05534 | 03573 | 03574 | 05531 | 05532 | 05533 | 05536 | 05537 | 05538 | PW25-00013 | START320 | START420 | START660 |
| Warranty | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||||
| Type | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Charger | Batteries | Charger | Charger | Charger |
| Voltage | 18 | ||||||||||||||
| Output Current | 10 | 15 | 45 | 60 | 100 | ||||||||||
| Brand | Sealey | Sealey | Sealey | ||||||||||||
| ITEM NO | 25 | ||||||||||||||
| Model No | START320 | START420 | START660 | ||||||||||||
| Nett Weight | 18.42kg | 18.52kg | |||||||||||||
| Voltage (V) | 230 | 230 | 230 | 12 | 12 | 230 | 230 | 230 | 230 | 230 | 230 | 18 | 24 | 24 | 24 |
| Weight (kg) | 42 | 52 | 23.4 | ||||||||||||
| Show More | |||||||||||||||
A. The DSC200B charges all 6v, 12v and 24v lead acid battery types — including WET, MF, EFB, GEL, AGM and CA — as well as 12v 4-cell Lithium-Ion LiFePO4 batteries. It automatically detects the battery voltage before beginning a charging or boosting cycle and supports batteries up to 350Ah capacity.
A. Yes. The unit features low 1v detection, which improves the chances of recovering deeply discharged batteries. The maximum start current is 200A for a fully discharged battery and 150A for a medium-charged battery, with the jump-start input rated at 4.5kW/20A for five seconds.
A. Charging current is 5A for 6v batteries, 10A for 12v batteries and 10A for 24v batteries. Boost charging current (available for up to five minutes) is 25A for 6v, 25A for 12v and 20A for 24v batteries.
A. The unit requires a 230v 50Hz input. For charging, a standard 230v 13A plug is recommended (not supplied). For jump-starting, a 230v 32A supply is recommended (not supplied), as the start input draws 4.5kW/20A for five seconds.
A. Yes. It is designed for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments and is suitable for charging commercial vehicle batteries.
A. The unit features an anti-spark system to prevent sparks when connecting the clips to battery terminals, reverse polarity and overcharge protection to ensure correct operation, and an overheat alarm that automatically restarts the unit once it has cooled. It is rated IP20 for basic protection.
A. The unit comes supplied with two 2-metre leads with clip clamps. It also features an LED display screen, soft-touch control panel, cable tidy brackets and a carry handle for ease of use and storage.
A. The STARTMASTER DSC200B is covered by the SIP 2-Year Standard Silver Warranty.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
