Product Number: 03585
Variations

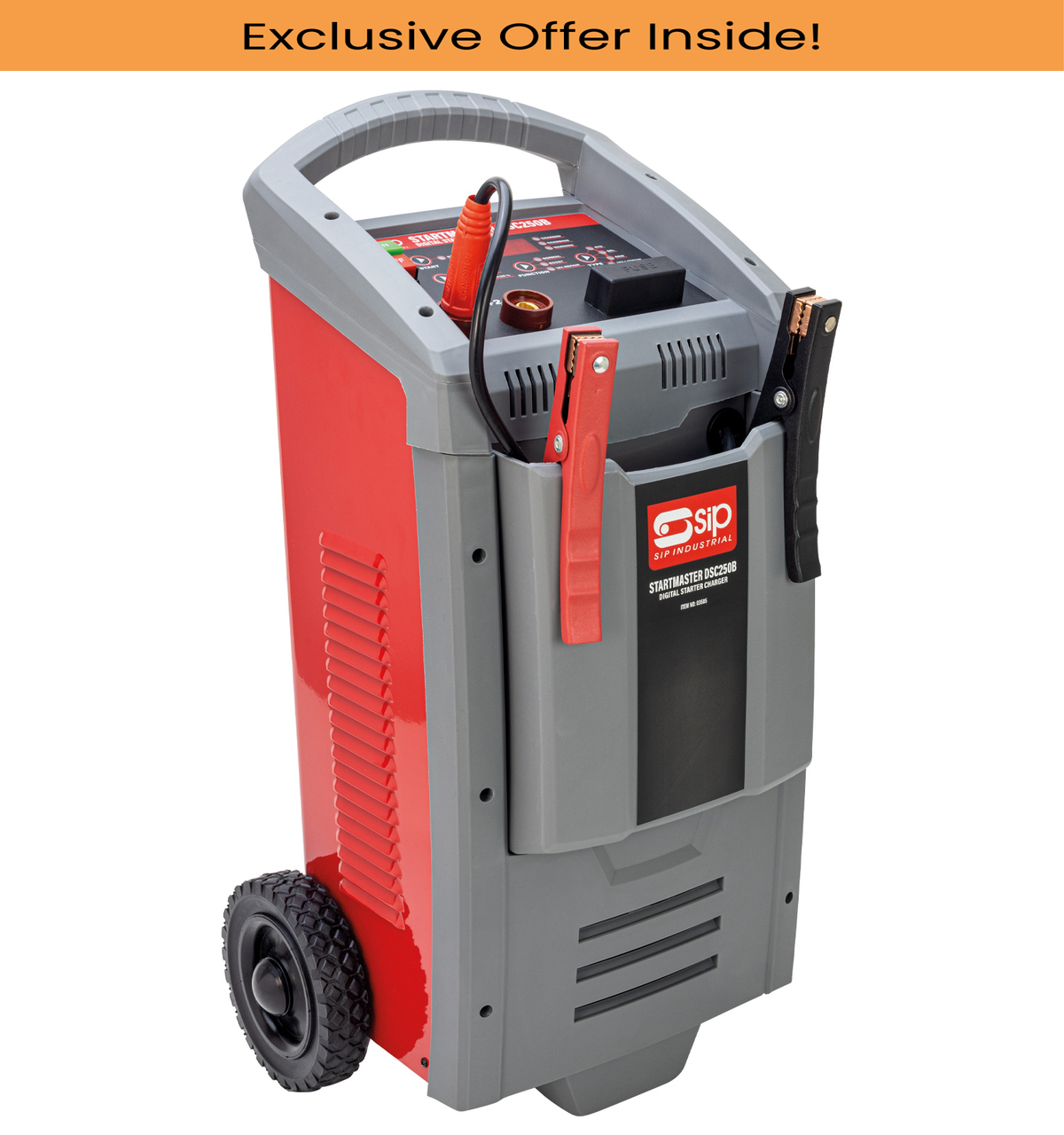

The SIP STARTMASTER DSC250B (SKU 03585) is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types. Operating from a 230v 50Hz supply, it supports both 12v and 24v battery systems and is built for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments, including charging commercial vehicle batteries up to 350Ah capacity.
At the heart of the STARTMASTER DSC250B is an intelligent microprocessor delivering a 10-step automatic charging cycle that diagnoses battery condition and voltage before beginning a charge. Battery auto-detect recognises 12v or 24v type automatically, while low 1v detection improves the chances of recovering deeply discharged batteries. The alternator test mode indicates alternator working condition prior to charging or boosting, and one-person operation enables a single user to perform engine boost-starts. An LED display screen and intuitive soft-touch control panel allow straightforward selection of charge and boost settings, and the unit is supplied with two 2-metre leads and clip clamps.
The DSC250B supports all 12v/24v lead acid chemistries — including WET, MF, EFB, GEL, AGM and CA types — as well as 12v 4-cell LiFePO4 Lithium-Ion batteries. Charging current ranges from 5A to 15A continuously, with a boost charging current of 25A (5-minute maximum). For jump-start applications, the unit delivers a maximum start current of 280A on a fully discharged battery or 200A on a medium-charged battery, drawing 6kW/26A at the plug for up to 5 seconds. A 32A plug (not supplied) is recommended for jump-start use.
Built-in safety features include an anti-spark system to prevent sparks when connecting clip clamps to battery terminals, reverse polarity and overcharge protection, and an overheat alarm that halts operation and automatically restarts once the unit has cooled. The IP20 protection rating and operating temperature range of 0°C to 20°C define the intended working environment. Wheel-mounted with a pull handle, the STARTMASTER DSC250B offers outstanding mobility around the workshop.
The SIP STARTMASTER DSC250B is covered by a SIP 2-Year Standard Silver Warranty. Contents information is not available at time of listing; two 2-metre leads with clip clamps are confirmed as supplied. Manufactured by SIP.
Additional Information:
The SIP STARTMASTER DSC250B Digital Starter Charger is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types. Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC250B makes battery charging and boosting easier, faster and safer. Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03585 |
|---|---|
| Input Supply | 230v 50Hz |
| Battery Voltage | 12v / 24v |
| Functions | 10-Stage Charging, Boost & Support |
|
CHARGING
|
|
| Battery Types | All 12v/24v Lead Acid, 12v 4-cell Lithium-Ion LiFePO4 |
| Charging Input | Continuous; 1000w / 4A |
| Recommended Plug (not supplied) | 230v (13A) |
| Charging Current | 5A - 15A |
| Boost Charging Current (5min max.) | 25A |
| Battery Capacity | 350Ah |
|
JUMP START
|
|
| Start Voltage | >1v |
| Start Input (5sec) | 6kW / 26A |
| Recommended Plug (not supplied) | 230v (32A) |
| Fuse | 100A |
| Max. Start Current | 280A (fully discharged battery) / 200A (medium charged battery) |
| Protection / Ambient Temperature | IP20 / 0°C - 20°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05539 Startmaster PWT1400 Battery Starter Charger
£781.07
£765.75
2% OFF
Free delivery in Channel Island
|
Sealey EVAC2 5m Adjustable Type 2 to 3-Pin Plug Portable EV Charger 3.5kW
£209.92
£205.72
2% OFF
Free delivery in UK Mainland
|
Draper 94903 D20 20V Wireless Speaker with 1 x 3.0Ah Battery and Charger
£71.62
£70.22
2% OFF
Free delivery in UK Mainland
|
Sealey SPBC30 Battery Support Unit & Charger 30A
£244.93
£240.13
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05536 | 05539 | 93038 | EVAC2 | 94903 | SPBC30 |
| Warranty | 24 | 24 | ||||
| Type | Charger | Charger | Charger | Charger | ||
| Voltage | 230 | |||||
| Brand | Sealey | Premier | ||||
| Model No | EVAC2 | SPBC30 | ||||
| Nett Weight | 1.9kg | 2.8kg | ||||
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | |
| Weight (kg) | 1.9 | 2.8 | ||||
| Show More | ||||||
A. The DSC250B is compatible with all 12v and 24v lead acid battery types — including WET, MF, EFB, GEL, AGM and CA — as well as 12v 4-cell LiFePO4 Lithium-Ion batteries. Battery auto-detect automatically identifies 12v or 24v type before beginning a charging or boosting cycle.
A. The DSC250B delivers a maximum start current of 280A on a fully discharged battery and 200A on a medium-charged battery. The jump-start input draws 6kW/26A at the plug for a maximum of 5 seconds, and a 230v 32A plug (not supplied) is recommended for this function.
A. Yes. Low 1v detection means the STARTMASTER DSC250B can detect and begin working with batteries that have dropped to just above 1v, improving the chances of recovering batteries that would otherwise be unwilling to charge on conventional units.
A. The DSC250B provides a continuous charging current of 5A to 15A and a boost charging current of 25A (maximum 5 minutes). It supports battery capacities up to 350Ah.
A. The intelligent microprocessor runs a 10-step automatic charging cycle that diagnoses battery condition and voltage before initiating charging. This process makes battery charging and boosting easier, faster and safer, and the unit includes an alternator test mode to indicate alternator working condition prior to applying charge or boost.
A. Built-in safety features include an anti-spark system that prevents sparks when connecting clip clamps to battery terminals, reverse polarity protection, overcharge protection, and an overheat alarm. The overheat alarm halts unit operation automatically and restarts once the unit has cooled. The unit carries an IP20 protection rating and is rated for use between 0°C and 20°C ambient temperature.
A. The SIP STARTMASTER DSC250B is covered by a SIP 2-Year Standard Silver Warranty.
A. Yes. The DSC250B is designed for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments and is confirmed as suitable for charging commercial vehicle batteries.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
A. We accept all major credit and debit cards, along with PayPal.
