Product Number: 01558

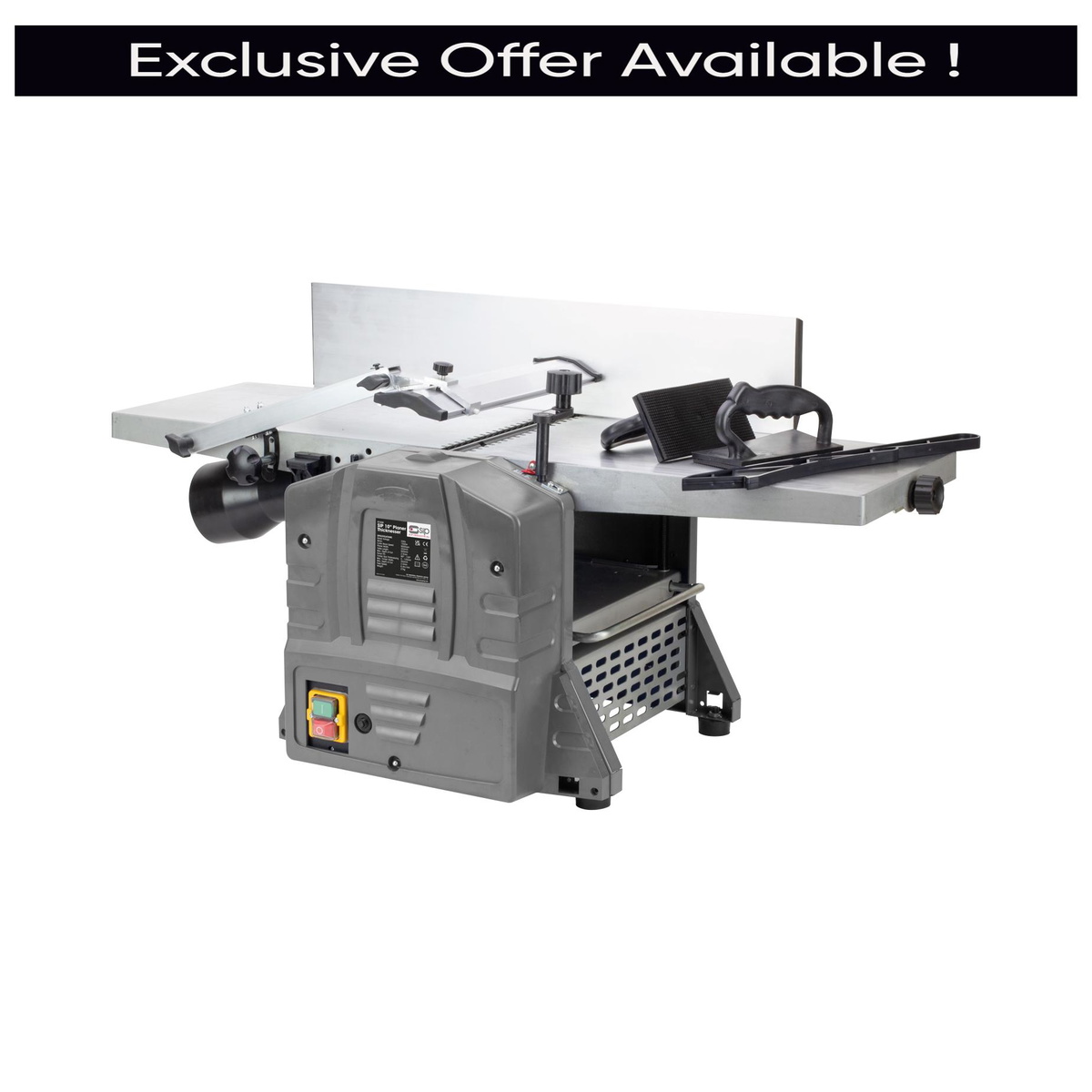

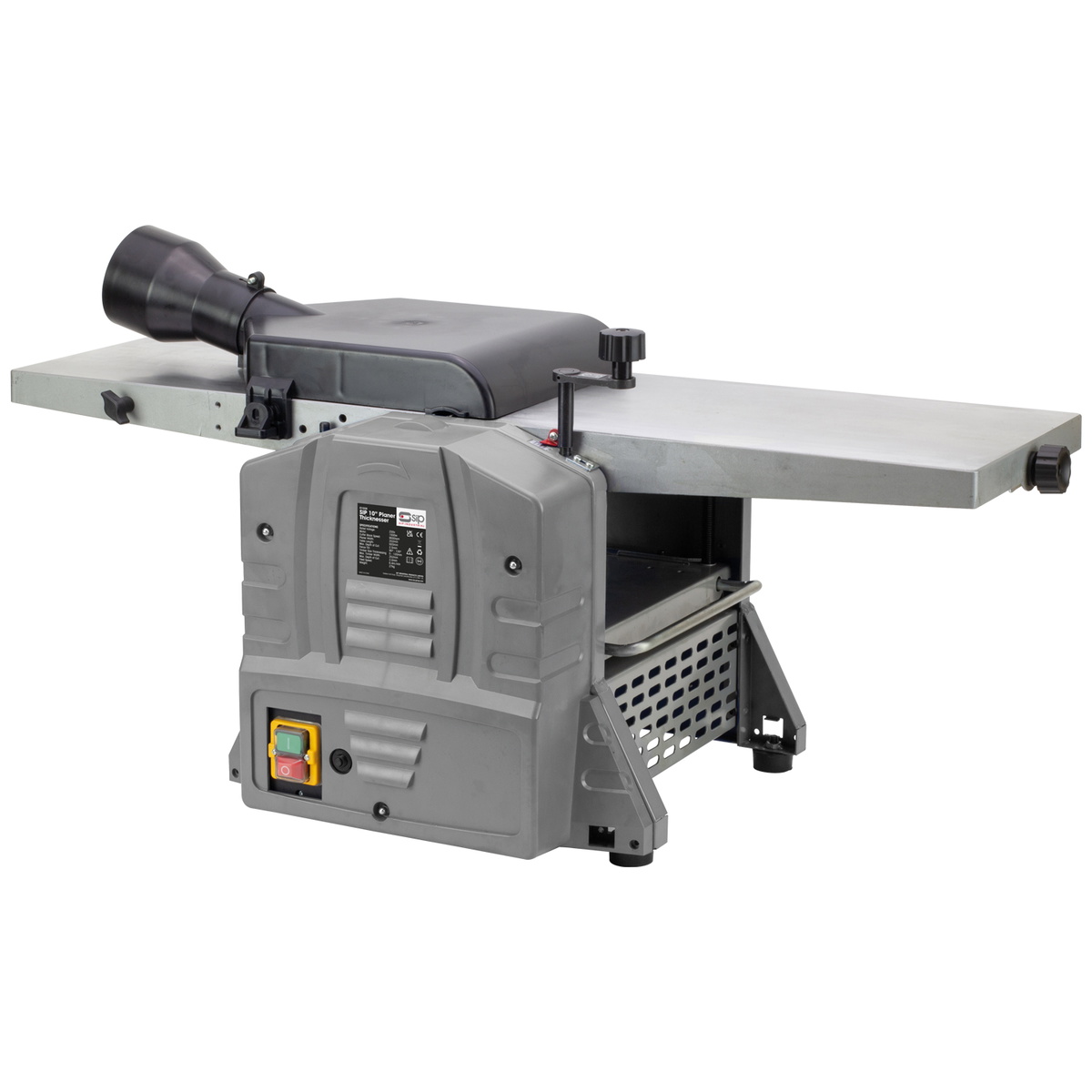

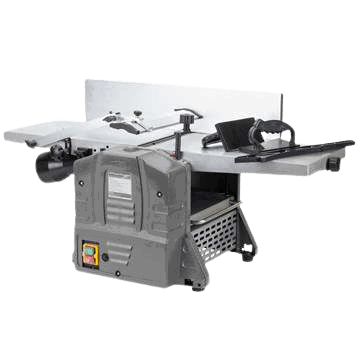

The SIP 01558 10" x 5" Planer Thicknesser is a 230V single-phase machine powered by a 1.5kW (2hp) motor, designed for efficient planing and trimming of workpieces to uniform thicknesses and widths. Capable of removing large amounts of material in a single pass, it ensures consistency across boards, planks, and surfaces in professional workshop environments.

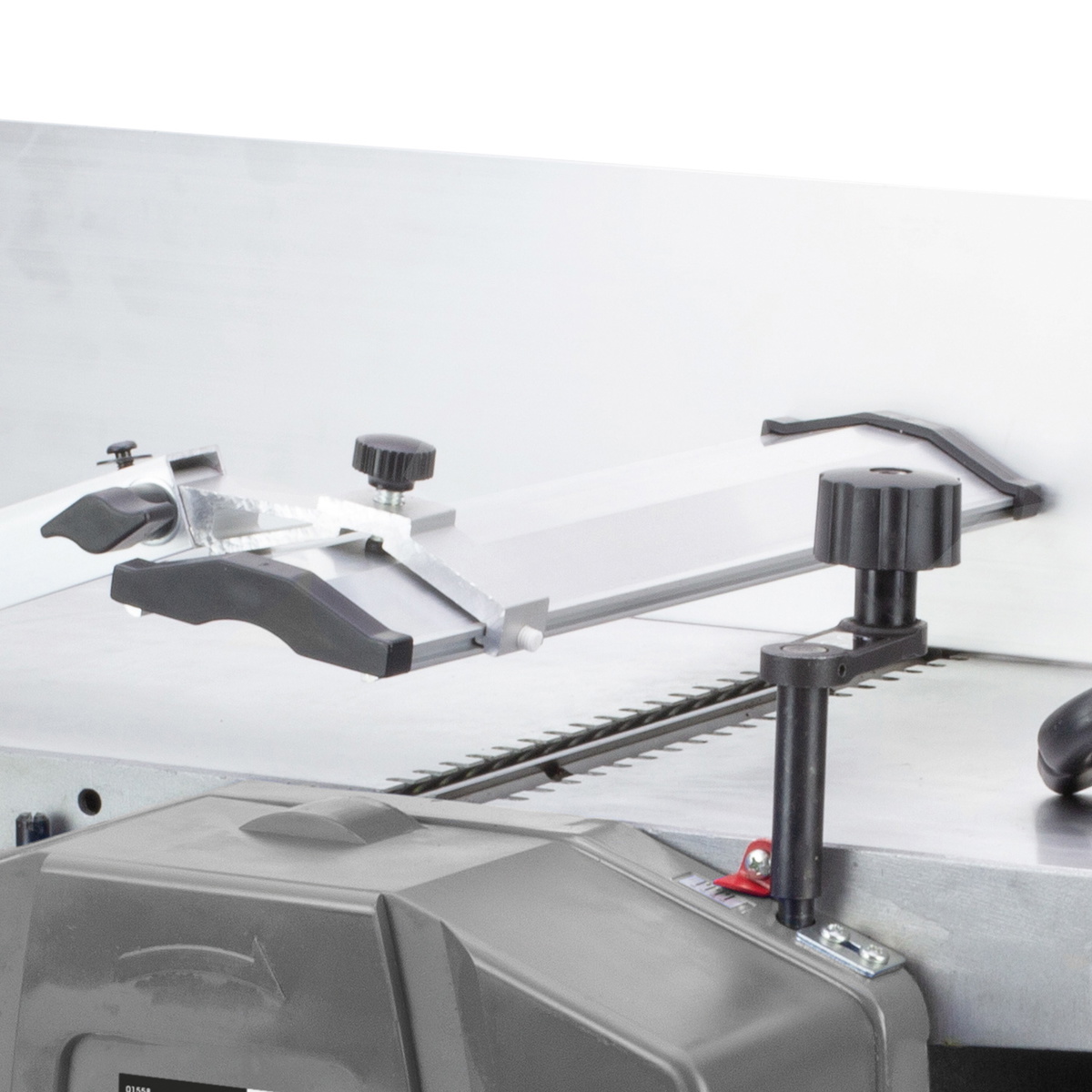

The machine features machine-surfaced cast aluminium tables measuring 920mm in length and 355mm in height, delivering accurate planing of larger timber. Power-fed rollers provide consistently high performance and a smooth finish, while the adjustable fence tilts between 90° and 135°, making the unit suitable for both square and chamfered planing. An integrated NVR switch and fitted safety interlock switches contribute to safe operation throughout the working day.

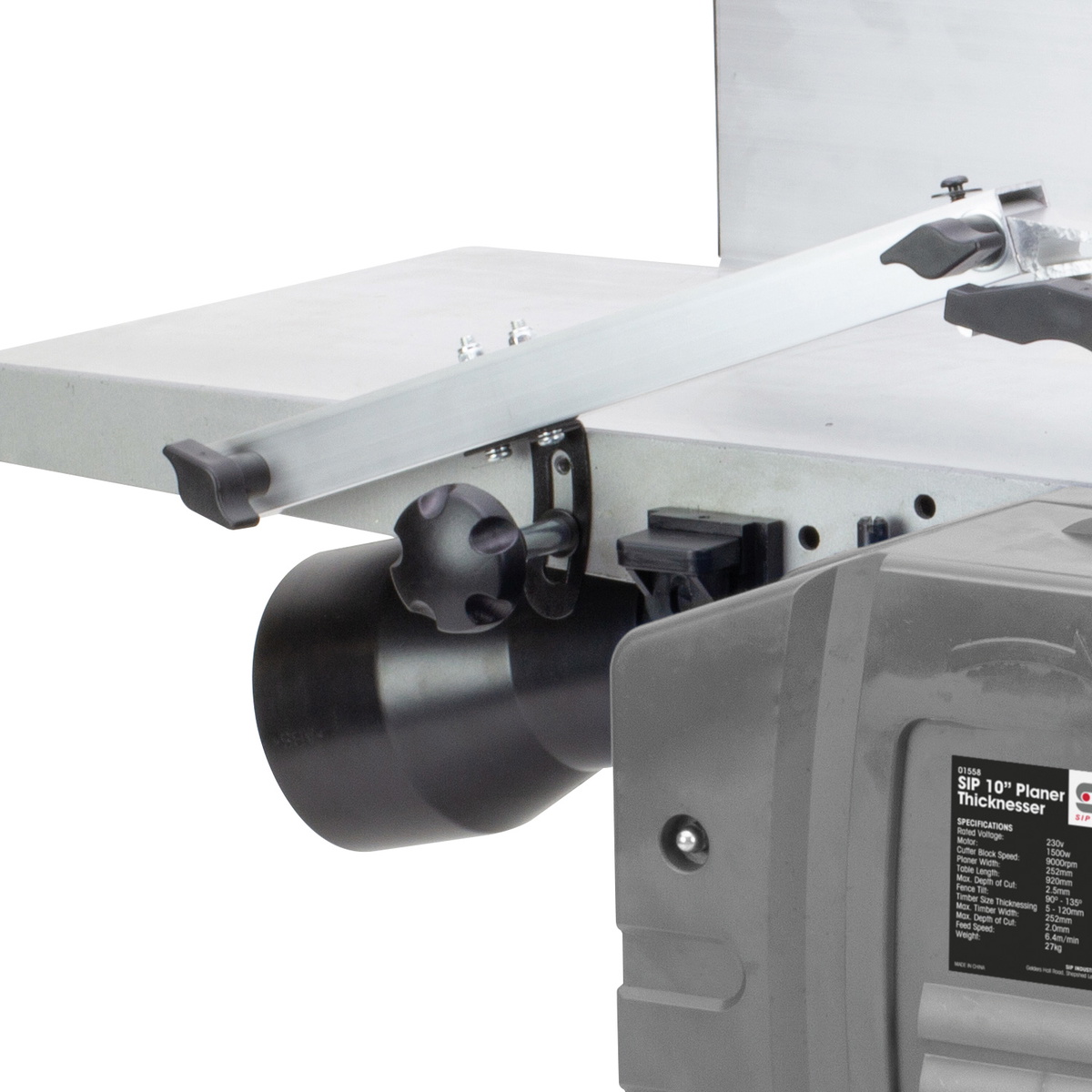

With a planer width of 252mm and a maximum cutting depth of 2.5mm for planing and 2mm for thicknessing, the 01558 handles timber sizes ranging from 5mm to 120mm in thickness, up to 252mm wide. The cutter block operates at 9,000rpm. A built-in dust extraction port is provided, with an outlet of 55mm ID / 62mm OD and an expander adaptor of 63mm ID / 68mm OD. Note that operation requires an attached dust extractor; SIP recommend either the SIP 50ltr Dust & Chip Collector (01923) or the SIP 1hp Portable Single Bag Dust Collector (01963).
This planer thicknesser is supplied with a SIP 2-Year Standard Silver Warranty. The SIP 01558 is manufactured in China.
Additional Information:
The SIP 10" x 5" Planer Thicknesser is designed for efficient planing and trimming of workpieces to uniform thicknesses and width, comfortably removing large amount of material in one pass, making sure that all boards, planks, and surfaces are consistent.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01558 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.5kW (2hp) |
| Cutter Block Speed | 9000rpm |
| Dust Extraction Outlet (ID/OD) | 55mm / 62mm |
| Dust Extraction Adaptor (ID/OD) | 63mm / 68mm |
| Planer Width | 252mm |
| Table Height | 355mm |
| Table Length | 920mm |
| Fence Tilting | 90° - 135° |
| Max. Cutting Depth | PLANING; 2.5mm / THICKNESSING; 2mm |
| Timber Size Range | 5mm - 120mm |
| Max. Timber Width | 252mm |
| Noise Level | 105db(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
WD01-01581 | SIP WD01-01581 8" Planer Blade | 1 Unit |
£28.28
£27.73
|
Add |
Woodworking Machines: Bandsaw, Table Saw, Planer or Log Saw? A bandsaw that can't cut a thick block, or a planer that dips at every board end: first machines are easy to get wrong. Buy for the cut you make most, then...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01475 10" Professional Heavy-Duty Wood Bandsaw
£367.56
£360.35
2% OFF
Free delivery in UK Mainland
|
SIP 01477 12" Professional Heavy-Duty Wood Bandsaw
£735.12
£720.71
2% OFF
Free delivery in Channel Island
|
SIP 01976 Electric Horizontal Log Splitter with Cage, Splitting Force - 5 Tonne, Log Diameter - Ǿ 50mm-250mm
£319.95
Free delivery in UK Mainland
|
SIP 01978 Vertical Electric Log Splitter, Splitting Force - 7 Tonne, Log Diameter - Ǿ 80mm-300mm
£613.69
£601.66
2% OFF
Free delivery in UK Mainland
|
SIP 01332 10" Professional Cast Iron Table Saw
£1,729.13
£1,695.23
2% OFF
Free delivery in Channel Island
|
SIP 01444 14" Professional Heavy-Duty Wood Bandsaw
£1,260.22
£1,235.51
2% OFF
Free delivery in Channel Island
|
SIP 01445 16" Professional Heavy-Duty Wood Bandsaw
£1,470.26
£1,441.43
2% OFF
Free delivery in Channel Island
|
SIP 01554 10" Industrial Circular Saw - Single Phase
£1,614.66
£1,583.00
2% OFF
Free delivery in Channel Island
|
SIP 01446 12" Professional Cast Iron Table Saw
£2,507.53
£2,458.36
2% OFF
Free delivery in Channel Island
|
||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01475 | 01477 | 01976 | 01978 | 01944 | 01457 | 01947 | 01557 | 08209 | 08210 | 01332 | 01444 | 01445 | 01554 | 01446 |
| Type | Bandsaw | Bandsaw | Log Splitter | Log Splitter | Table Saw | Spindle Moulder | Scroll Saw | Planer Thicknesser | Table Saw | Bandsaw | Bandsaw | Table Saw | |||
| Input Supply | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (16A) | 230v (13A) | 230v (13A) | 230v (13A) | 230v (16A) | |
| Length (mm) | 350 | 400 | 50 | 80 | 18 | 500 | 406 | 55 | 140 | 83 | 53 | 535 | 535 | 250 | 80 |
| Motor Power | 370w (0.5hp) | 750w (1hp) | 2.2kW (3hp) | 3kW (4hp) | 370w (0.5hp) | 90w (0.1hp) | 1.5kW (2hp) | 2200w @ S2 15mins | 2200w @ S6 40% 5mins | 2.2kW (3hp) | 1.5kW (2hp) | 2.2kW (3hp) | 1.5hp (1.1kW) | 3kW (4hp) | |
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | |
A. The SIP 01558 has a planer width of 252mm. Maximum cutting depth is 2.5mm for planing and 2mm for thicknessing.
A. The machine handles timber ranging from 5mm to 120mm in thickness, with a maximum timber width of 252mm.
A. The SIP 01558 operates on a 230V single-phase supply drawing 13A, with a 1.5kW (2hp) motor.
A. Yes — for machine longevity, the SIP 01558 must be operated with an attached dust extractor. SIP recommend the SIP 50ltr Dust & Chip Collector (01923) or the SIP 1hp Portable Single Bag Dust Collector (01963). The machine features a built-in dust extraction port with an outlet of 55mm ID / 62mm OD and an expander adaptor of 63mm ID / 68mm OD.
A. The fence tilts between 90° and 135°, making the machine suitable for both square and chamfered planing.
A. The machine is fitted with safety interlock switches and an integrated NVR (No-Volt Release) switch for added operator safety.
A. The SIP 01558 is covered by a SIP 2-Year Standard Silver Warranty.
A. The cast aluminium tables measure 920mm in length with a table height of 355mm. The surfaces are machine-surfaced for accurate planing of larger timber.
