Product Number: 01480

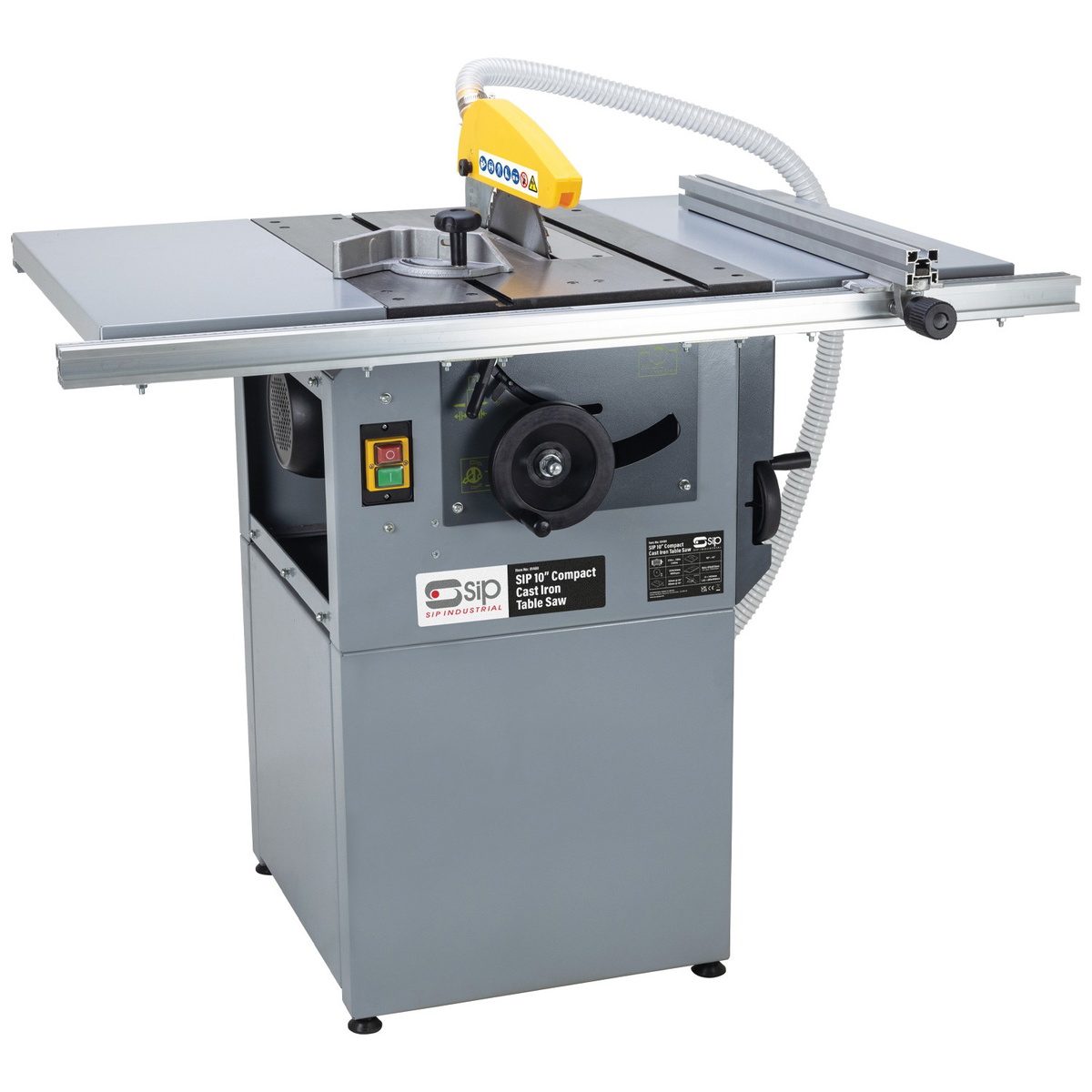

The SIP 01480 10" Compact Cast Iron Table Saw is a powerful and versatile machine running on a 230V (13A) single-phase supply with a 2.2kW (3hp) induction motor, designed for a variety of professional woodworking tasks including ripping, cross-cutting, mitre cuts, bevelling, and sheet panel and board preparation.
The cutting table is constructed from heavy-duty cast iron, providing a rigid, stable working surface, and is supplied with two pressed steel extensions that expand the table from 635mm x 420mm up to 635mm x 1000mm. The fitted induction motor delivers quieter operation and long service life. The tilting blade adjusts up to 45° to the left, and the 45° mitre gauge can be fixed in both left and right positions, adding versatility to angled work. A heavy-duty rip fence with millimetre scale ensures consistent guided cuts, whilst the 100mm extraction port allows direct connection to a dust collection system.
With a blade speed of 4000rpm and a 40-tooth TCT blade measuring 254mm x 30mm (3/1.8mm kerf), the machine delivers a maximum depth of cut of 80mm at 90° and 65mm at 45°. The blade-to-fence distance extends to 750mm, accommodating wider rip cuts. Table height stands at 845mm. An optional sliding carriage attachment is available for enhanced cutting versatility, and the compact footprint makes the 01480 well suited to workshops where floor space is limited.
Additional Information:
The SIP 10" Compact Cast Iron Table Saw is a powerful and versatile table saw suitable for a variety of professional woodwork tasks. This includes ripping, cross-cutting, mitre cuts and bevelling, plus sheet panel and board preparation.
Featuring an extendable work table area and optional sliding carriage attachment for greater cutting versatility, this highly durable and compact machine is also ideal for use in work areas with limited floor space.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Input Supply | 230v (13A) |
|---|---|
| Motor Power | 2.2kW (3hp) |
| Blade Tilting | 45° left |
| Depth of Cut | 80mm @ 90° / 65mm @ 45° |
| Standard Table Size | 635mm x 420mm (LxW) |
| Extended Table Size | 635mm x 1000mm (inc. 2x 635mm x 290mm extensions) (LxW) |
| Table Height | 845mm |
| Blade to Fence Size | 750mm |
| Blade Speed | 4000rpm |
| Blade Size | ⌀ 254mm x 30mm x 3/1.8mm 40TCT |
| Extraction Port | ⌀ 100mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
06123 | SIP 06123 TCT Blade - 254mm x 30mm 40T | 1 Unit |
£45.60
£44.71
|
Add |
|
01379 | SIP 01379 Single Roller Stand | 1 Unit |
£58.66
£57.51
|
Add |
|
01481 | SIP 01481 Sliding Carriage Attachment for 01480 | 1 Unit |
£133.56
£130.94
|
Add |
|
01383 | SIP 01383 Adjustable V Roller Ball Stand | 1 Unit |
£63.25
£62.01
|
Add |
|
01381 | SIP 01381 Heavy-Duty 5 Roller Stand | 1 Unit |
£114.64
£112.39
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01513 2-in-1 Table Saw w/ Integrated Dust Extractor
£305.11
£299.13
2% OFF
Free delivery in UK Mainland
|
SIP 01332 10" Professional Cast Iron Table Saw
£1,708.98
£1,675.47
2% OFF
Free delivery in Channel Island
|
SIP 01446 12" Professional Cast Iron Table Saw
£2,478.30
£2,429.71
2% OFF
Free delivery in Channel Island
|
Draper 82756 BANDSAW WITH STEEL TABLE, 200MM, 250W
£130.22
£127.67
2% OFF
Free delivery in UK Mainland
|
Sealey LS450H Log Splitter Foot Operated Horizontal
£95.32
£93.45
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01986 | 01513 | 01332 | 01446 | 82756 | TS10P | 99258 | LS450H |
A. The SIP 01480 is suitable for ripping, cross-cutting, mitre cuts and bevelling, as well as sheet panel and board preparation, making it well suited to professional woodworking workshops.
A. The SIP 01480 delivers a maximum depth of cut of 80mm at 90° and 65mm at 45°.
A. The blade runs at 4000rpm. The fitted blade measures 254mm diameter x 30mm bore with a 3/1.8mm kerf and features a 40-tooth TCT profile.
A. The standard table measures 635mm x 420mm (L x W). With the two included 635mm x 290mm pressed steel extensions fitted, the table expands to 635mm x 1000mm (L x W). Table height is 845mm.
A. Yes. The SIP 01480 is fitted with a 100mm diameter extraction port that allows direct connection to a compatible dust collection system.
A. The SIP 01480 operates on a standard 230V (13A) single-phase supply, suitable for use on a standard UK 13A circuit.
A. Yes. The machine has been designed with a compact footprint specifically to suit workshops and work areas where floor space is limited.
A. Yes. An optional sliding carriage attachment is available for the SIP 01480 and provides greater cutting versatility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
