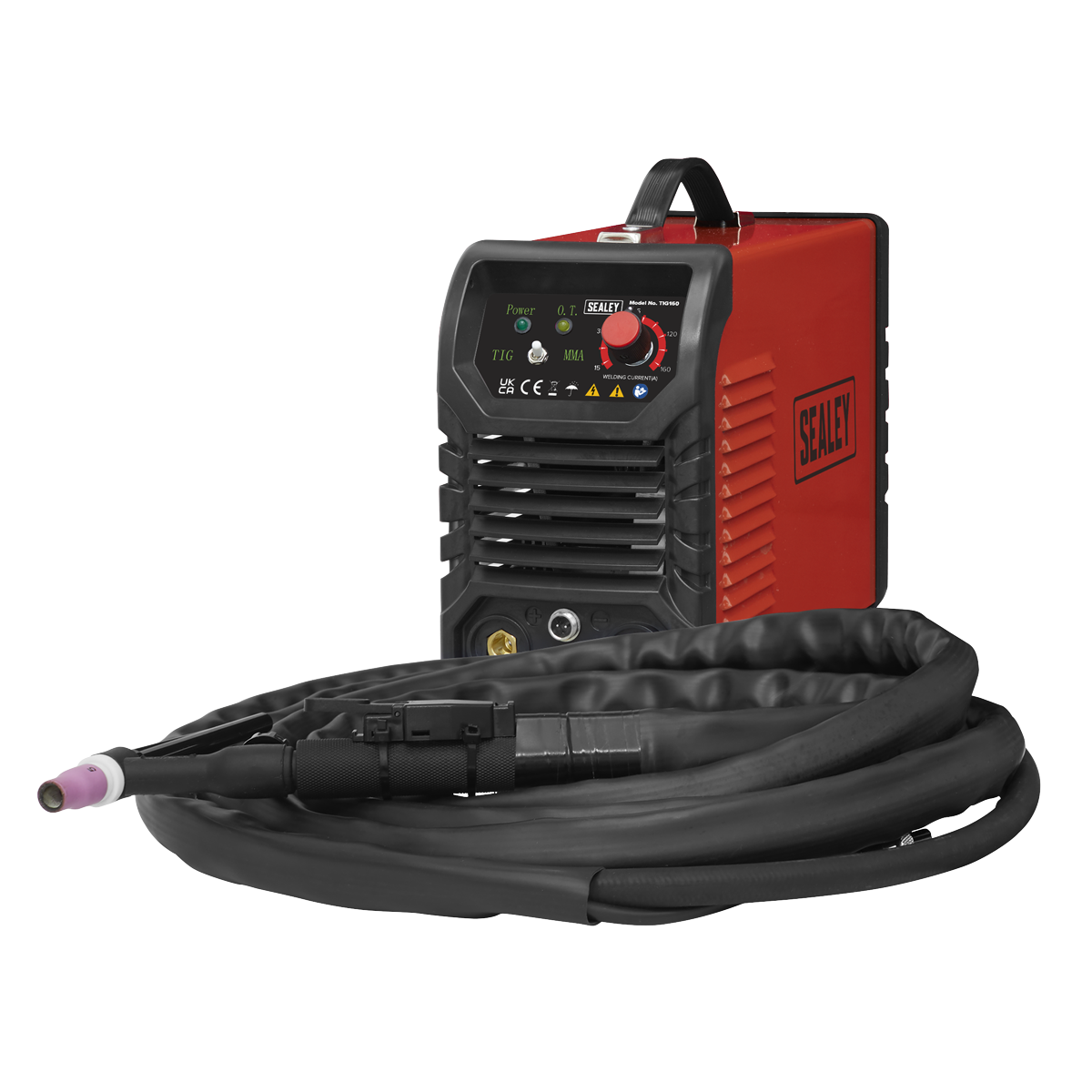

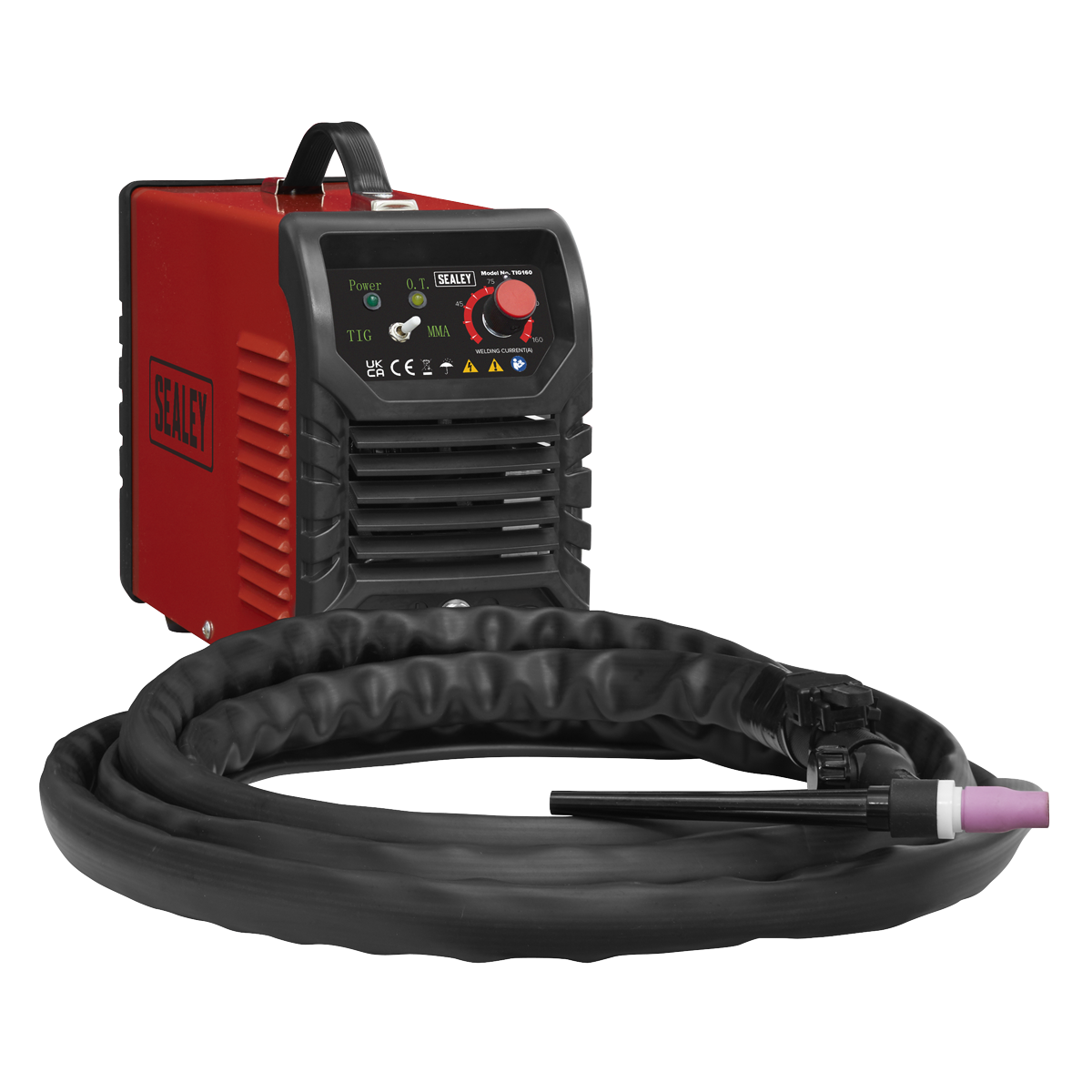

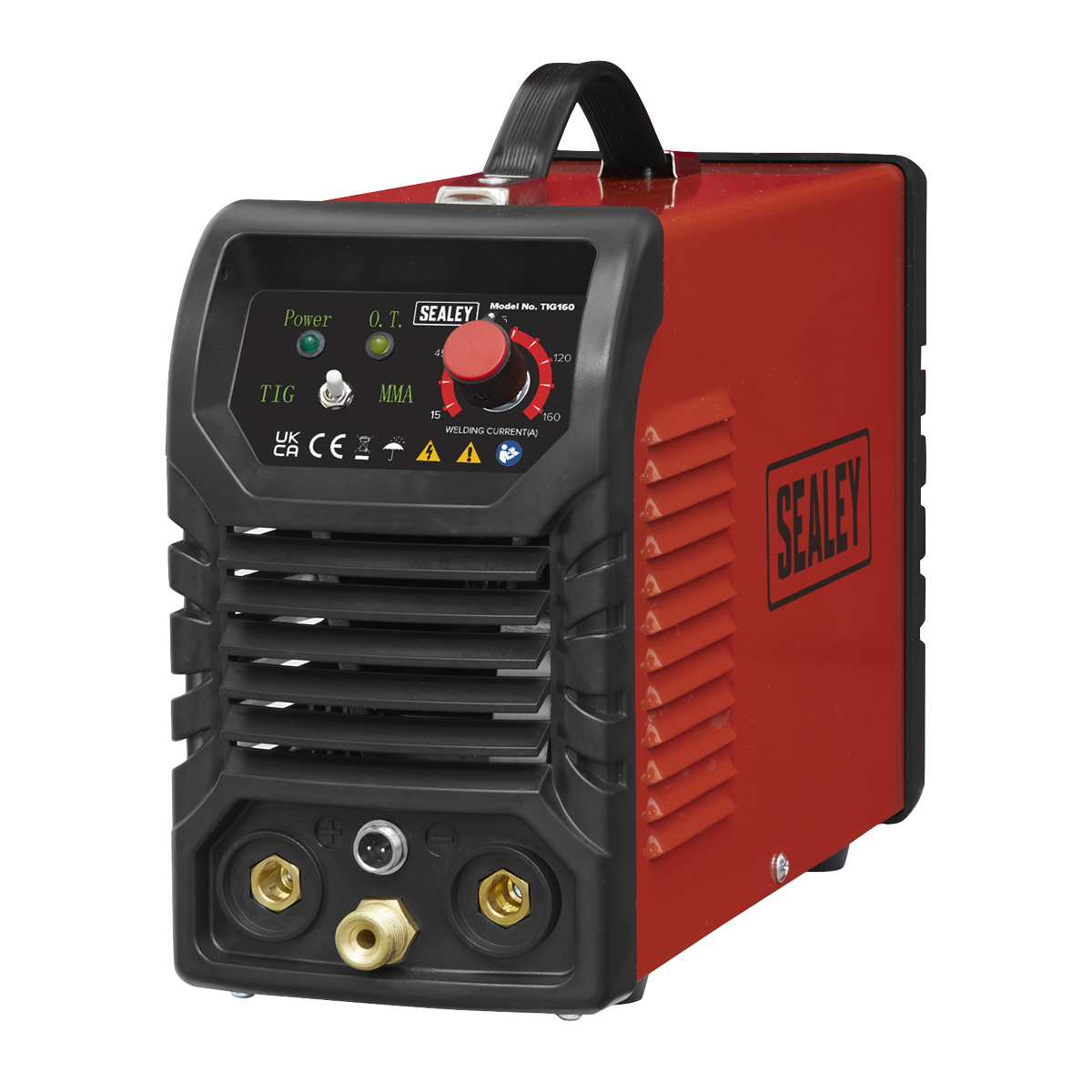

Product Number: TIG160
Variations
Weld and steel from the same machine. Lift-TIG start provides clean arc ignition.
Features hot start, anti-stick, forced air cooling, thermal cut-out protection.
Suitable for welding mild steel and stainless steel. suited to mobile technician environments.
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature, with IP21S protection rating for workshop use. For operators comparing TIG welders for steel and stainless steel, the TIG160 delivers DC TIG output with lift or HF arc start. TIG welding produces the cleanest, most precise welds — ideal for visible joints and thin materials. TIG mode requires tungsten electrodes and shielding gas (Argon or Argon/Helium mix) for clean, precise welds on steel and stainless steel. Backed by Sealey's product guarantee for peace of mind. Model No:TIG160. Brand:Sealey. Nett Weight:8.38kg. Power Output:20-160A. Absorbed Power:5.1kW. Supply:230V*. Protection:IP21S. Weight:8.38kg. Accessories:Yes. Replacement consumables for the TIG160 are available at PartsForMachines.com.
Additional Information:
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TIG160 |
|---|---|
| Brand | Sealey |
| Nett Weight | 8.38kg |
| Power Output | 20-160A |
| Duty Cycle | 20% @ 160A |
|
60% @ 90A
|
|
|
100% @ 70A
|
|
| Electrode Capacity | Ø1.6-4mm |
| Absorbed Power | 5.1kW |
| Supply | 230V* |
| Protection | IP21S |
| Weight | 8.38kg |
| Accessories | Yes |
| Electrode Holder (Included) | Yes |
| TIG Welding Torch (Included) | Yes |
| Note | *To achieve maximum power a 16A supply may be required. |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
£367.93
£360.72
2% OFF
Free delivery in UK Mainland
|
Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A
£647.07
£634.38
2% OFF
Free delivery in UK Mainland
|
Clarke MIG200 S-MULTI 200A MIG/TIG/MMA Synergic Inverter Welder
£693.75
£680.15
2% OFF
Free delivery in UK Mainland
|
Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
£185.86
£182.22
2% OFF
Free delivery in UK Mainland
|
SIP 05695 WELDMATE® PRO 200A DC TIG/ARC Inverter Welder
£441.12
£432.47
2% OFF
Free delivery in UK Mainland
|
SIP 05690 WELDMATE® PRO 140A ARC/TIG Inverter Welder
£153.67
£150.66
2% OFF
Free delivery in UK Mainland
|
Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A
£907.82
£890.02
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MIG200i | CAP1028 | CAP1027 | INVMIG200 | 6015605 | MINIMIG160i | 05695 | 05690 | 70052 |
| Input Supply | 110/230 | 230 | 230 | 230 | |||||
| Input current | 32/16 | 16 | 32 | ||||||
A. The TIG160 supports TIG welding, ARC/MMA stick welding. Output spans 20-160A across all modes. Suitable for mild steel.
A. The TIG160 requires a 230V supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The TIG160 has a duty cycle of 20% @ 160A. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The TIG160 accepts electrodes from Ø1.6-4mm in diameter. Compatible rod types include rutile and basic electrodes for mild steel, and specialist stainless and cast iron rods where relevant.
A. The TIG160 weighs 8.38kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.
A. The TIG160 is primarily suited to mild steel.
A. Yes. The TIG160 is fitted with automatic thermal overload protection that cuts output if the machine exceeds safe operating temperature. It will restart automatically once it has cooled. Operating within the rated duty cycle minimises the frequency of thermal interruptions.
A. The TIG160 does not include a foot pedal as standard. A compatible foot pedal may be available as an optional accessory — check the product listing for compatible accessories.
A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. ARC/MMA is faster for thicker sections and suits outdoor or on-site work. The TIG160 lets you switch between TIG and ARC to match the job.
