Product Number: 01718
Variations

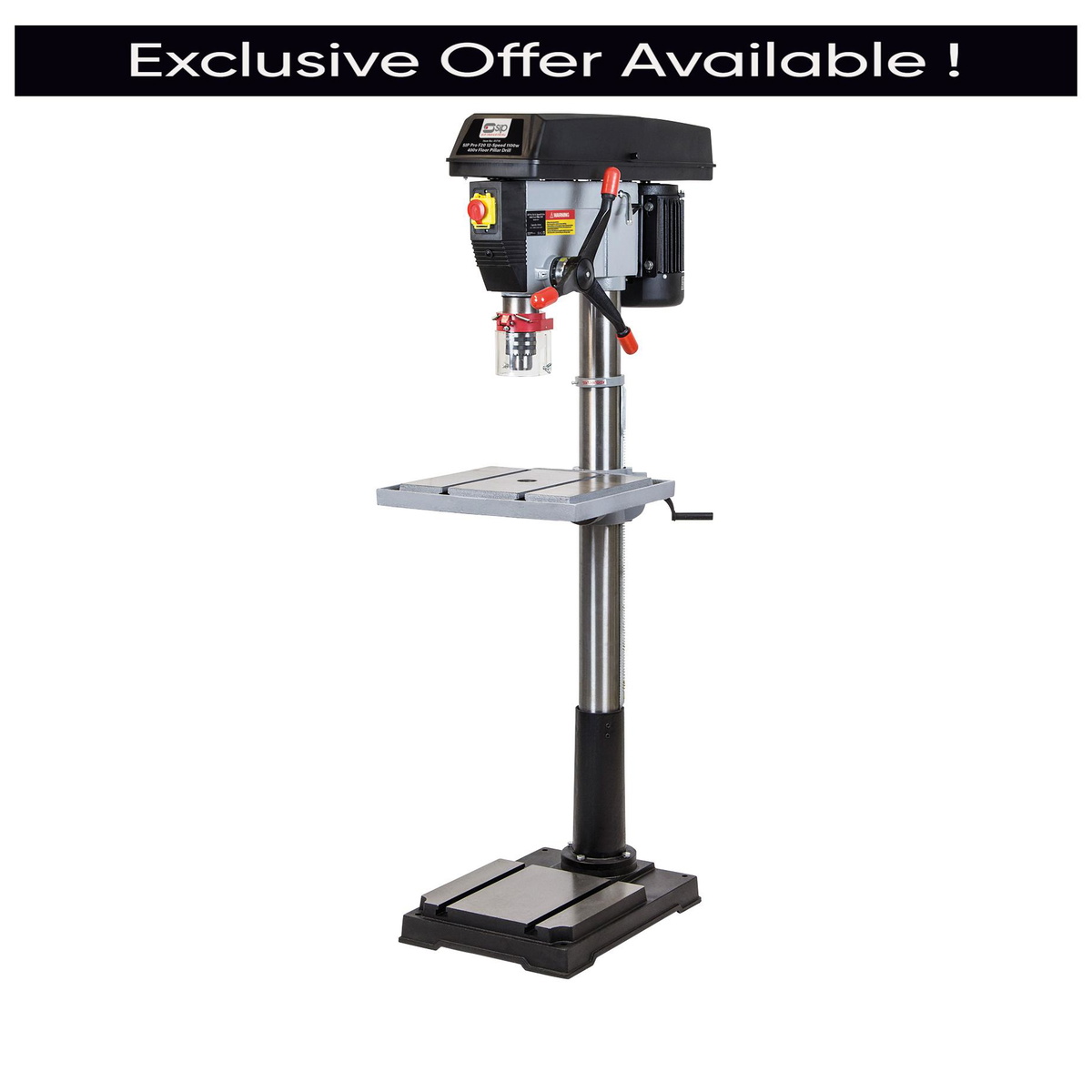

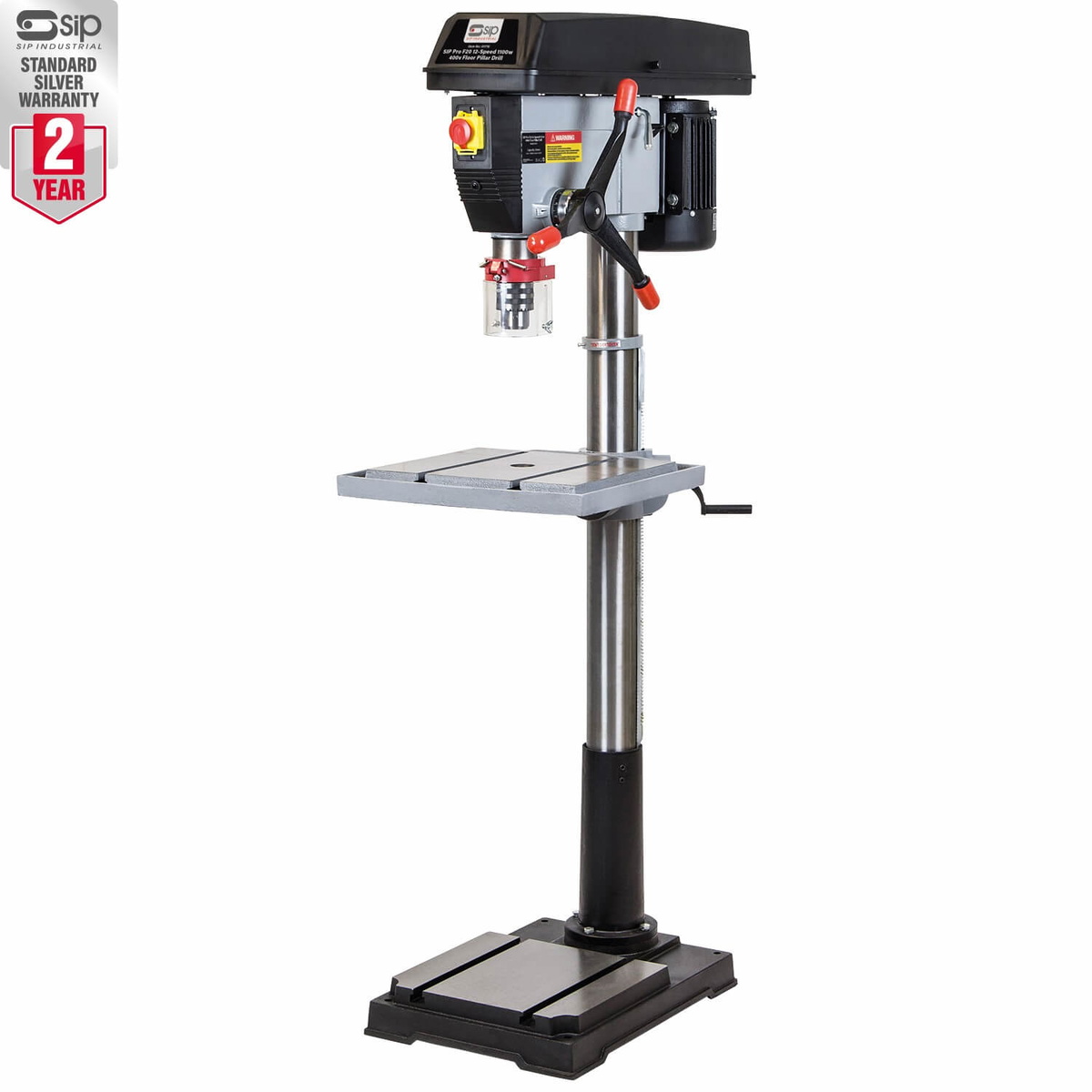

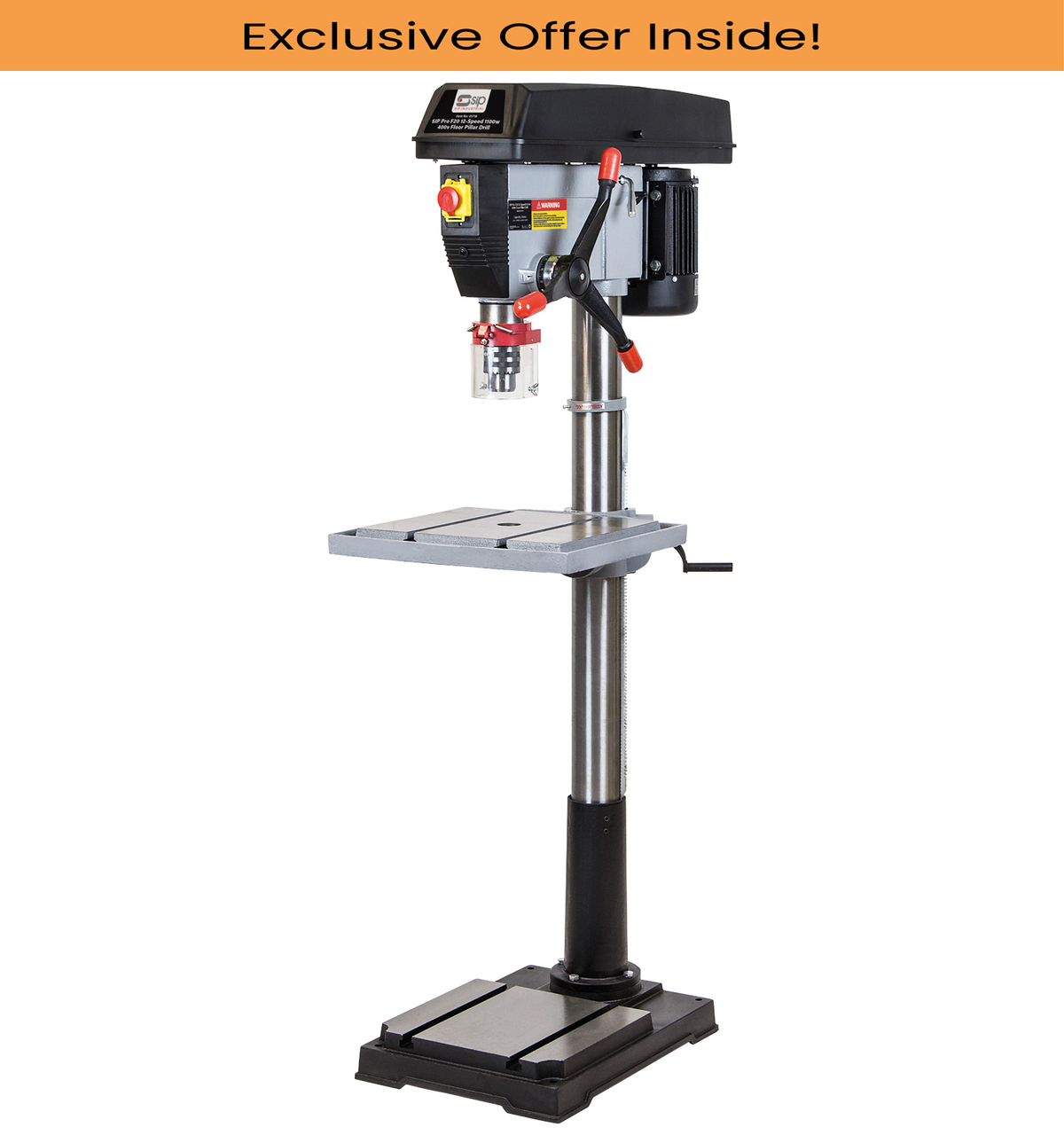

The SIP Pro F20 Floor Pillar Drill (SKU 01718) is a 1100W, 400V three-phase floor-standing machine designed for preparing and finishing a wide variety of workpiece materials in professional workshop environments. With 12 selectable spindle speeds and an MT4 spindle taper, it is built for demanding pilot, blind, batch and general drilling operations across ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.

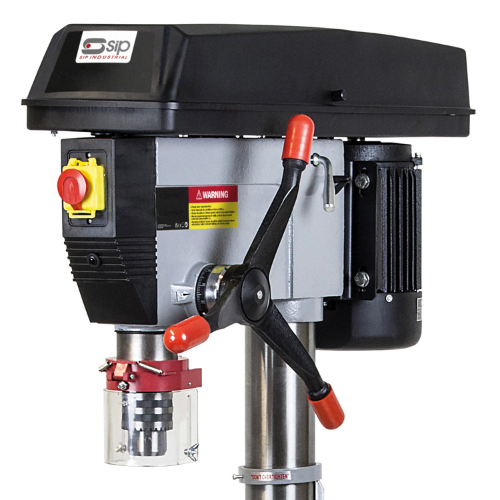

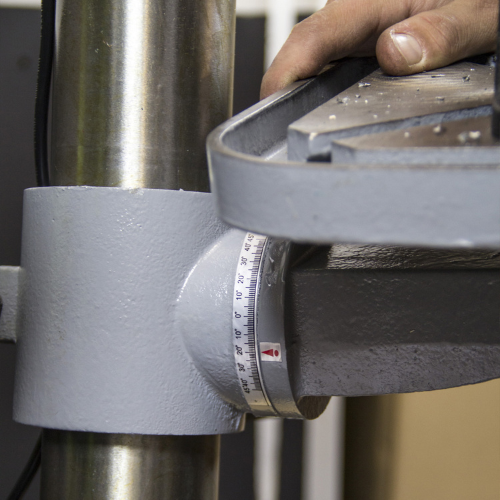

At the heart of the Pro F20 is a high-power brushless induction motor delivering consistent performance across its full speed range of 150 to 2500 RPM. The MT4 fitting extends drilling capacity up to 32mm, making it well suited to heavy-duty hole drilling with engineering workshop components. Multi-speed functionality provides precise control across the drilling spectrum, while the adjustable tilting table — fitted with a tilt scale — allows accurate workpiece positioning for angled or repetitive work. A three-lever handle ensures smooth, controlled drilling force throughout each pass.

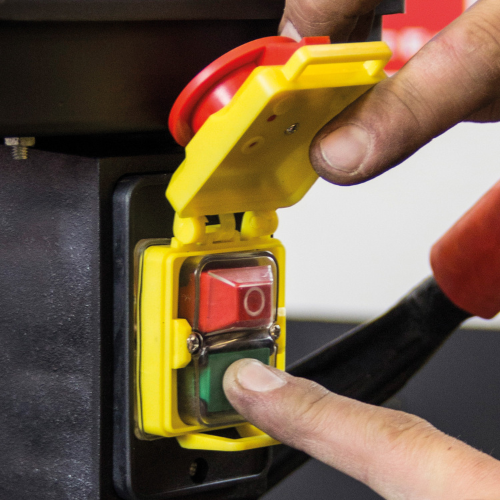

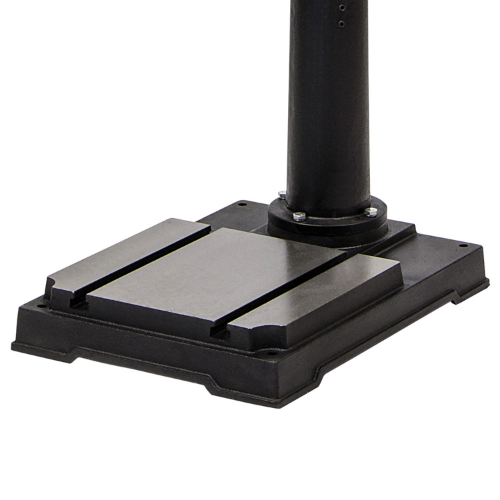

Safety and longevity are central to the Pro F20's design. Integrated chuck guards reduce operator risk during use, and a safety interlock switch allows belt adjustment on the motor with confidence, preventing accidental start-up. A drilling depth stop enables accurate repetitive and blind hole drilling, minimising material wastage. The sturdy cast iron base provides the stability required for sustained, high-accuracy workshop use. The column diameter measures 92mm, the table 420mm x 470mm, and the overall machine height stands at 1720mm.
The Pro F20 is also available in other configurations within the SIP pillar drill range — refer to companion listings for alternative speed counts, voltage options, and bench-mounted variants where applicable.
The SIP 01718 Pro F20 is supplied as a floor-standing unit and is backed by SIP's 2-Year Standard Silver Warranty. Manufactured to meet the requirements of professional metalwork and woodwork environments.
Additional Information:
The SIP Pro F20 12-Speed 1100w 400v Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT4 fitting allows for a larger drilling capacity. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings. Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT4 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, heavy-duty use for larger hole drilling with engineering workshop components, plus metalwork and woodwork environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01718 |
|---|---|
| Input Voltage | 400v 3-PHASE |
| Motor Power | 1100w |
| No. of Speeds | 12 speeds |
| Speed Range | 150rpm - 2500rpm |
| Drill Bit Size | 5mm - 20mm |
| Spindle Taper | MT4 |
| Table Size | 420mm x 470mm |
| Base Size | 570mm x 425mm |
| Column Diameter | Ø 92mm |
| Swing | 506mm |
| Height | 1720mm |
| Spindle Travel | 120mm |
| Collar Diameter | Ø 92mm |
| Max. Distance | 620mm (chuck to table) / 1095mm (chuck to base) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01715 Pro F20 16-Speed 750w Floor Pillar Drill
£395.71
£387.95
2% OFF
Free delivery in UK Mainland
|
SIP 01717 Pro F20 12-Speed 1100w 230v Floor Pillar Drill
£809.83
£793.95
2% OFF
Free delivery in Channel Island
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01715 | 01717 | DPG30 | DPG99 | GDM200F/VS | 95092 |
A. The SIP 01718 Pro F20 is designed for use with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it suitable for a wide range of metalwork and woodwork applications.
A. The Pro F20 has a maximum drilling capacity of 32mm, achieved via its MT4 spindle taper fitting. The accepted drill bit size range is 5mm to 20mm.
A. The SIP 01718 Pro F20 provides 12 selectable spindle speeds, covering a range of 150 RPM to 2500 RPM, allowing precise control across different materials and hole sizes.
A. The SIP 01718 operates on a 400V three-phase supply with a 1100W motor. It is not compatible with single-phase 230V supplies.
A. The Pro F20 features integrated chuck guards to reduce operator risk during drilling, and a safety interlock switch that prevents the drill from starting accidentally whilst the motor belt is being adjusted.
A. The Pro F20 stands 1720mm tall with a column diameter of 92mm, a table size of 420mm x 470mm, a base size of 570mm x 425mm, a swing of 506mm, and a spindle travel of 120mm. The maximum chuck-to-table distance is 620mm and chuck-to-base distance is 1095mm.
A. The SIP 01718 Pro F20 is covered by SIP's 2-Year Standard Silver Warranty.
A. The Pro F20 is suited to pilot, blind, batch and general drilling use, heavy-duty larger hole drilling with engineering workshop components, and sustained metalwork and woodwork operations in professional workshop settings.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
