Product Number: 01716
Variations

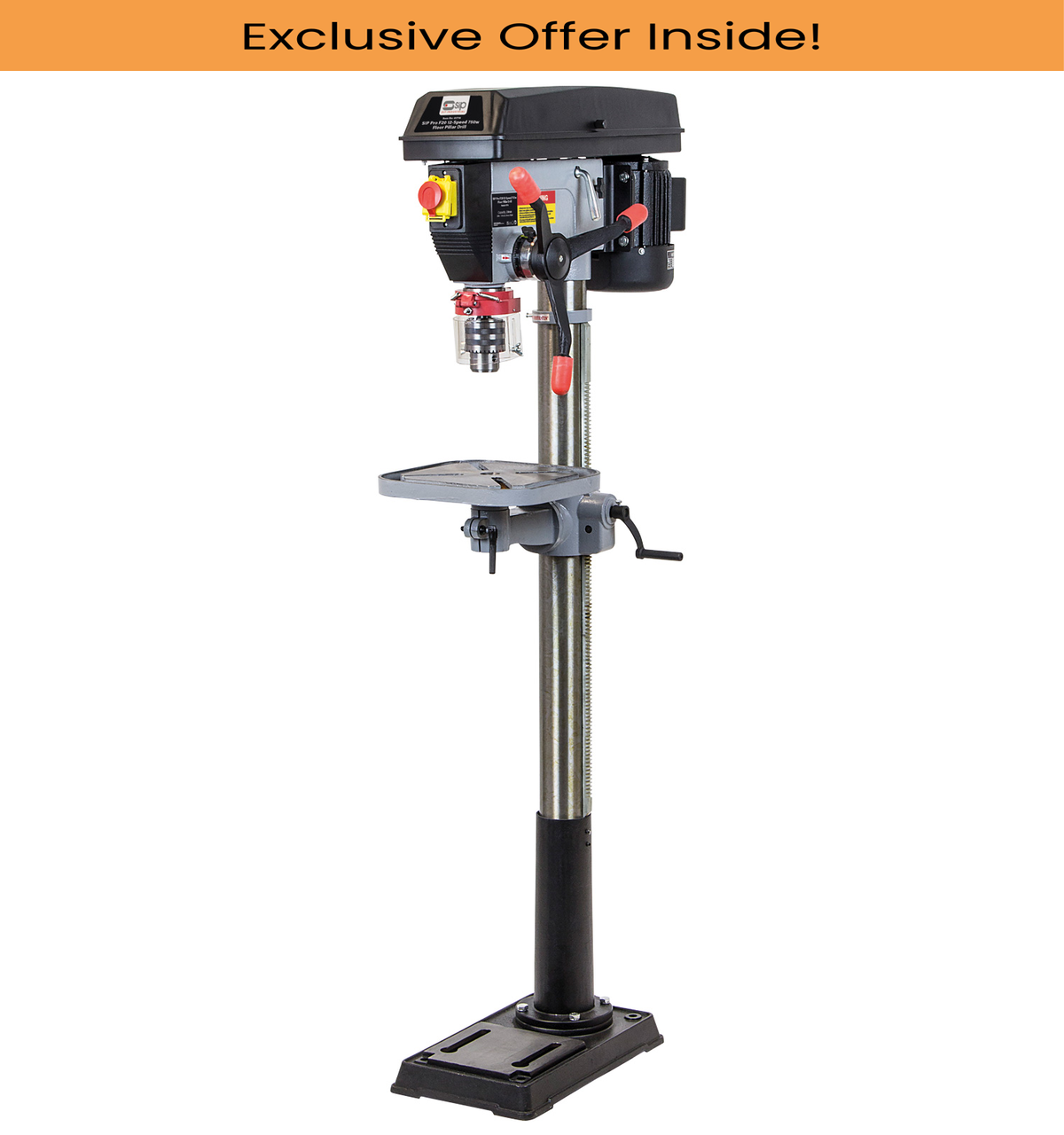

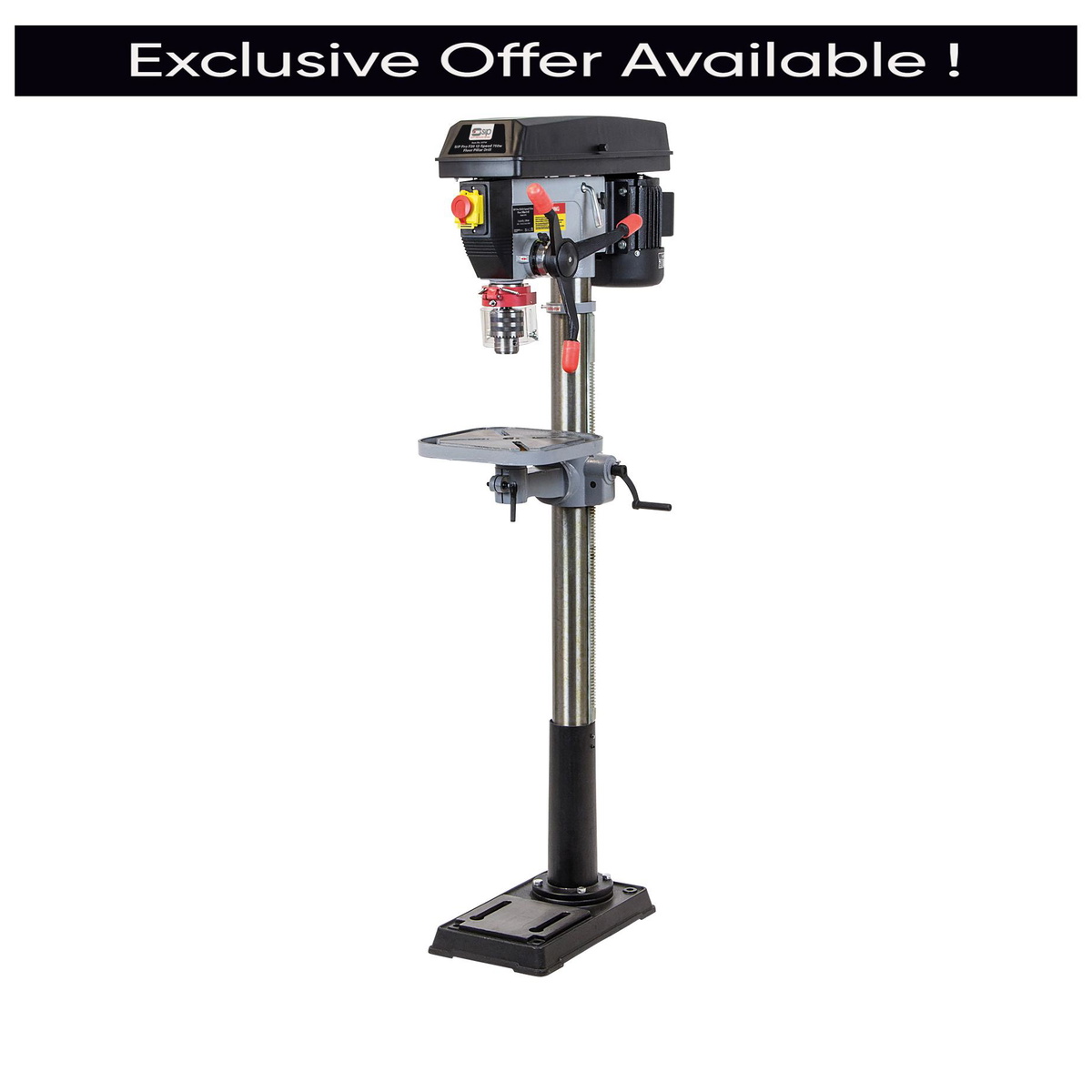

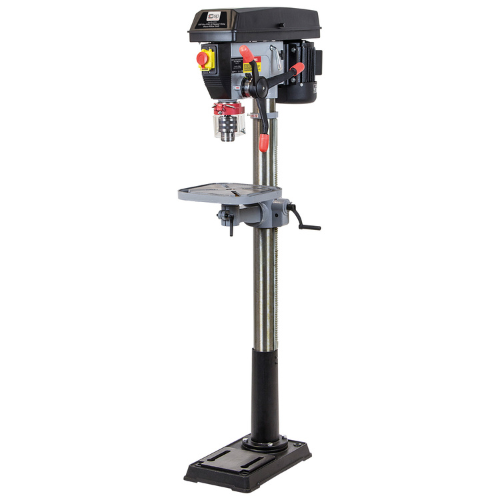

The SIP Pro F20 (01716) is a 750W floor-mounted pillar drill operating from a 230V (13A) supply, offering 12 spindle speeds across a range of 320 to 2380rpm. With a maximum drilling capacity of 25mm and drill bit compatibility from 5mm to 20mm, it is designed to handle a broad spectrum of workpiece materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics in professional workshop settings.

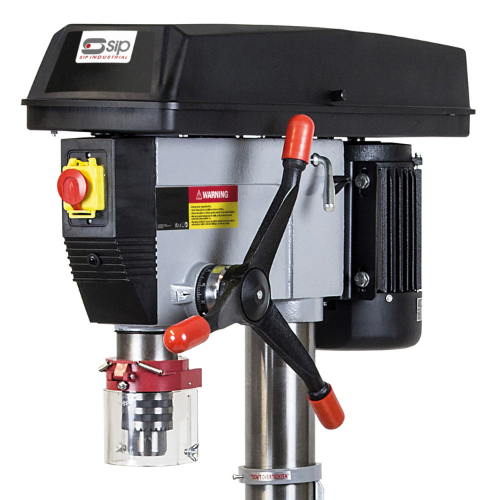

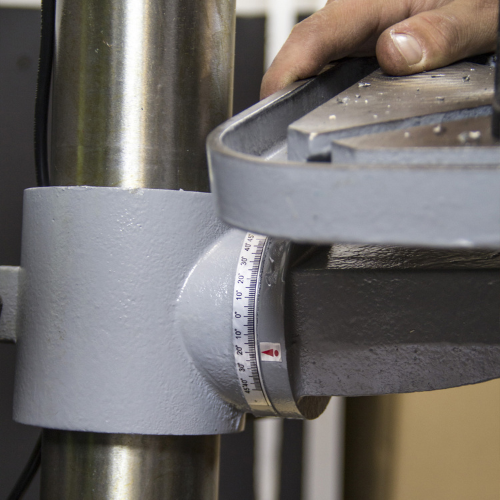

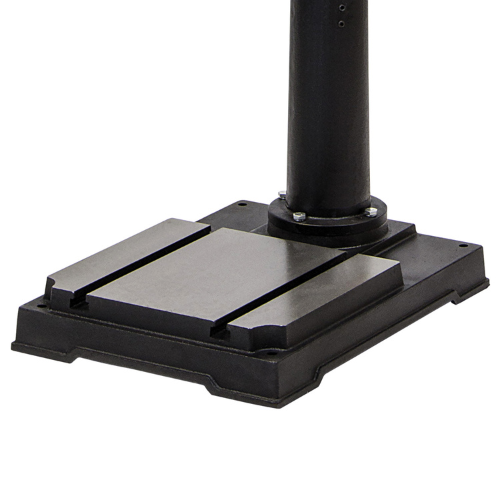

Key features centre on precision, safety and durability. The MT3 spindle taper allows users to fit larger drill bits, extending drilling capacity for demanding applications. A drilling depth stop ensures accurate, repeatable blind and batch hole drilling, minimising material wastage, while the three-lever handle promotes smooth, controlled drilling force. The adjustable tilting table with tilt scale enables accurate workpiece positioning, and integrated chuck guards reduce user risk during operation. A safety interlock switch prevents accidental start-up when adjusting the motor belt, and a sturdy cast iron base provides the stability required for consistent workshop use.
The Pro F20 is equally at home in metalwork and woodwork environments. Its MT3 fitting makes it particularly well suited to pilot, blind, batch and general drilling, as well as the manufacture of gates, rails and engineering components. The 285mm x 285mm table, 350mm swing, 80mm spindle travel and a maximum chuck-to-table distance of 585mm (1075mm to the base) combine to accommodate a wide range of workpiece sizes. The column diameter measures 80mm and the overall machine height is 1575mm.
The SIP Pro F20 is covered by the SIP 2-Year Standard Silver Warranty. Net weight is 58.50kg.
Additional Information:
The SIP Pro F20 12-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, it can be easily positioned for accurate drilling. Plus, it's MT3 taper allows users to fit larger drill bits. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings. Applications & uses: Suitable for ferrous and non-ferrous metals, woods, and plastics. The MT3 fitting offers a larger drilling capacity making it perfect for pilot, blind, batch and general drilling use, manufacturing gates, rails and engineering components, plus metalwork and woodwork environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01716 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 750w |
| No. of Speeds | 12 speeds |
| Speed Range | 320rpm - 2380rpm |
| Drill Bit Size | 5mm - 20mm |
| Max. Drilling Capacity | 25mm |
| Spindle Taper | MT3 |
| Table Size | 285mm x 285mm |
| Base Size | 460mm x 270mm |
| Column Diameter | Ø 80mm |
| Swing | 350mm |
| Height | 1575mm |
| Spindle Travel | 80mm |
| Collar Diameter | Ø 80mm |
| Max. Distance | 585mm (chuck to table) |
|
1075mm (chuck to base)
|
|
| Net Weight | 58.50kg |
| Gross Weight | 62.20kg |
| Product Dimensions | 1580(H) x 290(W) x 460mm(D) |
| Packaged Dimensions | 275(H) x 1140(W) x 490mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
07664 | SIP 07664 65mm Chuck Guard | 1 Unit |
£17.95
£17.60
|
Add |
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01713 Pro B20 16-Speed 750w Bench Pillar Drill
£380.41
£372.95
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
SIP 01715 Pro F20 16-Speed 750w Floor Pillar Drill
£395.71
£387.95
2% OFF
Free delivery in UK Mainland
|
SIP 01717 Pro F20 12-Speed 1100w 230v Floor Pillar Drill
£809.83
£793.95
2% OFF
Free delivery in Channel Island
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01713 | GDM160F | 01715 | 01717 | DPG30 | DPG99 | GDM200F/VS | 95092 |
A. The Pro F20 is designed for use with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it suitable for a wide range of workshop drilling applications.
A. The drill provides 12 spindle speeds with a range spanning 320rpm to 2380rpm, allowing precise control over hole sizes across the drilling spectrum.
A. The maximum drilling capacity is 25mm. The drill accepts bit sizes from 5mm to 20mm, and the MT3 spindle taper enables larger drill bits to be fitted for increased capacity.

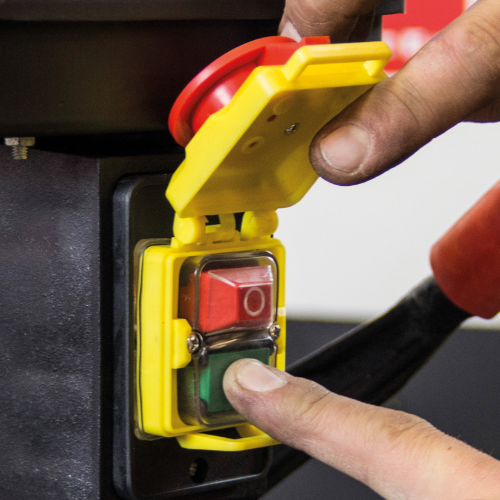

A. The machine is fitted with integrated chuck guards to reduce user risk and a safety interlock switch that prevents accidental start-up when the motor belt is being adjusted.
A. The spindle taper is MT3 (Morse Taper 3). This fitting allows users to attach larger drill bits, increasing the practical drilling capacity and making the machine suitable for more demanding applications such as manufacturing gates, rails and engineering components.
A. The machine stands 1575mm tall with a 285mm x 285mm table, a 460mm x 270mm base, an 80mm column diameter, 350mm swing, 80mm spindle travel, and a maximum chuck-to-table distance of 585mm (1075mm chuck to base). Net weight is 58.50kg.
A. The SIP Pro F20 01716 is covered by the SIP 2-Year Standard Silver Warranty.
A. The drill operates on a standard 230V (13A) single-phase supply and is powered by a 750W high-power brushless induction motor.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
