Product Number: 01715
Variations

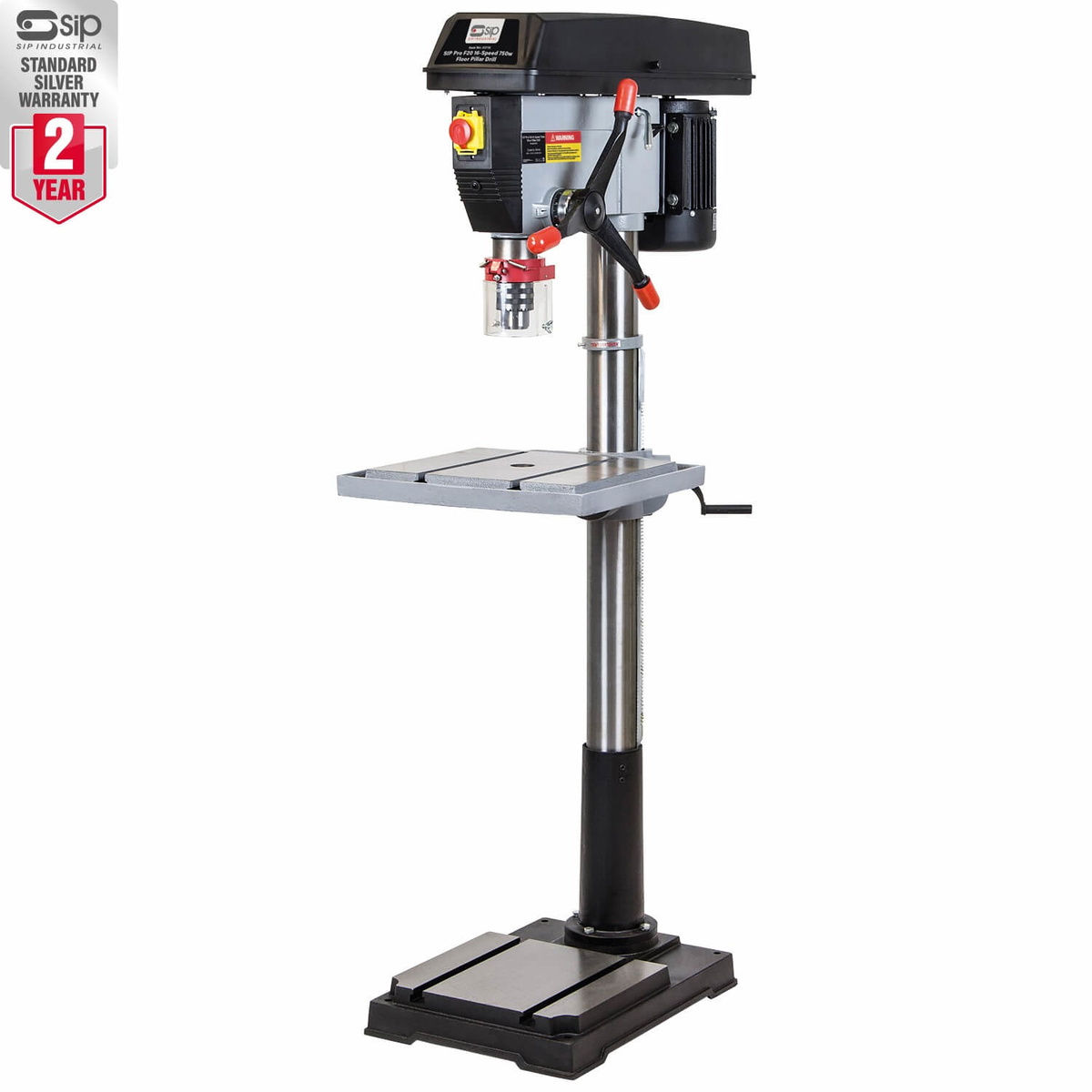

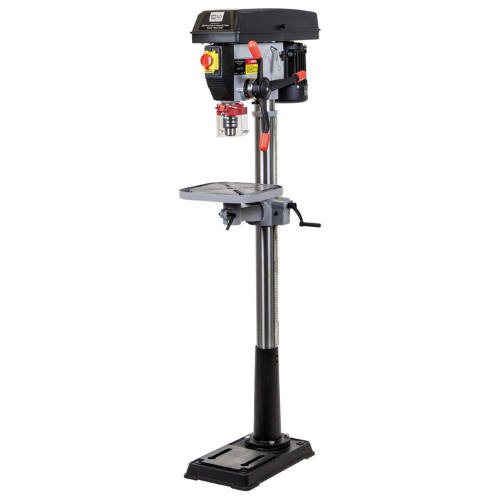

The SIP Pro F20 Floor Pillar Drill (SKU 01715) is a 750W, 16-speed machine designed for preparing and finishing a wide variety of workpiece materials in professional workshop environments. Running from a standard 230V (13A) supply, it is built to handle demanding pilot, blind, batch and general drilling applications across ferrous and non-ferrous metals, woods and plastics — making it equally capable in metalwork fabrication and woodwork settings, including the manufacture of gates, rails and trailers.

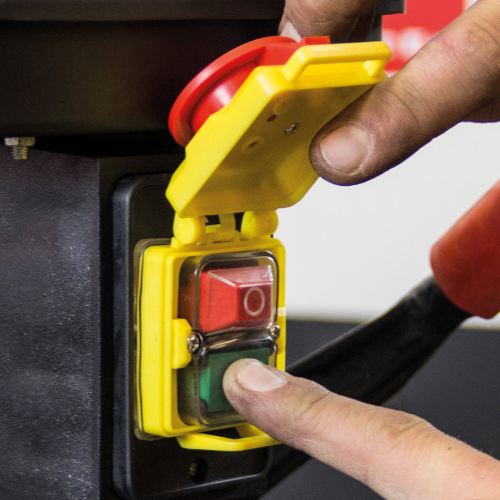

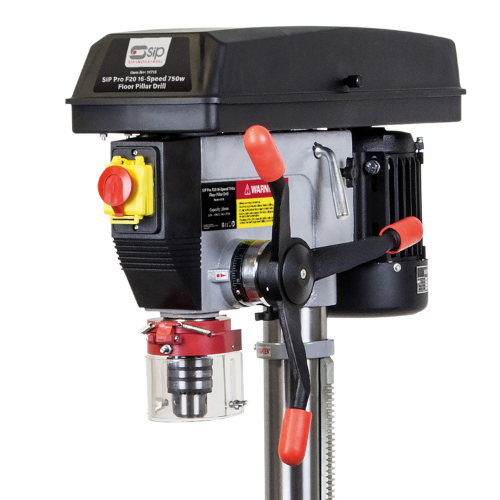

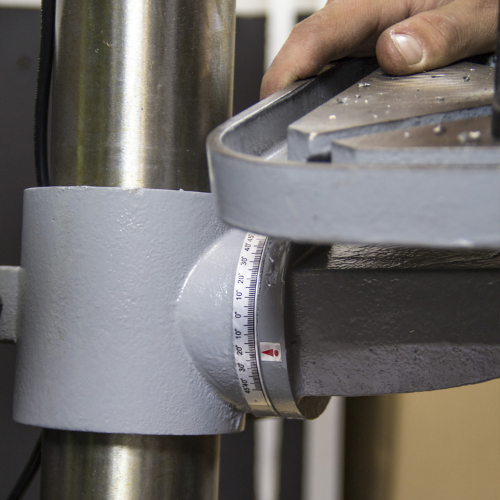

Key features centre on precision, safety and durability. The drill is fitted with an adjustable tilting table and tilt scale, allowing the workpiece to be accurately positioned for each task. A drilling depth stop provides repeatable hole depths, while integrated chuck guards reduce user risk during operation. A safety interlock switch ensures the motor belt can only be adjusted safely, and the unit's high-power brushless induction motor delivers consistent performance across its full speed range.

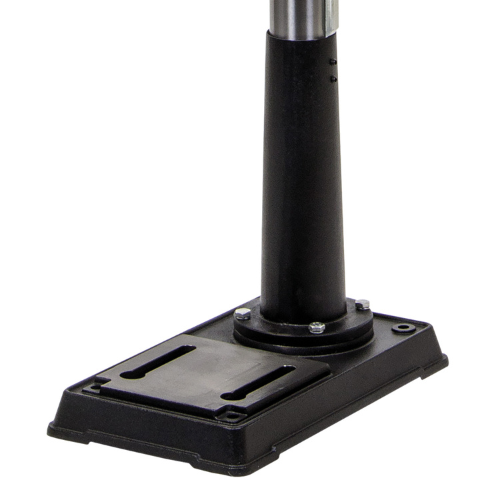

Technically, the Pro F20 offers 16 spindle speeds spanning 200 to 2800 RPM, accommodating drill bits from 5mm up to the maximum drilling capacity of 20mm. The spindle taper is MT2 with 80mm of spindle travel, and the maximum chuck-to-table distance is 588mm, extending to 1075mm chuck to base. The generously proportioned 285mm × 285mm table is supported by a 72mm-diameter column, and the sturdy cast iron base (460mm × 270mm) provides the stability required for sustained professional use. Overall machine height is 1575mm with a 360mm swing.
The SIP 01715 is a floor-standing unit with a net weight of 52.30kg and overall product dimensions of 1580(H) × 290(W) × 460mm(D), suitable for permanent installation in a workshop bay.
The SIP 01715 is covered by SIP's 2-Year Standard Silver Warranty. Refer to the product listing for full warranty terms.
Additional Information:
The SIP Pro F20 16-Speed 750w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01715 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 750w |
| No. of Speeds | 16 speeds |
| Speed Range | 200rpm - 2800rpm |
| Drill Bit Size | 5mm - 20mm |
| Max. Drilling Capacity | 20mm |
| Spindle Taper | MT2 |
| Table Size | 285mm x 285mm |
| Base Size | 460mm x 270mm |
| Column Diameter | Ø 72mm |
| Swing | 360mm |
| Height | 1575mm |
| Spindle Travel | 80mm |
| Collar Diameter | Ø 72mm |
| Max. Distance | 588mm (chuck to table) / 1075mm (chuck to base) |
| Net Weight | 52.30kg |
| Gross Weight | 56.00kg |
| Product Dimensions | 1580(H) x 290(W) x 460mm(D) |
| Packaged Dimensions | 275(H) x 1140(W) x 490mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
07662 | SIP 55mm Chuck Guard | 1 Unit |
£16.12
£15.80
|
Add |
Manual
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01713 Pro B20 16-Speed 750w Bench Pillar Drill
£380.41
£372.95
2% OFF
Free delivery in UK Mainland
|
SIP 01717 Pro F20 12-Speed 1100w 230v Floor Pillar Drill
£809.83
£793.95
2% OFF
Free delivery in Channel Island
|
SIP 01716 Pro F20 12-Speed 750w Floor Pillar Drill
£472.21
£462.95
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
Draper 95092 16 Speed Heavy Duty Floor Standing Drill, 650W
£599.57
£587.81
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 01713 | 01717 | 01716 | DPG30 | DPG99 | GDM200F/VS | 95092 |
| Base Size | 460mm x 270mm | 570mm x 425mm | 460mm x 270mm | 460 x 275mm | 460 x 275mm | ||
| Collar Diameter | Ø 72mm | Ø 92mm | Ø 80mm | 40 | 60 | Ø60mm | 60mm |
| Length (mm) | 16 | 20 | 20 | 275 | 275 | ||
| Spindle Travel | 80mm | 120mm | 80mm | 80mm | 80mm | ||
| Weight (kg) | 50 | 60 | 50 | 71 | 78 | ||
A. The Pro F20 is designed for ferrous and non-ferrous metals, woods and plastics. It is suitable for pilot, blind, batch and general drilling applications, including use in metalwork and woodwork environments and in the manufacture of gates, rails and trailers.
A. The drill provides 16 spindle speeds with a range of 200 RPM to 2800 RPM, allowing the operator to select the most appropriate speed for the material and drill bit in use.
A. The maximum drilling capacity is 20mm. Compatible drill bit sizes run from 5mm to 20mm, and the spindle taper is MT2.
A. The machine stands 1575mm tall with a 285mm × 285mm table, a 460mm × 270mm cast iron base, and a 72mm-diameter column. Spindle travel is 80mm, swing is 360mm, and the maximum chuck-to-table distance is 588mm (1075mm chuck to base). Net weight is 52.30kg.
A. The drill is fitted with integrated chuck guards to reduce user risk, a safety interlock switch for safe motor belt adjustment, and a sturdy cast iron base for added stability during operation.
A. Yes. The machine is fitted with a drilling depth stop for repeatable hole depths and an adjustable tilting table with tilt scale, enabling accurate positioning of the workpiece.
A. The SIP 01715 is covered by SIP's 2-Year Standard Silver Warranty. Full terms are shown in the product listing.
A. The drill operates from a standard 230V (13A) single-phase supply, making it suitable for direct connection to a standard UK workshop socket.
