Product Number: GDM92B

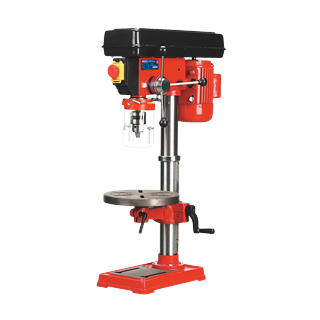

Repetitive drilling tasks demand consistent accuracy and safe operation the Sealey GDM92B bench pillar drill delivers both for light industrial, agricultural and woodworking applications. The 12-speed drive covers a range of 210-2,580rpm, letting you match the speed to your material and bit type. A 16mm (5/8") capacity chuck with MT2 Morse taper spindle housing accepts taper shank drill bits, while the rack and pinion feed shaft with preset depth control keeps repetitive work precise and consistent. Motor output is 220W with an input power of 370W. The column measures 60mm in diameter and the overall height is 840mm, with a spindle centre-to-column distance of 127mm and spindle travel of 60mm. Maximum distance from spindle to base is 540mm and spindle to table is 390mm, over a base size of 345 x 215mm. Drive belt access is mechanically blocked during operation for added safety, and a no-load voltage release switch enables insurance company approval for use in educational establishments. A mortise attachment is available separately (order Model No. MA10), and an optional keyless chuck is available (GDMX/KC). The GDM92B weighs 32kg.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM92B |
|---|---|
| Base Size | 345 x 215mm |
| Brand | Sealey |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø60mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 540mm |
| Maximum Distance Spindle to Table | 390mm |
| Motor Power (Start) | 220W(370W) |
| Nett Weight | 32kg |
| Number of Speeds | 12 |
|
Optional Accessories:GDMX/KC - Keyless Chuck 16mm:
|
|
| Overall Height | 840mm |
| Speed Range | 210-2580rpm |
| Spindle Centre to Column | 127mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 60mm |
| Supply | 230V |
| Swing | 254mm |
| Working Base Surface Size | 160 x 180mm |
| Working Table Surface Size | Ø248mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-pillar-drill-bench-12-speed-840mm-height-370w230v.pdf
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM140F Floor Pillar Drill 12-Speed 370W 1500mm
£368.12
£360.90
2% OFF
Free delivery in UK Mainland
|
Sealey GDM150B 16-Speed Bench Pillar Drill 1070mm 650W 230V
£466.57
£457.42
2% OFF
Free delivery in UK Mainland
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£464.40
£455.29
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM140F | GDM150B | GDM120B | GDM160F | 6505592 | 7610850 | 7610860 | 95314 |
A. The GDM92B is fitted with a 16mm (5/8") capacity chuck with an MT2 Morse taper spindle housing, which accepts taper shank drill bits.
A. The GDM92B offers 12 speeds with a range of 210-2,580rpm, allowing you to select the appropriate speed for different materials and drill bit types.
A. The motor power is 220W, with an input power of 370W, running on a 230V supply.
A. Yes. The no-load voltage release switch is a safety device that allows insurance company approval for use in educational establishments.
A. A mortise attachment is available separately - order Model No. MA10.
A. Overall height is 840mm, column diameter is 60mm, spindle travel is 60mm, spindle centre to column is 127mm, maximum spindle to base distance is 540mm, maximum spindle to table distance is 390mm, and the base size is 345 x 215mm.
A. Yes, an optional keyless 16mm chuck is available - order GDMX/KC.
A. The GDM92B weighs 32kg.
A. Yes. Similar pillar drills in the Sealey range include the GDM120B, GDM140F, GDM150B and GDM160F, each offering different capacities and specifications. Please refer to those product pages for details.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
