Product Number: GDM120B

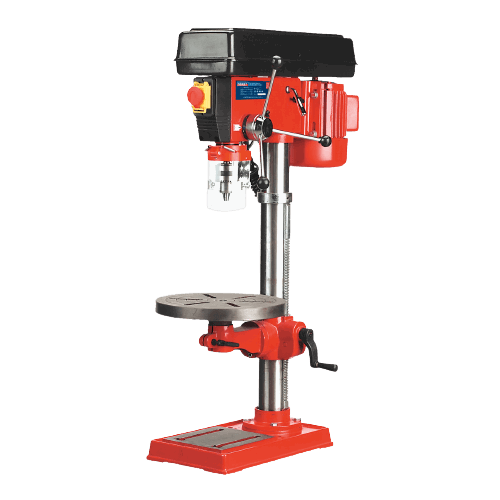

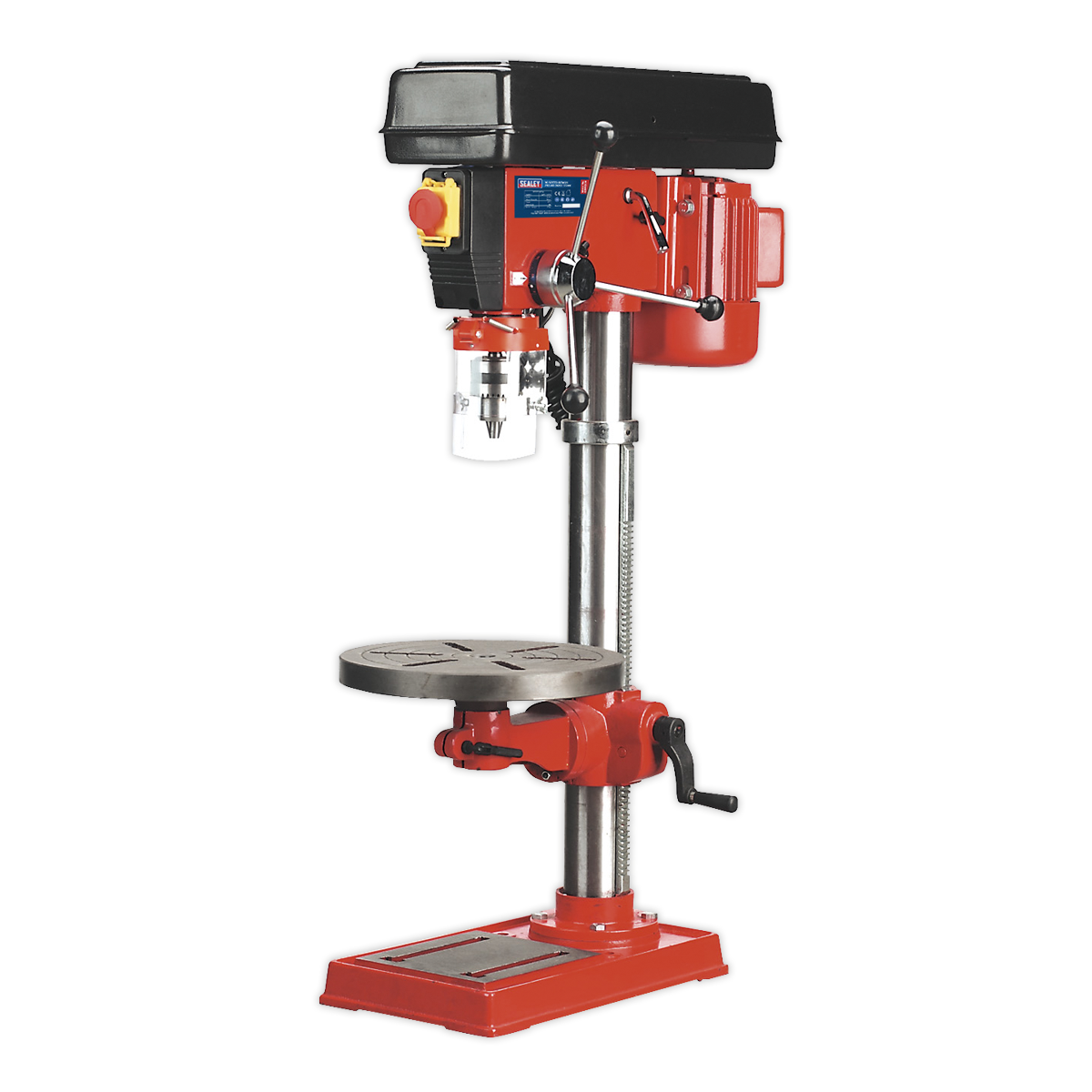

When light industrial, agricultural or woodworking applications demand a higher-capacity bench drill with greater speed range and power, the Sealey GDM120B bench mounting pillar drill is a strong choice. Sixteen speeds span 210-3,340rpm, offering fine control across materials and bit types. The 16mm (5/8") capacity chuck uses an MT2 Morse taper spindle housing to accept taper shank drill bits, and spindle travel extends to 80mm greater than many comparable bench models. Motor output is 350W with an input power of 550W on a 230V supply. The column is 70mm in diameter and the overall height is 960mm. Spindle centre to column is 165mm, maximum spindle to base is 600mm, and maximum spindle to table is 410mm, over a base of 420 x 250mm. The rack and pinion feed shaft with preset depth control ensures repeatable accuracy on production-style tasks. Drive belt access is mechanically blocked during operation, and a no-voltage release switch enables insurance company approval for use in educational establishments. A mortise attachment is available separately (Model No. MA10), and an optional keyless 16mm chuck (GDMX/KC) is also available. The GDM120B weighs 47kg and meets Safety of Machinery (Safety) Directives 1992 and amendments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | GDM120B |
|---|---|
| Base Size | 420 x 250mm |
| Brand | Sealey |
| Collar Diameter | 60mm |
| Column Diameter | 70mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 600mm |
| Maximum Distance Spindle to Table | 410mm |
| Motor Power (Start) | 350W(550W) |
| Nett Weight | 47kg |
| Number of Speeds | 16 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 960mm |
| Speed Range | 210-3340rpm |
| Spindle Centre to Column | 165mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 330mm |
| Working Base Surface Size | 210 x 190mm |
| Working Table Surface Size | Ø310mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
User Manual
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GDM160F Floor Pillar Drill 16-Speed 550W 230V
£448.06
£439.10
2% OFF
Free delivery in UK Mainland
|
Clarke CDP502F 12 Speed Floor Standing Industrial Drill Press (230V)
£835.48
£819.10
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | GDM160F | GDM92B | 6505592 | 95314 | 02016 | 7610850 |
| Type | Pillar Drill | Pillar Drill | Pillar Drill | Pillar Drill | ||
| Base Size | 420 x 250mm | 345 x 215mm | 460 x 275mm | 485 x 280mm | ||
| Collar Diameter | Ø60mm | Ø60mm | 60mm | 60mm | ||
| Length (mm) | 250 | 215 | 275 | 280 | ||
| Spindle Travel | 80mm | 60mm | 80mm | 80mm | ||
| Weight (kg) | 51 | 32 | 71 | 58 | ||
A. The GDM120B offers 16 speeds with a range of 210-3,340rpm, providing broad control for different materials and drill bit types.
A. It is fitted with a 16mm (5/8") capacity chuck with an MT2 Morse taper spindle housing, which accepts taper shank drill bits.
A. Motor power is 350W, with an input power of 550W on a 230V supply.
A. Yes. The no-voltage release switch is a safety device that enables insurance company approval for use in educational establishments.
A. Overall height is 960mm, column diameter is 70mm, spindle travel is 80mm, spindle centre to column is 165mm, maximum spindle to base is 600mm, maximum spindle to table is 410mm, and the base size is 420 x 250mm.
A. Yes. A mortise attachment is available separately - order Model No. MA10. An optional keyless 16mm chuck is also available - order GDMX/KC.
A. The GDM120B weighs 47kg.
A. Yes. Variants in the same family include the GDM150B and GDM180B, which offer different specifications. Please refer to those product pages for details.
A. Yes. Alternatives in the Sealey range include the GDM140F, GDM160F, GDM1630FR and GDM200F. Please refer to those product pages to compare specifications.
