Product Number: 01710

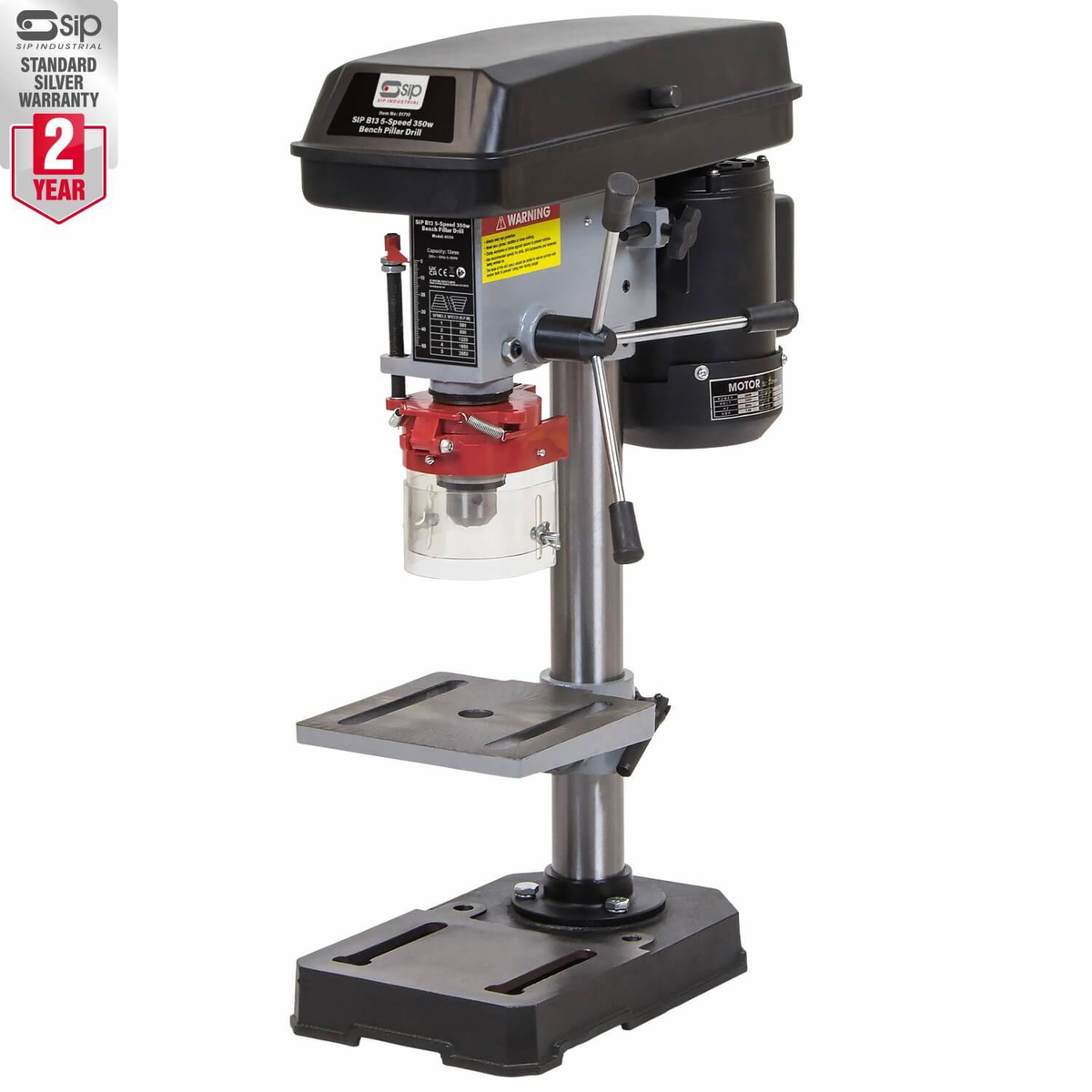

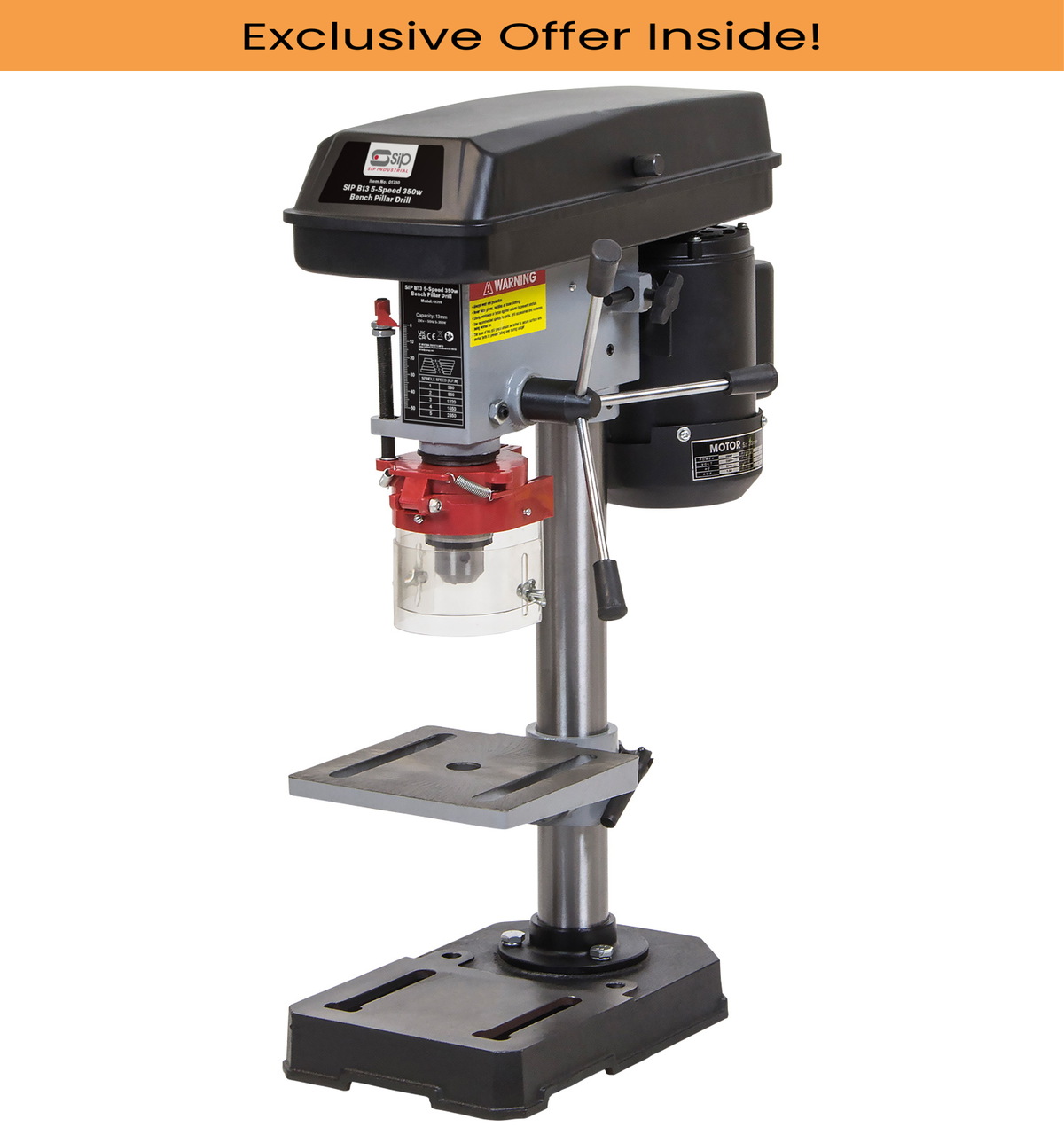

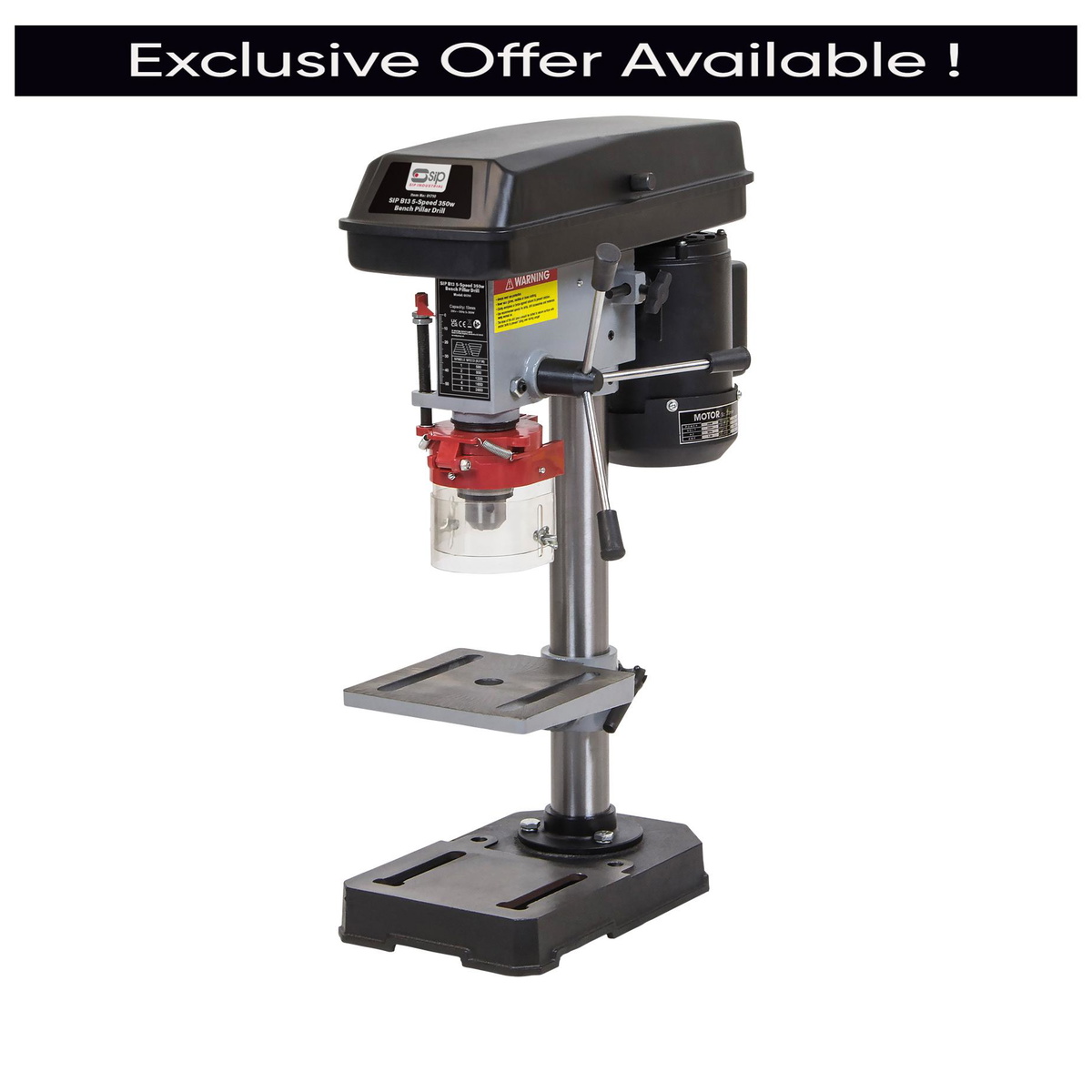

The SIP B13 350w 5-Speed Bench Pillar Drill (SKU 01710) is a 230V bench-mounted drilling machine designed to make light work of preparing and finishing a variety of workpiece materials, including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics. With a 13mm maximum drilling capacity and a speed range spanning 580rpm to 2650rpm across five selectable speeds, it is well suited to pilot, blind and general drilling applications, small bracketry, and home metalwork and woodwork tasks where floor space is limited.
Key features centre on precise control and operator safety. The five-speed brushless induction motor — rated at 350w — delivers consistent drilling performance across the full drilling spectrum. An adjustable tilting table and three-lever handle ensure smooth and accurate drilling force, while a fitted depth stop maintains repeatable blind hole accuracy and minimises material wastage. Integrated chuck guards reduce user risk during operation, and a safety interlock switch allows belt adjustment with the reassurance that the drill cannot start accidentally.
The technical specification reflects a compact yet capable bench machine: the 160mm × 160mm table sits on a 46mm diameter column above a sturdy cast iron base measuring 290mm × 182mm. Swing is 210mm, spindle travel is 50mm, and the spindle taper is B16. Chuck-to-table distance is 169mm and chuck-to-base distance is 250mm, giving useful reach for a range of workpiece heights. Overall height is 580mm and net weight is 14.00kg, confirming its suitability for permanent bench installation in a home workshop environment.
The SIP 01710 is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP B13 5-Speed 350w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for a range of home workshop applications with limited floor space. Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind and general drilling applications, small bracketry, and home metalwork and woodwork applications.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01710 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 350w |
| No. of Speeds | 5 speeds |
| Speed Range | 580rpm - 2650rpm |
| Drill Bit Size | 1.5mm - 13mm |
| Max. Drilling Capacity | 13mm |
| Spindle Taper | B16 |
| Table Size | 160mm x 160mm |
| Base Size | 290mm x 182mm |
| Column Diameter | Ø 46mm |
| Swing | 210mm |
| Height | 580mm |
| Spindle Travel | 50mm |
| Collar Diameter | Ø N/A |
| Max. Distance | 169mm (chuck to table) |
|
250mm (chuck to base)
|
|
| Net Weight | 14.00kg |
| Gross Weight | 15.00kg |
| Product Dimensions | |
| Packaged Dimensions | 245(H) x 450(W) x 345mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
07664 | SIP 07664 65mm Chuck Guard | 1 Unit |
£17.95
£17.60
|
Add |
|
07662 | SIP 55mm Chuck Guard | 1 Unit |
£16.12
£15.80
|
Add |
|
66690 | SIP 66690 60mm Chuck Guard | 1 Unit |
£16.93
£16.60
|
Add |
|
66609 | SIP 66609 40mm Chuck Guard | 1 Unit |
£13.38
£13.12
|
Add |
|
68328 | SIP 68328 75mm Chuck Guard | 1 Unit |
£19.61
£19.23
|
Add |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SDM30 Pillar Drill 5-Speed Hobby Model 580mm Height 350W 230V
£144.21
£141.38
2% OFF
Free delivery in UK Mainland
|
SIP 01712 Pro B16 16-Speed 550w Bench Pillar Drill
£336.55
£329.95
2% OFF
Free delivery in UK Mainland
|
SIP 01714 Pro F16 16-Speed 550w Floor Pillar Drill
£340.63
£333.95
2% OFF
Free delivery in UK Mainland
|
Sealey GDM200F/VS Variable Speed Floor Pillar Drill 650W
£702.86
£689.08
2% OFF
Free delivery in UK Mainland
|
Draper 95314 16 Speed Heavy Duty Bench Drill, 650W
£493.99
£484.30
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SDM30 | GDM92B | 01711 | DPG30 | DPG99 | 01712 | 01714 | GDM200F/VS | 95314 |
A. The SIP 01710 is designed for use with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it suitable for a broad range of home workshop drilling applications.
A. The maximum drilling capacity is 13mm, with an accepted drill bit size range of 1.5mm to 13mm.
A. The drill provides five selectable speeds spanning 580rpm to 2650rpm, allowing precise control to suit different materials and hole sizes.
A. Yes. The drill is fitted with integrated chuck guards to reduce user risk during operation, and a safety interlock switch that prevents the machine from starting accidentally while the motor belt is being adjusted.
A. Yes. A fitted drilling depth stop maintains accurate and repeatable drilling depth, which is particularly useful for blind hole applications and helps minimise material wastage.
A. The table measures 160mm × 160mm, the base measures 290mm × 182mm, column diameter is 46mm, overall height is 580mm, spindle travel is 50mm, and net weight is 14.00kg. Chuck-to-table distance is 169mm and chuck-to-base distance is 250mm.
A. The SIP 01710 is covered by the SIP 2-Year Standard Silver Warranty.
A. The drill operates on a standard 230V (13A) single-phase supply.
