Product Number: 01711

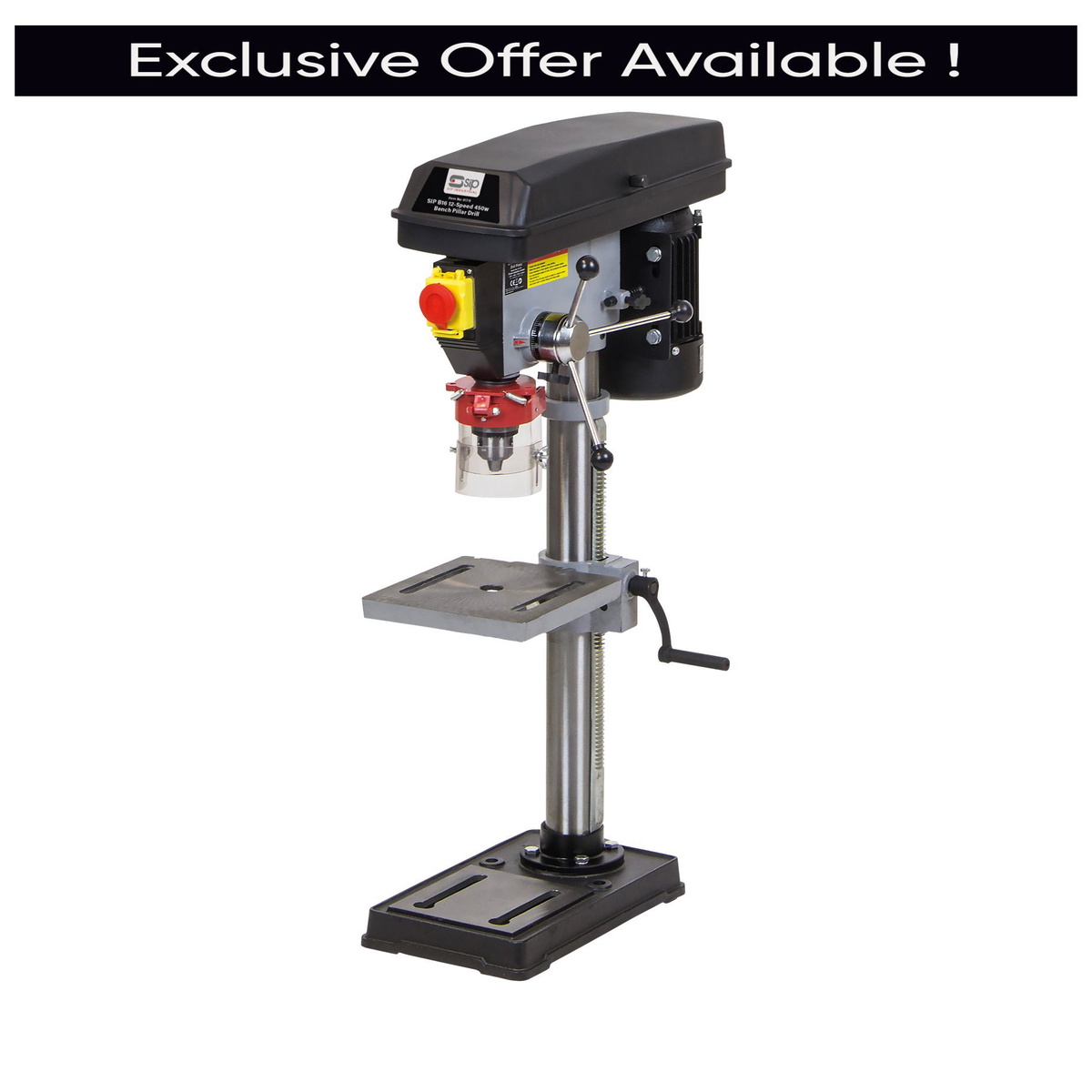

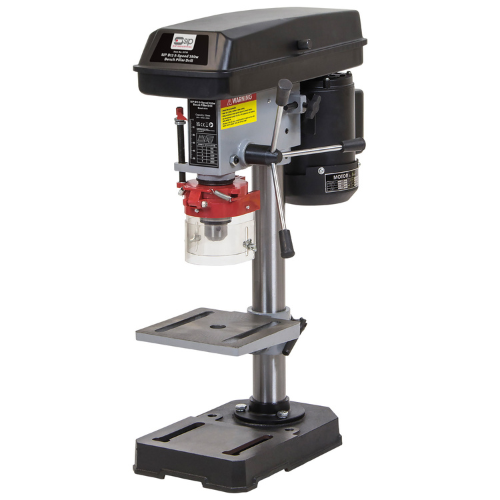

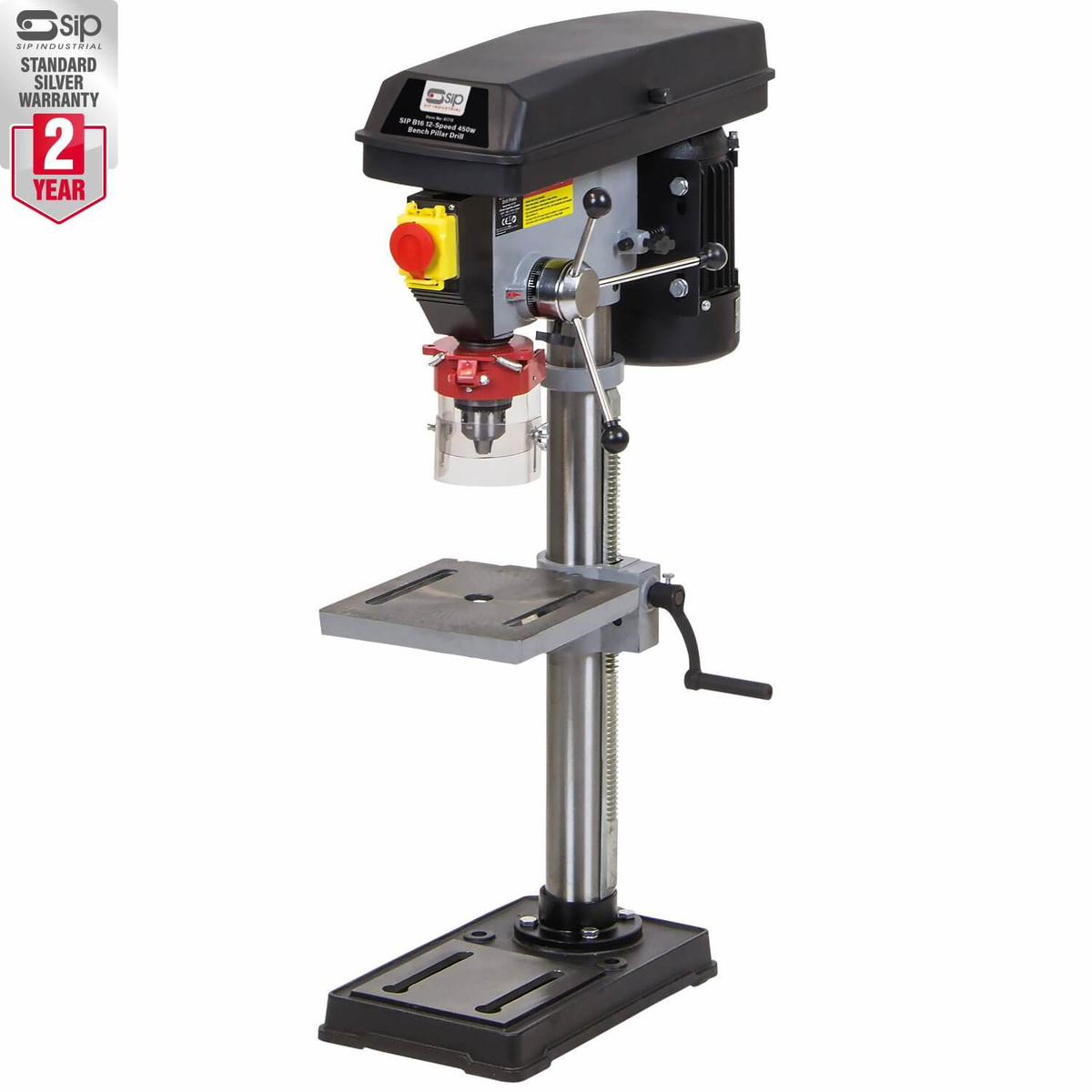

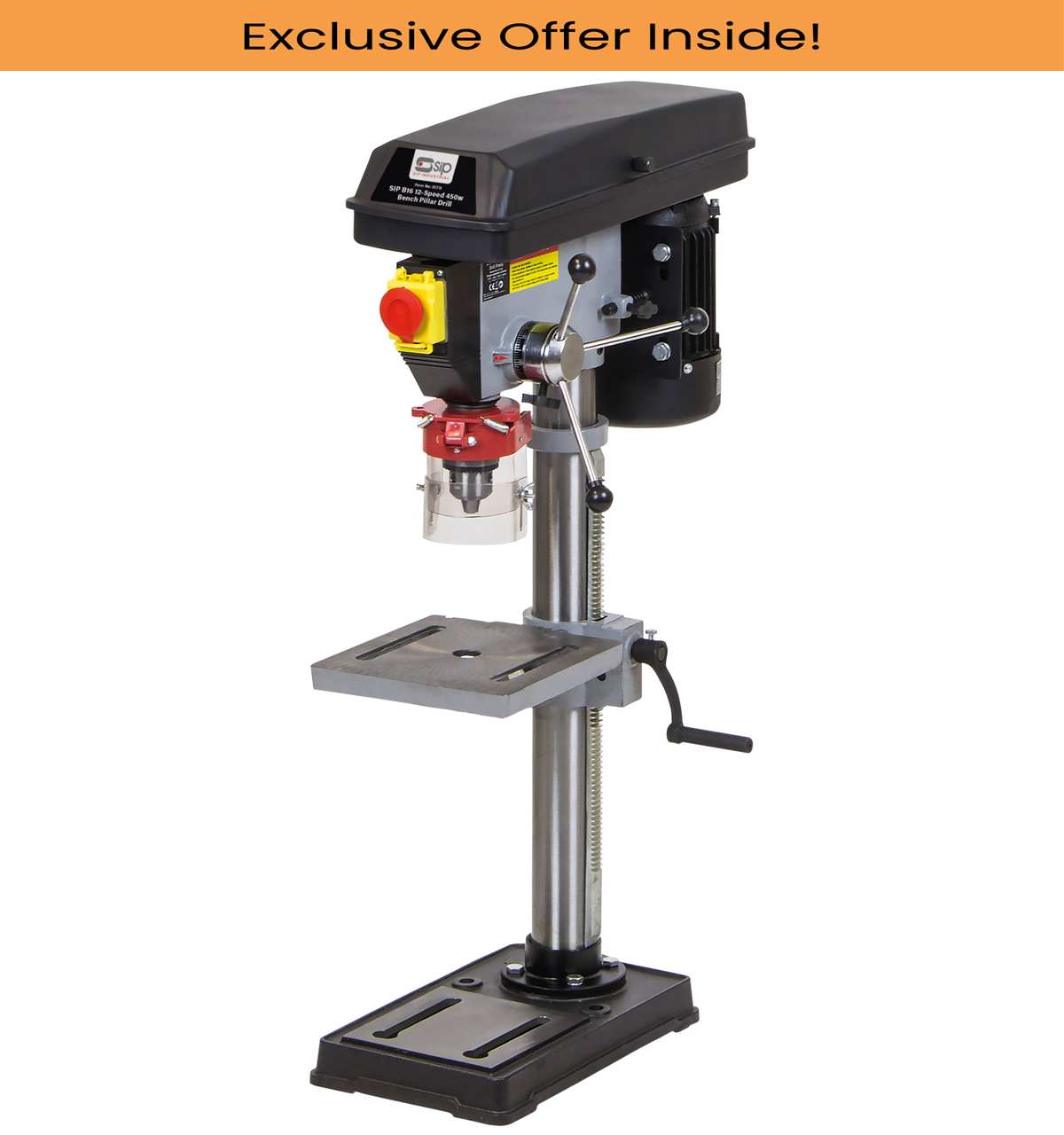

The SIP 01711 B16 12-Speed 450W Bench Pillar Drill is a bench-mounted pillar drill designed for preparing and finishing a variety of workpiece materials in home and small workshop environments where floor space is at a premium. Powered by a 450W high-power brushless induction motor operating on a standard 230V (13A) supply, it delivers consistent, reliable performance across its full 12-speed range of 300rpm to 2550rpm.

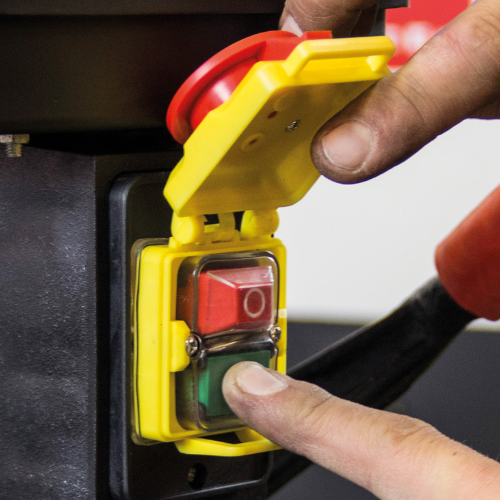

Safety and longevity are central to the design. Integrated chuck guards reduce user risk during operation, while a sturdy cast iron base provides the stability essential for accurate work. A safety interlock switch allows the motor belt to be adjusted with confidence, preventing accidental start-up during maintenance. The fitted drilling depth stop enables accurate repetitive and blind hole drilling, helping to minimise material wastage, and the three-lever handle ensures smooth, controlled drilling force throughout.

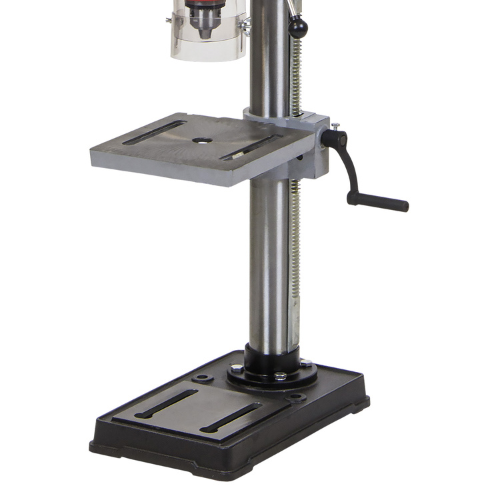

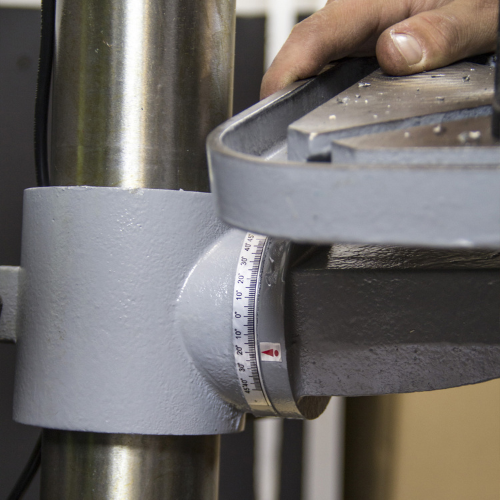

The adjustable tilting table — measuring 195mm x 200mm — allows the workpiece to be precisely positioned for accurate drilling across a wide range of applications. Drill bit capacity runs from 3mm to 16mm, accommodating the B16 spindle taper, with a spindle travel of 60mm and a swing of 260mm. Maximum distances of 350mm (chuck to table) and 470mm (chuck to base) give practical working room for a variety of component sizes. The drill is compatible with ferrous and non-ferrous metals, hard and soft woods, high-density plastics, and is suited to pilot, blind, and general drilling, as well as small bracketry and general metalwork and woodwork.
The SIP 01711 stands 840mm tall with a base footprint of 340mm x 205mm and a net weight of 28.00kg, making it a substantial yet bench-manageable machine. It is supplied with a 2-Year Standard Silver Warranty from SIP.
Additional Information:
The SIP B16 12-Speed 450w Bench Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling. Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a bench-mounted design, it is perfect for home and small workshop applications with limited floor space. Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind and general drilling applications, small bracketry, and home and small workshop metalwork and woodwork.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 01711 |
|---|---|
| Input Voltage | 230v (13A) |
| Motor Power | 450w |
| No. of Speeds | 12 speeds |
| Speed Range | 300rpm - 2550rpm |
| Drill Bit Size | 3mm - 16mm |
| Max. Drilling Capacity | 16mm |
| Spindle Taper | B16 |
| Table Size | 195mm x 200mm |
| Base Size | 340mm x 205mm |
| Column Diameter | Ø 58mm |
| Swing | 260mm |
| Height | 840mm |
| Spindle Travel | 60mm |
| Collar Diameter | Ø 58mm |
| Max. Distance | 350mm (chuck to table), 470mm (chuck to base) |
| Net Weight | 28.00kg |
| Gross Weight | 29.60kg |
| Product Dimensions | 840(H) x 200(W) x 340mm(D) |
| Packaged Dimensions | 260(H) x 665(W) x 410mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
07664 | SIP 07664 65mm Chuck Guard | 1 Unit |
£17.95
£17.60
|
Add |
|
07662 | SIP 55mm Chuck Guard | 1 Unit |
£16.12
£15.80
|
Add |
|
66690 | SIP 66690 60mm Chuck Guard | 1 Unit |
£16.93
£16.60
|
Add |
|
66609 | SIP 66609 40mm Chuck Guard | 1 Unit |
£13.38
£13.12
|
Add |
|
68328 | SIP 68328 75mm Chuck Guard | 1 Unit |
£19.61
£19.23
|
Add |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 01712 Pro B16 16-Speed 550w Bench Pillar Drill
£336.55
£329.95
2% OFF
Free delivery in UK Mainland
|
SIP 01713 Pro B20 16-Speed 750w Bench Pillar Drill
£380.41
£372.95
2% OFF
Free delivery in UK Mainland
|
SIP 01714 Pro F16 16-Speed 550w Floor Pillar Drill
£340.63
£333.95
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 01712 | 01710 | 01713 | 01714 |
A. The SIP 01711 is compatible with ferrous and non-ferrous metals, hard and soft woods, and high-density plastics, making it suitable for a broad range of pilot, blind, and general drilling applications as well as small bracketry and home or small workshop metalwork and woodwork.
A. The SIP 01711 runs on 230V (13A) and is powered by a 450W motor. It offers 12 speeds ranging from 300rpm to 2550rpm, accepts drill bits from 3mm to 16mm, features a B16 spindle taper, 60mm spindle travel, a 195mm x 200mm table, 260mm swing, and an overall height of 840mm. Net weight is 28.00kg.
A. Yes. The bench-mounted design is specifically noted as ideal for home and small workshop applications where floor space is limited. Operating on a standard 230V (13A) supply, it requires no special electrical installation.
A. The fitted drilling depth stop allows you to set a precise drilling depth, ensuring consistent results across repetitive operations and accurate blind hole drilling, which helps to minimise material wastage.
A. The SIP 01711 incorporates integrated chuck guards to reduce user risk during drilling, and a safety interlock switch that allows the motor belt to be adjusted safely, preventing the drill from starting accidentally during belt changes.
A. The SIP 01711 is covered by SIP's 2-Year Standard Silver Warranty.
A. The SIP 01711 features an adjustable tilting table measuring 195mm x 200mm, allowing the workpiece to be repositioned and angled for accurate drilling across a variety of component geometries.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.,
