Product Number: 01949

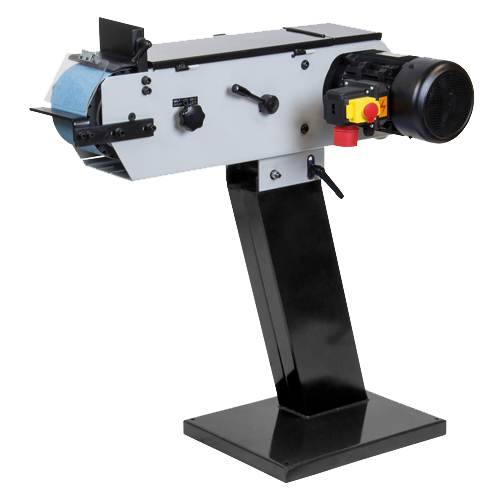

The SIP 01949 6" Heavy-Duty Belt Linisher is a 3kW, 400V three-phase machine designed for removing sharp edges and burrs from workpieces and finishing metalwork products. Built for trade and professional applications, it is suited to cleaning, grinding and finishing of products, tubes and profiles in metals including mild steel, aluminium and stainless steel.

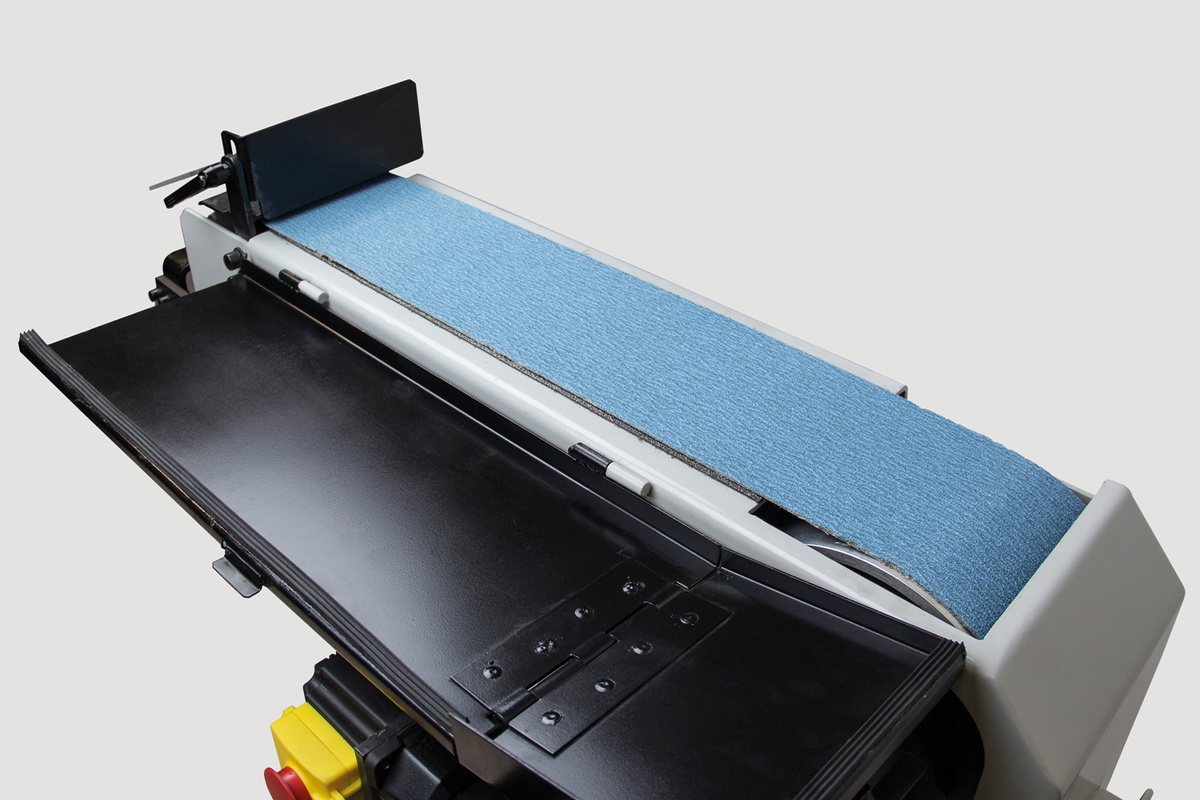

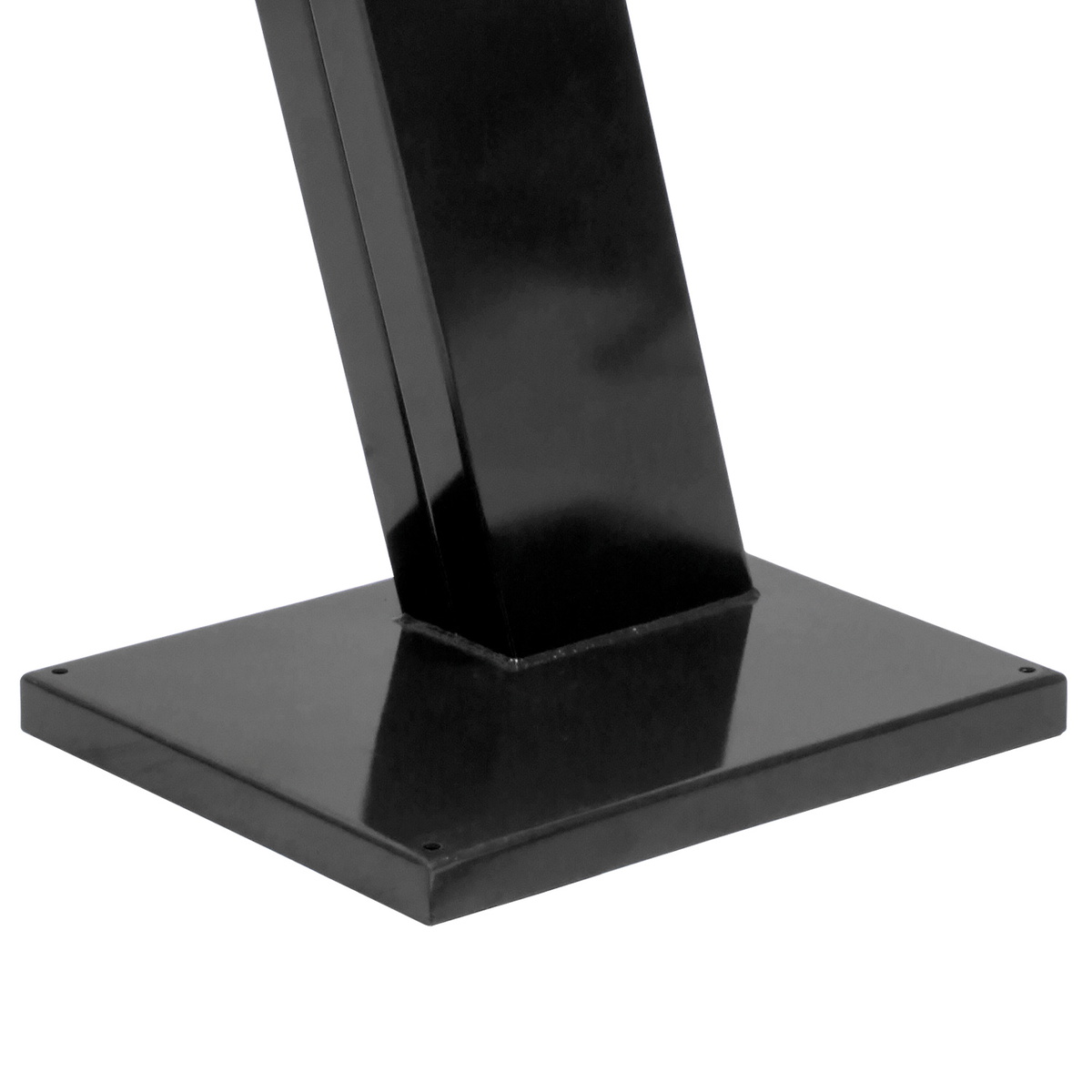

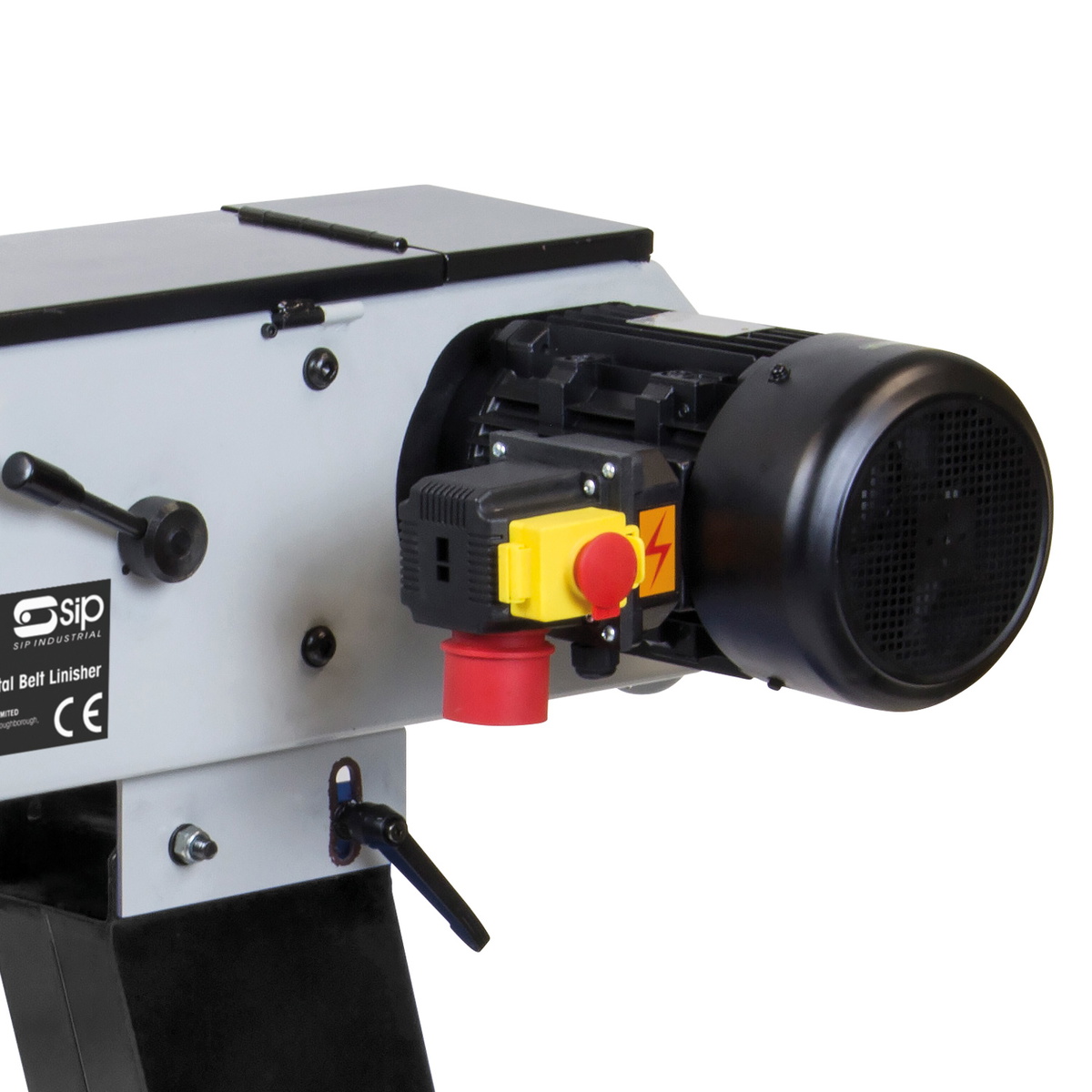

Heavy-duty construction with a pedestal stand makes this linisher well suited to demanding workshop environments. A long-lasting zirconium bonded belt ensures consistent material removal across a broad range of metals, including stainless steel. Three-point belt access — on the wheel, at the platen top, and across the full platen — increases versatility considerably, while a quick belt release handle and easy-access side panel allow fast belt changing. Belt tracking is maintained via an adjusting knob that keeps the belt running straight and true. Adjustable eye protection and an NVR switch are incorporated for increased user safety.
The linisher delivers precise, controllable results through several adjustable mechanisms. An adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, and the linishing head tilt accommodates varying material lengths and sizes. The belt runs at 34 metres per second across a 2000mm x 150mm P80 zirconium bonded belt, with a contact wheel of 200mm x 150mm and a steering roller of 225mm x 150mm. Flat grinding height is 530mm, and working height adjusts between 475mm and 1240mm at the contact wheel.
This model is supplied as a single unit. Buyers requiring alternative configurations within the SIP belt linisher range should review the full SIP linisher range on the PartsForMachines website for available variants.
Supplied as: 1x SIP 6" Belt Linisher. This product is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 6" Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand. Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increases versatility further.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 01949 |
|---|---|
| Input Supply | 3-PHASE 400v |
| Motor Power | 4hp (3kW) |
| Belt Size | 2000mm x 150mm P80 |
| Belt Speed | 34mtr/sec |
| Flat Grinding | 530mm |
| Contact Wheel | 200mm x 150mm |
| Steering Roller | 225mm x 150mm |
| Working Height | 475mm - 1240mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

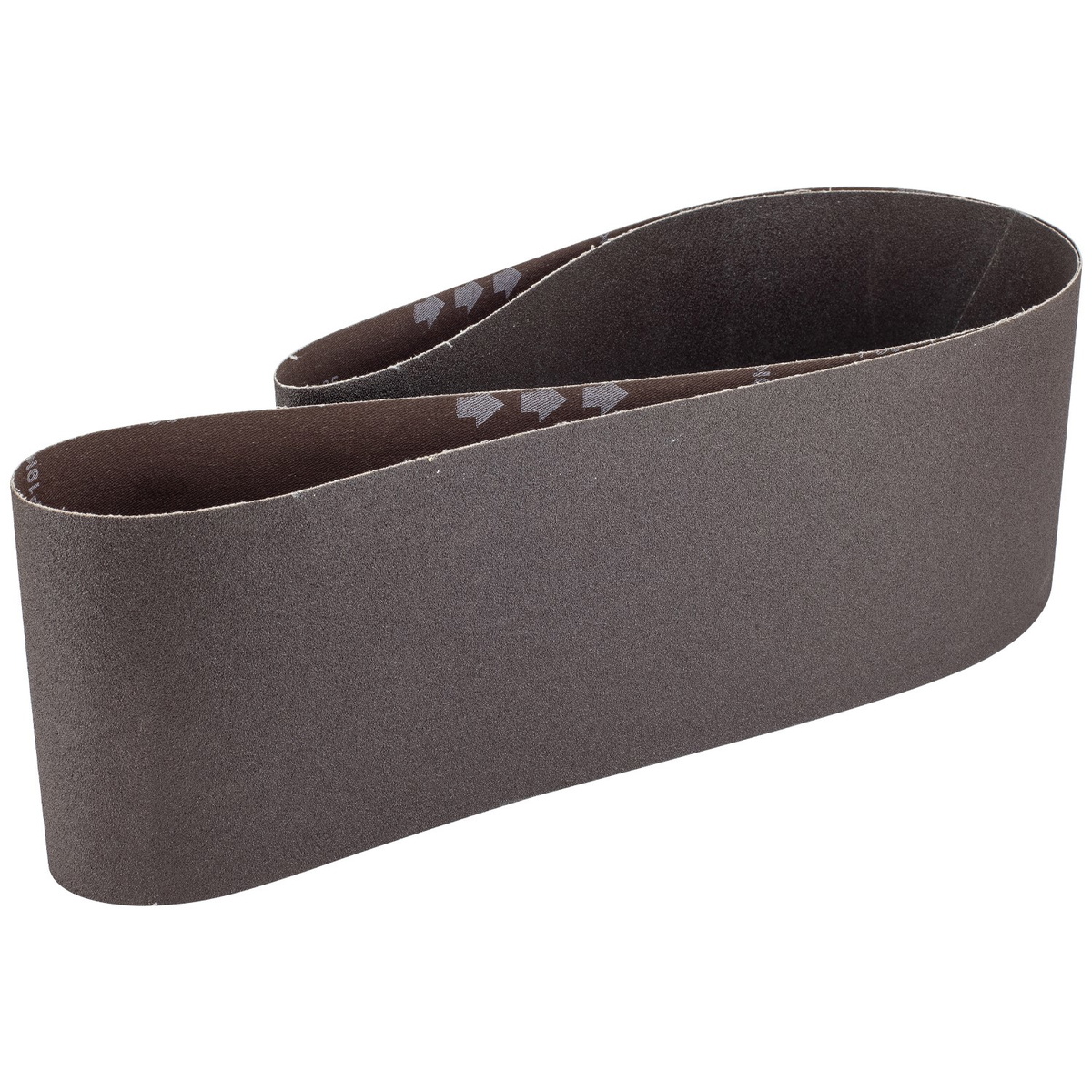

08666 | SIP 08666 2000mm x 150mm P36 Aluminium Oxide Linisher Belt (for 01949) | 1 Unit |
£35.88
£35.18
|
Add |
|
08672 | SIP 08672 2000mm x 150mm P120 Aluminium Oxide Linisher Belt (for 01949) | 1 Unit |
£28.37
£27.81
|
Add |
|

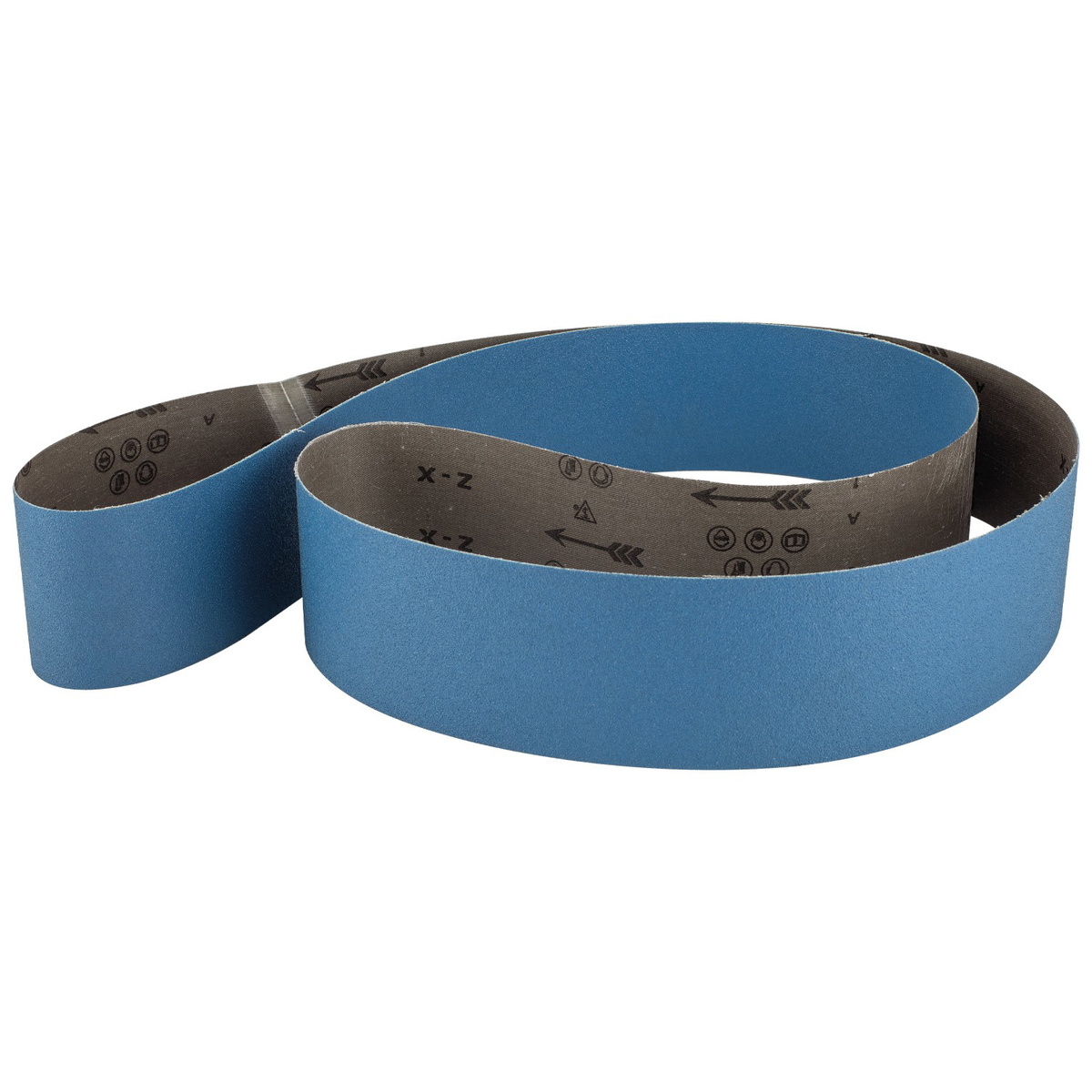

08674 | SIP 08674 2000mm x 150mm P36 Zirconium Linisher Belt (for 01949) | 1 Unit |
£36.67
£35.95
|
Add |
|
08676 | SIP 08676 2000mm x 150mm P60 Zirconium Linisher Belt (for 01949) | 1 Unit |
£31.49
£30.87
|
Add |
|

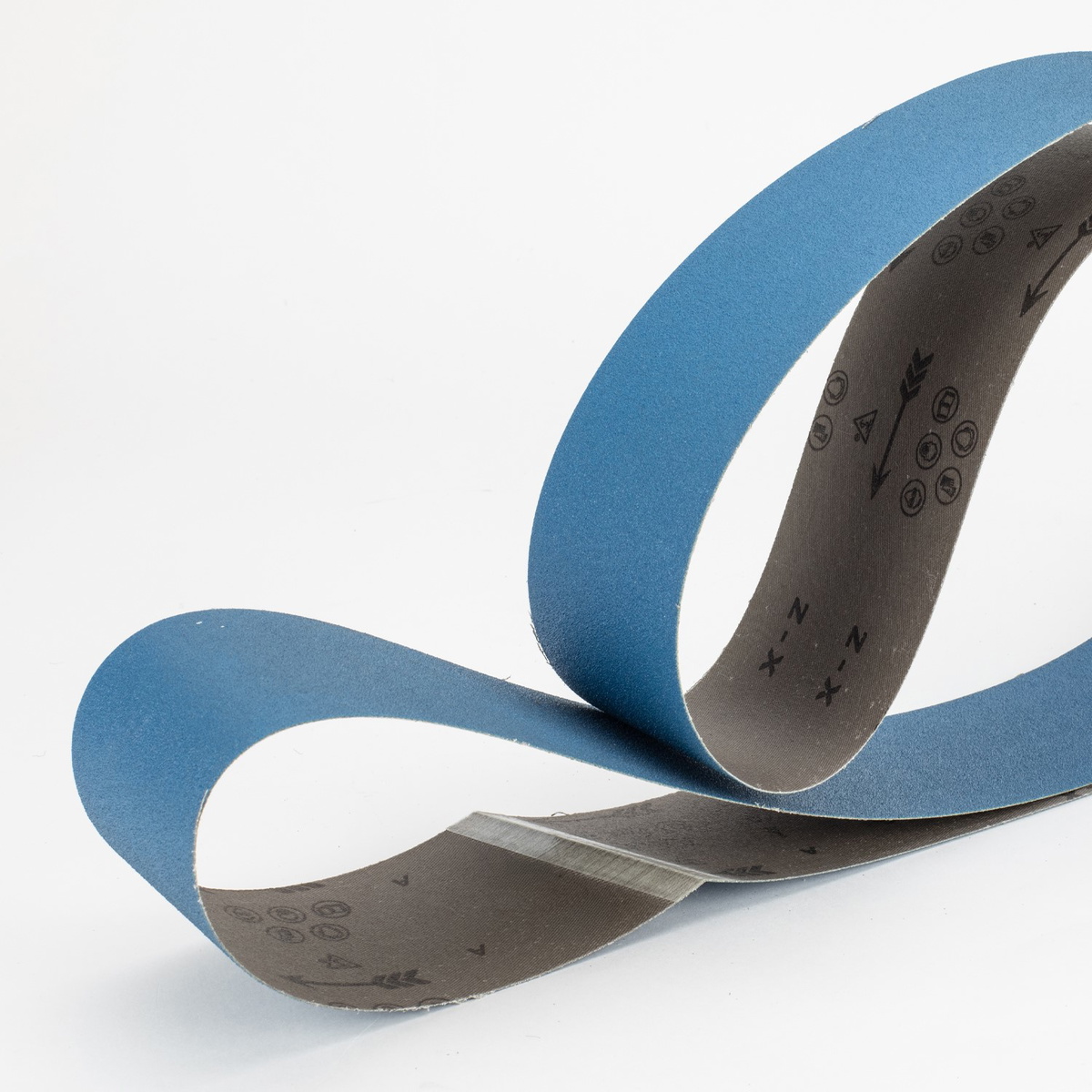

08680 | SIP 08680 2000mm x 150mm P120 Zirconium Linisher Belt (for 01949) | 1 Unit |
£28.99
£28.42
|
Add |
|
08668 | SIP Aluminium Oxide Linisher Belt, 2000 x 150mm P60, 08668 | 1 Unit |
£30.96
£30.35
|
Add |
|
08670 | SIP Aluminium Oxide Linisher Belt, 2000 x 150mm P80, 08670 | 1 Unit |
£29.39
£28.81
|
Add |
|
08678 | SIP Zirconium Linisher Belt, 2000 x 150mm P80, 08678 | 1 Unit |
£30.17
£29.58
|
Add |
More Info
|
Open Now |
Metalworking Essentials: Types, Uses, and Tips to Buy the Perfect One Introduction: In the intricate world of metalworking, the ability to cut with precision is paramount. Metal cutting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey BG150XD/99 Heavy-Duty Bench Grinder 150mm 450W 230V
£152.53
£149.48
2% OFF
Free delivery in UK Mainland
|
Sealey BG200/99 Heavy-Duty 200mm Bench Grinder 600W 230V
£213.57
£209.38
2% OFF
Free delivery in UK Mainland
|
Draper 5097 Heavy Duty Bench Grinder with Worklight, 200mm, 550W
£130.68
£128.12
2% OFF
Free delivery in UK Mainland
|
Draper 5096 Bench Grinder with Sanding Belt and Worklight, 150mm, 370W
£100.96
£98.98
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 07625 | 07628 | 07650 | BG150XL/96 | BG150XD/99 | BG200/99 | 05097 | 31235 | 98421 | 05096 | 78456 | BG150BS | BG150CX | BG150WL | BG150WVS |
| Warranty | 24 | 24 | 24 | ||||||||||||
| Type | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder | Metal Bench Grinder |
| Length (mm) | 150 | 200 | 250 | 150 | 150 | 200 | 200 | 125 | 100 | 150 | 150 | 150 | 150 | 150 | 150 |
| Motor Power | 370w (0.49hp) S2 30min / 250w (0.33hp) S | 550w (0.73hp) S2 30min, 370w (0.49hp) S1 | 750w (1hp) S2 30min / 550w (0.73hp) S1 | 370W | 450W | 600W | 250W | 150W | 250W | 250W | |||||
| Power (W) | 370 | 450 | 600 | 550 | 350 | 1500 | 370 | 250 | 250 | 150 | 250 | 250 | |||
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | ||||
| Weight (kg) | 26 | 10.5 | 11 | 20 | 19 | 11 | 26 | 10 | 10 | 10.0 | 06 | 9 | 11 | ||
| Show More | |||||||||||||||
A. The SIP 01949 is designed for use on metals including mild steel, aluminium and stainless steel. It is suited to removing sharp edges and burrs, and to cleaning, grinding and finishing products, tubes and profiles.
A. The machine operates on a 400V three-phase supply with a 3kW (4hp) motor. The belt measures 2000mm x 150mm (P80 grade) and runs at 34 metres per second. The contact wheel is 200mm x 150mm, the steering roller is 225mm x 150mm, flat grinding height is 530mm, and working height adjusts between 475mm and 1240mm at the contact wheel.
A. Yes. The SIP 01949 is rated for a 400V three-phase input supply and requires an appropriate three-phase electrical connection for operation.
A. The machine features a quick belt release handle and an easy-access side panel for fast belt changing. A belt tracking adjusting knob is also provided to ensure the belt runs straight and true once fitted.
A. The linisher offers three-point belt access: on the wheel, at the platen top, and across the full platen, enabling a variety of grinding and finishing approaches to suit different workpieces.
A. The machine is fitted with adjustable eye protection and an NVR (No Volt Release) switch for increased user safety during operation.
A. The SIP 01949 is covered by the SIP 2-Year Standard Silver Warranty.
A. The package contains one SIP 6" Belt Linisher.
