Product Number: 08280

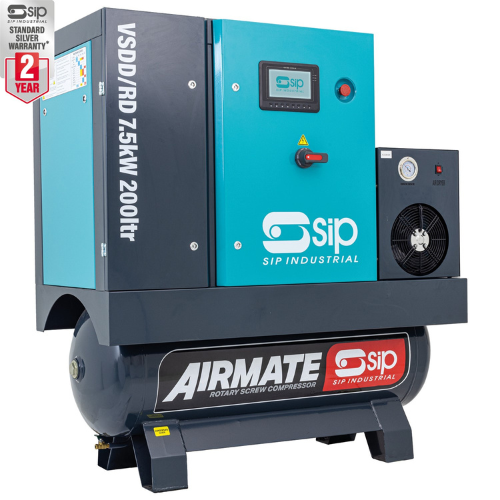

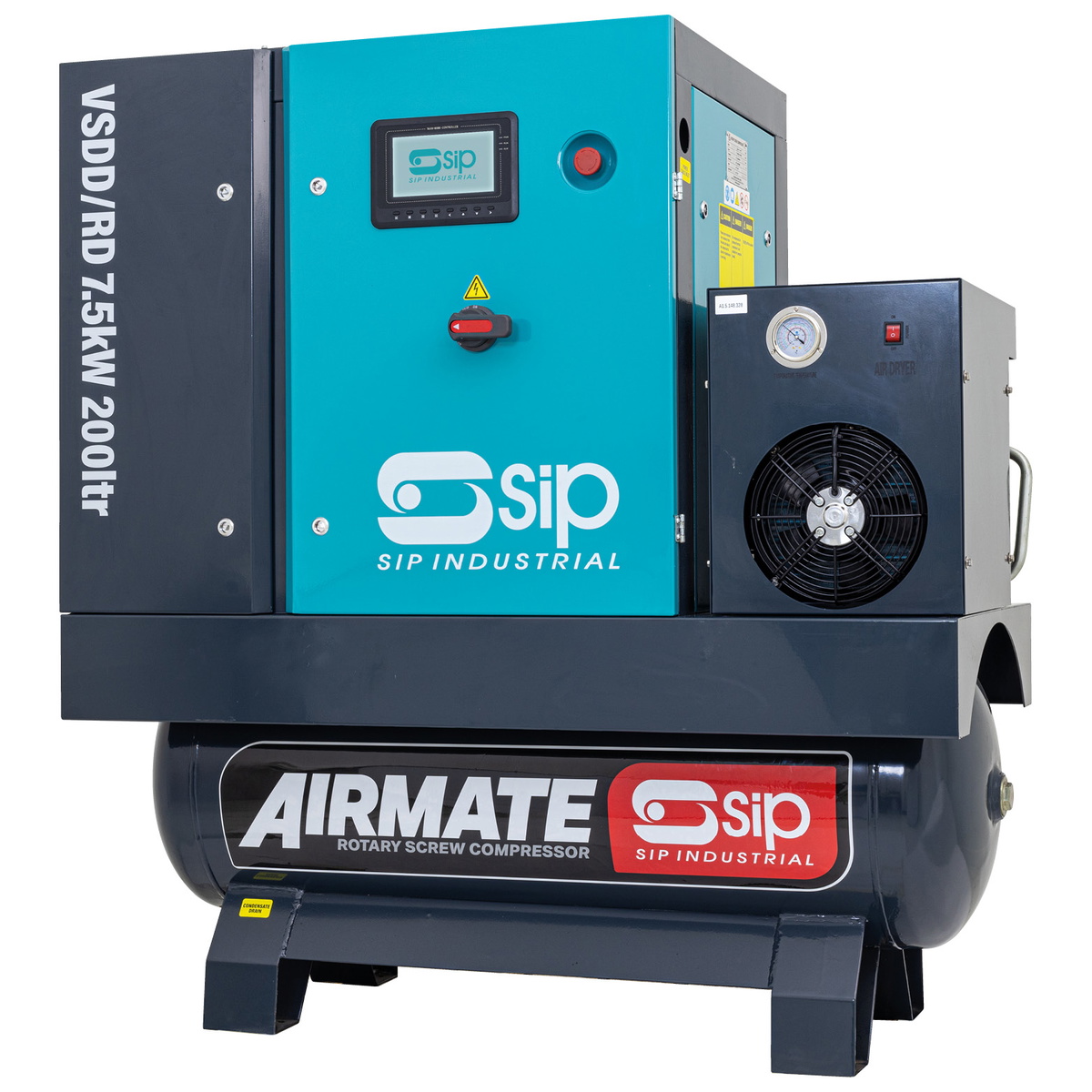

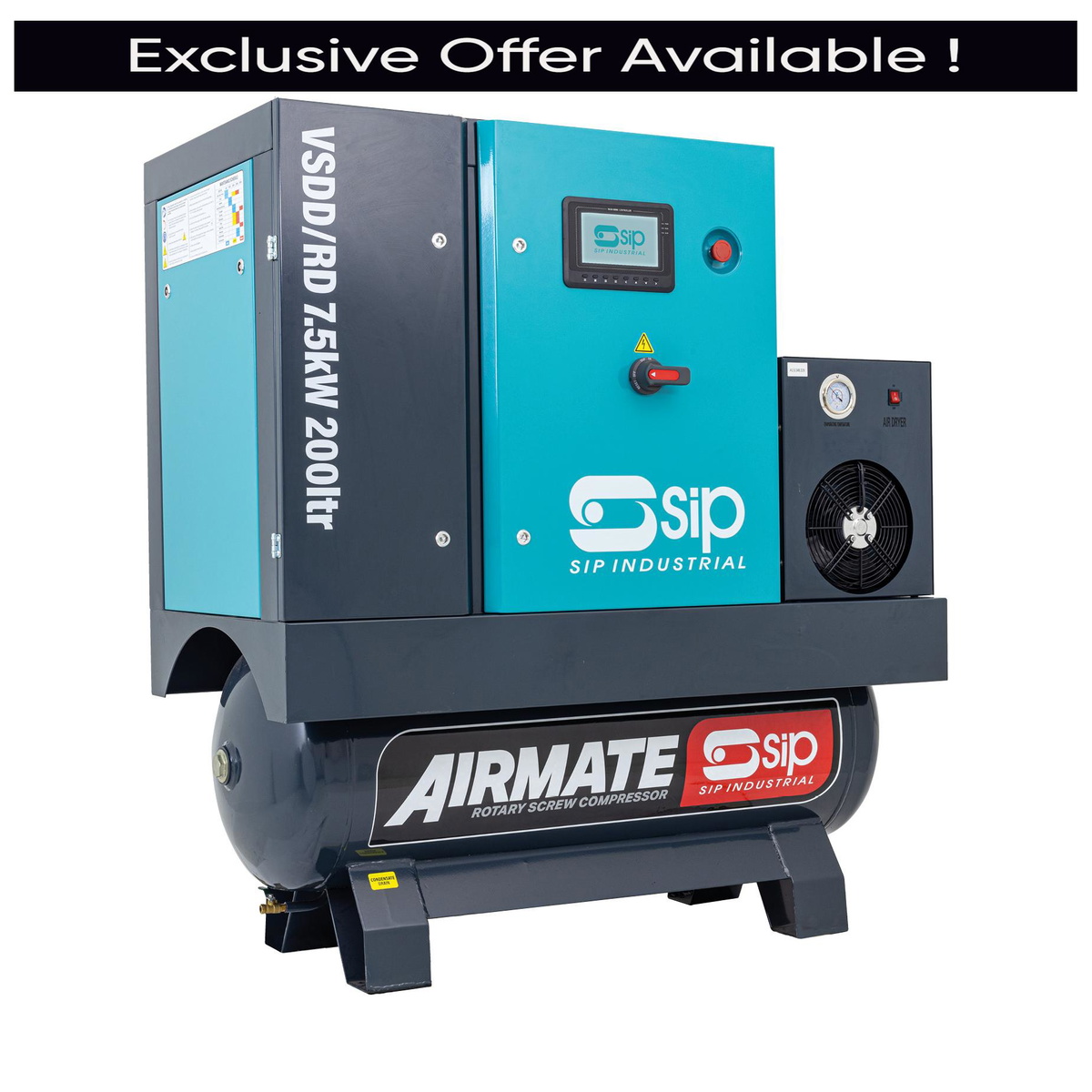

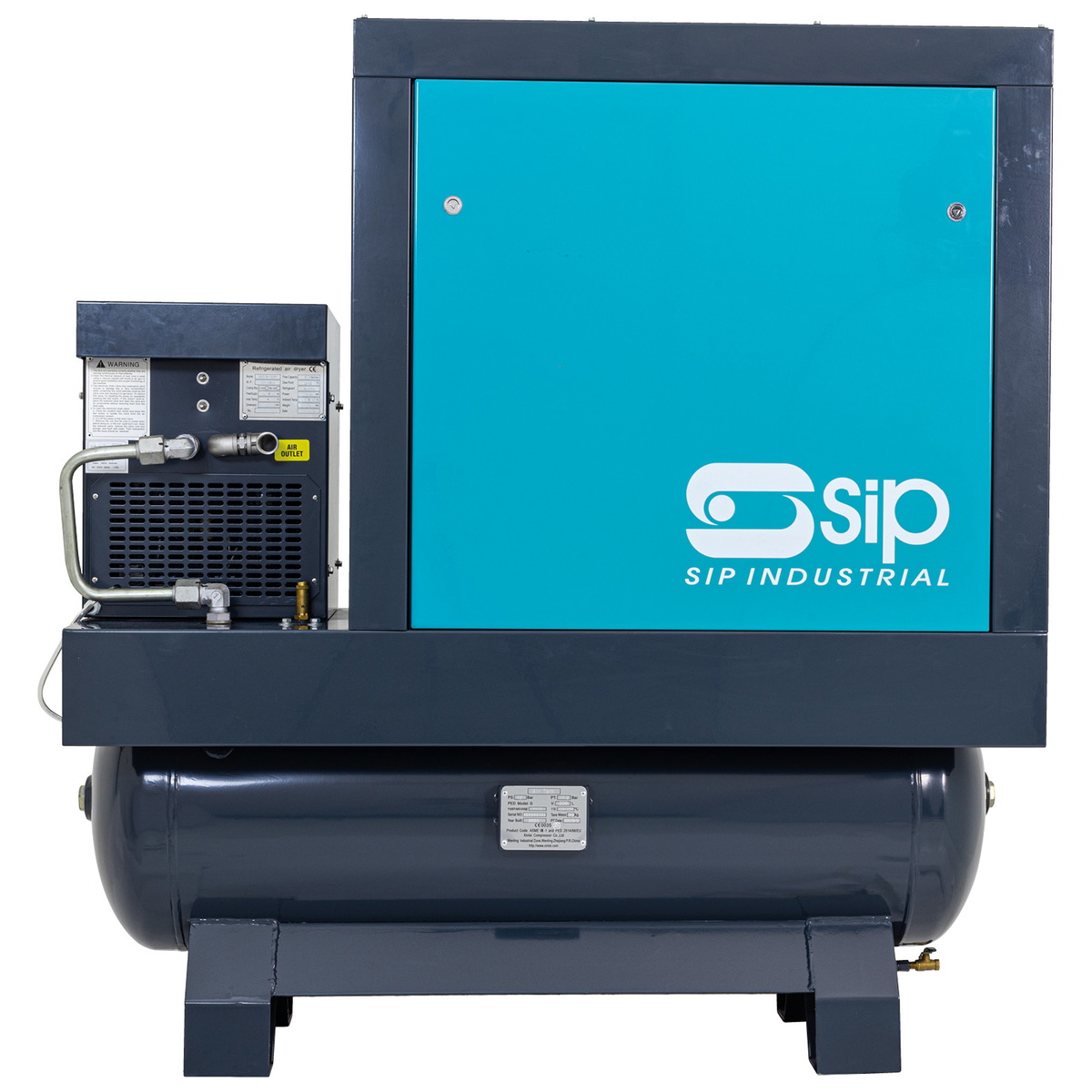

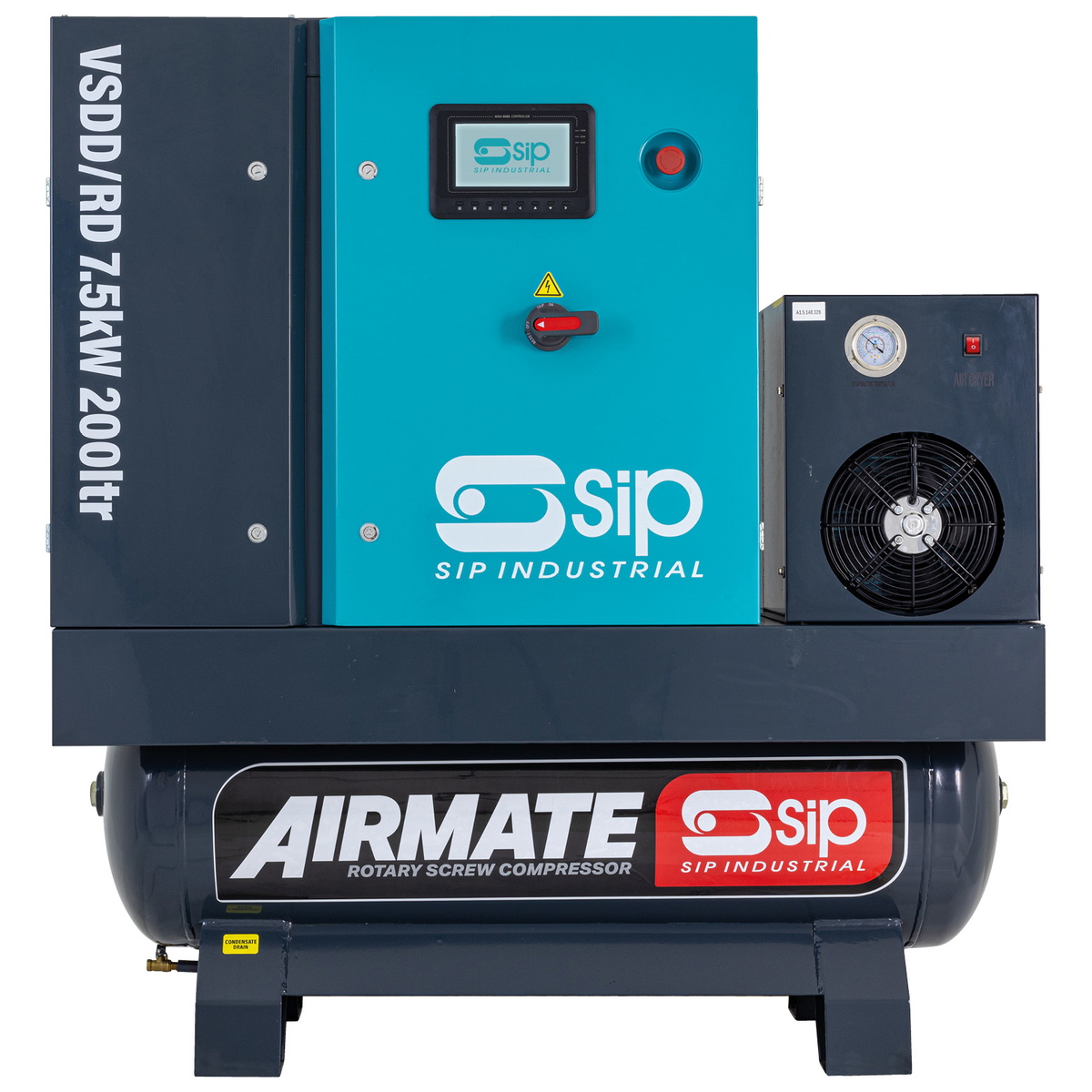

SIP 08280 VSDD/RDF Rotary Screw Compressor 7.5kW 200ltr 10 Bar is a variable speed, direct drive system combining rotary screw compression with an integrated refrigerated dryer and filtration for high-quality 10bar air. A 7.5kW (10hp) IE4 motor on 400v 3‑phase (32A) drives twin parallel screws to deliver 32CFM (920ltr/min) Free Air Delivery at up to 145psi (10bar) into a 200ltr receiver. Direct drive transmission eliminates belts, improving power transfer and reducing maintenance and energy costs. Inverter soft-start and slope-down functionality smooths torque and dynamically matches air output to demand, helping extend component life. The integrated refrigerated dryer lowers air moisture, and the particulate/oil filtration system captures water droplets, oils, dirt and dust to support ISO 8573‑1 class 2‑4‑2 air quality guidelines. A silenced cabinet limits noise to around 62dB(A), and a colour touchscreen provides real-time diagnostics on pressure, temperature, voltage and load status. With its compact all-in-one footprint and easy service access, this VSDD/RDF compressor is ideal for spray shops, automotive facilities and factories needing clean, quiet 10bar air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08280 |
|---|---|
|
Input Supply 400v (32A)
|
|
| Rated Input | 9.5kW |
| Motor Power | 7.5kW (10hp) |
| IE4 Motor | Yes |
| Max. Pressure | 145psi (10bar) |
| Free Air Delivery (FAD) | 32CFM (920ltr/min) |
| Receiver Size | 200ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | Yes |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | 2456600 | 2456290 |
| Warranty | 12 | 12 |
| Type | With Dryer | |
| Capacity (L) | 500 | 200 |
| Maximum Pressure (bar) | 10 | |
A. It is a 7.5kW variable speed direct-drive compressor with integrated refrigerated dryer and filters, 200ltr receiver, 32CFM FAD and 10bar maximum pressure.
A. It supplies about 32CFM free air, around 920 litres per minute, ideal for medium-duty 10bar applications needing dry, filtered compressed air.
A. It provides efficient positive power transfer without belt slip, reducing maintenance and improving reliability versus belt-driven screw compressors.
A. It removes moisture from the compressed air, improving quality delivered to tools and machinery and reducing condensation-related issues.
A. It removes water droplets, oils, dirt and dust, helping achieve 2-4-2 air quality classification in line with ISO 8573-1.
A. It offers substantial air storage for a compact unit, smoothing pressure and supporting short-term demand peaks in workshop operations.
A. The silenced cabinet keeps operating noise around 62dB(A), enabling installation near workstations without excessive acoustic impact.
A. It displays compressor status, load, receiver pressure, motor voltage and internal temperature, giving users clear insight into operating conditions.
A. It is ideal for medium to large workshops, spray shops, automotive and factory environments requiring clean, dry 10bar air.
A. All key components are accessible through a single panel, helping technicians complete regular services quickly and reduce production downtime.
A. It needs a 400v, 32A three-phase input, appropriate for its 7.5kW IE4 motor and integrated dryer/filtration system.
