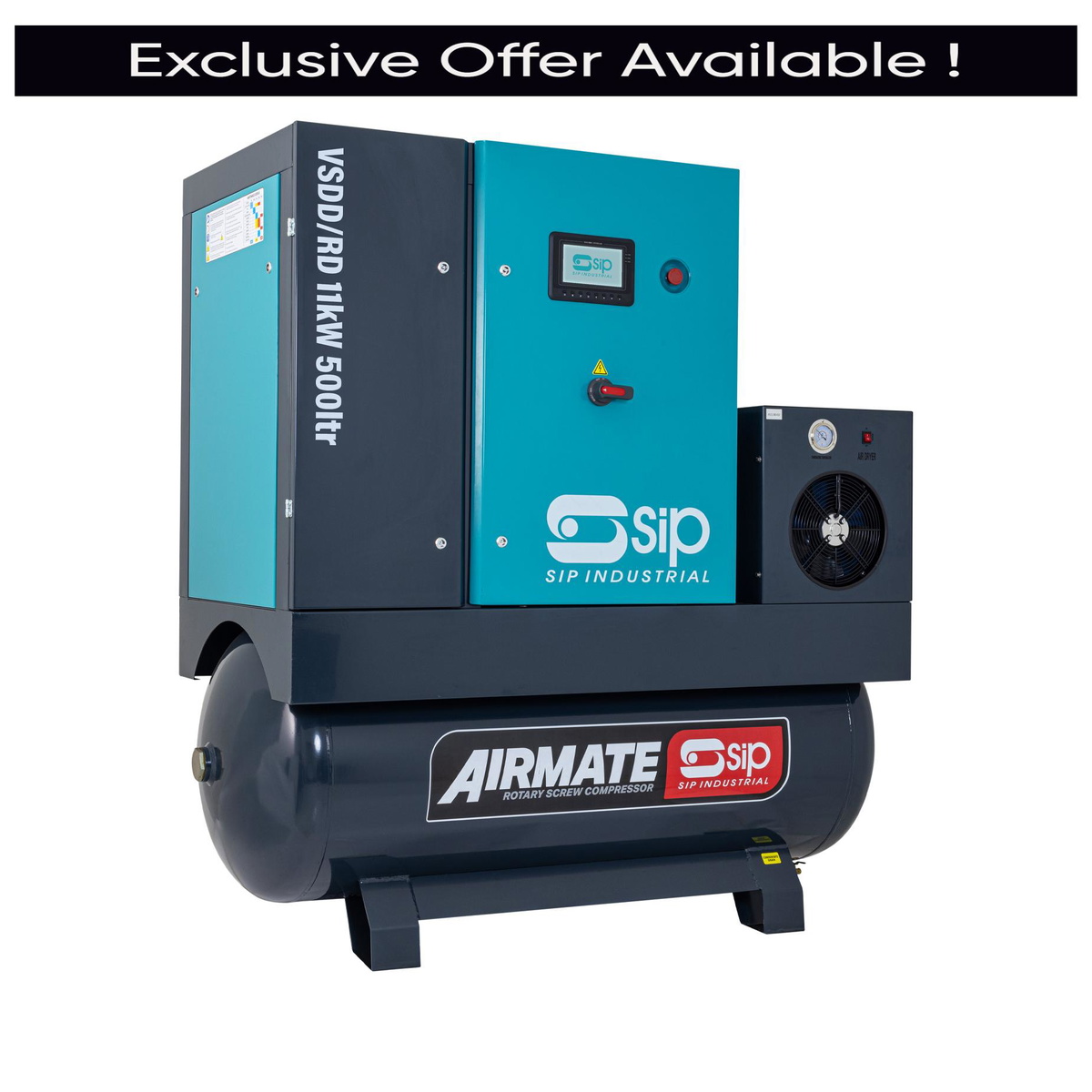

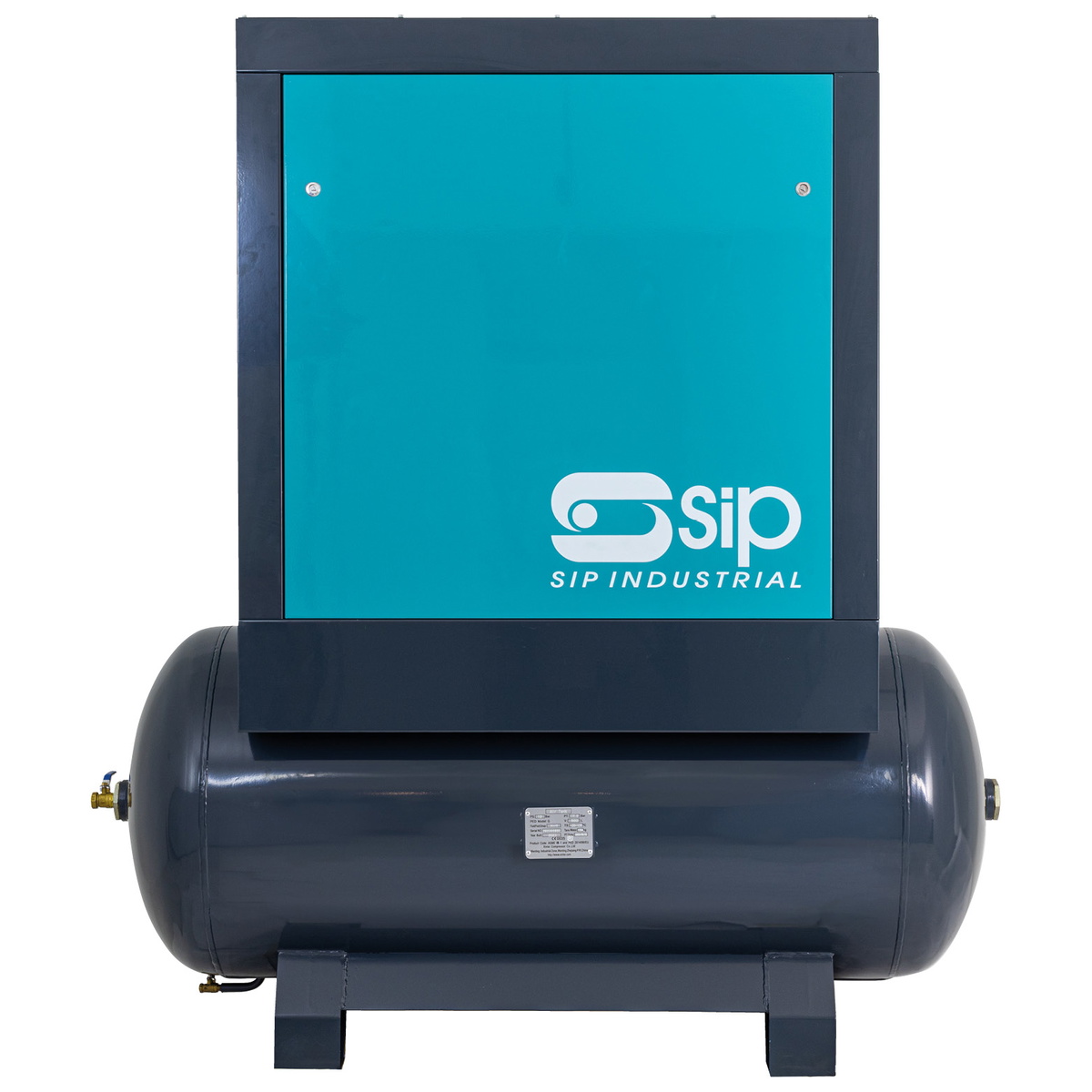

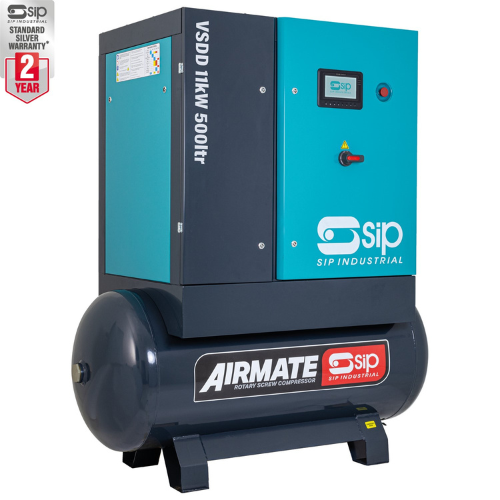

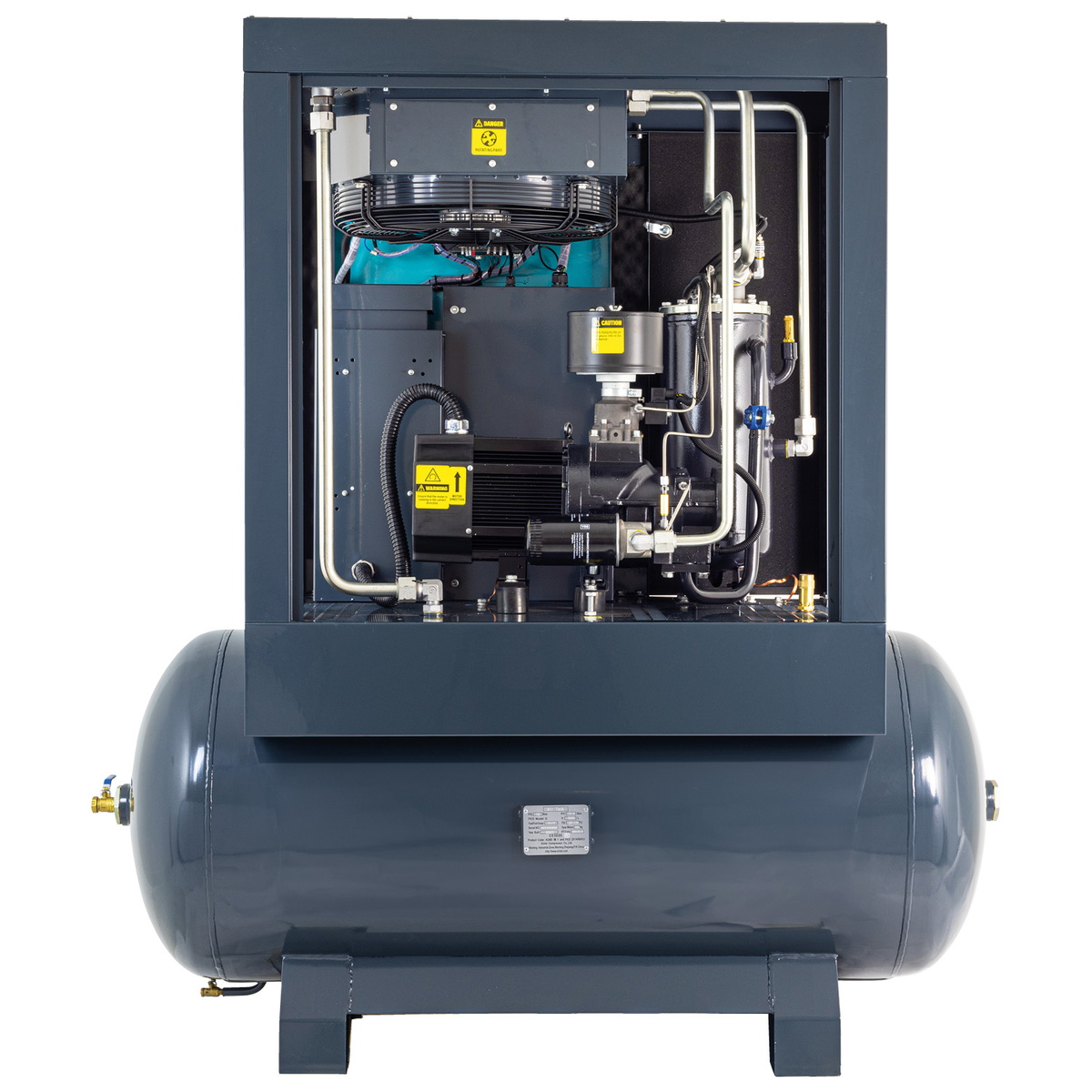

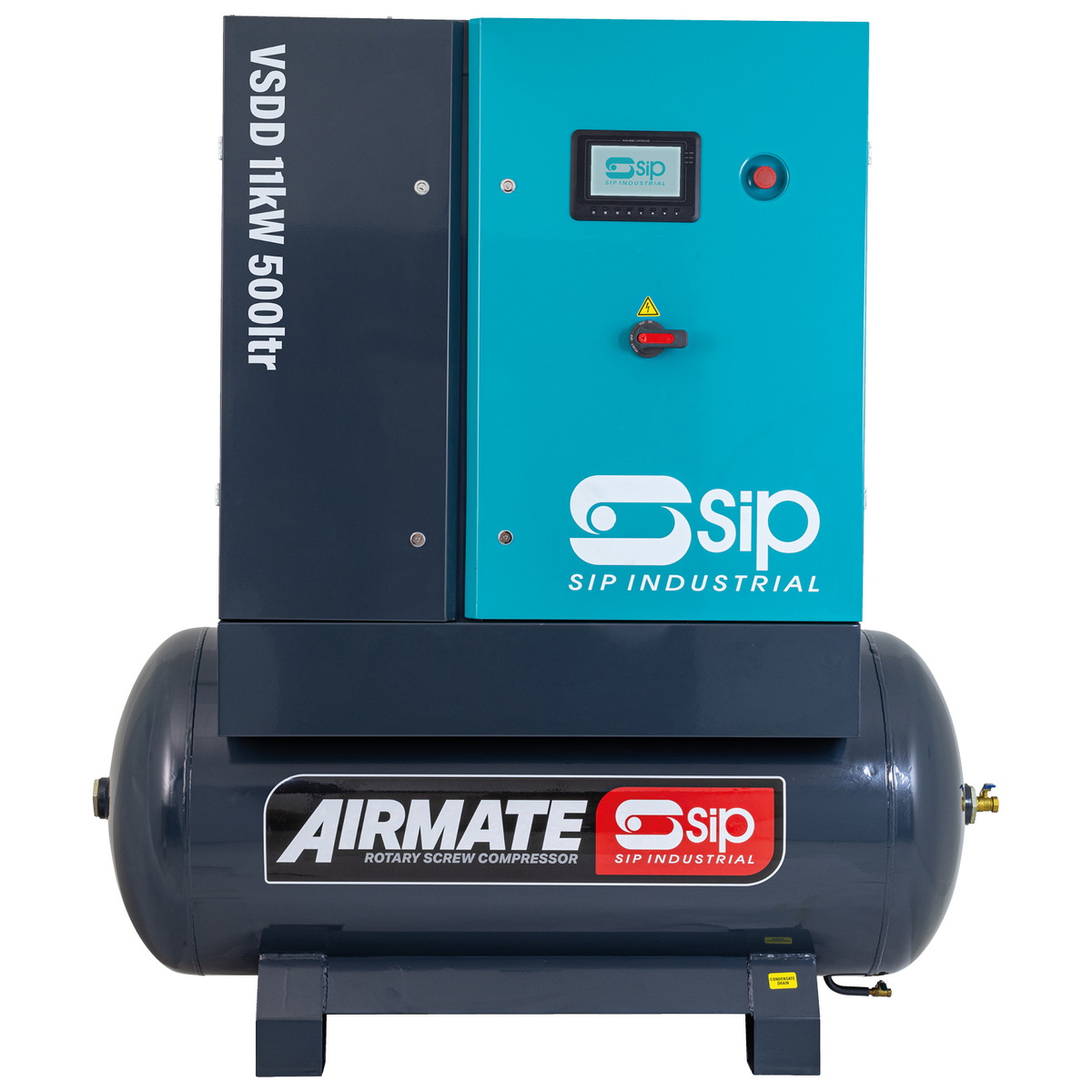

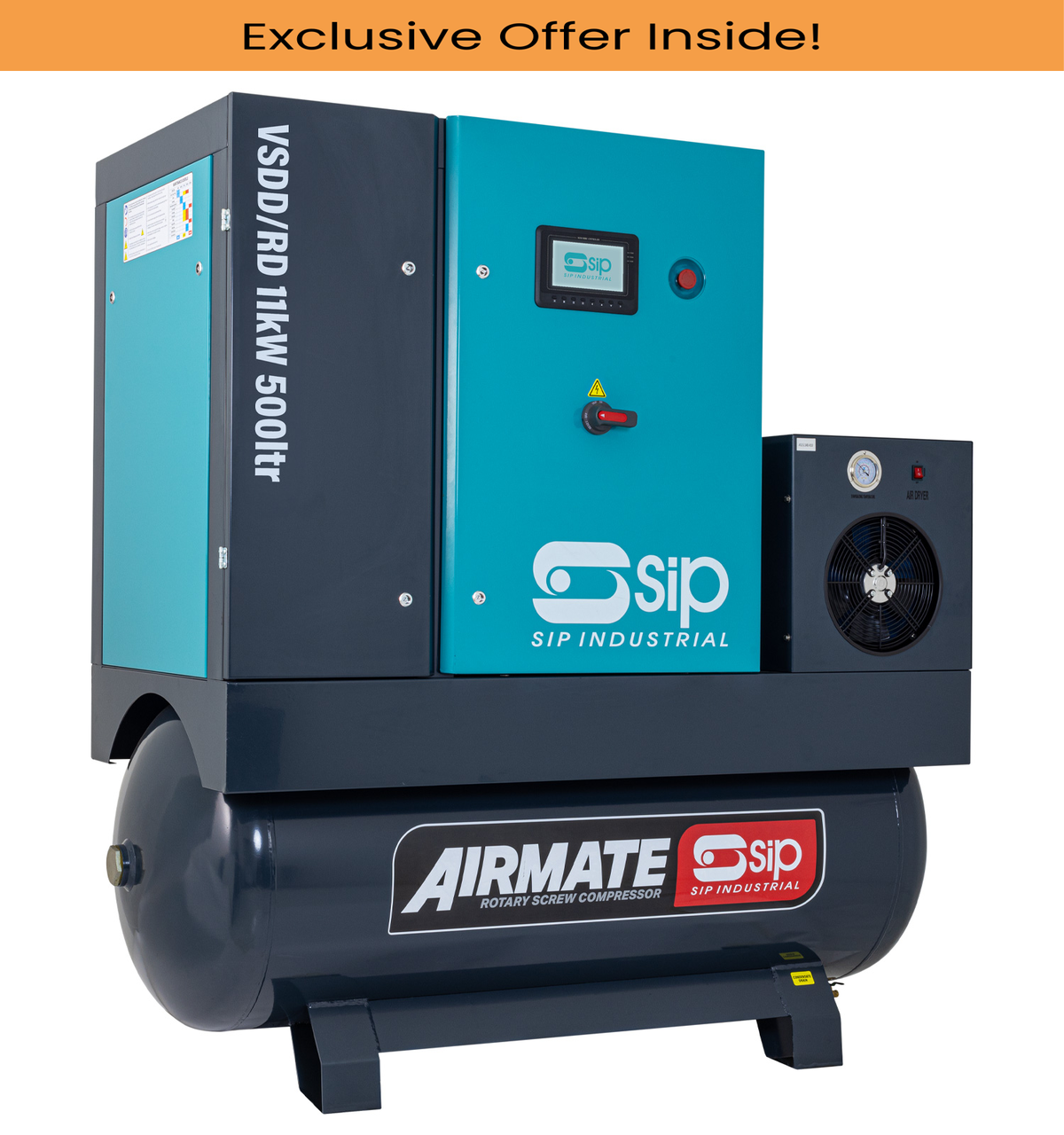

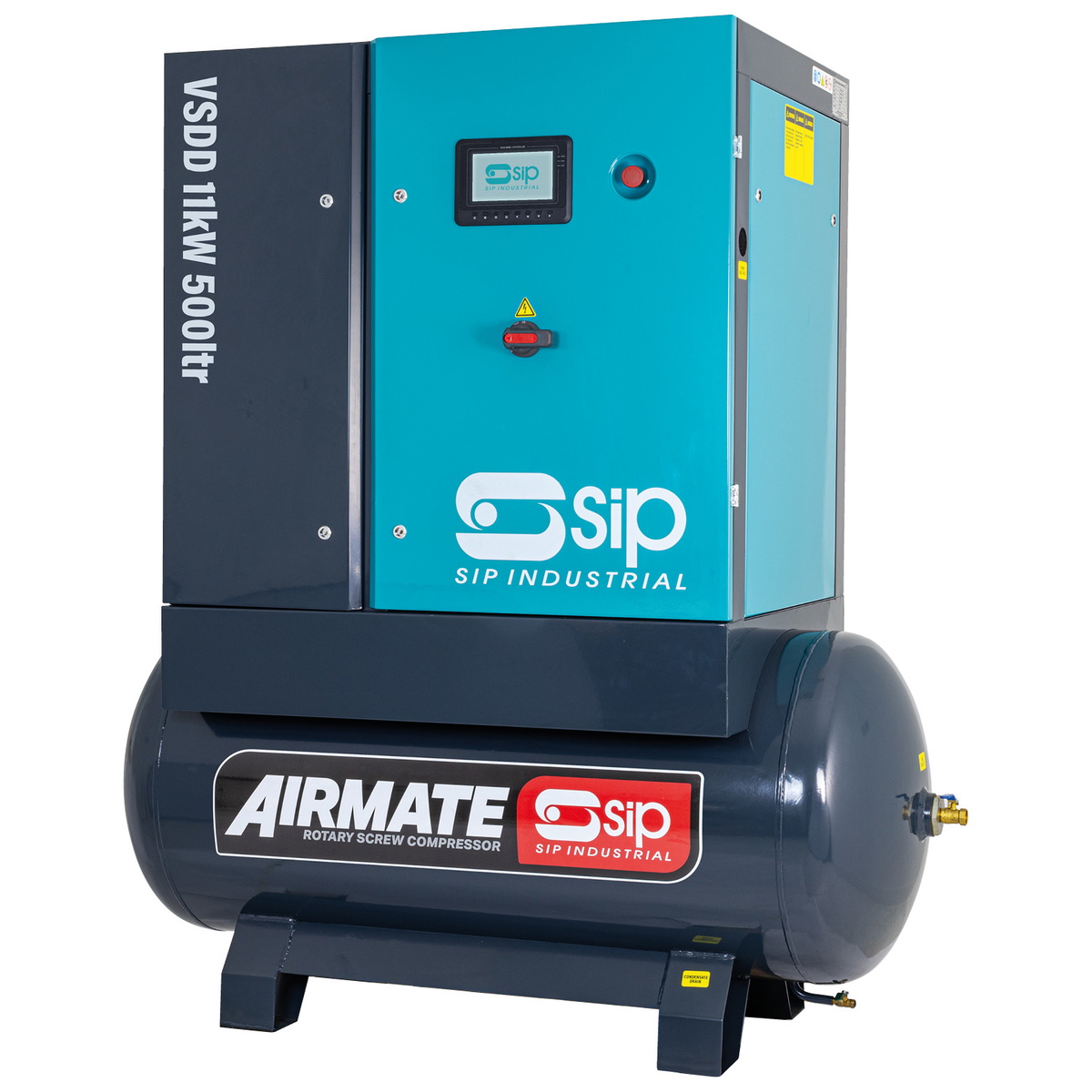

SIP 08277 VSDD/RDF Rotary Screw Compressor 11kW 500ltr 8 Bar is a variable speed, direct drive system with integrated refrigerated dryer and filtration, designed for continuous 8bar air where quality is critical. A 11kW (15hp) IE4 motor on 400v 3‑phase (32A) drives twin parallel screws, supplying 57CFM (1613ltr/min) Free Air Delivery at up to 116psi (8bar) into a 500ltr receiver. Direct drive eliminates belt slip, improving transmission efficiency and reducing maintenance. Inverter soft-start and slope-down modes match air production to demand, smoothing torque and reducing energy use and wear. The integrated refrigerated dryer and particulate/oil filtration system remove moisture, oils, dust and other contaminants, supporting ISO 8573‑1 class 2‑4‑2 air quality guidelines. A silenced cabinet limits noise to around 62dB(A), while a colour touchscreen display provides real-time diagnostics on receiver pressure, voltage, temperature and load status. With an all‑in‑one footprint and easy-access service panel, this VSDD/RDF compressor is ideal for spray shops, automotive facilities and industrial plants needing high‑quality, quiet 8bar compressed air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08277 |
|---|---|
|
Input Supply 400v (32A)
|
|
| Rated Input | 14kW |
| Motor Power | 11kW (15hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 57CFM (1613ltr/min) |
| Receiver Size | 500ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | Yes |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06430A RS11-08-500BD/RD 500ltr Rotary Screw Compressor with Dryer
£5,749.93
£5,637.19
2% OFF
Free delivery in Channel Island
|
SIP 06299A SIRIO 15-08-500ES Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 8 Bar
£6,271.35
£6,148.38
2% OFF
Free delivery in Channel Island
|
SIP 06302A RS11-08-500BD 500ltr Rotary Screw Compressor
£4,764.07
£4,670.66
2% OFF
Free delivery in Channel Island
|
Clarke CXR20R 65.3cfm 500 Litre 20HP Industrial Screw Compressor (400V)
£5,281.16
£5,177.61
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 7.510-270 DF Screw Compressor, 7.5kW, 270 Litre, 10 Bar, 35 CFM
£6,134.54
£6,014.25
2% OFF
Free delivery in UK Mainland
|
SIP 08272 VSDD/RD Rotary Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£5,371.88
£5,266.55
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06430A | 06299A | 06302A | 2456595 | PS-V91SH92PWSB80 | 08272 | 2456600 | 2456290 |
| Input Supply | 400 | 400 | 400 | 400 | 230 | |||
| Motor Power | 15 | 15000 | 7500 | 2200 | ||||
| Warranty | 12 | 12 | 12 | |||||
| Phase | 3 | |||||||
| Maximum Pressure (bar) | 8 | 10 | 10 | 0 | 10 | 10 | ||
| Free AirDelivery (FAD) | 75.9 | 65.3 | 0 | 0 | 65.3 | 8.5 | ||
| Tank Size | 0 | 500 | 270 | 0 | 500 | 200 | ||
| Noise Level | 70 | 0 | 62 | 0 | 70 | 0 | ||
| Maximum Pressure (psi) | 116 | 145 | 145 | 0 | 0 | 145 | ||
| Air displacement | 35 | |||||||
| Show More | ||||||||
A. It is an 11kW variable speed direct-drive screw compressor with integrated dryer and filters, 500ltr receiver, 57CFM FAD and 8bar maximum pressure.
A. It supplies about 57CFM free air, around 1613 litres per minute, making it suitable for high-flow 8bar industrial systems.
A. Gearless direct-drive twin screws provide efficient positive transmission, reducing slippage, maintenance needs and power losses versus belt-driven machines.
A. It lowers moisture content in the compressed air, enhancing quality and protecting connected tools and systems from water-related problems.
A. It collects foreign particles such as water droplets, oils, dirt and dust, supporting 2-4-2 air quality per ISO 8573-1 guidelines.
A. It stores high volumes of compressed air, ensuring stable flow and helping meet pressure peaks during heavy consumption periods.
A. The silenced cabinet and fan cooling hold noise at about 62dB(A), relatively low for a powerful integrated screw system.
A. They can see operating and load status, receiver pressure, motor voltage and internal temperature, aiding effective monitoring.
A. It suits medium to large workshops, spray shops, industrial plants and manufacturing facilities requiring consistent, dried and filtered 8bar air.
A. A single access panel exposes all critical components, enabling faster servicing and reduced downtime for air production.
A. It runs from a 400v, 32A three-phase connection powering the 11kW IE4 motor and integrated refrigerated dryer.
