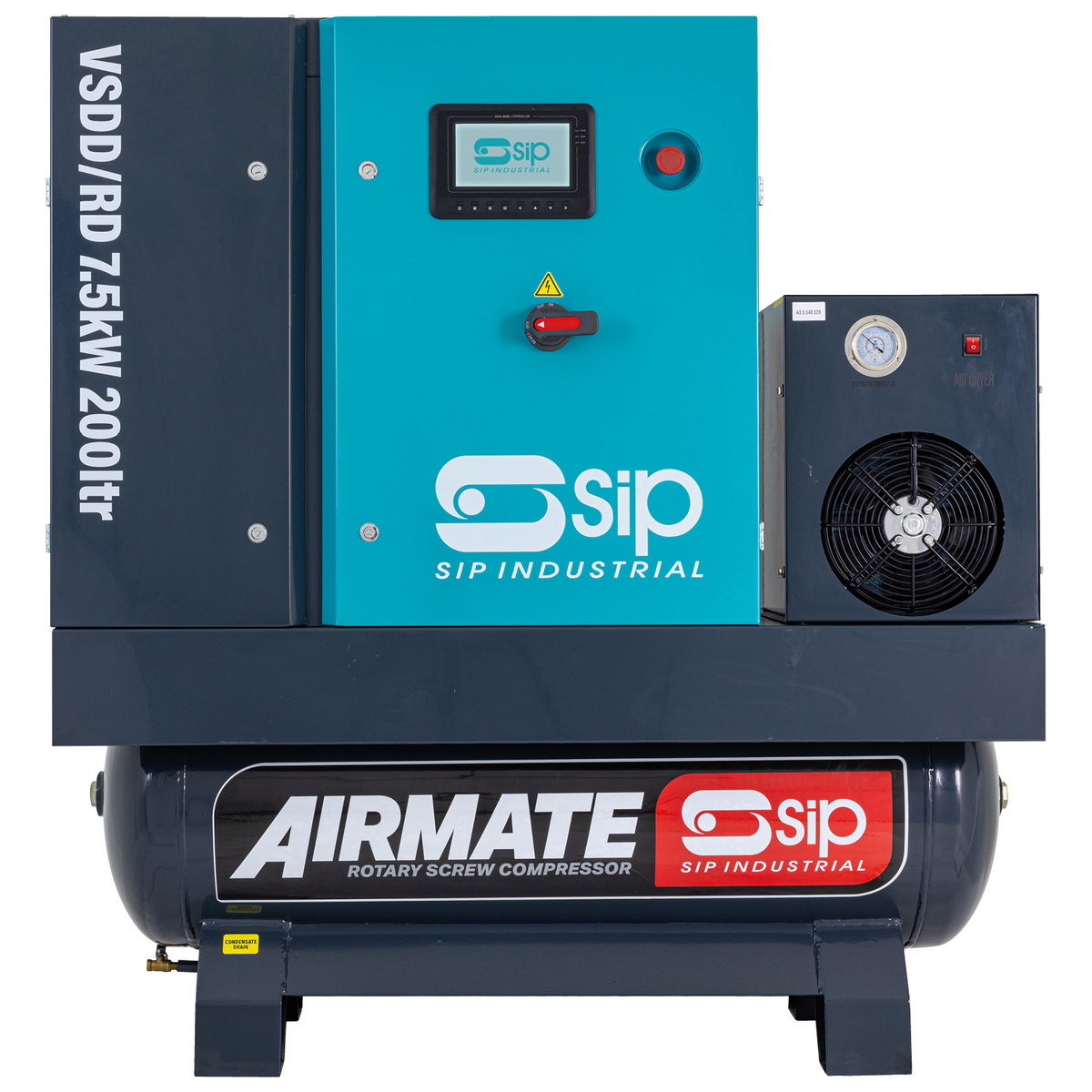

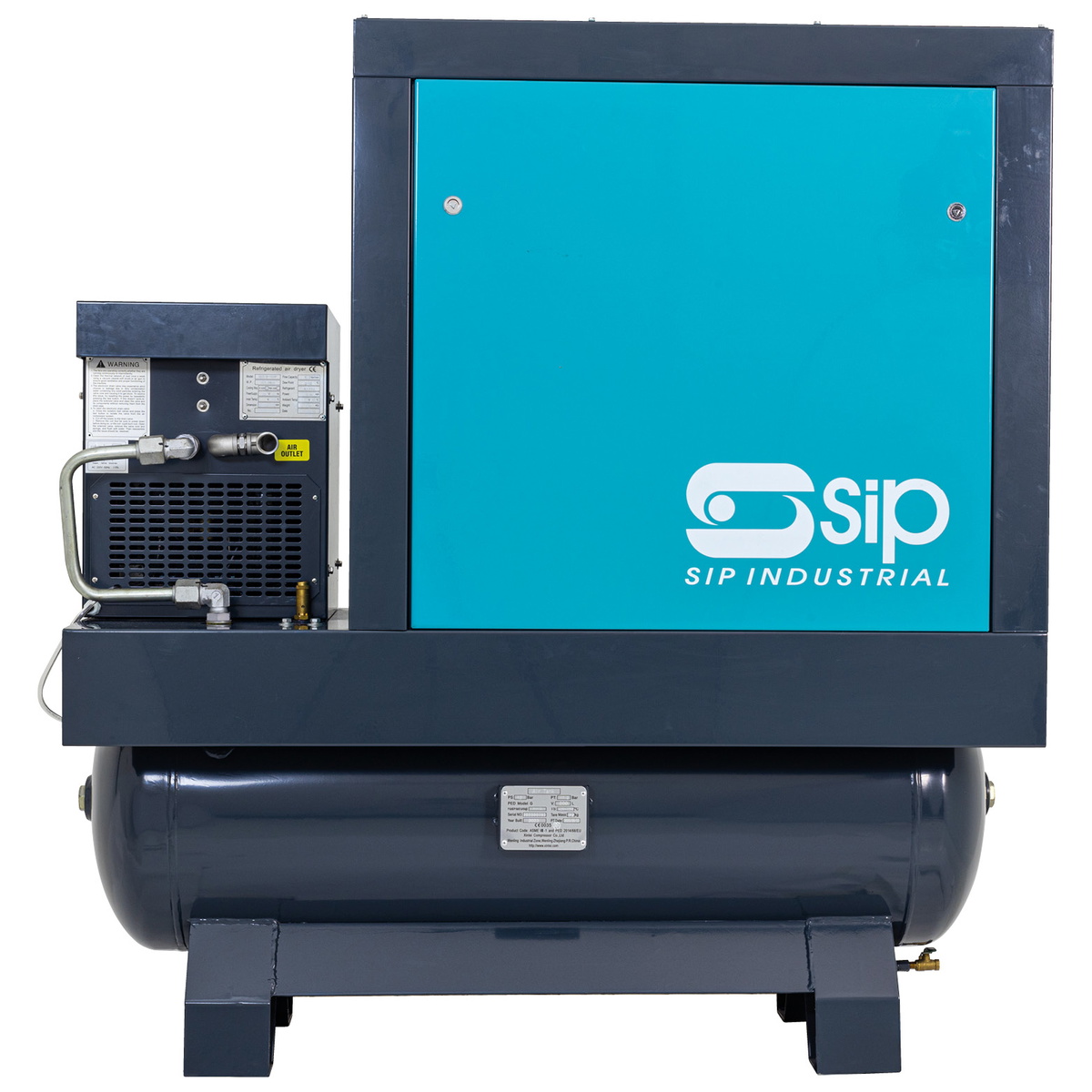

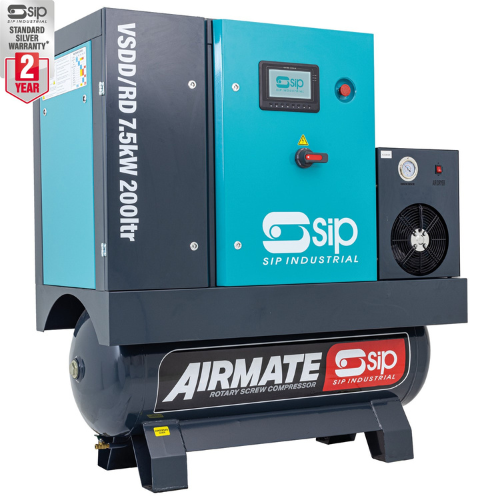

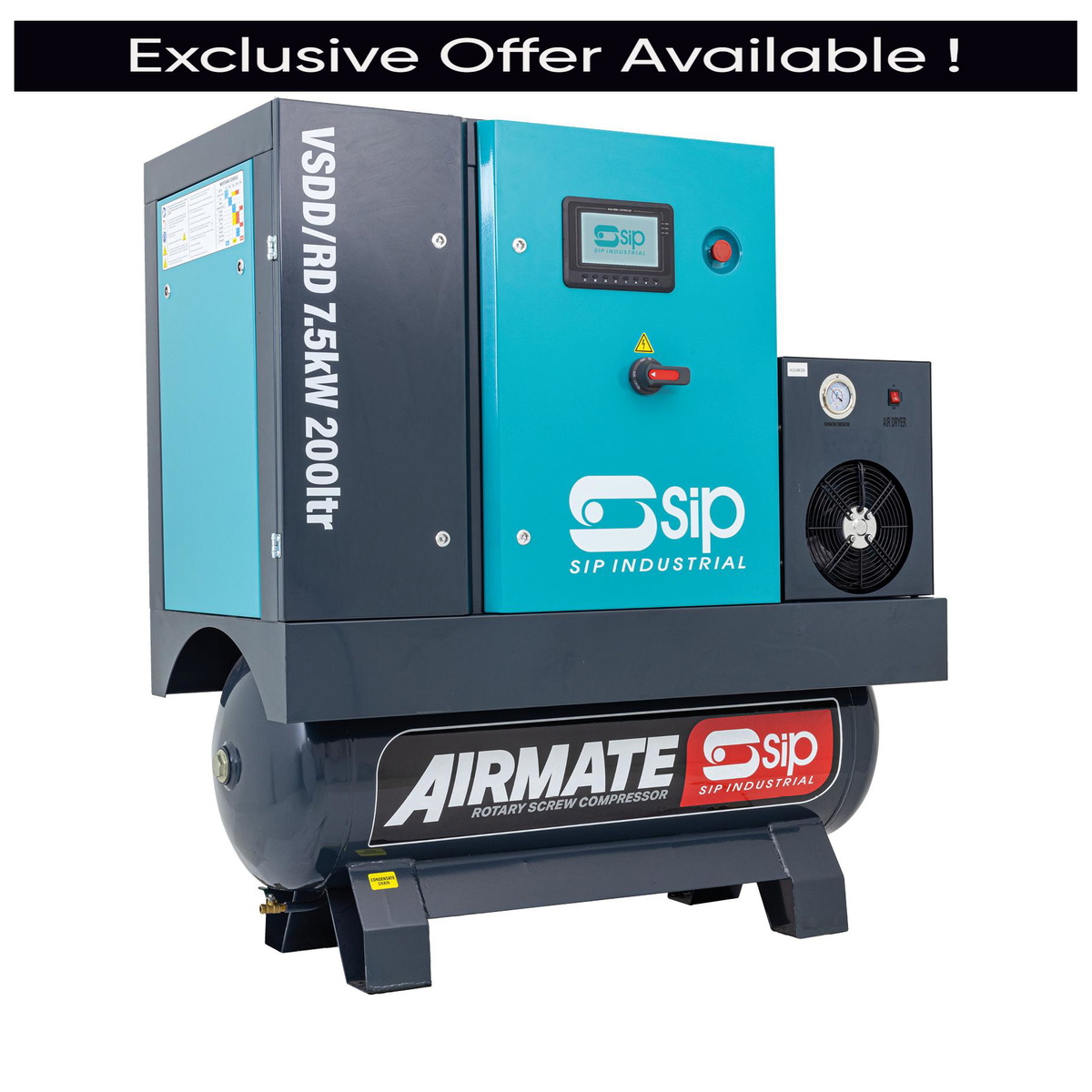

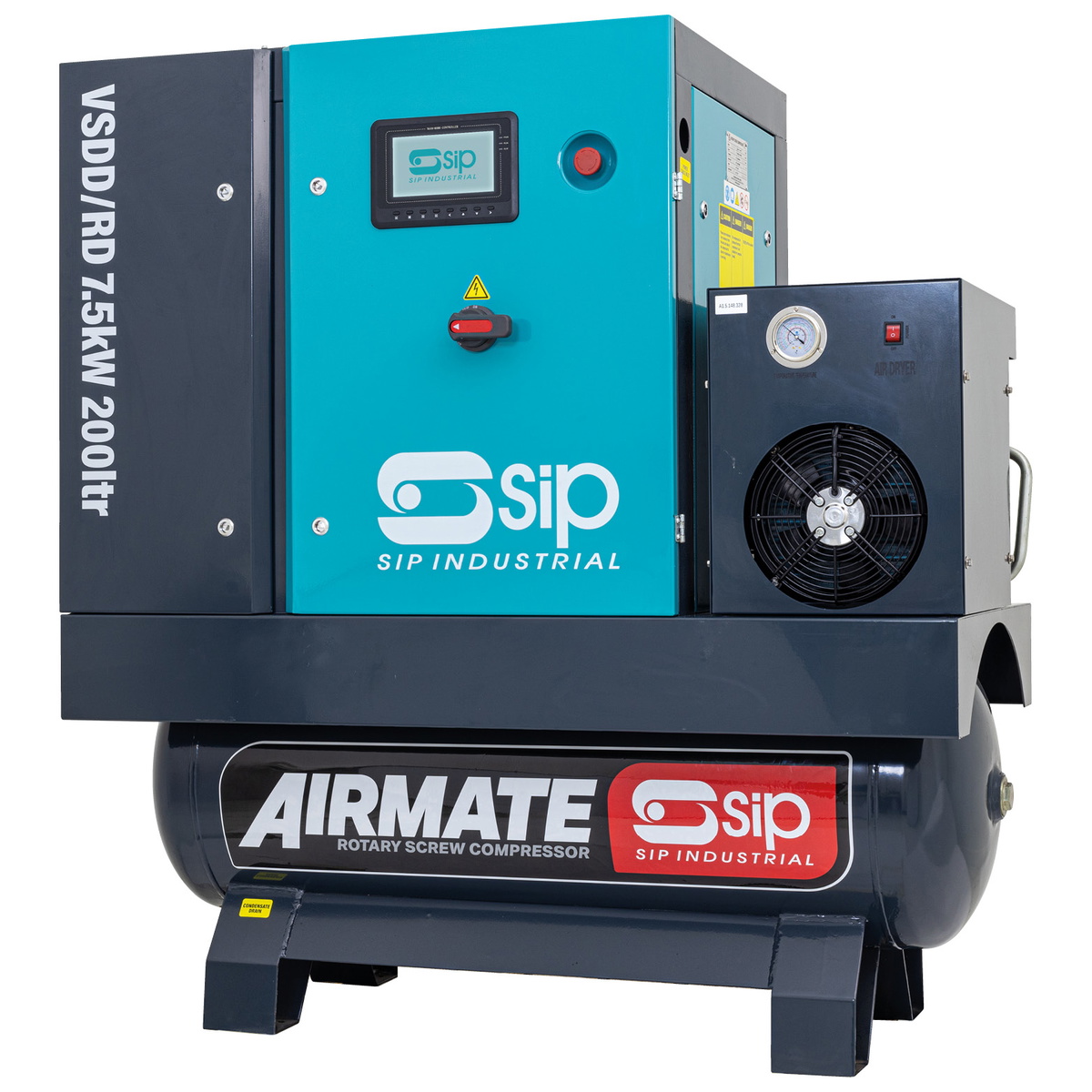

SIP 08271 VSDD/RD Rotary Screw Compressor 7.5kW 200ltr 10 Bar is a variable speed, direct drive screw package with integrated refrigerated dryer, designed for higher pressure 10bar air in demanding workshop and industrial settings. A 7.5kW (10hp) IE4 motor on 400v 3‑phase (32A) drives twin parallel rotary screws to deliver 32CFM (920ltr/min) Free Air Delivery at up to 145psi (10bar) into a 200ltr receiver. Direct drive eliminates belt losses, enhancing efficiency and reliability, while inverter soft-start and slope-down functions provide smooth torque ramp-up and controlled load reduction as pressure is achieved, adjusting output to demand. The built‑in refrigerated dryer reduces moisture in the air, improving quality for paint, tools and process equipment. A silenced cabinet keeps noise around 62dB(A), and a colour touchscreen diagnostic display gives live data on pressure, temperature, voltage and status. Easy access through a single service panel and compact all‑in‑one design make this an excellent choice for spray shops, automotive bays and factories needing clean, quiet 10bar air from a 200L screw plant.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08271 |
|---|---|
|
Input Supply 400v (32A)
|
|
| Rated Input | 9.5kW |
| Motor Power | 7.5kW (10hp) |
| IE4 Motor | Yes |
| Max. Pressure | 145psi (10bar) |
| Free Air Delivery (FAD) | 32CFM (920ltr/min) |
| Receiver Size | 200ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | Yes |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06285 SIRIO -595122 Screw Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£4,227.43
£4,144.54
2% OFF
Free delivery in Channel Island
|
SIP 06303TRONIC 5.5-10-270ES Screw Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£4,547.48
£4,458.31
2% OFF
Free delivery in Channel Island
|
Clarke CXR100R 37.1cfm 270 Litre 10HP Industrial Screw Compressor (400V)
£3,993.61
£3,915.30
2% OFF
Free delivery in UK Mainland
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 06285 | 06303 | 2456310 | 2456600 | 2456290 |
| Input Supply | 400 | 400 | 400 | 400 | 230 |
| Motor Power | 7.5 | 5.5 | 7500 | 2200 | |
| Warranty | 24 | 24 | 12 | 12 | 12 |
| Phase | 3 | ||||
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 |
| Free AirDelivery (FAD) | 35.3 | 23 | 37.1 | 65.3 | 8.5 |
| Tank Size | 0 | 0 | 270 | 500 | 200 |
| Noise Level | 69 | 64 | 0 | 70 | 0 |
| Maximum Pressure (psi) | 145 | 145 | 145 | 0 | 145 |
| Show More | |||||
A. It is a 7.5kW variable speed direct-drive screw compressor with integrated dryer, 200ltr receiver, 32CFM FAD and 10bar maximum pressure.
A. It delivers roughly 32CFM free air, about 920 litres per minute, making it suitable for continuous 10bar use in medium-sized industrial workshops.
A. Gearless direct drive eliminates belt slippage, reducing maintenance, power losses and stress on components compared with belt-driven screw compressors.
A. It removes moisture from the compressed air stream, providing drier air that better protects connected tools and industrial machinery.
A. The inverter provides soft-start and slope-down, matching airflow to demand, reducing mechanical wear and optimising energy consumption.
A. It stores high volumes of compressed air, enabling stable 10bar pressure and accommodating short-term demand spikes in busy workshops.
A. The silenced cabinet keeps noise near 62dB(A), low enough to place the machine closer to work areas without excessive disturbance.
A. Operators see operation and load status, receiver pressure, motor voltage and internal temperature in real time, simplifying monitoring and fault detection.
A. It is ideal for medium to large workshops, spray shops and industrial or agricultural sites that require clean, dry 10bar compressed air.
A. All critical components are accessible through one cabinet panel, allowing maintenance to be carried out quickly with minimal downtime.
A. The compressor needs a 400v, 32A three-phase supply, suitable for its 7.5kW IE4 motor and inverter system.
