Product Number: 08266
Variations

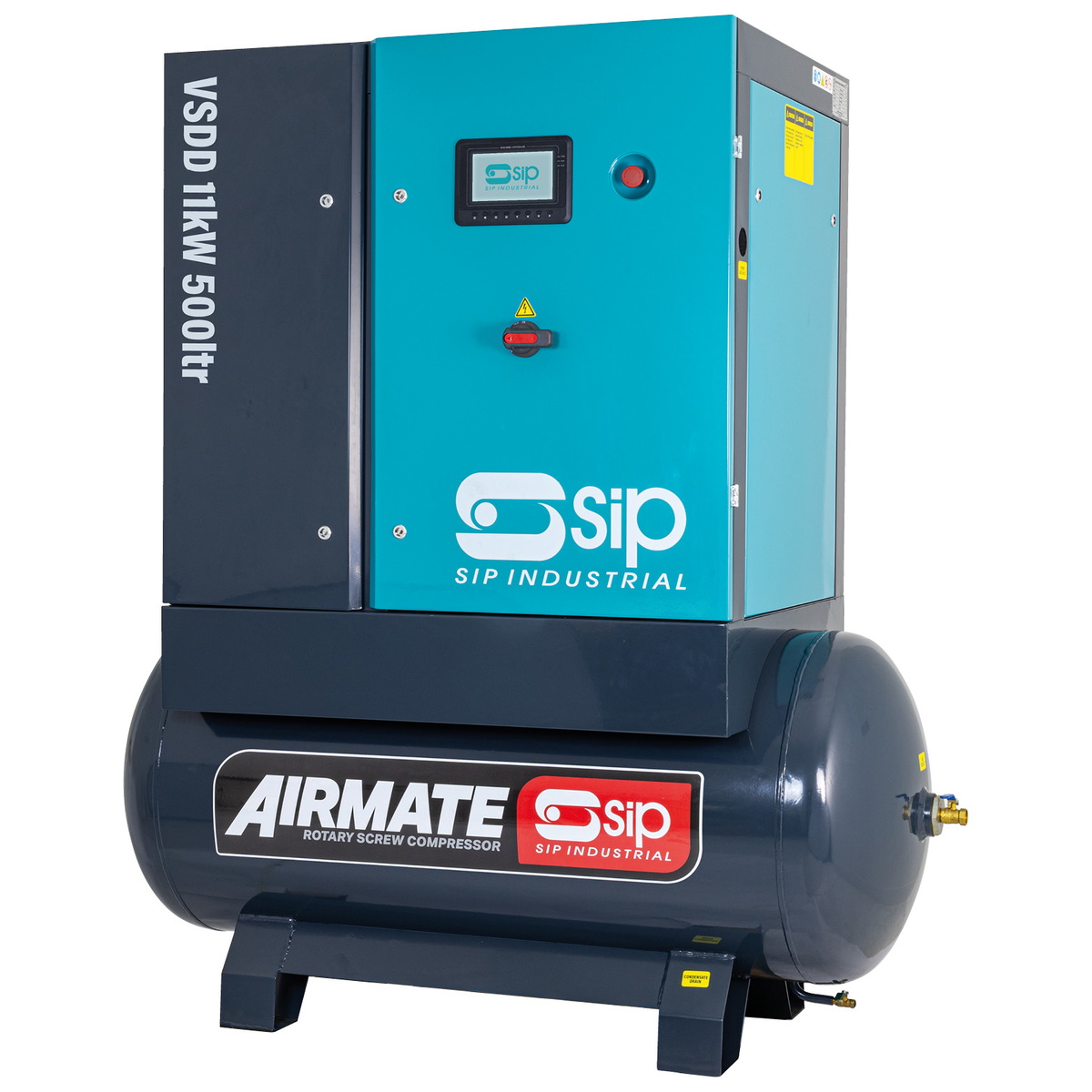

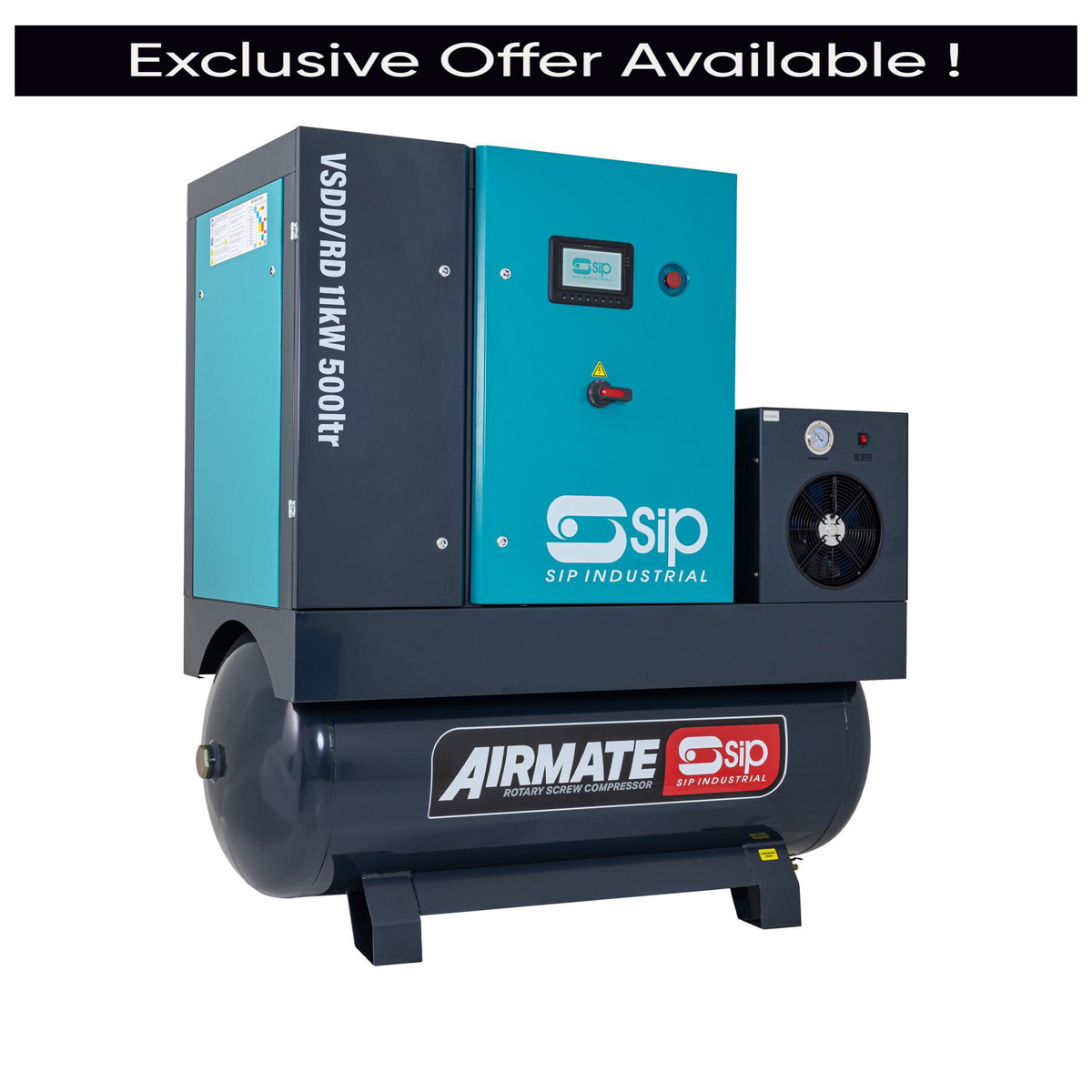

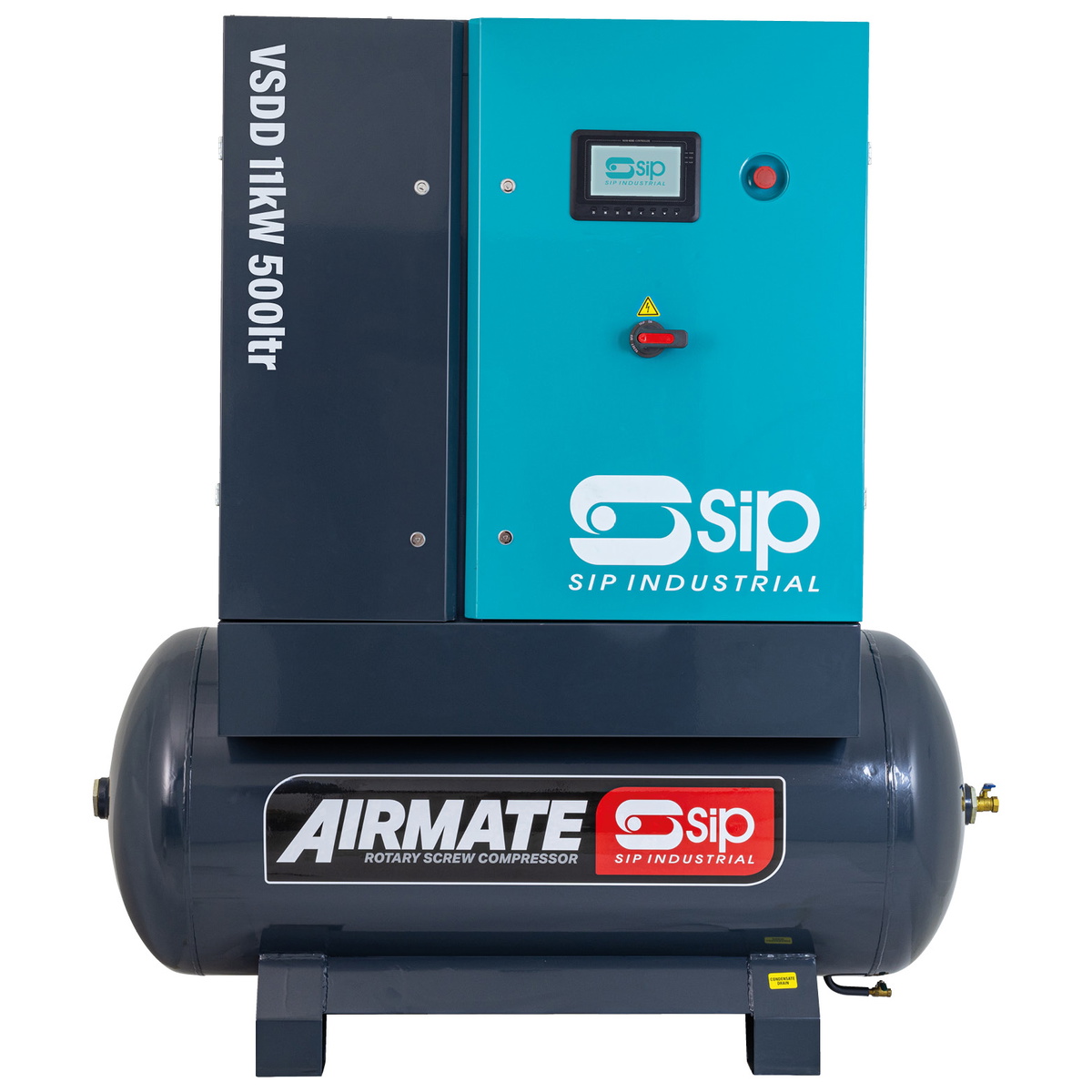

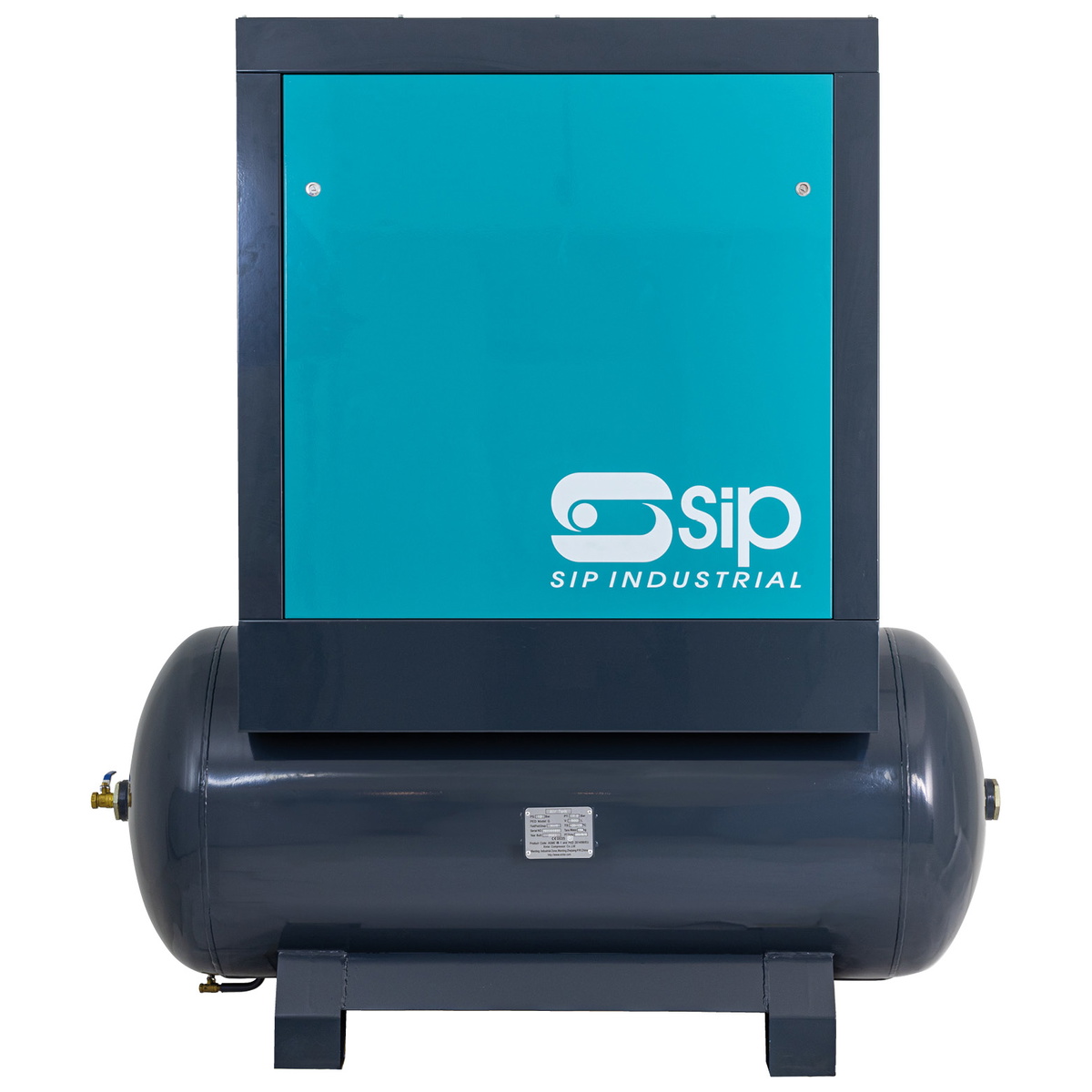

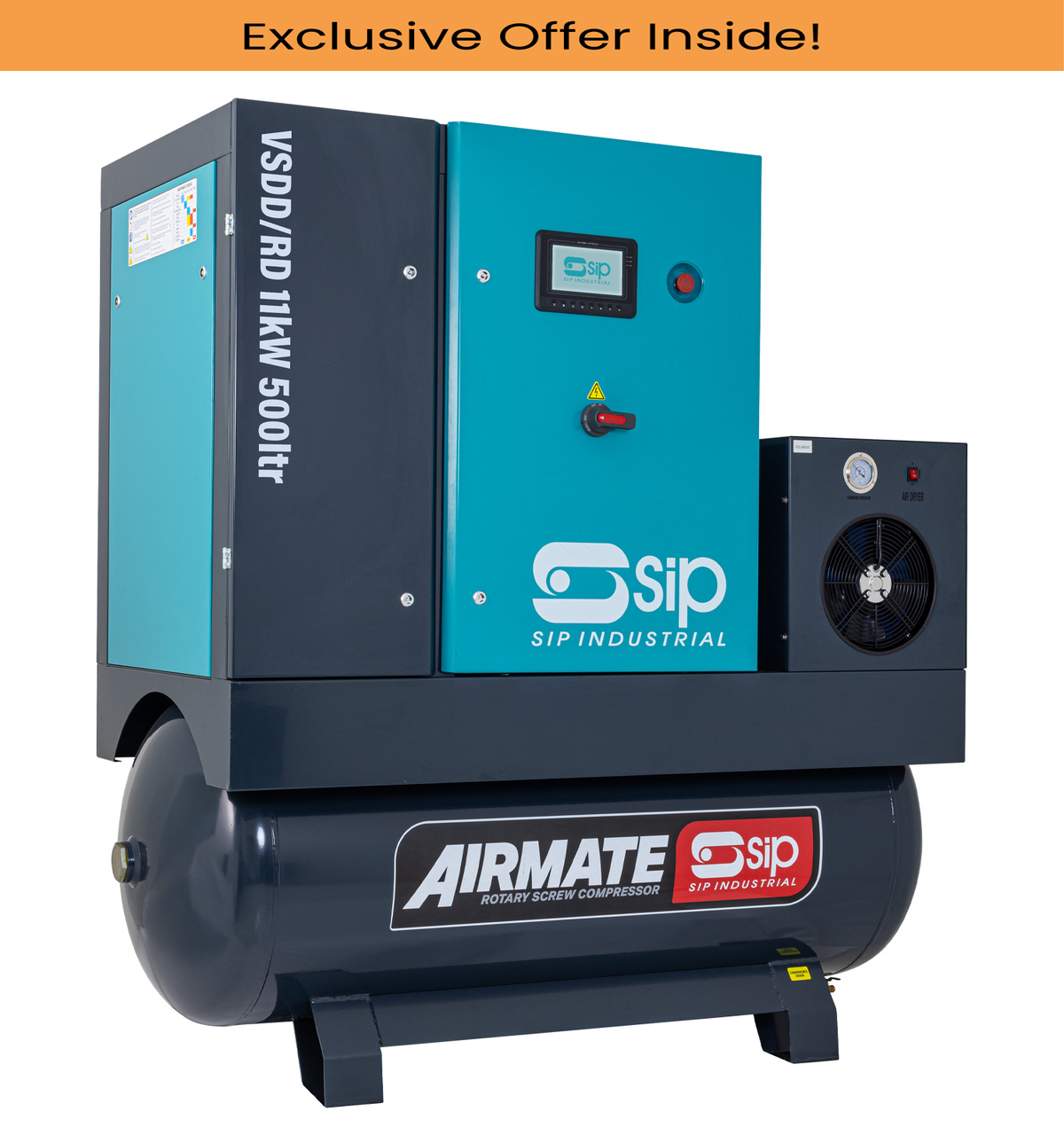

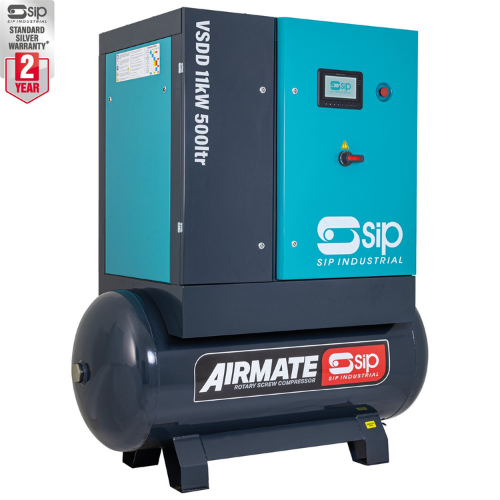

SIP 08266 VSDD/RD Rotary Screw Compressor 11kW 500ltr 8 Bar is a variable speed, direct drive system with integrated refrigerated dryer, delivering high-volume, dry 8bar air for demanding industrial environments. A 11kW (15hp) IE4 motor on 400v 3‑phase (32A) drives twin parallel screws, providing 57CFM (1613ltr/min) Free Air Delivery at up to 116psi (8bar) into a 500ltr receiver. The direct drive transmission eliminates belt slip, improving efficiency and reducing maintenance. Inverter-controlled soft-start and slope-down functions smooth torque application and adjust output to match demand, reducing energy use and mechanical wear. The integrated refrigerated dryer lowers air moisture, improving quality for downstream tools and processes. A silenced cabinet maintains low noise of around 62dB(A), while a colour touchscreen display offers real-time diagnostics on pressure, temperature, voltage and status. With easy access via a single service panel and a compact all‑in‑one design, this VSDD/RD compressor is ideal for spray shops, automotive facilities and factories needing clean, quiet, efficient 8bar air from a 500L screw plant.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08266 |
|---|---|
|
Input Supply 400v (32A)
|
|
| Rated Input | 14kW |
| Motor Power | 11kW (15hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 57CFM (1613ltr/min) |
| Receiver Size | 500ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | Yes |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06369A RS15-08-500BD 500ltr Rotary Screw Compressor
£5,105.19
£5,005.09
2% OFF
Free delivery in Channel Island
|
SIP 06430A RS11-08-500BD/RD 500ltr Rotary Screw Compressor with Dryer
£5,749.93
£5,637.19
2% OFF
Free delivery in Channel Island
|
SIP 06302A RS11-08-500BD 500ltr Rotary Screw Compressor
£4,764.07
£4,670.66
2% OFF
Free delivery in Channel Island
|
Clarke CXR20R 65.3cfm 500 Litre 20HP Industrial Screw Compressor (400V)
£5,281.16
£5,177.61
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 7.510-270 DF Screw Compressor, 7.5kW, 270 Litre, 10 Bar, 35 CFM
£6,134.54
£6,014.25
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 7.510-270 Screw Compressor, 7.5kW, 270 Litre, 10 Bar, 400V
£3,821.25
£3,746.32
2% OFF
Free delivery in UK Mainland
|
TIGREN DD 5.5kW 270ltr Screw Compressor
£3,873.95
£3,797.99
2% OFF
Free delivery in Channel Island
|
SIP 06299A SIRIO 15-08-500ES Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 8 Bar
£6,271.35
£6,148.38
2% OFF
Free delivery in Channel Island
|
SIP 06263 Sirio 15-10-500-ES Screw Compressor with Dryer, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£6,271.34
£6,148.37
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1513-500 Screw Compressor, 15 kW, 500 Litre, 15 Bar, 53 CFM
£5,797.22
£5,683.55
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1515-500 ES Screw Compressor, 15 kW, 500 Litre, 15 Bar, 45.9 CFM
£7,509.53
£7,362.28
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06369A | 06430A | 06302A | 2456595 | PS-V91SH92PWSB80 | F-V91PO92FNM201 | 08221 | 06299A | 06263 | 2456600 | 2456290 | F-V83NR92FNM701 | F-V83NR92FNM601 |
| Input Supply | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 230 | |||||
| Motor Power | 15000 | 7500 | 7500 | 15 | 15 | 2200 | 15000 | 15000 | |||||
| Warranty | 12 | 24 | 12 | 12 | |||||||||
| Phase | 3 | 3 | |||||||||||
| Maximum Pressure (bar) | 10 | 10 | 10 | 8 | 10 | 10 | 10 | 15 | 15 | ||||
| Free AirDelivery (FAD) | 65.3 | 0 | 75.9 | 65.3 | 65.3 | 8.5 | |||||||
| Tank Size | 500 | 270 | 270 | 0 | 0 | 500 | 200 | 500 | 500 | ||||
| Noise Level | 0 | 62 | 67 | 68 | 70 | 70 | 70 | 0 | 70 | 70 | |||
| Maximum Pressure (psi) | 145 | 145 | 145 | 116 | 145 | 0 | 145 | 218 | 218 | ||||
| Air displacement | 35 | 37.1 | 53 | 45.9 | |||||||||
| Show More | |||||||||||||
A. It is an 11kW variable speed direct-drive screw compressor with integrated refrigerated dryer and large 500ltr receiver at 8bar.
A. It supplies approximately 57CFM free air, about 1613 litres per minute, suited to high-volume 8bar applications.
A. It uses a 400v, 32A three-phase supply for the 11kW IE4 motor and integrated refrigerated dryer.
A. It removes moisture from the compressed air, improving air quality for tools and machinery connected to the compressor.
A. Gearless drive via twin screws reduces slippage, component stress and maintenance while improving power transfer efficiency.
A. Inverter control provides automated soft-start and slope-down, adjusting air output to demand while reducing wear and energy usage.
A. The 500ltr receiver safely stores high volumes of air, providing stable flow and meeting pressure peaks in demanding operations.
A. The silenced cabinet keeps noise around 62dB(A), relatively quiet for an 11kW compressor with integrated dryer.
A. It shows operating and load status, receiver pressure, motor voltage and internal temperature, allowing proactive system management.

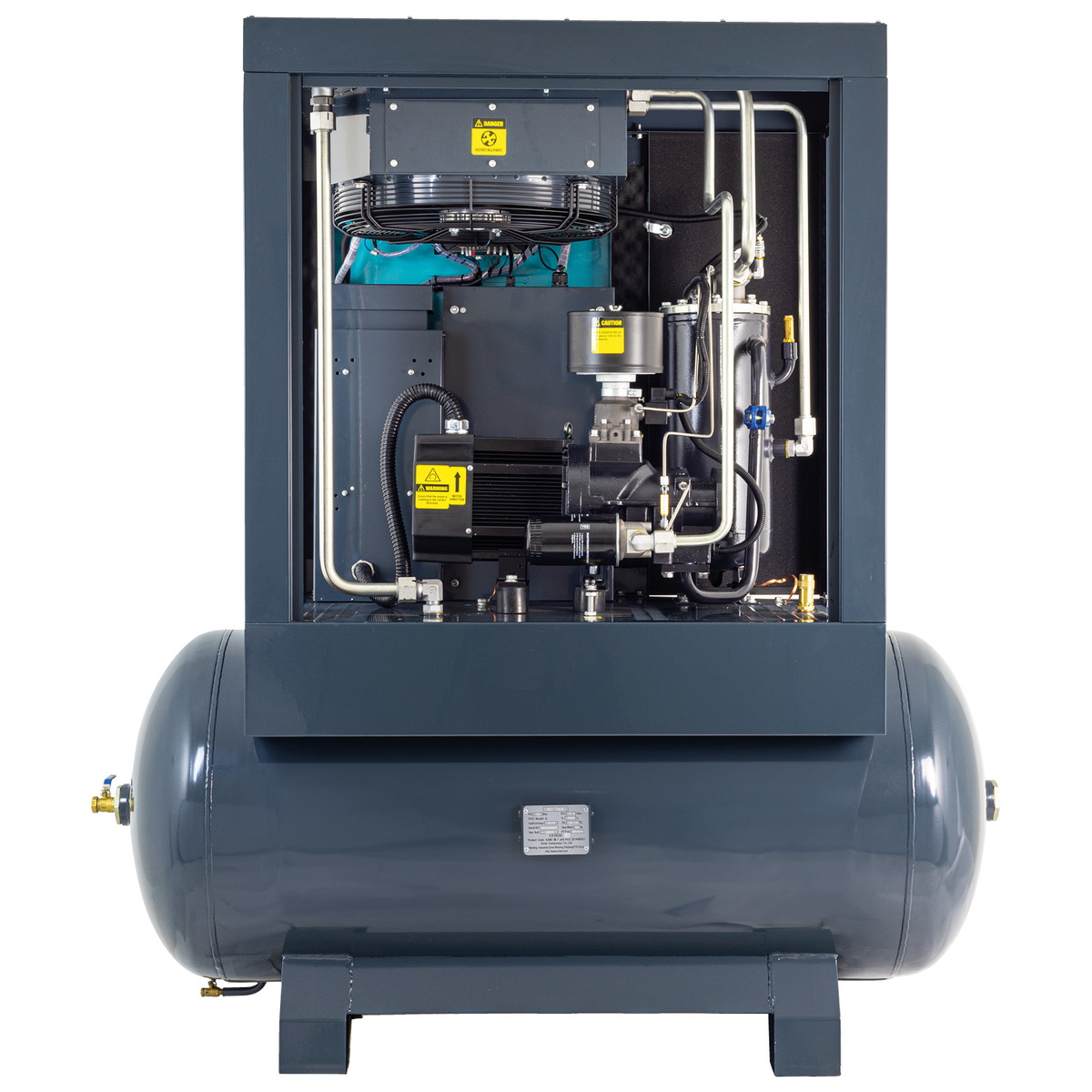

A. A single access cabinet panel provides entry to all critical components, helping reduce downtime during service.
A. It is ideal for medium-to-large workshops, spray shops, automotive and factory settings needing clean, dry 8bar air.
