Product Number: 08263

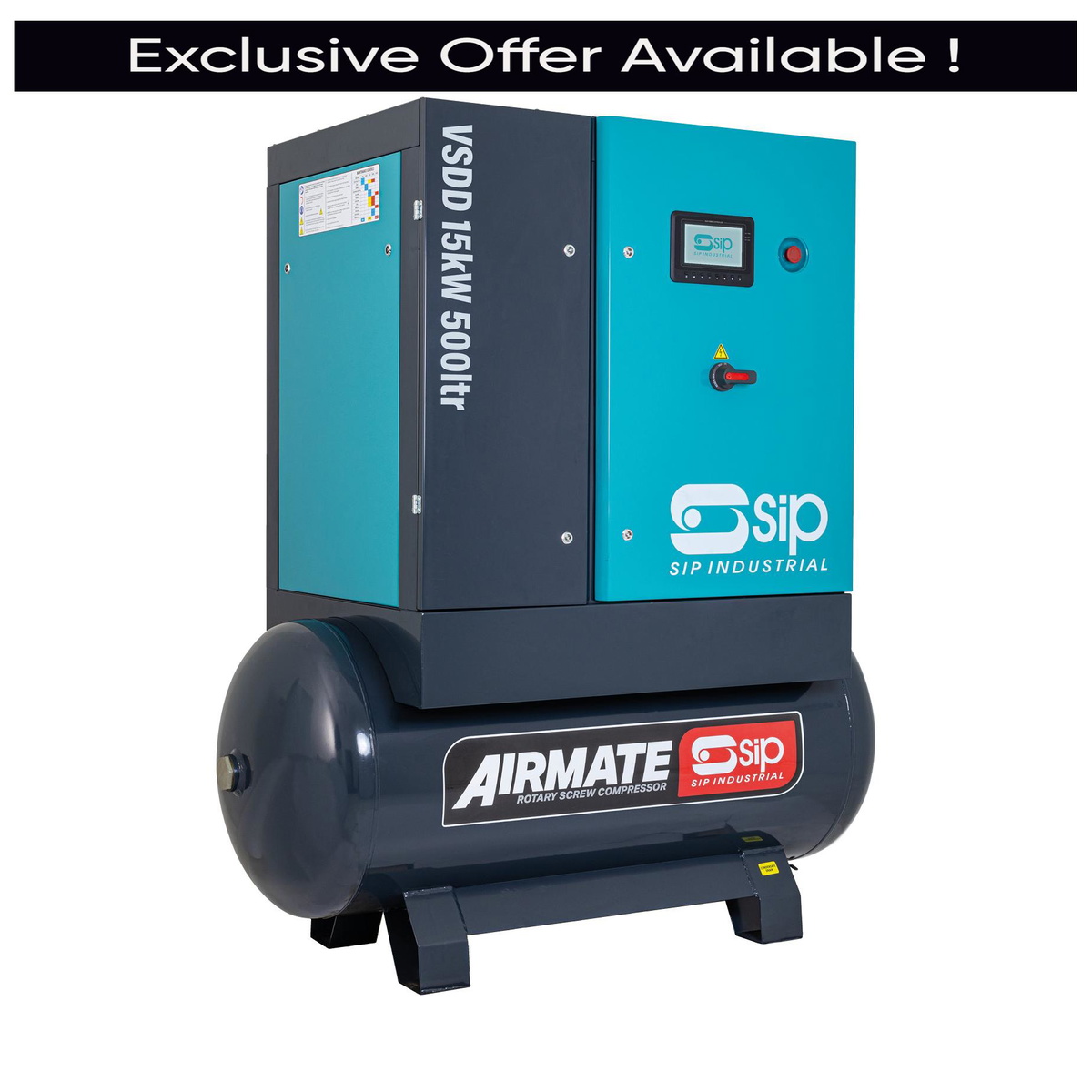

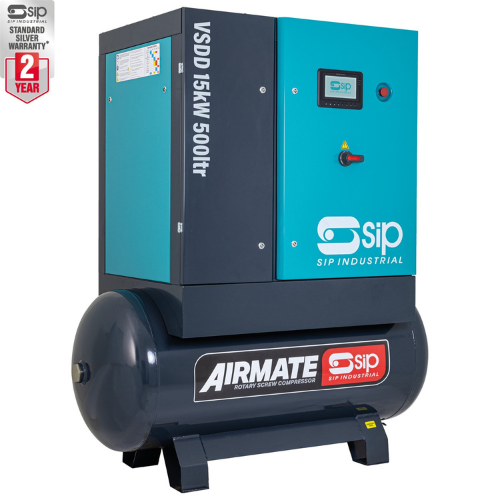

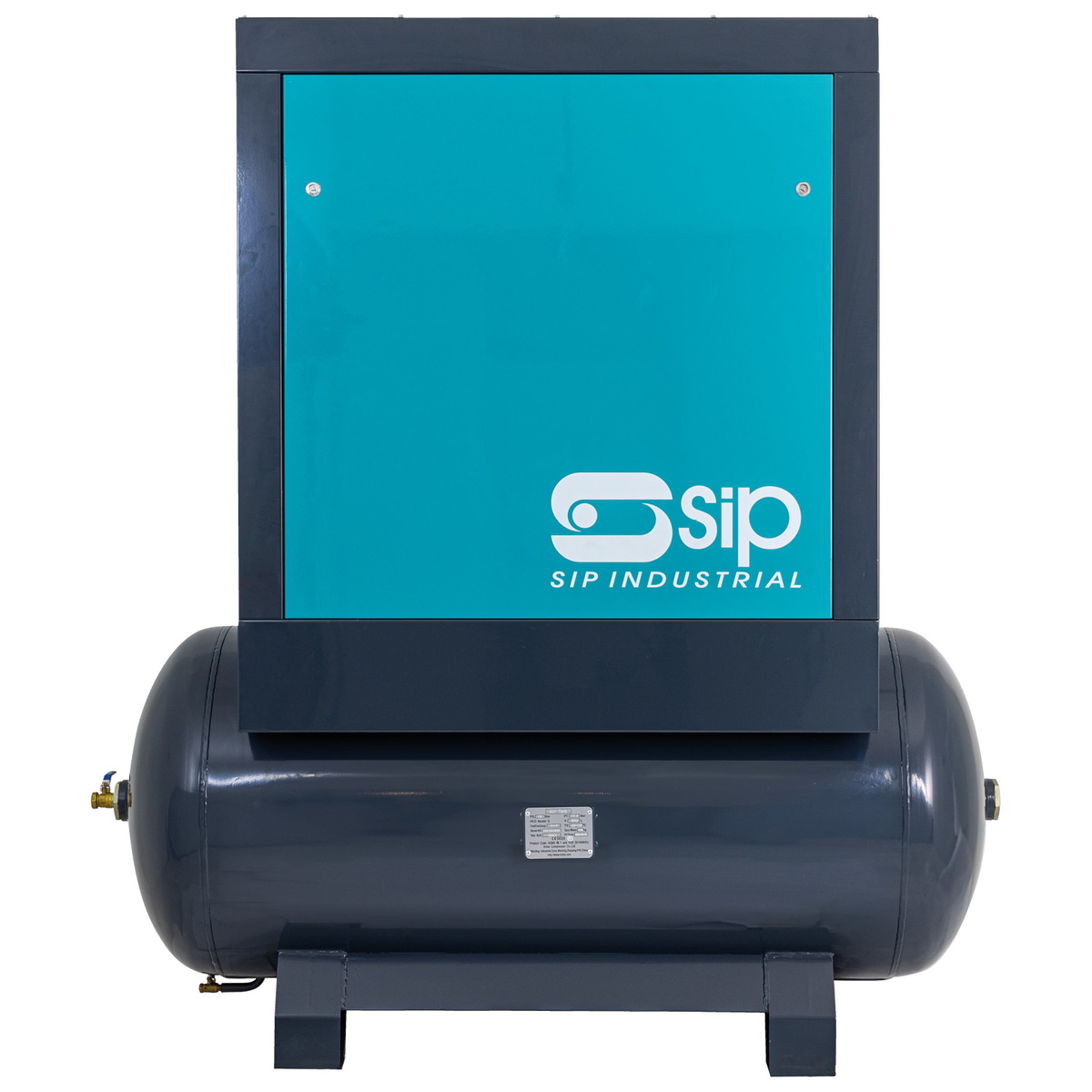

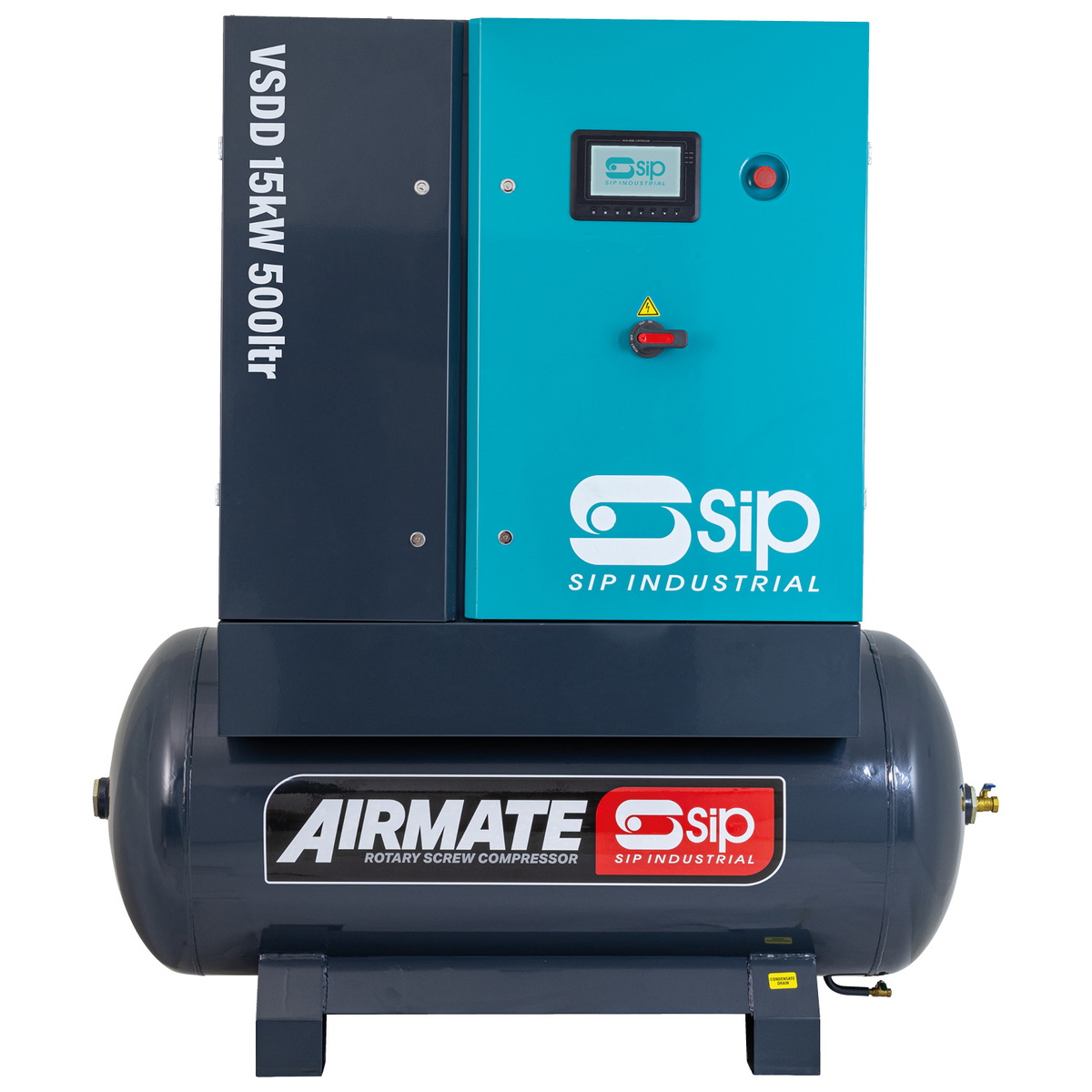

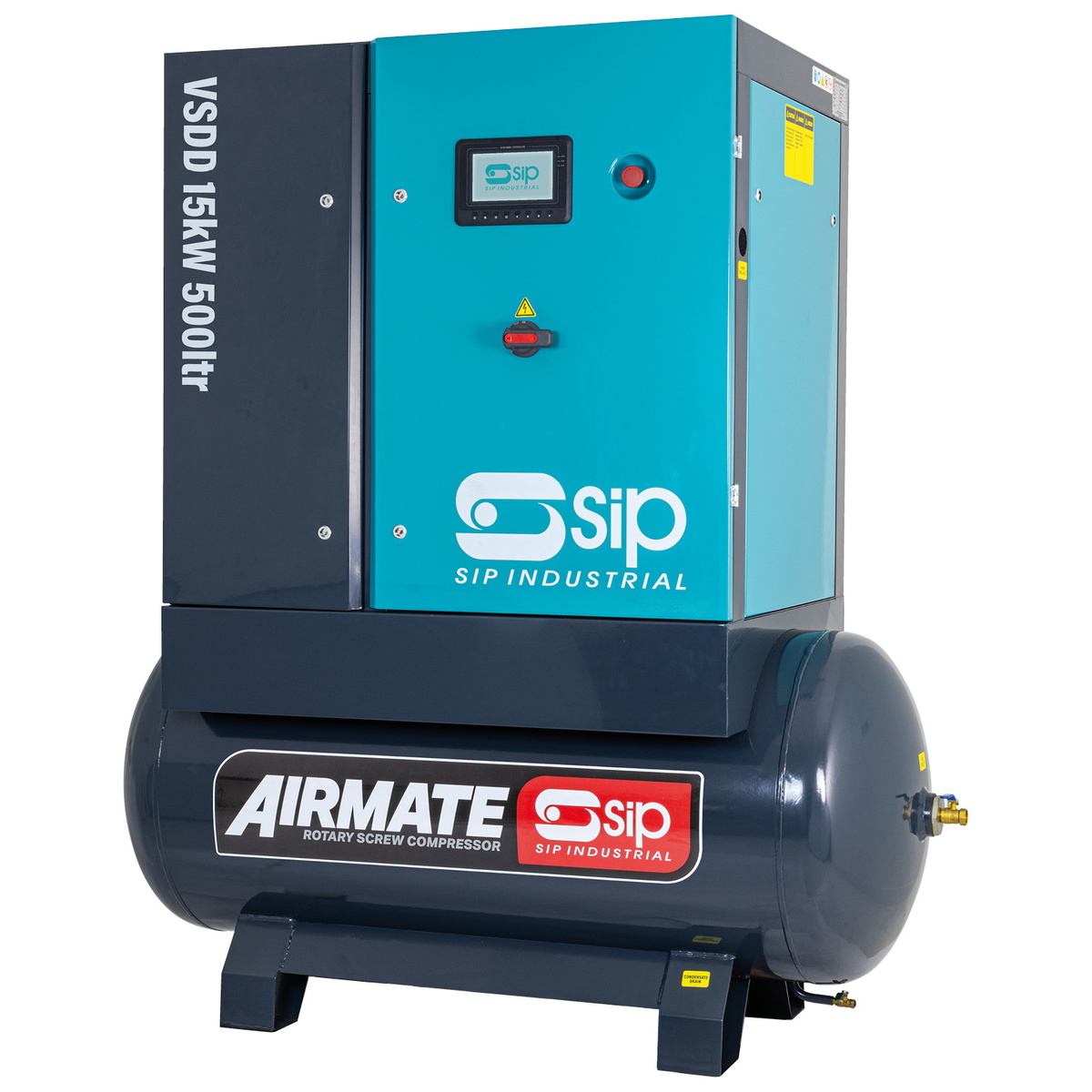

SIP 08263 VSDD Rotary Screw Compressor 15kW 500ltr 8 Bar is a high-output variable speed, direct drive screw unit for demanding industrial and automotive applications. A 15kW (20hp) IE4 motor on 400v 3‑phase (64A) drives twin parallel screws, providing 75CFM (2123ltr/min) Free Air Delivery at up to 116psi (8bar) into a 500ltr receiver. The gearless direct drive transmission negates belt slip, boosting efficiency and reducing maintenance. Inverter-controlled soft-start and slope-down capabilities ensure smooth torque ramp-up and controlled load reduction as pressure is reached, enabling on‑demand air production that adjusts to consumption and lowers energy use. A silenced cabinet maintains low noise around 62dB(A), while a colour touchscreen display offers real-time diagnostics on system status, pressure, motor voltage and internal temperature. With easy-access service panel and compact all‑in‑one footprint, this VSDD compressor is ideal for medium to large workshops, spray shops and industrial facilities requiring powerful, quiet and intelligent 8bar compressed air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 08263 |
|---|---|
|
Input Supply 400v (64A)
|
|
| Rated Input | 18kW |
| Motor Power | 15kW (20hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 75CFM (2123ltr/min) |
| Receiver Size | 500ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 62dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06299A SIRIO 15-08-500ES Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 8 Bar
£6,375.38
£6,250.37
2% OFF
Free delivery in Channel Island
|
SIP 06263 Sirio 15-10-500-ES Screw Compressor with Dryer, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£6,375.37
£6,250.36
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1513-500 Screw Compressor, 15 kW, 500 Litre, 15 Bar, 53 CFM
£5,797.22
£5,683.55
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1515-500 ES Screw Compressor, 15 kW, 500 Litre, 15 Bar, 45.9 CFM
£7,509.53
£7,362.28
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06299A | 06263 | 2456600 | 2456290 | F-V83NR92FNM701 | F-V83NR92FNM601 |
| Warranty | 24 | 12 | 12 | |||
| Type | With Dryer | With Dryer | ||||
| Capacity (L) | 500 | 500 | 500 | 200 | 500 | 500 |
| Drive Size (Inch) | 3/4 | 3/4 | ||||
| Maximum Pressure (bar) | 8 | 10 | 10 | 15 | 15 | |
| Power (kW) | 15 | 15 | 15 | 15 | ||
| Receiver Size | 500ltr | 500ltr | 500Lt | 500Lt | ||
| Show More | ||||||
A. It is a 15kW variable speed direct-drive rotary screw compressor with 500ltr receiver, 75CFM FAD and 8bar maximum pressure.
A. It delivers about 75CFM free air, around 2123 litres per minute, supporting very high airflow demands at 8bar.
A. It uses a 400v, 64A three-phase input, appropriate for the 15kW IE4 motor and control system.
A. Direct drive via twin screws prevents belt slippage, reduces maintenance, and improves efficiency for sustained high-demand operation.
A. The inverter modulates motor speed based on demand, providing efficient on-demand air output and reducing mechanical wear and power costs.
A. It offers substantial storage volume, ensuring stable pressure and helping absorb significant demand peaks in large systems.
A. Despite its output, the compressor operates at about 62dB(A) thanks to its heavy-duty silenced cabinet.
A. The display reports compressor status, load state, receiver pressure, motor voltage and internal temperatures for active monitoring.

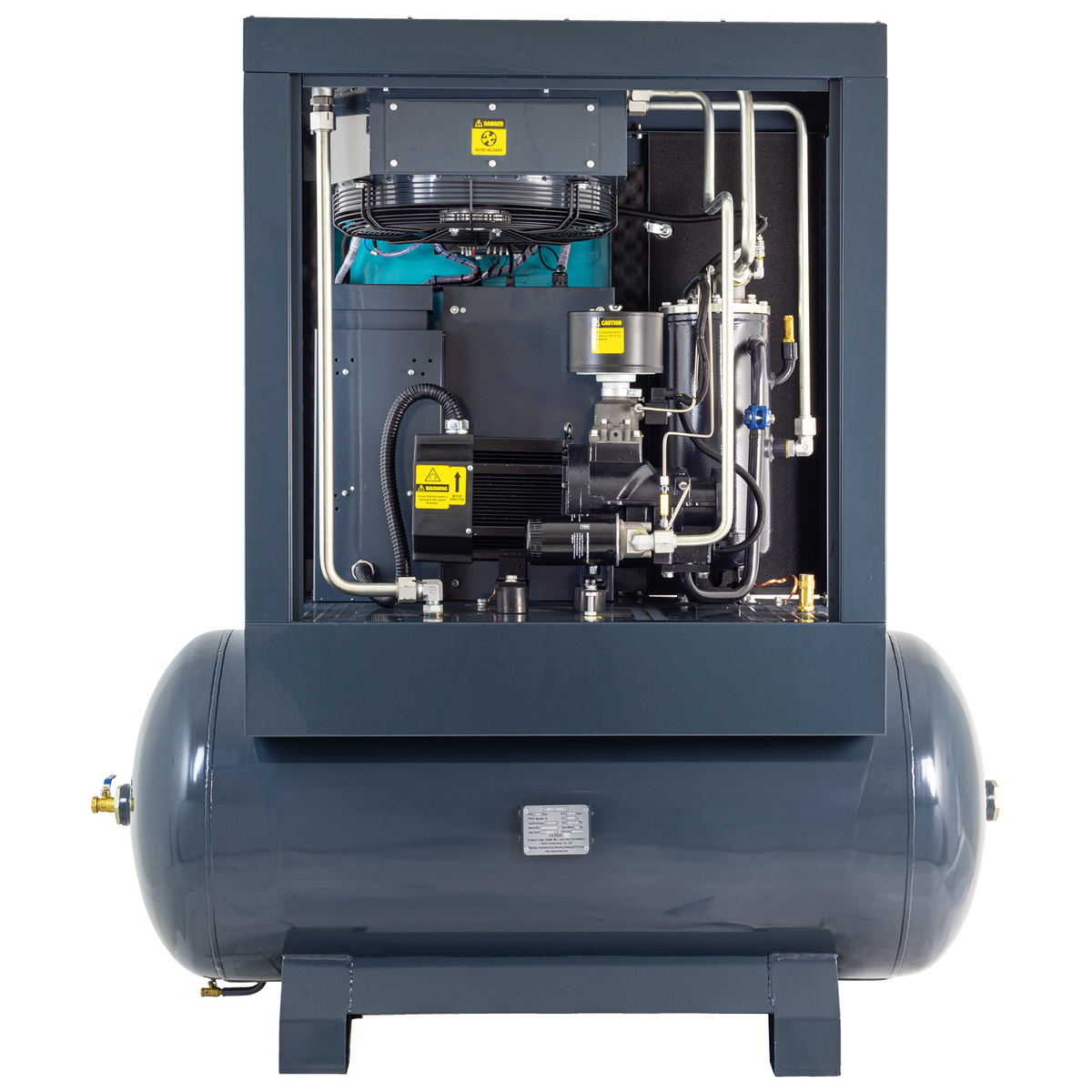

A. A single access panel provides entry to all critical components, making servicing and inspections more efficient.
A. It serves medium-to-large workshops, factories and agricultural sites needing high-volume 8bar compressed air.
A. It maximises efficiency, reducing energy usage and costs in continuous-duty, heavy-load operations.
