Product Number: 05343

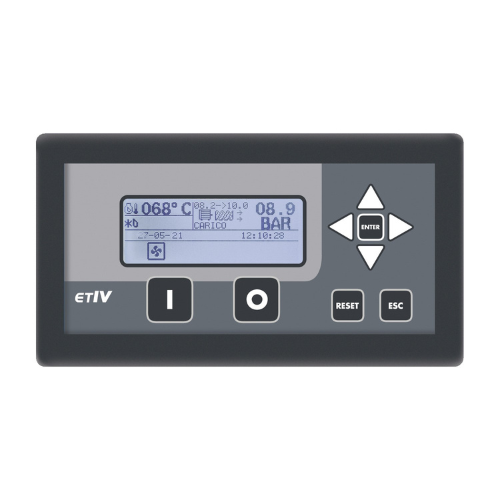

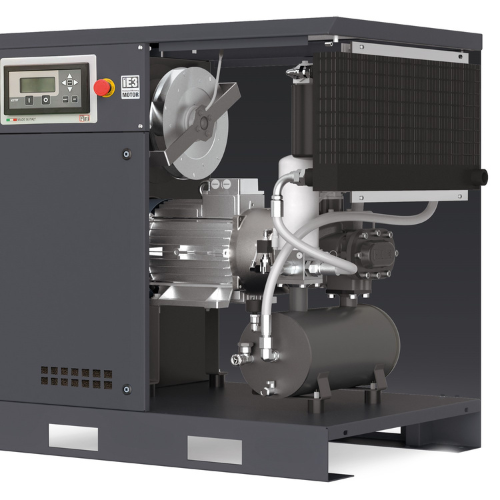

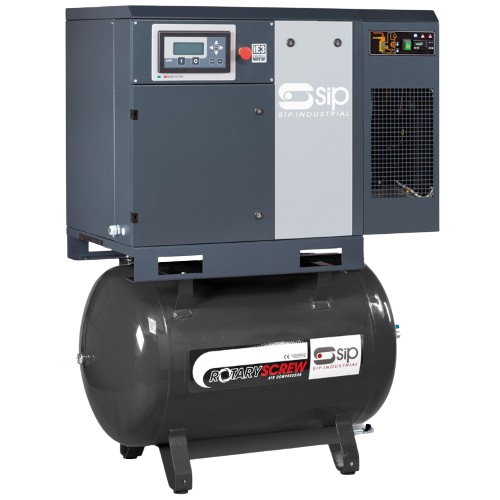

SIP 05343 RS5.5-10-270DD/RD Rotary Screw Compressor is a 270ltr direct-drive workstation with integrated refrigerated dryer, purpose-built for heavy-duty industrial applications. A 5.50kW (7.50hp) IE3 motor on 400v 3‑phase drives a high-performance Italian air end via a gearless direct drive system, eliminating belt losses and delivering 25.00CFM (705ltr/min) Free Air Delivery at up to 145psi (10bar). This direct drive arrangement offers around 4% efficiency advantage over belt-driven compressors, with lower maintenance and reduced energy consumption. A soundproof cabinet and low-speed radial cooling fan keep noise to just 62dB(A), allowing installation close to workstations. The integrated dryer produces high-quality compressed air with reduced moisture, ready for use with minimal installation. An advanced electronic controller with backlit LCD monitors pressure, oil temperature, compressor and fan status, hours run and maintenance intervals, plus supports remote monitoring and multi-compressor control. Pre-filter panels and centrifugal fan maintain internal cleanliness and temperature. Manufactured in Italy and UK tested by SIP, RS5.5‑10‑270DD/RD is ideal for continuous industrial 10bar air.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 05343 |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 5.50kW (7.50hp) |
| Receiver Size | 270ltr |
| Free Air Delivery (FAD) | 25.00CFM (705ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| Noise Level | 62db(A) |
| Net Weight | 277.00kg |
| Gross Weight | 305.00kg |
| Product Dimensions | 1540(H) x 680(W) x 1200mm(D) |
| Packaged Dimensions | 1720(H) x 850(W) x 1320mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 08268 VSDD Rotary Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£4,725.85
£4,633.19
2% OFF
Free delivery in Channel Island
|
SIP 08273 VSDD/RD Rotary Screw Compressor, Tank Capacity - 500 Litre, Max. Air Pressure - 10 Bar
£5,744.54
£5,631.90
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
Clarke CXR30N 106cfm 30HP Industrial Screw Compressor (400V)
£7,836.63
£7,682.97
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 08268 | 08273 | 2456600 | 2456290 | 2456606 |
| Warranty | 12 | 12 | 12 | ||
| Type | With Dryer | ||||
| Capacity (L) | 500 | 500 | 500 | 200 | |
| Drive Size (Inch) | 3/4 | 3/4 | |||
| Maximum Pressure (bar) | 10 | 10 | 10 | ||
| Power (kW) | 18 | 18 | 22 | ||
| Receiver Size | 500ltr | 500ltr | |||
| Show More | |||||
A. It is a 5.5kW direct-drive rotary screw compressor with 270ltr receiver, integrated dryer and 10bar maximum pressure for heavy-duty industrial applications.
A. It delivers approximately 25CFM free air, around 705 litres per minute, suitable for many heavy-duty 10bar industrial air demands.
A. Gearless connection eliminates belt losses, providing around four percent efficiency advantage and lowering maintenance and energy costs versus belt-driven compressors.
A. It reduces moisture in compressed air, ensuring higher quality air for connected tools, processes and equipment with minimal additional installation.
A. It offers optimal monitoring and regulation, displaying operating pressure, oil temperature, compressor status, fan status, hours and maintenance reminders on a backlit LCD.
A. A soundproof cabinet and lower speed radial cooling fans reduce noise to about 62dB(A), enabling installation near workstations.
A. It supports remote monitoring via PCs, smartphones and tablets, with optional SMS device capability for service and fault code notifications.
A. Up to nine independent programs plus multi-compressor control for up to four units allow sophisticated scheduling, including manual, auto and group modes.
A. It maintains internal temperature within a controlled range, preventing peaks that could damage components or shorten oil and compressor life.
A. Pre-filter panels separate incoming dust, limiting contamination and supporting cleaner internal components and reduced maintenance needs.
A. It is ideal for heavy-duty industrial operations needing efficient, low-noise 10bar air, advanced control and integrated drying.
