Product Number: F-V91NN92FNM001
Variations
Click on the button below to find the right air compressor

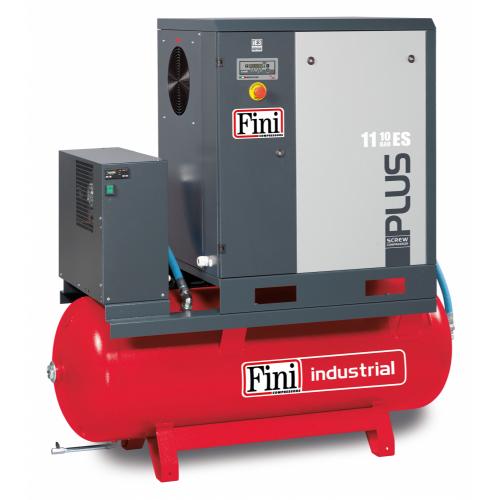

Air Compressor FinderFini PLUS 1115-270 ES Screw Compressor is an 11 kW, 15 bar high-pressure compressed air station with integrated refrigerated dryer. It provides 980 L/min (34.6 CFM) at 15 bar and uses a compact 1550 x 700 x 1510 mm frame with a 363 kg weight. Designed for direct installation in the working environment, it includes ETMII electronic control, advanced cooling, POLY-V belt drive and IE3 motor technology for efficient operation. The on-board dryer ensures dry compressed air suitable for systems that benefit from moisture control. This PLUS 1115-270 ES model is aimed at users needing a complete 15 bar compressed air solution with integrated storage and drying.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 11 |
|---|---|
| Power (Hp) | 15 |
| Air Displacement (L/min) | 980 |
| m3/h | 58.79 |
| Air Displacement (c.f.m) | 34.6 |
| Maximum Pressure (Bar) | 15 |
| Maximum Pressure (Psi) | 218 |
| dB(A) | 69 |
| Outlet G (") | 3/4'' |
| Kg | 363 |
| Product L x W x H (mm) | 1550 x 700 x 1510 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini PLUS 1510-500 Screw Compressor, 15 kW, 500 Litre, 10 Bar, 65.3
£5,581.17
£5,471.74
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1510-500 ES Screw Compressor, 15 kW, 500 Litre, 10 Bar, 65.3 CFM
£6,614.61
£6,484.91
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1513-500 ES Screw Compressor, 15 kW, 500 Litre, 13 Bar, 53 CFM
£6,826.32
£6,692.47
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 1513 Screw Compressor, 15 kW, 13 Bar, 53 CFM
£4,845.59
£4,750.58
2% OFF
Free delivery in UK Mainland
|
Power Systems New G-TEC 1113-270 DF Screw Compressor, 11 kW, 270 Litre, 13 Bar, 41 CFM
£7,108.07
£6,968.70
2% OFF
Free delivery in UK Mainland
|
Phazair 5.508 VSD-DF Variable Speed Floor Mounted & Dryer Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 27.51 CFM
£6,343.06
£6,218.69
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | F-V83NQ92FNM701 | F-V83NQ92FNM801 | F-V83NR92FNM801 | F-V60NR92FNM760 | PS-V91SQ92PWSB80 | K-183041022 |
| Input Supply | 400 | 230 | ||||
| Motor Power | 15000 | 15000 | 15000 | 15000 | 11000 | 5500 |
| Maximum Pressure (bar) | 10 | 10 | 13 | 13 | 13 | 8 |
| Tank Size | 500 | 500 | 500 | 270 | 270 | |
| Noise Level | 70 | 70 | 70 | 70 | 65 | 69 |
| Maximum Pressure (psi) | 145 | 145 | 188 | 188 | 188 | 116 |
| Air displacement | 65.3 | 65.3 | 53 | 53 | 41 | 27.51 |
| Show More | ||||||
A. It is an 11 kW rotary screw air compressor delivering 34.6 CFM at 15 bar from a 400V three phase motor, supplied with floor mounted cabinet without an integrated receiver with integrated refrigerated dryer.
A. It is a floor mounted unit supplied as a standalone screw compressor cabinet, requiring connection to a 400V three phase supply and an air distribution network.
A. The compressor delivers 980 litres per minute, equivalent to 34.6 CFM, at a maximum working pressure of 15 bar or 218 psi.
A. The noise level is approximately 69 dB(A), which is low for an 11 kW industrial screw compressor and permits installation close to the working area.
A. The unit uses the Fini ETMII electronic controller, providing pressure management, fault monitoring and operational data in an accessible interface.
A. It is designed for 400V three phase, a standard industrial supply; no special transformer or switchgear beyond a suitably rated isolator is normally required.
A. A thermostatically controlled centrifugal fan and large-surface coolers maintain low operating temperatures even in warmer ambient conditions, prolonging component life and reducing outlet air temperature.
A. No, this floor mounted version does not include an integrated receiver; it is intended for connection to an existing pipework system or a separate receiver vessel.
A. It uses a POLY-V belt drive system, which provides significantly longer service life and higher drive efficiency than conventional V belts, improving output consistency and reducing running costs.
A. All maintenance components are grouped in a single, easily reached location within the cabinet, minimising downtime during routine service and reducing the skill level required.
A. ES indicates the unit includes an integrated refrigerated air dryer, removing moisture from the compressed air to protect pipework, tools and processes that require dry air.
A. The PLUS range covers 7.5 kW to 15 kW and is available floor mounted or with 270 or 500 litre receivers, with or without refrigerated dryer; this model is the 1115-270 ES ES configuration at 15 bar.
