Product Number: F-V60NI92FNM760
Variations
Click on the button below to find the right air compressor

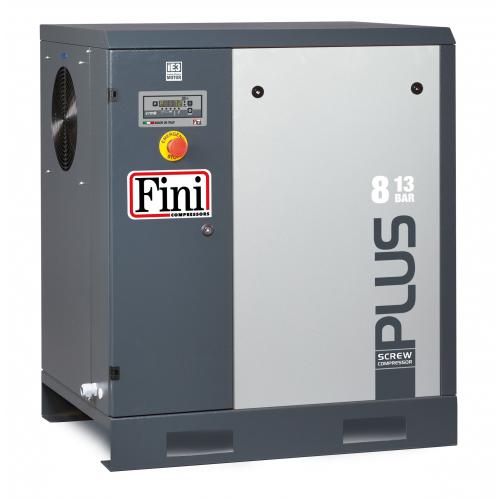

Air Compressor FinderFini PLUS 813 Screw Compressor is a compact 7.5 kW, 13 bar rotary screw system delivering 750 L/min (26.5 CFM) for applications requiring higher working pressure. Operating at 68 dB(A), it can be installed close to work areas. The ETMII electronic controller provides maintenance timers, auto-restart after power failure, programmable cooling fan and remote start functions. An advanced cooling system with large air/oil coolers and a thermostatically controlled fan ensures stable temperatures. The POLY-V belt drive and IE3 high-efficiency motor maximise output and reduce energy use. Mounted on a compact 800 x 700 x 980 mm frame and weighing 185 kg, PLUS 813 is well suited for industrial processes that need reliable 13 bar compressed air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 7.5 |
|---|---|
| Power (Hp) | 10 |
| Air Displacement (L/min) | 750 |
| m3/h | 45 |
| Air Displacement (c.f.m) | 26.5 |
| Maximum Pressure (Bar) | 13 |
| Maximum Pressure (Psi) | 188 |
| dB(A) | 68 |
| Outlet G (") | 3/4'' |
| Kg | 185 |
| Receiver Size | Floor Mounted |
| Product L x W x H (mm) | 800 x 700 x 980 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini MICRO 5.508-270 Screw Compressor, 5.5 kW, 270 Litre, 8 Bar, 25.4 CFM
£4,066.65
£3,986.91
2% OFF
Free delivery in UK Mainland
|
Fini MICRO 5.510-270 Piston Compressor, 5.5kW, 270 Litre, 10 Bar
£4,066.65
£3,986.91
2% OFF
Free delivery in UK Mainland
|
SIP 08253 VSDD Rotary Screw Compressor, Tank Capacity - 160 Litre, Max. Air Pressure - 10 Bar
£2,995.85
£2,937.11
2% OFF
Free delivery in Channel Island
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | F-V91JW92FNM701 | F-V91JO92FNM701 | 08253 | 2456290 |
| Input Supply | 230 | |||
| Motor Power | 5500 | 5500 | 2200 | |
| Warranty | 12 | |||
| Maximum Pressure (bar) | 8 | 10 | 0 | 10 |
| Free AirDelivery (FAD) | 0 | 8.5 | ||
| Tank Size | 270 | 270 | 0 | 200 |
| Noise Level | 64 | 64 | 0 | 0 |
| Maximum Pressure (psi) | 116 | 145 | 0 | 145 |
| Air displacement | 25.4 | 22.9 | ||
| Show More | ||||
A. It is a 7.5 kW, 13 bar rotary screw compressor delivering about 26.5 CFM, in a floor mounted cabinet.
A. The technical data lists 750 litres per minute displacement, approximately 26.5 CFM, at a maximum pressure of 13 bar or 188 psi.
A. It operates at 68 dB(A), weighs about 185 kilograms and measures roughly 800 x 700 x 980 mm.
A. The features mention compact design and very quiet operation, suitable for direct installation in the working environment.
A. It is equipped with the electronic controller ETMII, providing advanced control and monitoring.
A. A thermostatically controlled centrifugal fan and large surface area coolers reduce noise, save energy and maintain cool operation even at higher ambient temperatures.
A. The key features note simple maintenance, with all service items located in one position and Rotenergy PLUS synthetic coolant supplied for longer change intervals and reduced wear.
A. A POLY-V belt drive is used, giving about three times the life of normal V-belts and higher drive efficiency.
A. IE3 high efficiency motors are specified, helping to reduce energy consumption.
A. The description notes that PLUS compressors are available with on board refrigerated dryers in ES versions, ensuring dry compressed air.
A. The range benefits from state-of-the-art manufacturing, over 50 years’ experience and in-house component design, supporting long life and reliability.
A. It is a 7.5 kW, 13 bar floor mounted screw compressor between the 10 bar 810 and 15 bar 815 models.
