Product Number: F-V60NN92FNM760

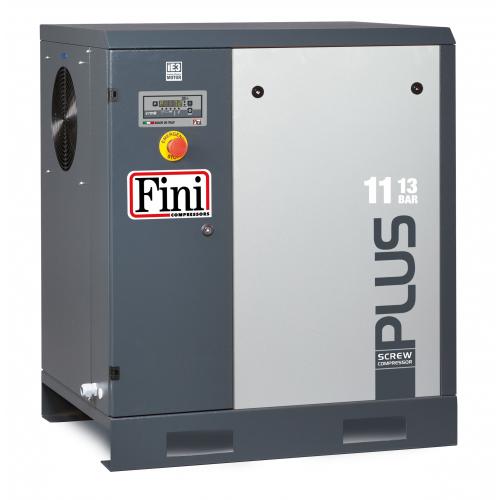

Fini PLUS 1113 Screw Compressor is an 11 kW floor-mounted rotary screw compressor delivering 1100 L/min (38.8 CFM) at 13 bar for applications requiring higher working pressure. Operating at 69 dB(A), it is designed for direct installation in the working environment without excessive noise. The ETMII electronic controller offers maintenance timers, automatic restart after power failure, programmable cooling fan and remote start capability. Advanced cooling with thermostatically controlled centrifugal fan and large surface coolers ensures cool operation and stable air temperatures even in higher ambient conditions. The POLY-V belt drive system extends belt life and improves drive efficiency, while IE3 high-efficiency motors reduce power consumption. With a compact 800 x 700 x 980 mm footprint and 200 kg weight, PLUS 1113 is a robust and efficient high-pressure compressed air solution for industrial users.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 11 |
|---|---|
| Power (Hp) | 15 |
| Air Displacement (L/min) | 1100 |
| m3/h | 66 |
| Air Displacement (c.f.m) | 38.8 |
| Maximum Pressure (Bar) | 13 |
| Maximum Pressure (Psi) | 188 |
| dB(A) | 69 |
| Outlet G (") | 3/4'' |
| Kg | 200 |
| Product L x W x H (mm) | 800 x 700 x 980 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke CXR15N 53cfm 15HP Industrial Screw Compressor (400V)
£4,062.41
£3,982.75
2% OFF
Free delivery in UK Mainland
|
Clarke CXR15R 53cfm 270 Litre 15HP Industrial Screw Compressor (400V)
£4,593.15
£4,503.09
2% OFF
Free delivery in UK Mainland
|
SIP 06302A RS11-08-500BD 500ltr Rotary Screw Compressor
£4,820.25
£4,725.74
2% OFF
Free delivery in Channel Island
|
Clarke CXR3MR 8.5cfm 200 Litre 3HP Industrial Screw Compressor (230V)
£3,019.59
£2,960.38
2% OFF
Free delivery in UK Mainland
|
Fini PLUS 810 Screw Compressor, 7.5 kW, 10 Bar, 35.3 CFM
£4,015.07
£3,936.34
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2456576 | 2456580 | 06302A | 2456290 | F-V60NH92FNM760 |
| Warranty | 12 | 12 | 12 | ||
| Capacity (L) | 270 | 500 | 200 | ||
| Drive Size (Inch) | 3/4 | ||||
| Maximum Pressure (bar) | 8 | 10 | |||
| Power (kW) | 11 | 11 | 11 | 7.5 | |
| Receiver Size | 500ltr | Floor Mounted | |||
A. It is an 11 kW rotary screw air compressor delivering 38.8 CFM at 13 bar from a 400V three phase motor, supplied with floor mounted cabinet without an integrated receiver.
A. It is a floor mounted unit supplied as a standalone screw compressor cabinet, requiring connection to a 400V three phase supply and an air distribution network.
A. The compressor delivers 1100 litres per minute, equivalent to 38.8 CFM, at a maximum working pressure of 13 bar or 188 psi.
A. The noise level is approximately 69 dB(A), which is low for an 11 kW industrial screw compressor and permits installation close to the working area.
A. The unit uses the Fini ETMII electronic controller, providing pressure management, fault monitoring and operational data in an accessible interface.
A. It is designed for 400V three phase, a standard industrial supply; no special transformer or switchgear beyond a suitably rated isolator is normally required.
A. A thermostatically controlled centrifugal fan and large-surface coolers maintain low operating temperatures even in warmer ambient conditions, prolonging component life and reducing outlet air temperature.
A. No, this floor mounted version does not include an integrated receiver; it is intended for connection to an existing pipework system or a separate receiver vessel.
A. It uses a POLY-V belt drive system, which provides significantly longer service life and higher drive efficiency than conventional V belts, improving output consistency and reducing running costs.
A. All maintenance components are grouped in a single, easily reached location within the cabinet, minimising downtime during routine service and reducing the skill level required.
A. Yes, the ES variant of this model includes an on-board refrigerated dryer; this standard version does not, so a separate dryer should be considered if dry air is required.
A. The PLUS range covers 7.5 kW to 15 kW and is available floor mounted or with 270 or 500 litre receivers, with or without refrigerated dryer; this model is the 1113 configuration at 13 bar.
