Product Number: F-V60NH92FNM760

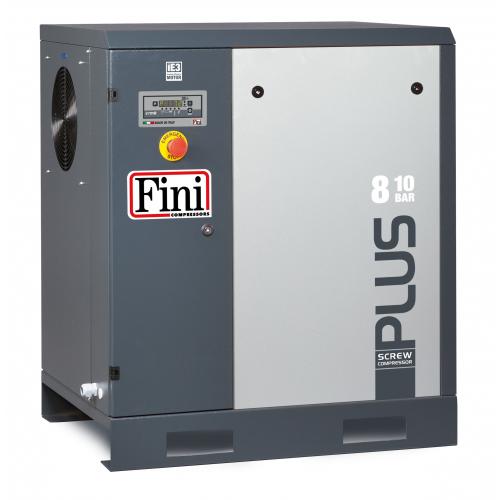

Fini PLUS 810 Screw Compressor is a 7.5 kW, 10 bar rotary screw unit delivering 1000 L/min (35.3 CFM) at 10 bar with a low 68 dB(A) noise rating. Designed for direct installation in the working environment, it incorporates an ETMII electronic controller with maintenance timers, auto-restart after power loss, programmable cooling fan and remote start capability. Its advanced cooling system ensures cool operation and low air outlet temperatures, supported by an energy-efficient direct drive and POLY-V belt transmission for extended life and improved efficiency. IE3 motors further reduce energy consumption. With dimensions of 800 x 700 x 980 mm and 185 kg weight, this floor-mounted compressor is ideal for workshops and industrial users needing robust 10 bar air.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Power (kW) | 7.5 |
|---|---|
| Power (Hp) | 10 |
| Air Displacement (L/min) | 1000 |
| m3/h | 60 |
| Air Displacement (c.f.m) | 35.3 |
| Maximum Pressure (Bar) | 10 |
| Maximum Pressure (Psi) | 145 |
| dB(A) | 68 |
| Outlet G (") | 3/4'' |
| Kg | 185 |
| Receiver Size | Floor Mounted |
| Product L x W x H (mm) | 800 x 700 x 980 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Fini NEW CUBE 7.510-500 ES Screw Compressor, 7.5 kW, 10 Bar, 37.1 CFM
£5,083.31
£4,983.64
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 7.510 Floor Mounted Screw Compressor, 7.5 kW, 10 Bar, 37.1 CFM
£3,330.44
£3,265.14
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | F-V83PO92FNM501 | F-V51PO92FNM643 | 2456401 | 2456310 | 2456290 |
| Warranty | 12 | 12 | 12 | ||
| Capacity (L) | 270 | 200 | |||
| Drive Size (Inch) | 1/2 | 1/2 | |||
| Maximum Pressure (bar) | 10 | 10 | |||
| Power (kW) | 7.5 | 7.5 | 7.5 | 7.5 | |
A. It is a 7.5 kW, 10 bar rotary screw compressor delivering about 35.3 CFM, in a floor mounted cabinet.
A. The data lists 1000 litres per minute displacement, approximately 35.3 CFM, at a maximum pressure of 10 bar or 145 psi.
A. It operates at 68 dB(A), weighs about 185 kilograms and measures roughly 800 x 700 x 980 mm.
A. It offers compact design and very quiet operation, suitable for direct installation in the working environment for maximum convenience and reduced installation.
A. It is equipped with the electronic controller ETMII, providing advanced control and monitoring functions.
A. A thermostatically controlled centrifugal fan and large surface coolers reduce noise, save energy and keep air and oil temperatures low even at higher ambient temperatures.
A. The key features mention simple maintenance, with service items located in one position for easy access and reduced downtime; it is supplied with Rotenergy PLUS synthetic coolant.
A. A POLY-V belt drive system is fitted, providing three times the service life of normal V-belts and much greater drive efficiency.
A. IE3 high efficiency motors are specified, helping reduce energy consumption.
A. It notes that PLUS compressors are available with on board refrigerated dryer in ES models, ensuring dry compressed air benefits.
A. The PLUS range benefits from state-of-the-art manufacturing and over 50 years’ experience, with most components designed and manufactured in-house for long life and reliability.
A. It is a 7.5 kW, 10 bar floor mounted screw compressor complementing the 8 bar 808 and higher pressure 813 and 815 PLUS units.
