Product Number: 2456626
Variations

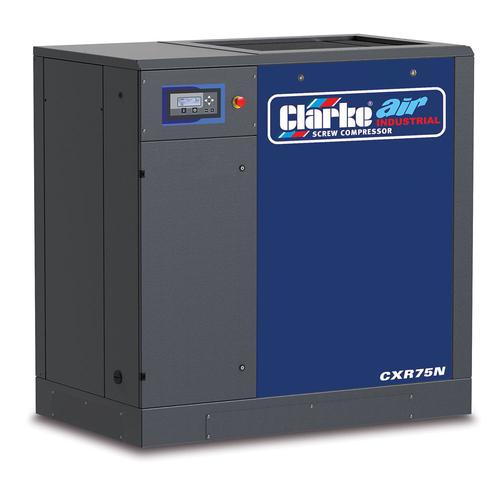

Clarke CXR75N 275cfm 75HP Industrial Screw Compressor (400V) is a top-tier screw plant for very large industrial users. A 75HP (55kW) 400V 3-phase motor drives the compressor to deliver 275cfm free air at up to 10bar (145psi), supporting extensive pneumatic networks and continuous process operations. Compact for its power class, it is designed to be moved with a pallet truck and connected quickly to air and power. An advanced controller with backlit display provides weekly programmable timer, remote control, auto-restart after power failure, maintenance planning, compressor and fan status, oil temperature monitoring, alarm log and inverter usage information. Electro-pneumatic pressure saving, Poly-V belt drive and thermostatic fan control ensure efficient running and low maintenance. Sound-reducing panels keep noise to around 74dB(A), allowing the compressor to operate nearer the workshop than many comparable units. An oversized suction filter maximises intake filtration, reducing maintenance and extending oil and compressor life. For plants needing a 10bar, 275cfm screw system, CXR75N is a high-performance choice.
| Motor (HP) | 75 |
|---|---|
| Volts | 400 |
| Free air | 275cfm |
| Max Working Pressure | 145/10psi/bar |
| Maximum Electrical Power | 55kW |
| Packaged Weight | 1011kg |
| Warranty | 12 Months |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £9.99
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2456591 | 2456576 | 2456401 | 2456595 | 2456580 |
| Warranty | 12 | 12 | 12 | 12 | 12 |
| Capacity (L) | 500 | 270 | |||
| Power (kW) | 15 | 11 | 7.5 | 15 | 11 |
A. It is a 400V industrial compressor delivering 275cfm free air at 10bar, powered by a 55kW motor for extremely high air demands.
A. Like other models in the range, its compact construction allows movement by pallet truck and straightforward connection to air and power systems.
A. It provides 275cfm free air at 10bar, with a 75HP motor suitable for heavy-duty, high-volume air requirements.
A. It offers weekly programmable timer, remote control, auto-restart after power failure, maintenance planning, and displays compressor status and alarm history.
A. It conserves compressed air when idle, reducing energy consumption and losses across an installation with large air capacity.
A. It maintains ideal cooling, helping keep noise at about 74dB(A) and preventing overheating of internal components.
A. It reduces noise so the compressor can be run closer to the workshop, increasing flexibility in where it can be sited.
A. It offers maximum intake filtration, reducing internal contamination, lowering maintenance and extending compressor and oil life.
A. It is ideal for large industrial, manufacturing and processing facilities requiring sustained high-output 10bar compressed air.
A. They provide easy access for technicians, making inspections and services more efficient.
A. It draws up to 55kW, matching the demands of its 75HP classification.
