Product Number: 2456585

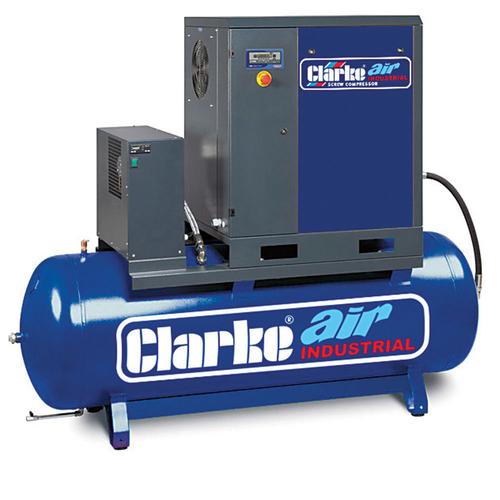

Clarke CXR15RD 53cfm 270 Litre 15HP Industrial Screw Compressor with Air Receiver & Dryer (400V) is a packaged solution that combines a 15HP screw compressor, 270L receiver and integral refrigerant dryer. A 15HP (11kW) 400V 3-phase motor produces 53cfm free air at up to 10bar (145psi), while the dryer uses environmentally safe R407c refrigerant according to EEC standards to supply cool, dry air enhanced by cooler receiver output. An electro-pneumatic system saves pressure when not in use, and a Poly-V belt drive offers long life with minimal maintenance. Thermostatic fan control and sound-reducing panelling hold noise to around 69dB(A), meaning the compressor can run close to the workshop. Oversized suction filtration maximises air intake cleanliness, extending oil and compressor life. A multi-function backlit display, auto-restart after power failure and cooling fan temperature control improve usability. With receiver and dryer pre-mounted, the CXR15RD offers a fast, plug-in and go 10bar screw air and drying solution for high-demand professional workshops.
| Motor (HP) | 15 |
|---|---|
| Volts | 400 |
| Receiver capacity | 270L |
| Free air | 53cfm |
| Max Working Pressure | 145/10psi/bar |
| Maximum Electrical Power | 11kW |
| Weight | 363kg |
| Packaged Weight | 363kg |
| Warranty | 12 Months |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 06430A RS11-08-500BD/RD 500ltr Rotary Screw Compressor with Dryer
£5,817.73
£5,703.66
2% OFF
Free delivery in Channel Island
|
Clarke CXR20RD 65.3cfm 500 Litre 20HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£6,657.18
£6,526.65
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 7.510 ES Floor Mounted Screw Compressor With Dryer, 7.5 kW, 10 Bar, 37.1 CFM
£4,267.85
£4,184.17
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 5.510 ES Floor Mounted Screw Compressor With Dryer, 5.5 kW, 10 Bar, 24.9 CFM
£4,153.52
£4,072.08
2% OFF
Free delivery in UK Mainland
|
Clarke CXR5RD 17.1cfm 200 Litre 5.5HP Industrial Screw Compressor with Air Receiver & Dryer (400V)
£4,376.92
£4,291.10
2% OFF
Free delivery in UK Mainland
|
Fini NEW CUBE 410 ES Floor Mounted Screw Compressor With Dryer, 4 kW, 10 Bar, 16.2 CFM
£4,115.42
£4,034.73
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 06430A | 2456600 | F-V51PO92FNM743 | F-V51PE92FNM543 | 2456555 | F-V51PD92FNM543 |
| Warranty | 12 | 12 | ||||
| Type | With Dryer | With Dryer | With Dryer | With Dryer | With Dryer | With Dryer |
| Capacity (L) | 500 | 500 | 200 | |||
| Drive Size (Inch) | 3/4 | 1/2 | 1/2 | 1/2 | ||
| Maximum Pressure (bar) | 8 | 10 | 10 | 10 | 10 | |
| Power (kW) | 11 | 7.5 | 5.5 | 4 | 4 | |
| Receiver Size | 500ltr | |||||
| Show More | ||||||
A. It combines a 15HP screw compressor, 270L receiver and integral refrigerant dryer in one 400V three-phase industrial package.
A. Using environmentally safe R407c refrigerant, it cools and dries the air after the receiver, providing cool, dry air for sensitive tools and processes.
A. It offers 53cfm free air at 10bar from an 11kW, 15HP motor, stored in a 270L receiver for stable supply.
A. It saves pressure when the compressor is not actively in use, reducing wasted compressed air and improving energy efficiency.
A. The belt drive delivers reliable power transmission with long life and minimal maintenance requirements, reducing service downtime.
A. Sound-reducing panelling achieves noise levels as low as 69dB(A), allowing installation near workshops without needing separate acoustic enclosures.
A. It regulates cooling to maintain ideal operating temperatures and keep noise levels down, protecting internal components from excessive heat.
A. It shows compressor status and key parameters, making it easier to monitor operation and schedule service.
A. It ensures the compressor resumes operation automatically after an outage, reducing manual intervention and productivity loss.
A. Wide front and rear panels provide ease of access, simplifying filter changes and internal inspections.
A. It is ideal for industrial users needing a combined screw compressor and dryer system in one compact, receiver-mounted package.
