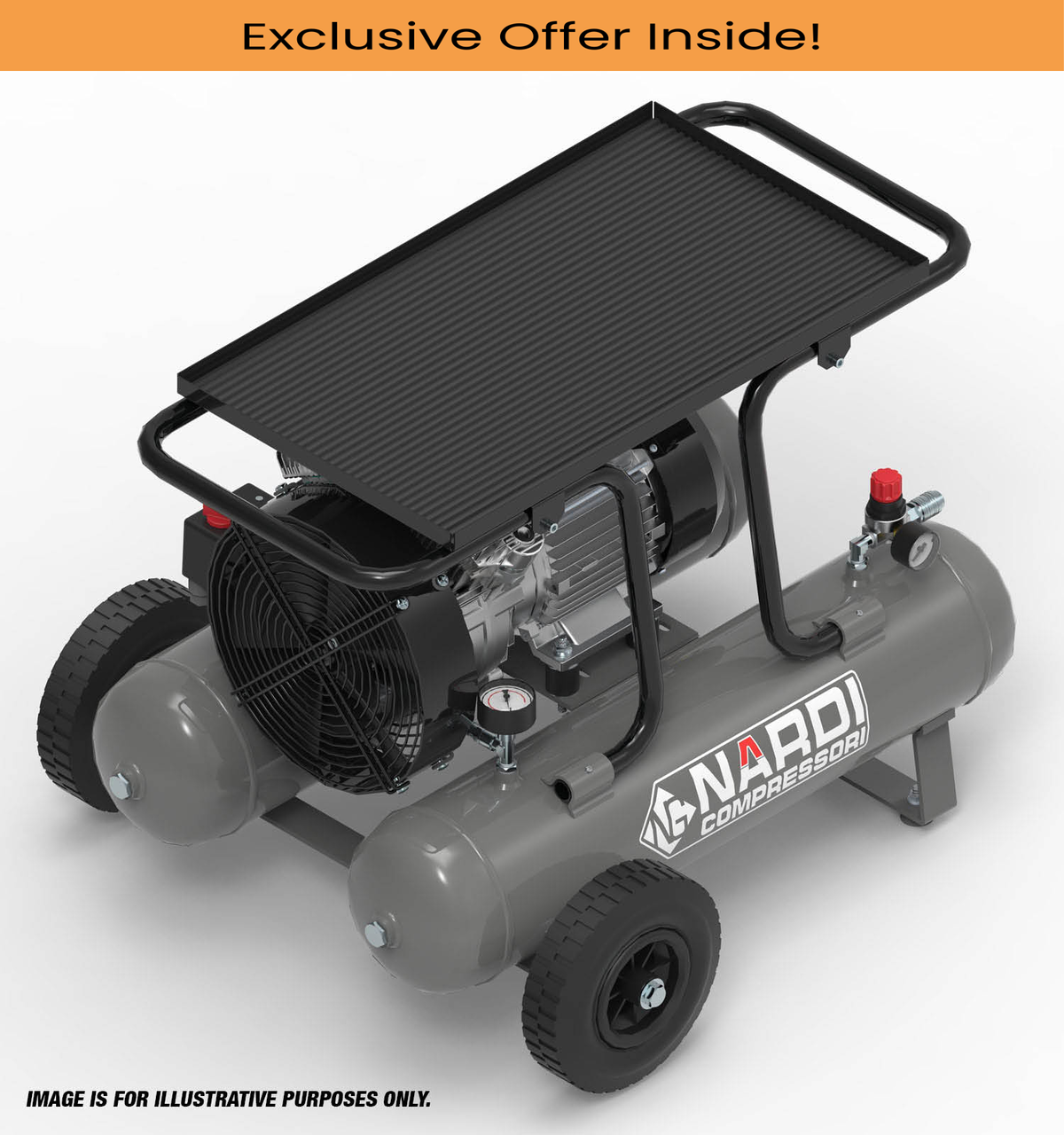

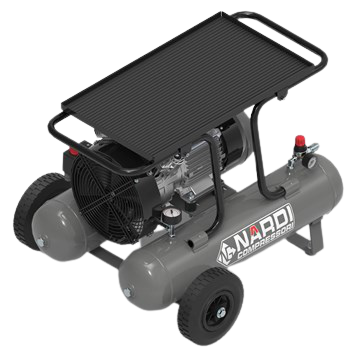

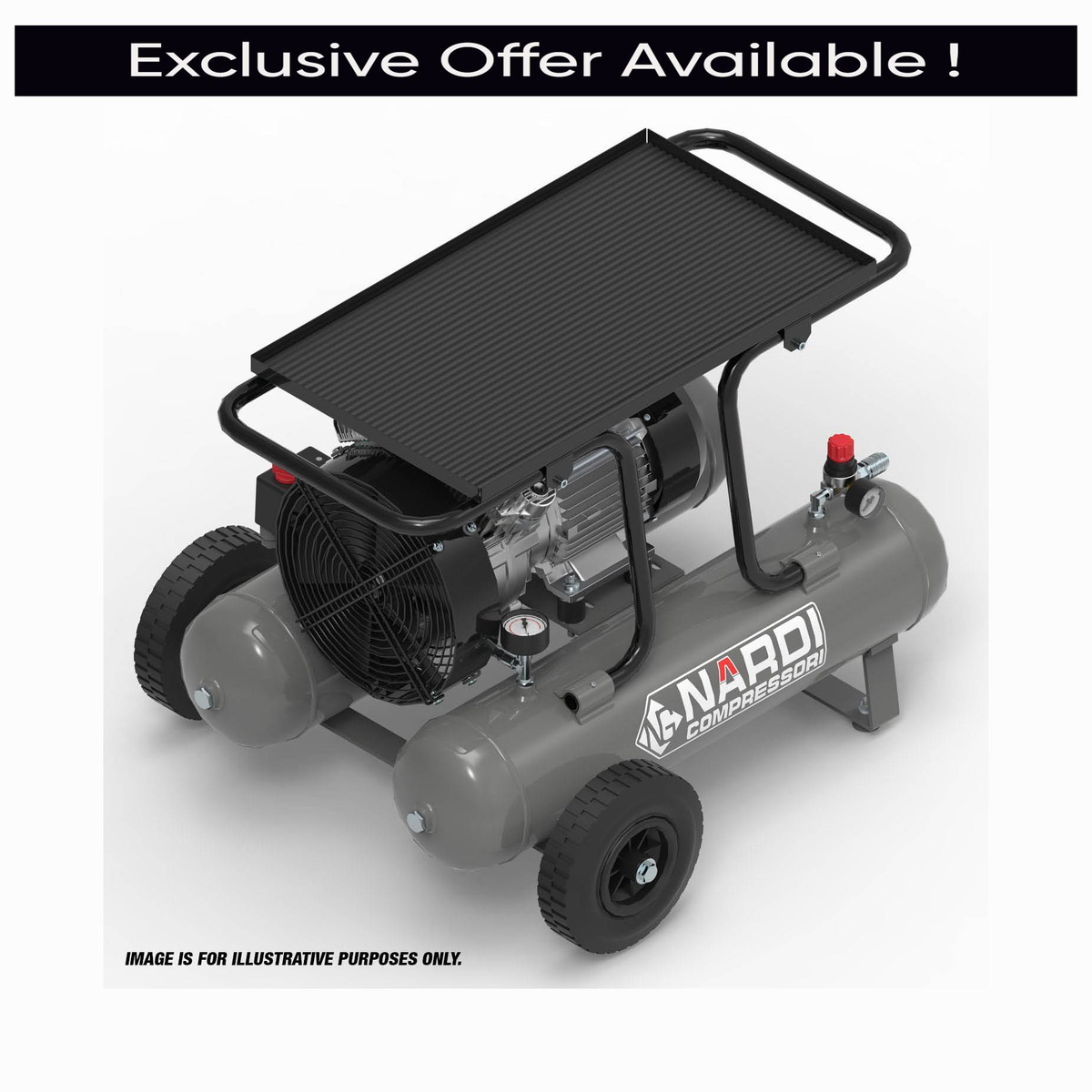

SIP EXT22304 NARDI Extreme TN Compressor is a 3.0hp, 22L twin‑receiver 3‑phase unit designed for heavy low and medium pressure work. A 2.20kW (3.00hp) 4‑pole brushless induction motor on 400v 3‑phase drives a 4‑cylinder oil‑free pump delivering 21.20CFM (600L/min) piston displacement and 14.84CFM (424L/min) Free Air Delivery at up to 145psi (10bar). Twin 11L treated receivers in a wheel‑mounted frame provide a combined 22L air capacity. Technopolymer piston rings, concentric big end bearings and crankcase air intake particle diffusion minimise vibration and contamination, protecting the valve plate and extending pump life, while fan‑shaped stainless steel valves offer long-term durability. Forced‑air cooling, pressure cut‑off switch and adjustable regulator support extended duty cycles and precise pressure control. At 73dB(A), Extreme TN 3‑phase is ideal for workshops and industrial sites with 400v supply needing a compact yet high-output, oil‑free 10bar compressor for fibre blowing rigs and small pneumatic systems.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT22304 |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 2x 11ltr |
| Piston Displacement | 21.20CFM (600ltr/min) |
| Free Air Delivery (FAD) | 14.84CFM (424ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 4 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
A. It is a 3.00hp, four-cylinder, twin-receiver unit delivering very high 21.20CFM displacement at 10bar.
A. It uses a 2.20kW, 3.00hp four-pole brushless induction motor running at 1400rpm from a 400v three-phase supply.
A. It offers 21.20CFM piston displacement and 14.84CFM free air, about 600 and 424 litres per minute respectively for demanding compressed-air tasks.
A. The V-Twin pump is built with technopolymer piston rings, producing oil-free air and significantly reducing lubrication-related maintenance.
A. Two 11L receivers provide 22L total capacity, improving stability and cooling while maintaining a compact, wheel-mounted frame.
A. It is rated up to 145psi, equivalent to 10bar, covering many industrial and heavy workshop compressed-air requirements.
A. They reduce vibration and mechanical loading on crankshafts, improving pump longevity when delivering high volume compressed air.
A. It minimises internal contamination, helping valve plates last longer and maintaining reliable air production over extended service life.
A. With a noise level around 73dB(A), it offers reasonable sound performance for a high-output three-phase compressor.
A. Direct drive via the motor shaft eliminates belt losses and maintenance, enhancing overall efficiency and reliability.
A. It suits industrial and professional users needing strong, oil-free, high-flow air from a mobile twin-receiver system.
