Product Number: EXTN50304

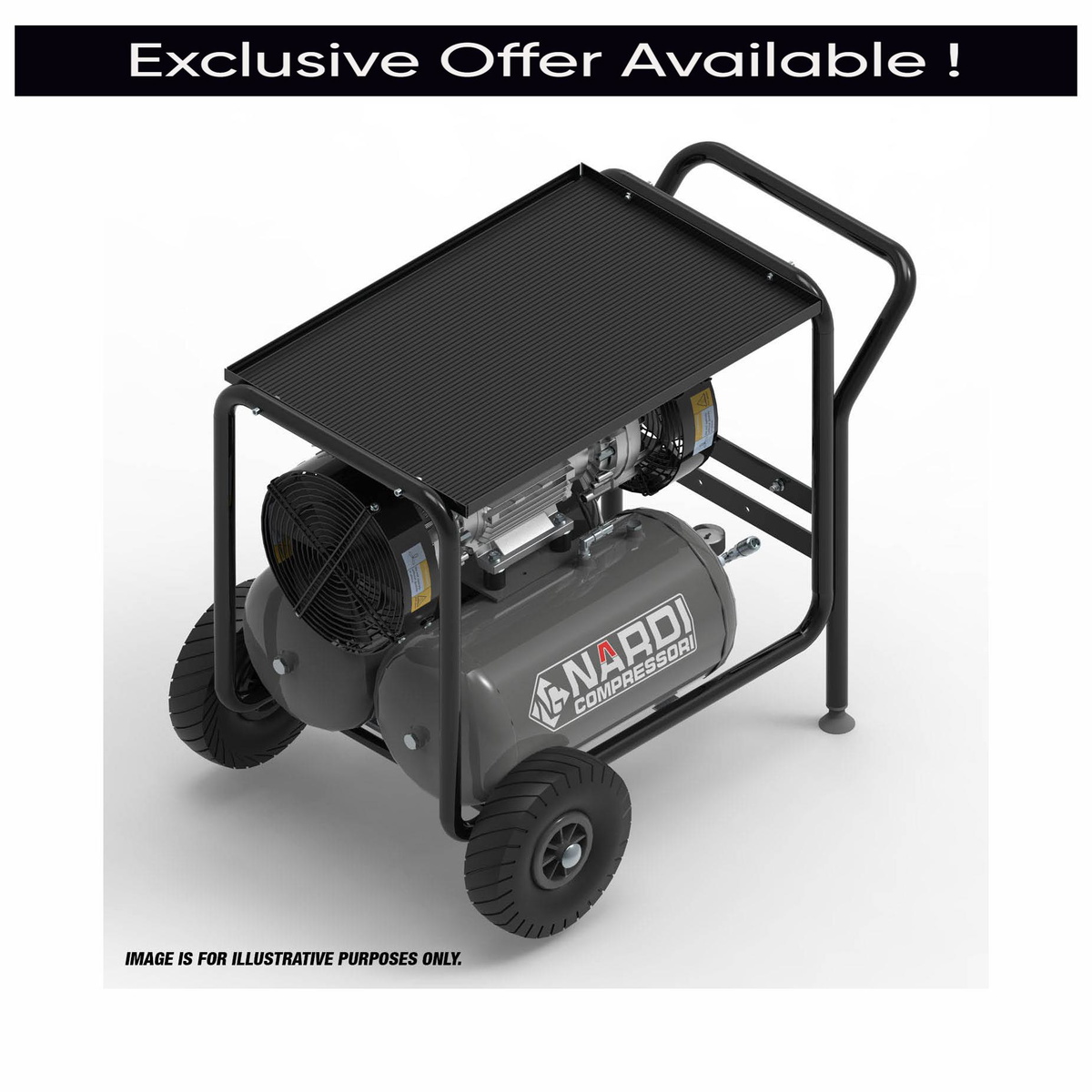

SIP EXTN50304 NARDI Extreme TN Compressor is a 3.0hp, twin-tank 50L oil-free unit designed for demanding 10bar applications in workshops and light industry. A 2.20kW (3.00hp) 4-pole brushless induction motor on 400V 3‑phase at 1400rpm drives a 4‑cylinder pump delivering 21.20CFM (600L/min) piston displacement and 14.84CFM (424L/min) free air delivery at up to 145psi (10bar) into two 25L treated receivers. The wheel‑mounted frame makes the compressor easy to move between bays, while the twin receivers provide 50L of stable storage for multi‑tool or continuous duty use. Forced air cooling, concentric big end bearings, crankcase air intake particle diffusion and fan‑shaped stainless steel valves combine with technopolymer piston rings to minimise vibration, contamination and wear, giving long‑life, low‑maintenance operation. A pressure cut‑off switch and adjustable regulator provide straightforward control of working pressure. For users with 3‑phase supply needing a compact yet high‑output, oil‑free 10bar compressor, the Extreme TN 3.0hp 50L is a strong choice.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXTN50304 |
|---|---|
| Input Supply | 400v 3-PHASE |
| Motor Power | 2.20kW (3.00hp) 4-POLE 1400rpm |
| Receiver Size | 2x 25ltr |
| Piston Displacement | 21.20CFM (600ltr/min) |
| Free Air Delivery (FAD) | 14.84CFM (424ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 4 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
A. It is a 3.00hp, twin 25 litre, four-cylinder oil-free compressor intended for high-volume 10bar applications.
A. It uses a 2.20kW, 3.00hp four-pole brushless induction motor at 1400rpm from a 400v three-phase supply.
A. It offers 21.20CFM piston displacement and 14.84CFM free air, about 600 and 424 litres per minute respectively.
A. It can deliver up to 145psi, equivalent to 10bar maximum operating pressure.
A. It uses technopolymer piston rings and stainless valves, providing oil-free air and strong resistance to wear under industrial usage.
A. Two 25ltr receivers provide 50 litres storage, improving pressure stability and cooling during high-flow usage.
A. They reduce vibration and mechanical stress, increasing pump longevity and maintaining smooth running under heavy loads.
A. It reduces contamination inside the crankcase, extending valve plate life and supporting reliable compressed-air delivery.
A. It suits high-volume, low and medium pressure tasks in industrial settings and remote work where three-phase power is available.
A. A pressure cut-off switch and adjustable regulator allow precise pressure control and automatic shutdown at the set pressure.
A. It operates at around 73dB(A), reasonable for a high-output, four-cylinder compressor.
