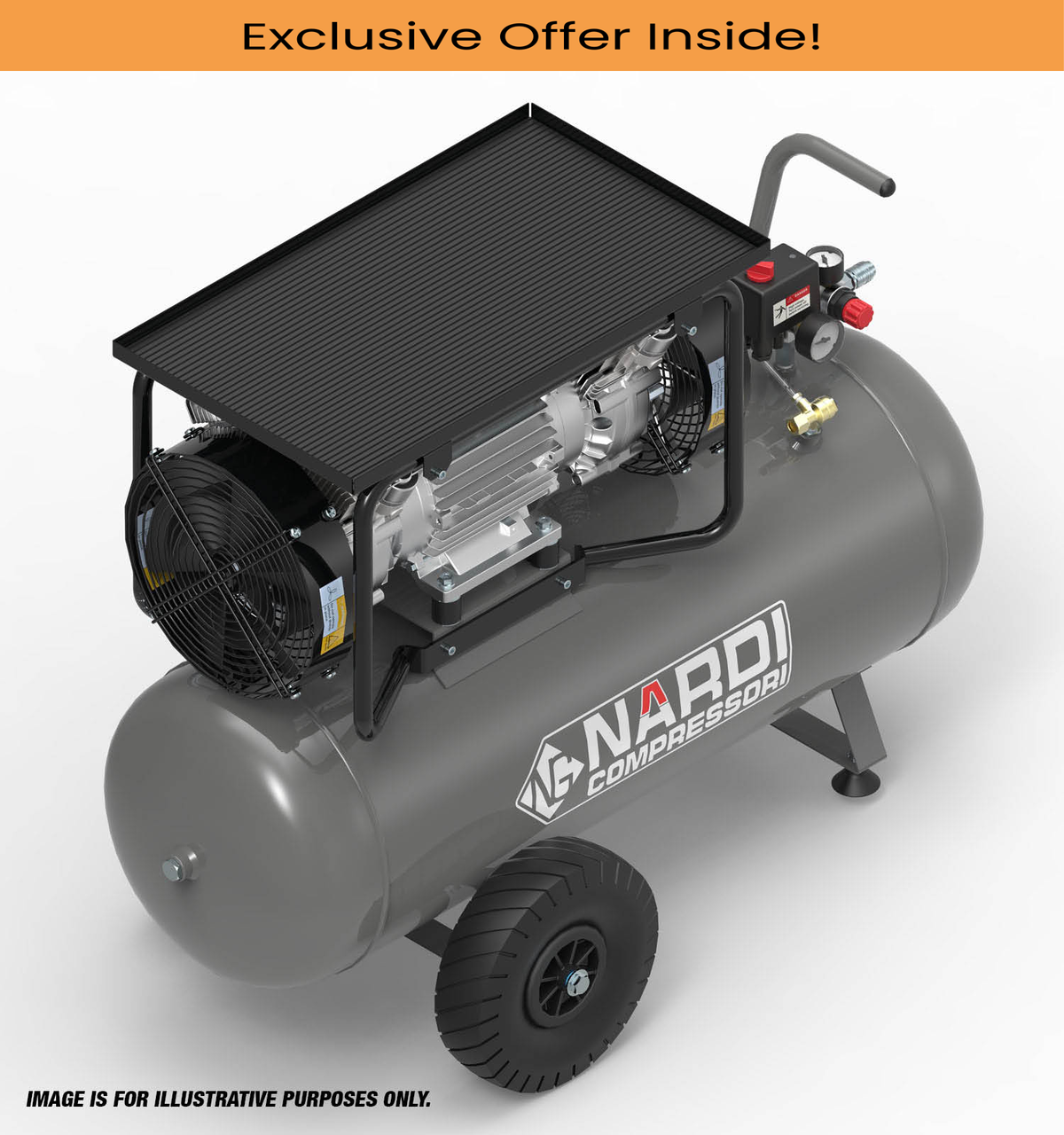

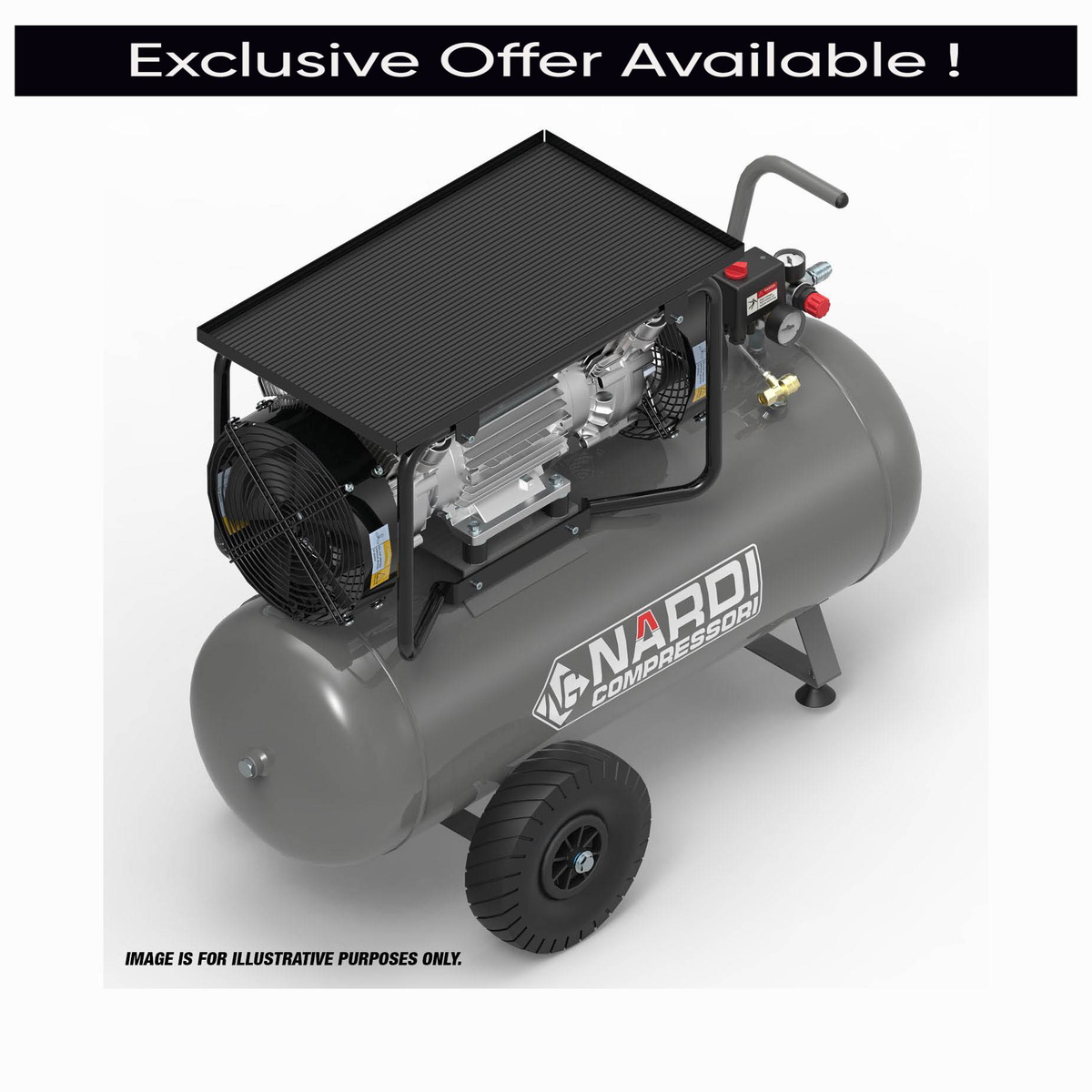

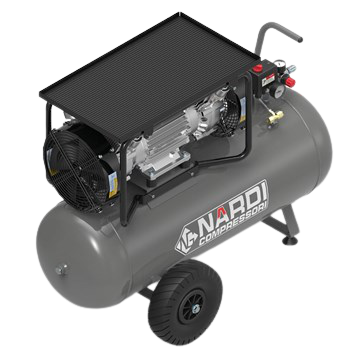

SIP EXT90204 NARDI Extreme 4 Compressor is a 2.0hp, 90L direct drive unit for workshop and remote tasks at 10bar. A 1.50kW 4‑pole brushless induction motor on 230v (13A) at 1400rpm powers a V‑Twin oil‑free pump delivering 12.40CFM (351L/min) piston displacement and 8.68CFM (246L/min) Free Air Delivery at up to 145psi (10bar). Technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion reduce wear, vibration and contamination, while fan‑shaped stainless steel valves ensure long-lasting sealing. The 90L receiver provides substantial storage for fibre-blowing operations and workshop air tools, and the wheel-mounted chassis with handle plus top-mounted tool tray make it easy to move and work from. Forced‑air cooling, pressure cut‑off switch and adjustable regulator support extended runtime and precise pressure control. At 73dB(A), Extreme 4 2.0hp offers a strong combination of capacity, performance and portability for users requiring a larger 10bar oil-free compressor.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT90204 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 4-POLE 1400rpm |
| Receiver Size | 90ltr |
| Piston Displacement | 12.40CFM (351ltr/min) |
| Free Air Delivery (FAD) | 8.68CFM (246ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 73dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT50204 NARDI Extreme 3 4-Pole Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar
£859.50
£842.65
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | EXT50204 |
| Capacity (L) | 50 |
| ITEM NO | EXT50204 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 73dB(A) |
A. It is a 2.00hp, 90 litre V-Twin oil-free compressor designed for low and medium pressure and flow applications at 10bar.
A. It offers 12.40CFM piston displacement and 8.68CFM free air, about 351 and 246 litres per minute respectively.
A. A 1.50kW (2.00hp) four-pole brushless induction motor at 1400rpm runs from a 230v, 13A supply.
A. It is rated up to 145psi, equivalent to 10bar maximum working pressure.
A. The V-Twin pump uses technopolymer piston rings and stainless valves, providing oil-free compression and reduced service requirements.
A. They reduce vibration and mechanical stress on the pump, increasing longevity and operational smoothness.
A. It reduces contamination inside the crankcase, helping to extend valve plate life and maintain consistent airflow.
A. Wheel-mounted design with a handle and top-mounted tool tray allows easy manoeuvrability and convenient storage of accessories.
A. It is ideal for low and medium pressure and flow tasks, remote locations and fibre blowing requiring substantial air storage.
A. A pressure cut-off switch and adjustable air regulator enable precise outlet pressure management and automatic shutoff.
A. It operates at around 73dB(A), relatively quiet considering its large receiver and airflow.
