Product Number: EXT780024

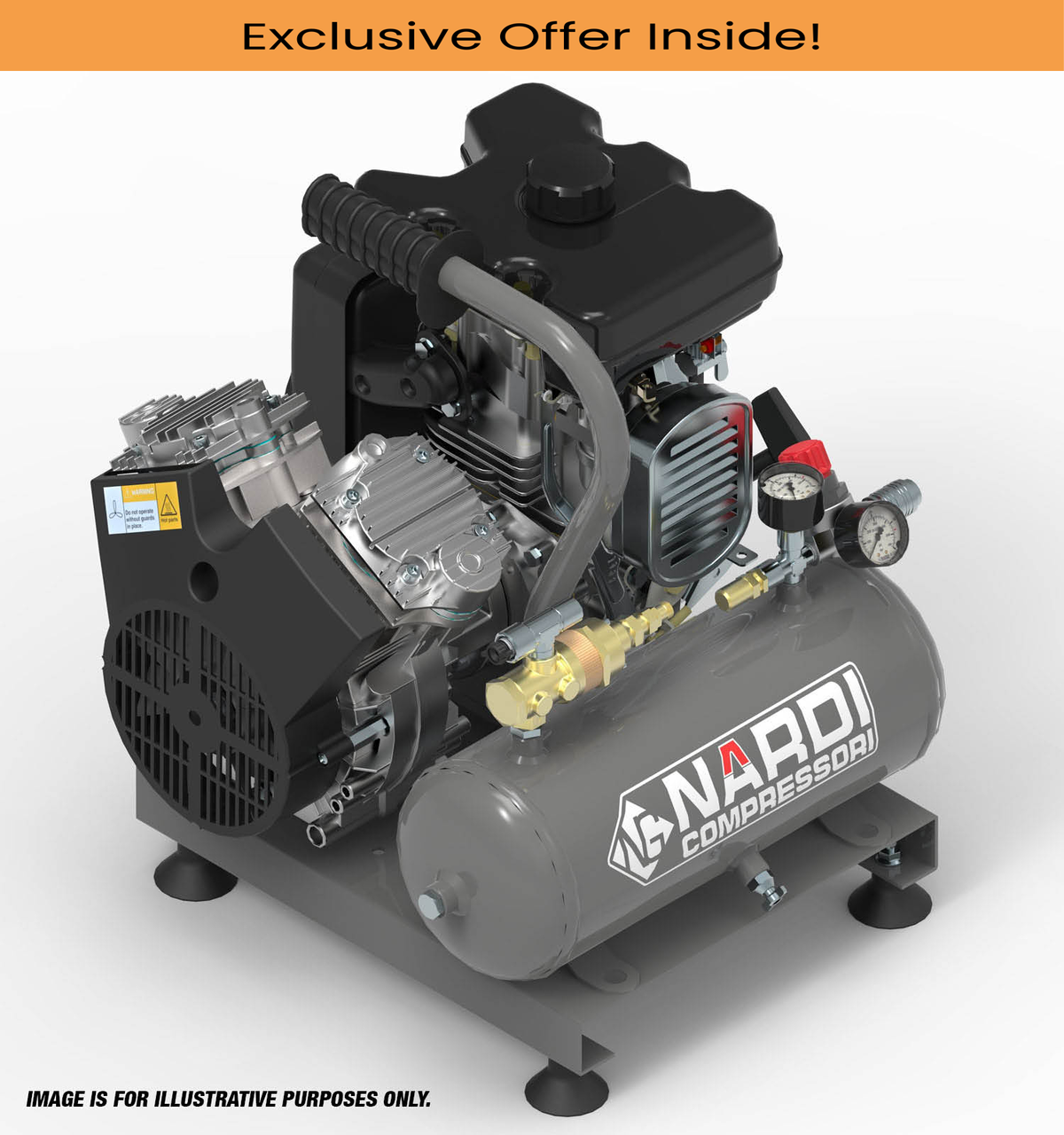

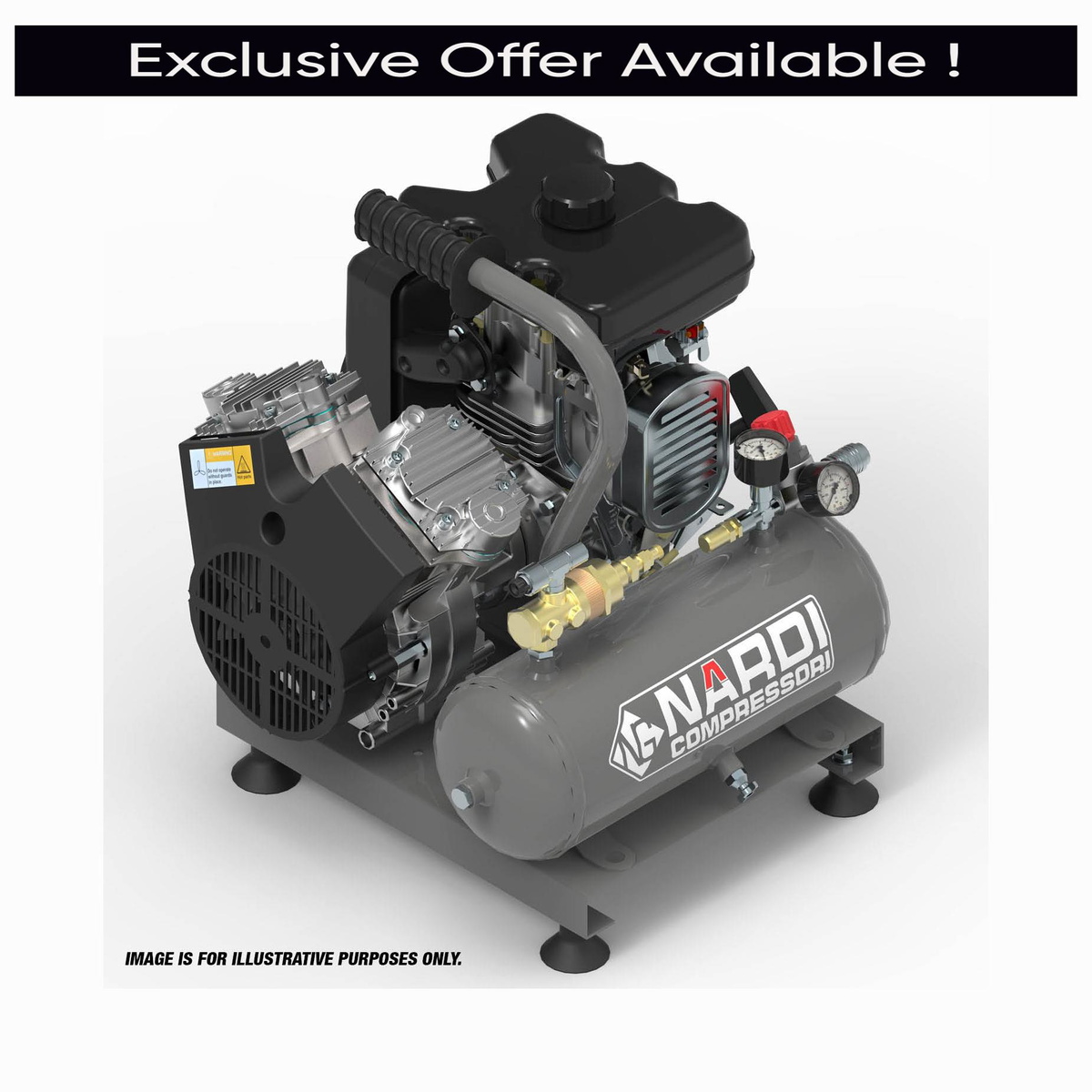

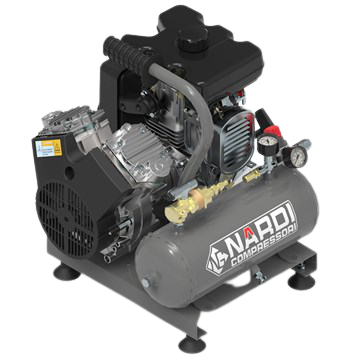

SIP EXT780024 NARDI Extreme 3 Compressor is a 24v, 7L direct drive DC unit for mobile low and medium pressure air requirements. A 0.80kW (1.00hp) motor at 2400rpm on 24v drives a V-Twin oil-free pump producing 8.80CFM (250L/min) piston displacement and 6.16CFM (176L/min) FAD at up to 145psi (10bar). The compressor sits on four anti-vibration feet for stable running on vehicles or structures, while technopolymer piston rings, concentric big end bearings and crankcase air intake diffusion reduce wear, vibration and contamination. Fan-shaped stainless steel valves support long service life. Forced air cooling, a pressure cut-off switch and adjustable regulator allow sustained operation with precise pressure control. Because it runs from 24v DC and uses a compact 7L receiver, Extreme 3 24v is ideal for plant and service vehicles, fibre blowing, remote line work and off-grid applications that demand a dedicated 10bar compressor without relying on AC mains.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT780024 |
|---|---|
| Input Supply | 24v DC |
| Motor Power | 0.80kW (1.00hp) 2400rpm |
| Receiver Size | 7ltr |
| Piston Displacement | 8.80CFM (250ltr/min) |
| Free Air Delivery (FAD) | 6.16CFM (176ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP EXT50754 NARDI Extreme 3T Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£494.45
£484.75
2% OFF
Free delivery in UK Mainland
|
SIP EXT5154 NARDI Extreme 3T Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£568.11
£556.97
2% OFF
Free delivery in UK Mainland
|
SIP EXT73060P NARDI Extreme 5G Petrol Compressor, Tank Capacity - 7 Litre, Max. Air Pressure - 10 Bar
£1,154.46
£1,131.82
2% OFF
Free delivery in Channel Island
|
SIP EXT73070P NARDI Extreme 5G 70 Petrol Compressor, Tank Capacity - 7 Litre, Max. Air Pressure - 10 Bar
£1,329.90
£1,303.82
2% OFF
Free delivery in Channel Island
|
SIP EXT780012 NARDI Extreme 3 Compressor, Tank Capacity - 7 Litre, Max. Air Pressure - 10 Bar
£1,054.20
£1,033.53
2% OFF
Free delivery in Channel Island
|
SIP EXT2TN25154 NARDI Extreme 2TN Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£1,062.55
£1,041.72
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | EXT50754 | EXT5154 | EXT73060P | EXT73070P | EXT780012 | EXT2TN25154 |
| Type | Silenced | Silenced | Silenced | Silenced | Silenced | Silenced |
| Capacity (L) | 5 | 5 | 7 | 7 | 7 | 5 |
| ITEM NO | EXT50754 | EXT5154 | EXT73060P | EXT73070P | EXT780012 | EXT2TN25154 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
| Noise Level | 72dB(A) | 72dB(A) | 85dB(A) | 85dB(A) | 72dB(A) | 72dB(A) |
A. It is a 1.00hp, 7 litre 24v DC compressor with V-Twin oil-free pump for remote or battery-powered compressed air.
A. It provides 8.80CFM piston displacement and 6.16CFM free air, about 250 and 176 litres per minute respectively.
A. It is rated to 145psi, equivalent to 10bar maximum pressure.
A. The unit uses a 0.80kW (1.00hp) 24v DC motor running at 2400rpm, drawing power from a 24v battery system.
A. It uses technopolymer piston rings in the V-Twin pump, eliminating lubricating oil in the compression chamber and reducing service requirements.
A. Four anti-vibration feet reduce transmitted vibration, improving stability when the compressor is used on uneven or mobile platforms.
A. They reduce vibration and mechanical stress on the crankshaft, supporting longer pump life during continuous duty.
A. It helps prevent contamination from entering the crankcase, increasing valve plate life and maintaining consistent air quality.
A. It suits low and medium pressure and flow work, remote sites and fibre blowing where 24v DC power is available.
A. A pressure cut-off switch and adjustable regulator manage outlet pressure and automatically shut down the compressor at set pressures.
A. It operates at about 72dB(A), reasonable for a compact DC-powered V-Twin compressor.
