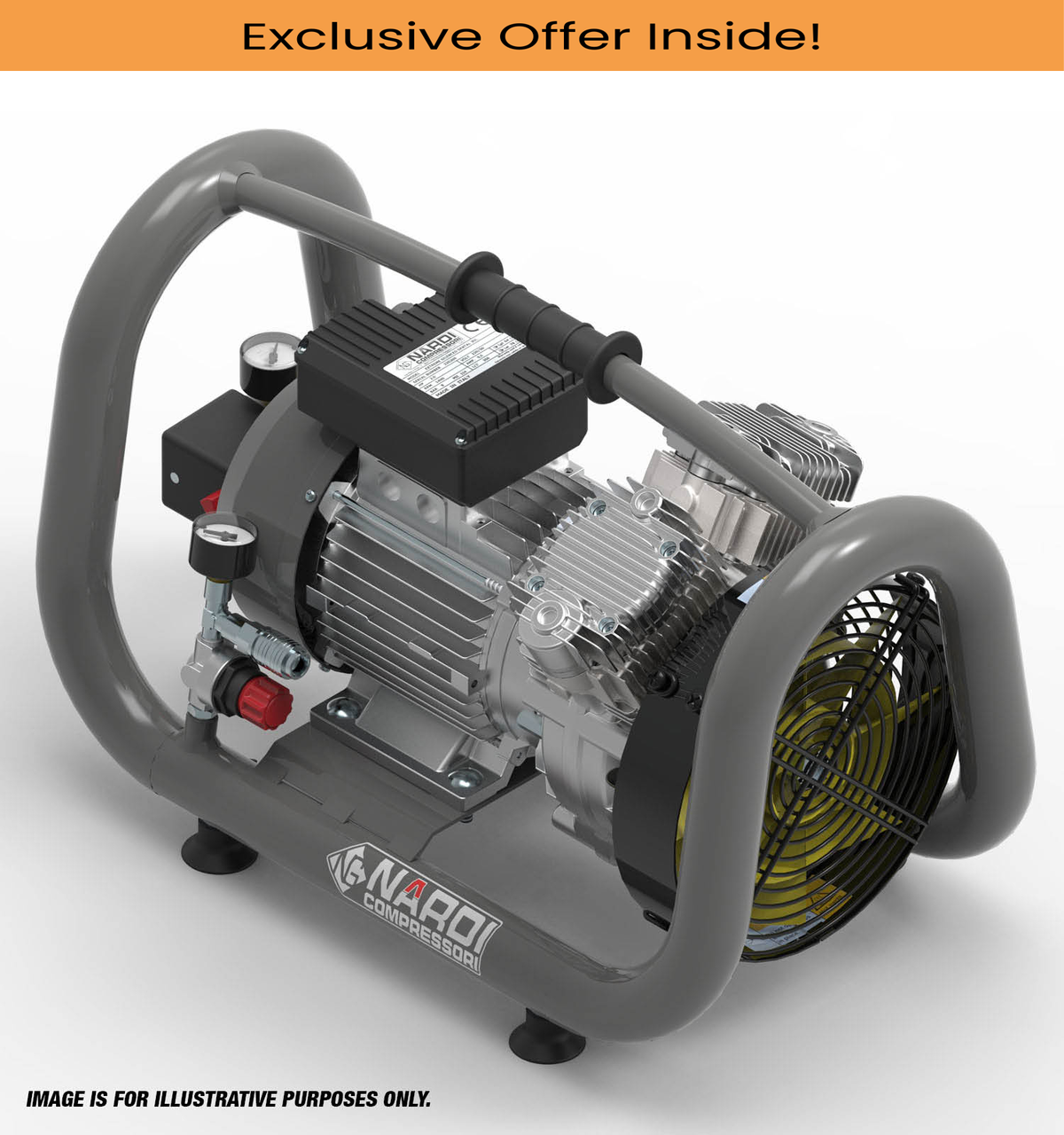

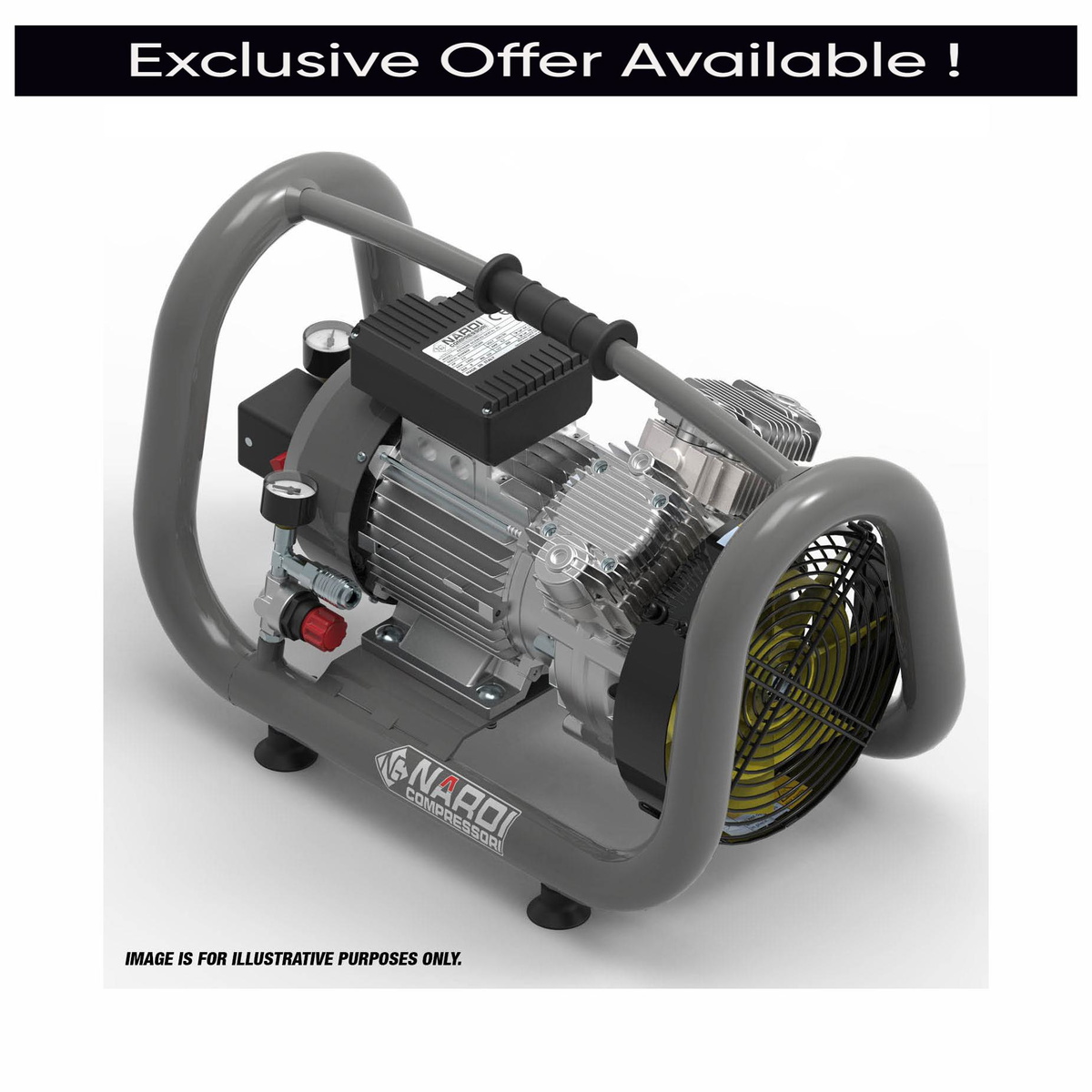

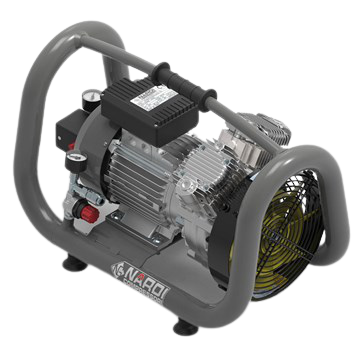

SIP EXT50754 NARDI Extreme 3T Compressor is a 0.75HP 5ltr framed unit designed for ultra-portable low and medium pressure applications. A 0.55kW (0.75hp) 4‑pole brushless induction motor on 230v (13A) at 1400rpm drives a V‑Twin oil-free pump providing 7.00CFM (200ltr/min) piston displacement and 4.90CFM (140ltr/min) FAD at up to 145psi (10bar). The compact tubular frame design with integrated handle makes this 5L compressor easy to carry and position in remote or confined locations. Concentric big end bearings minimise vibration and extend pump life, while crankcase air intake diffusion reduces contamination, improving valve plate longevity. Fan‑shaped stainless steel valves and technopolymer piston rings ensure long-lasting, low-maintenance performance. Forced air cooling, pressure cut-off switch and adjustable regulator support efficient, controlled operation. Running at 72dB(A), this Extreme 3T is ideal for fibre blowing, remote site tasks and general low/medium pressure work requiring a small, rugged, portable 10bar compressor.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT50754 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 0.55kW (0.75hp) 4-POLE 1400rpm |
| Receiver Size | 5ltr |
| Piston Displacement | 7.00CFM (200ltr/min) |
| Free Air Delivery (FAD) | 4.90CFM (140ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 72dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP ESP10604 NARDI Esprit 1 60/4 Compressor, Tank Capacity -10 Litre, Max. Air Pressure - 10 Bar
£515.70
£505.59
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | ESP10604 |
A. It is a 0.75hp, 5 litre V‑Twin direct drive compressor in a framed design, offering portable 10bar air for low and medium pressure tasks.
A. It delivers 7.00CFM piston displacement, about 200 litres per minute, and 4.90CFM free air delivery, roughly 140 litres per minute.
A. It can produce up to 145psi, equivalent to 10bar maximum working pressure.
A. The compressor uses a 230v, 13A supply and a 0.55kW, 0.75hp four‑pole brushless induction motor at 1400rpm.
A. It uses V‑Twin cylinders with technopolymer piston rings and stainless fan valves, delivering oil‑free compression with long service life and low maintenance.
A. They reduce vibration and improve pump life, particularly important when the unit is used for extended periods in remote or fibre‑blowing applications.
A. It reduces internal contamination, enhancing valve plate life and helping maintain consistent compressed air performance.
A. It is ideal for low and medium pressure and flow requirements, remote sites and fibre blowing where high portability is required.
A. Its lightweight, compact framed design makes it highly portable and easy to manoeuvre in tight spaces.
A. The compressor has a noise level around 72dB(A), typical for a small V‑Twin portable unit.
A. A pressure cut‑off switch and adjustable regulator allow accurate control of outlet pressure and automatic shutdown at the set value.
