Product Number: EXT25202
Variations

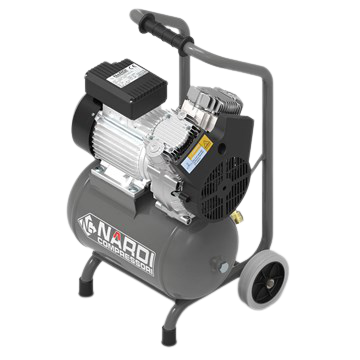

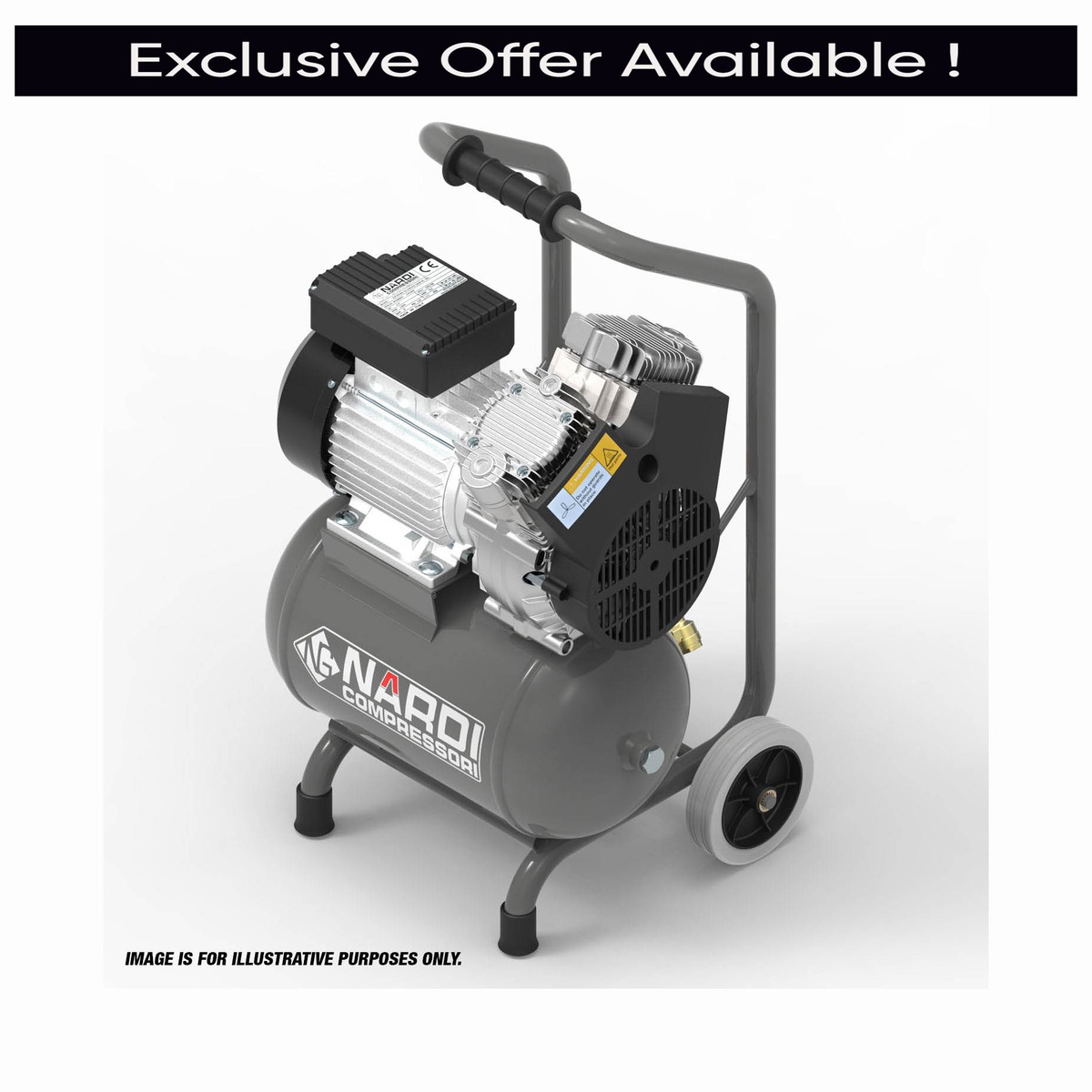

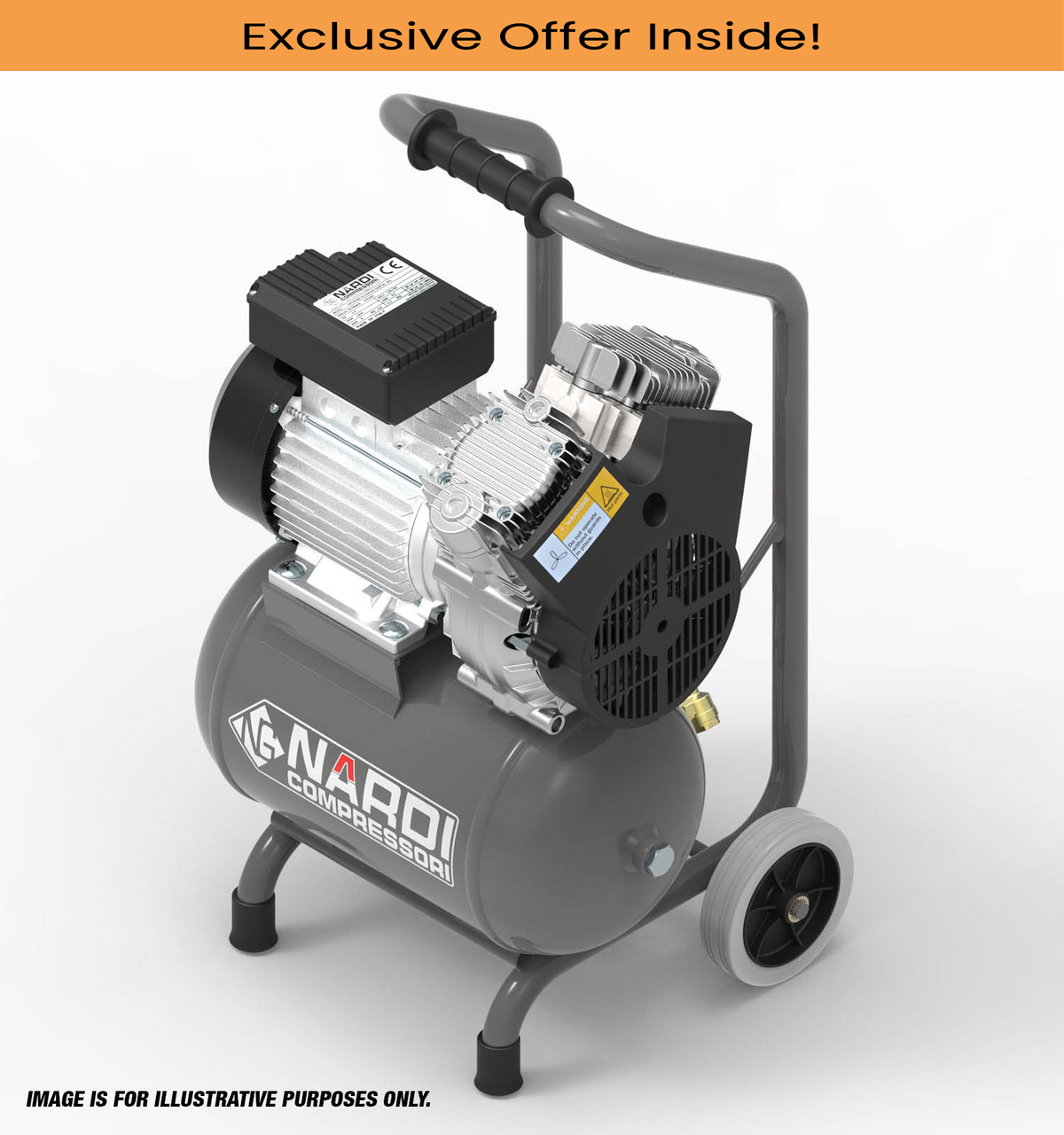

SIP EXT25202 NARDI Extreme 1 2-Pole Compressor is a high-output 2.00HP 25ltr unit designed for more demanding low to medium pressure tasks and fibre blowing applications. A 1.50kW (2.00hp) 2‑pole brushless induction motor on 230v (13A) at 2800rpm drives a V‑Twin oil-free pump, producing 14.10CFM (400ltr/min) piston displacement and 9.87CFM (282ltr/min) Free Air Delivery at up to 145psi (10bar). Concentric big end bearings and a crankcase air intake diffusion system reduce vibration and contamination, improving pump life and valve plate durability. Fan-shaped stainless steel valves and technopolymer piston rings offer long-life, low-maintenance performance. The 25L receiver and forced air cooling provide a stable air buffer and extended runtime, while a pressure cut-off switch and adjustable regulator allow precise pressure control. With an 82dB(A) noise level and strong airflow, this Extreme 1 2-pole model is ideal for industrial users and contractors who need compact but powerful 10bar air on site or in the workshop.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT25202 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 2-POLE 2800rpm |
| Receiver Size | 25ltr |
| Piston Displacement | 14.10CFM (400ltr/min) |
| Free Air Delivery (FAD) | 9.87CFM (282ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 82dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP ESP15604 NARDI Esprit 60/4 Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£508.87
£498.89
2% OFF
Free delivery in UK Mainland
|
SIP ESP1550024 NARDI Esprit 3 60 Compressor, Tank Capacity - 5 Litre, Max. Air Pressure - 10 Bar
£837.74
£821.31
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||
|---|---|---|
| PRODUCT NUMBER | ESP15604 | ESP1550024 |
| Type | Silenced | Silenced |
| Capacity (L) | 5 | 5 |
| ITEM NO | ESP15604 | ESP1550024 |
| Max Pressure (psi) | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 |
| Noise Level | 52dB(A) | 62dB(A) |
A. It is a 2.00hp, 25 litre V-Twin direct drive compressor with a 2-pole motor, designed for higher flow low-to-medium pressure work.
A. It offers 14.10CFM piston displacement, about 400 litres per minute, and 9.87CFM free air, around 282 litres per minute.
A. It is rated to 145psi, which is equivalent to 10bar maximum pressure.
A. It runs on a 230v, 13A input with a 1.50kW, 2.00hp two-pole brushless motor operating at roughly 2800rpm.
A. The V-Twin pump utilises technopolymer piston rings and stainless fan-shaped valves, providing oil-free operation and robust long-term performance.
A. They lower vibration and mechanical load, extending pump life and improving smoothness under continuous or heavy usage.
A. It reduces contamination within the crankcase, helping extend valve plate life and maintain reliable airflow.
A. It is intended for low and medium pressure uses, remote locations and fibre blowing where higher flow rates from a compact unit are required.
A. Wheel-mounted design with a handle and moderate size allow relatively easy relocation around workshops and sites.
A. A pressure cut-off switch and adjustable regulator manage output pressure and ensure automatic stoppage at the set limit.
A. It operates at around 82dB(A), reflecting the higher speed and output of its 2-pole motor.
