Product Number: EXT10202
Variations

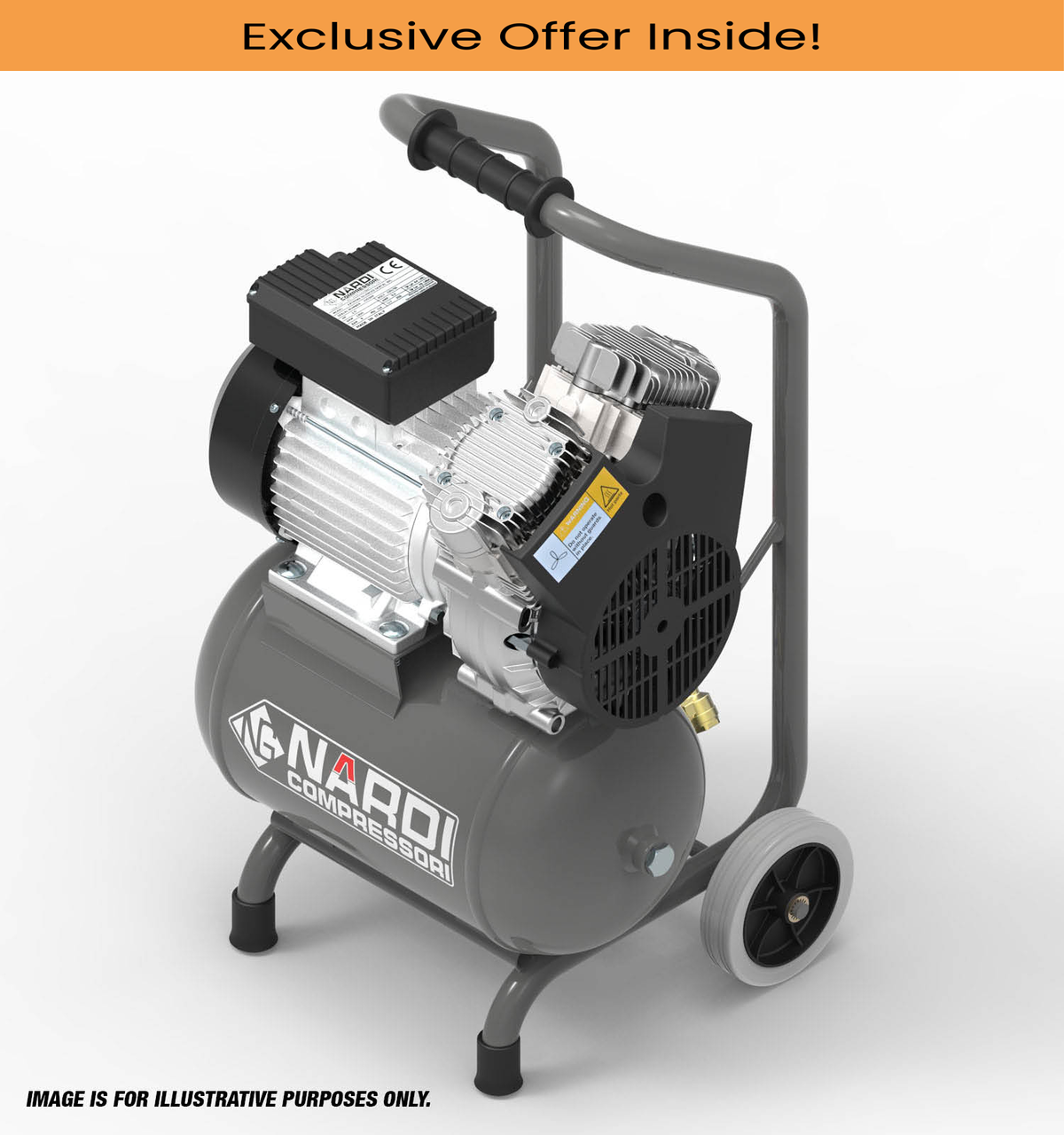

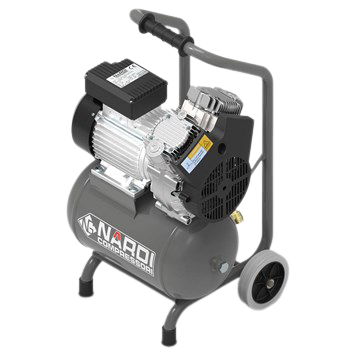

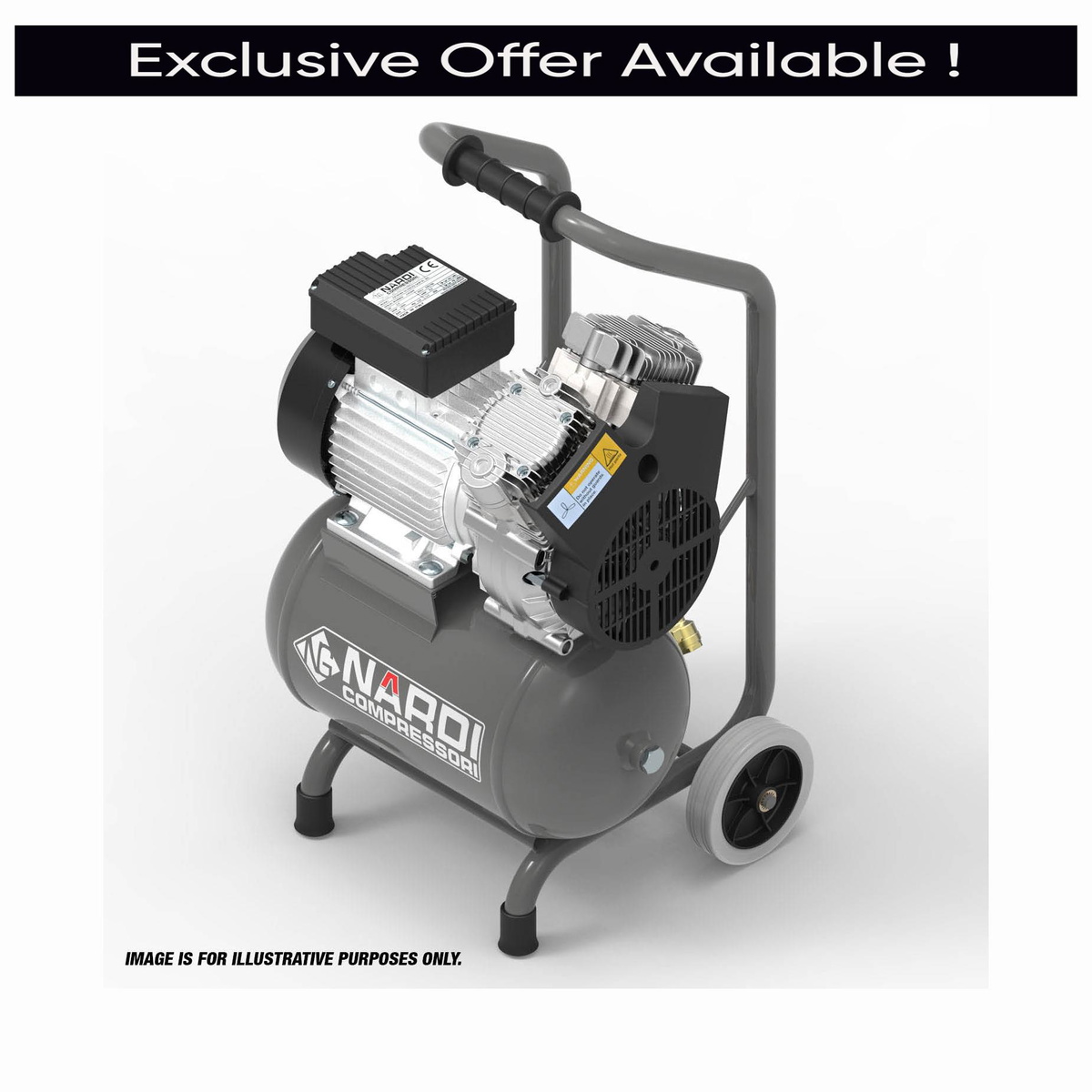

SIP EXT10202 NARDI Extreme 1 2-Pole Compressor is a 2.00HP 10ltr direct drive unit providing higher airflow for low and medium pressure work, including fibre blowing and remote air tasks. A 1.50kW (2.00hp) 2‑pole brushless induction motor on 230v (13A) at 2800rpm drives a V‑Twin oil-free pump delivering 14.10CFM (400ltr/min) piston displacement and 9.87CFM (282ltr/min) Free Air Delivery at up to 145psi (10bar). Concentric big end bearings reduce vibration and help extend pump life, while crankcase air intake diffusion limits contamination and maximises valve plate longevity. Fan-shaped stainless steel valves and technopolymer piston rings provide durable, low-maintenance operation. The 10L wheel‑mounted receiver offers a stable reservoir for tools and fibre blowing rigs, and forced air cooling supports extended duty. A pressure cut-off switch and adjustable regulator provide control. With an 82dB(A) noise level, the Extreme 1 2‑pole model is suited to industrial and utility sites where a compact but high output 10bar compressor is needed.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | EXT10202 |
|---|---|
| Input Supply | 230v (13A) |
| Motor Power | 1.50kW (2.00hp) 2-POLE 2800rpm |
| Receiver Size | 10ltr |
| Piston Displacement | 14.10CFM (400ltr/min) |
| Free Air Delivery (FAD) | 9.87CFM (282ltr/min) |
| Max. Air Pressure | 145psi (10bar) |
| No. of Cylinders | 2 cylinders |
| Noise Level | 82dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP ESP10604 NARDI Esprit 1 60/4 Compressor, Tank Capacity -10 Litre, Max. Air Pressure - 10 Bar
£521.78
£511.55
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |
|---|---|
| PRODUCT NUMBER | ESP10604 |
| Type | Silenced |
| Capacity (L) | 10 |
| ITEM NO | ESP10604 |
| Max Pressure (psi) | 145 |
| Maximum Pressure (bar) | 10 |
| Noise Level | 52dB(A) |
A. It is a 2.00hp, 10 litre 2-pole direct drive compressor with V-Twin oil-free pump for higher flow requirements.
A. It offers a piston displacement of 14.10CFM, around 400 litres per minute, and free air delivery of 9.87CFM, about 282 litres per minute.
A. It can supply air up to 145psi, equivalent to 10bar, supporting a wide range of low and medium pressure tasks.
A. The compressor uses a 230v, 13A supply powering a 1.50kW, 2.00hp two-pole brushless induction motor at about 2800rpm.
A. The V-Twin pump with technopolymer piston rings and fan-shaped stainless valves provides oil-free compression with long life and reduced maintenance.
A. They reduce vibration, minimise mechanical stress and extend the life of moving components under continuous-duty operation.
A. It reduces air contamination inside the crankcase, helping prolong valve plate life and maintain cleaner airflow.
A. It is ideal for low and medium pressure uses, remote locations and fibre blowing operations requiring higher flow rates.
A. Its compact, wheel-mounted design with handle allows easy relocation despite its higher power and output.
A. A pressure cut-off switch and adjustable regulator provide safe pressure management with automatic shutdown at the desired pressure.
A. It runs at about 82dB(A), reflecting its higher power and output compared to smaller Extreme units.
