Product Number: SAC5020A

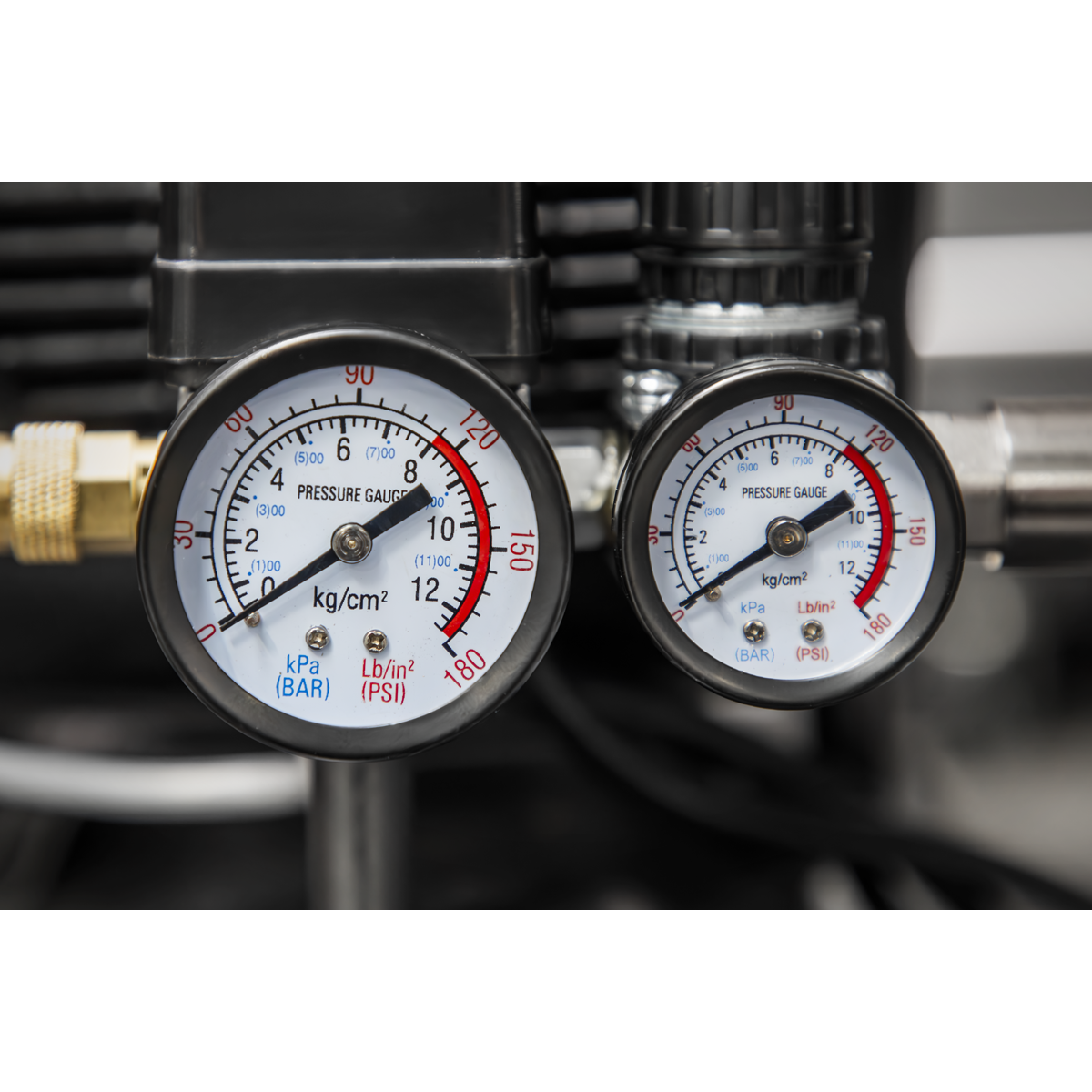

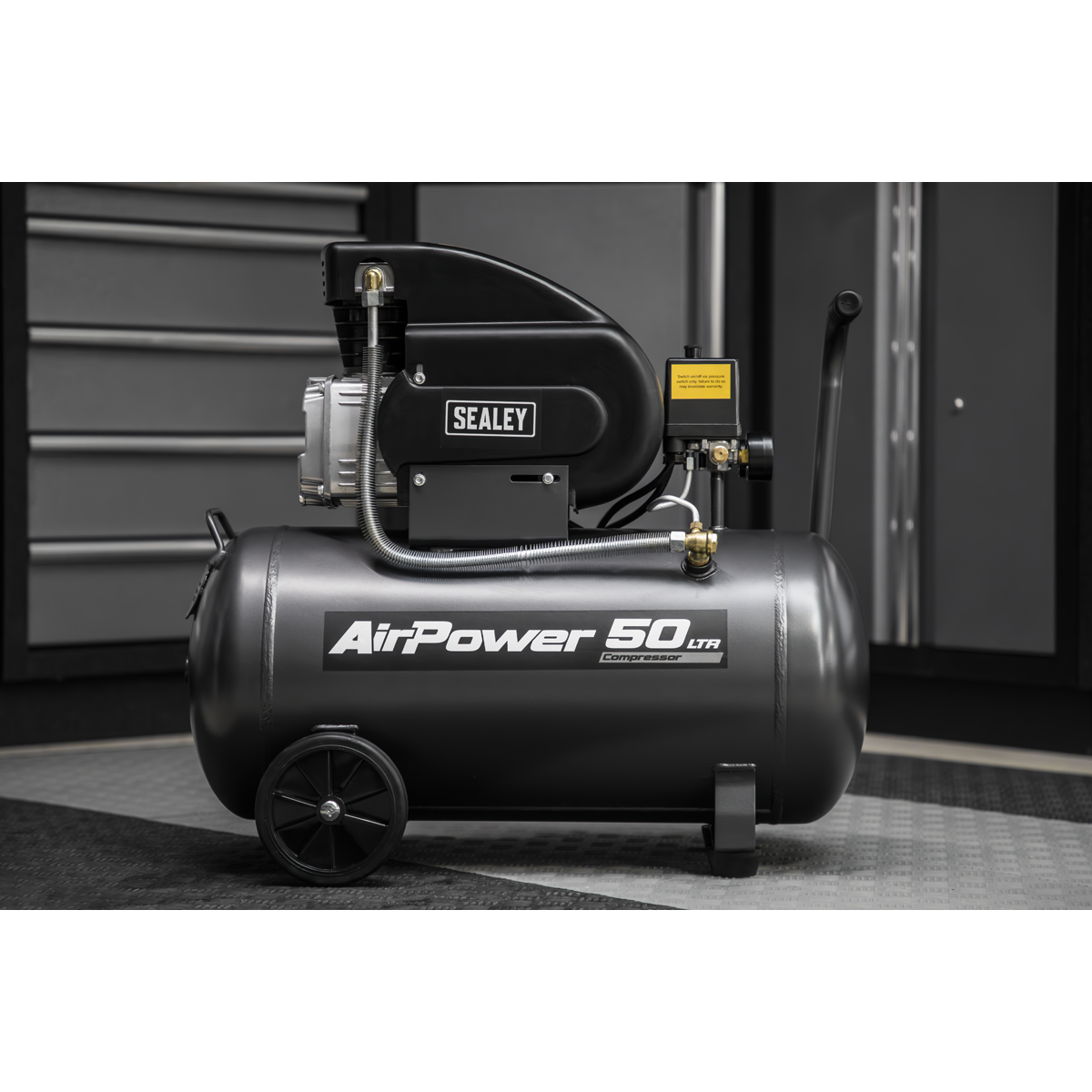

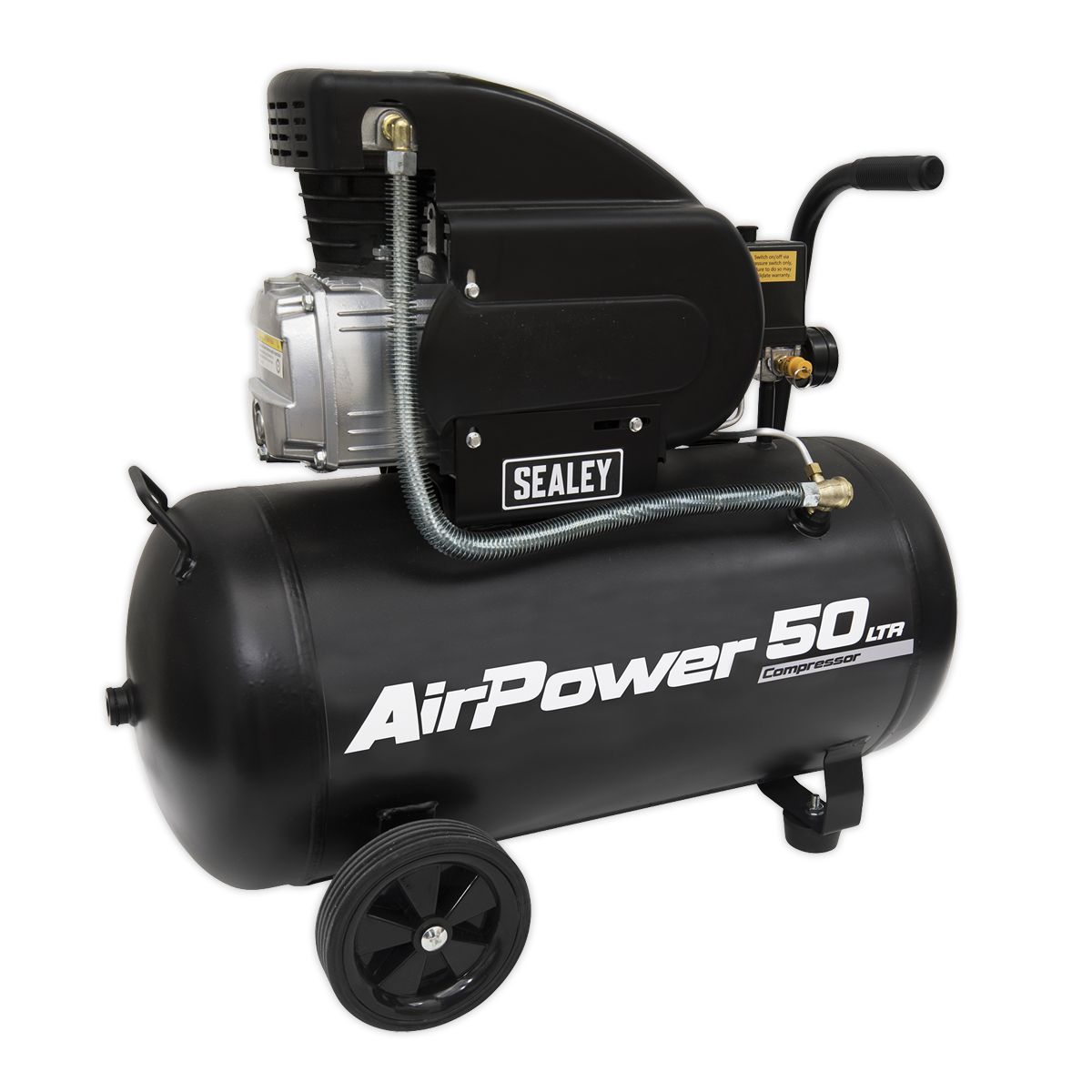

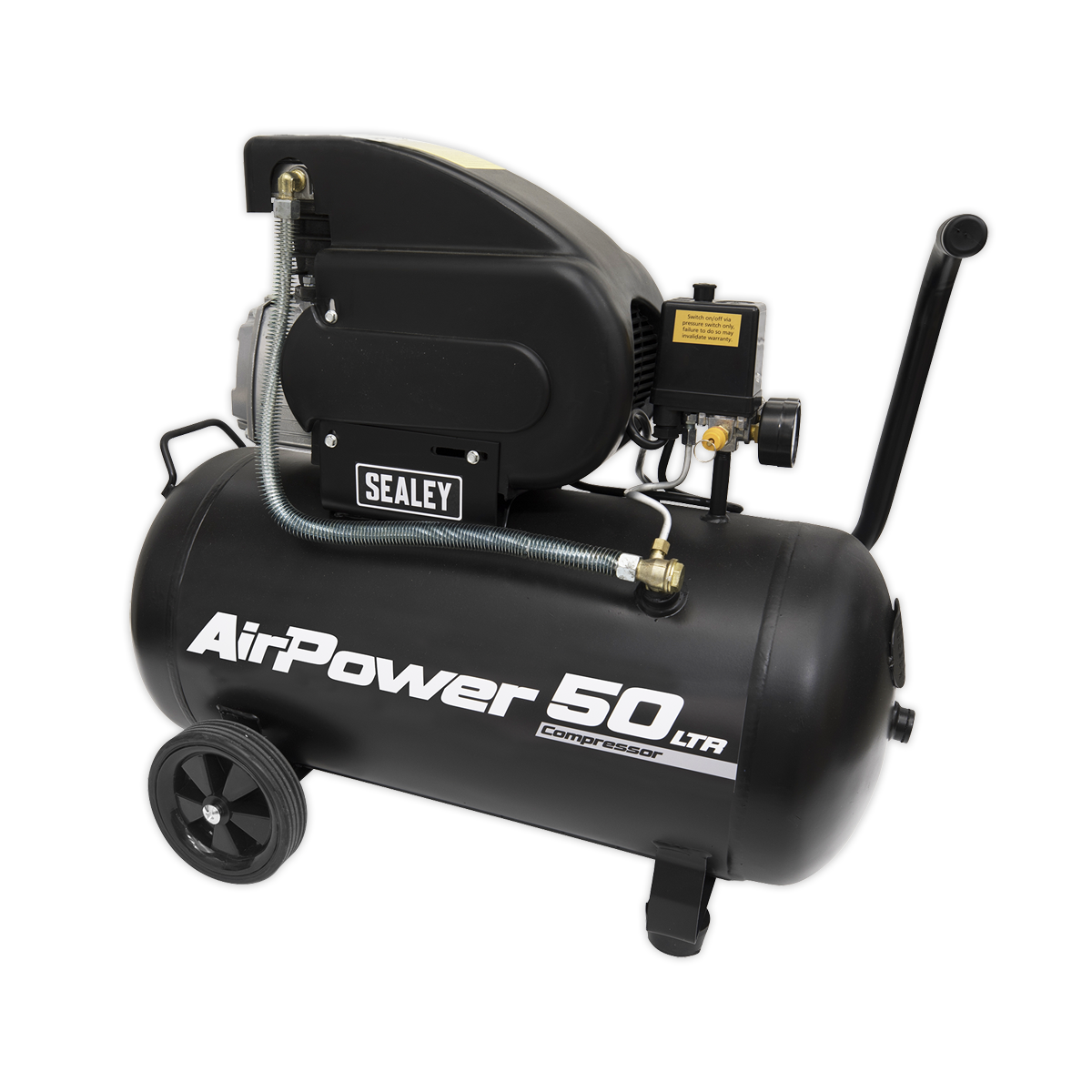

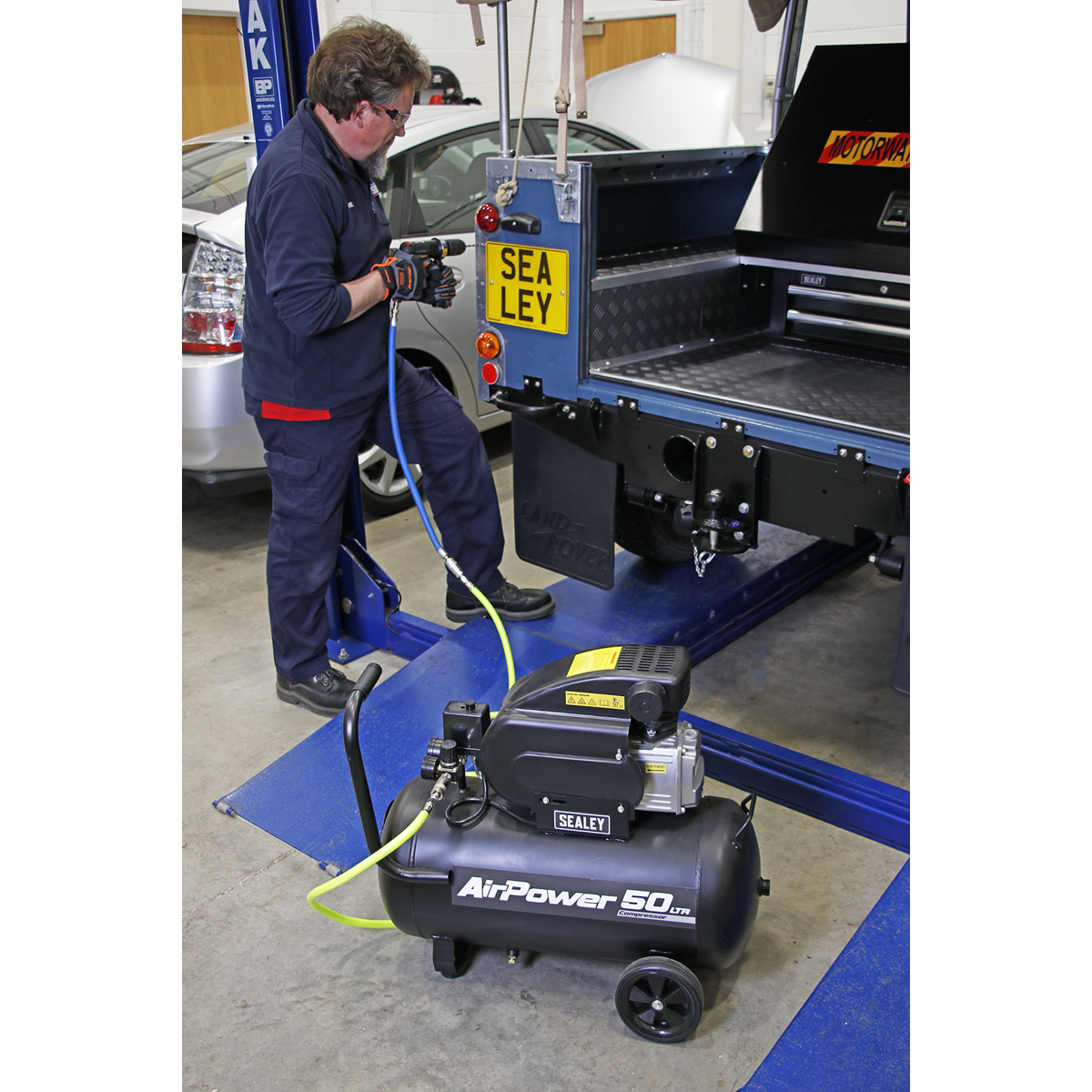

Sealey SAC5020A Air Compressor 50L Direct Drive 2hp is a versatile workshop unit combining a 50L receiver with a 2hp direct‑drive pump for general-purpose applications. Operating from 230V 13A, it delivers 6.8cfm (193L/min) displacement and 4.6cfm (130L/min) free air at up to 116psi (8bar). The aluminium cylinder head with cast iron cylinder offers improved wear resistance, while the pump head is directly coupled to a heavy-duty induction motor for reliable, relatively quiet running. A precision welded receiver tank meets Pressure Vessel Directive standards. Fully automatic pressure cut‑out and twin gauges displaying tank and working pressures provide straightforward control, and a quick release coupling outlet facilitates rapid tool connection. With a compact footprint and practical 50L capacity, SAC5020A is well suited to inflating, blow‑off work, light spraying and powering a range of air tools in garages and small workshops.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC5020A |
|---|---|
| Air Displacement cfm(L/min) | 6.8(193) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 4.6(130) |
| Maximum Pressure | 116psi(8bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 2hp |
| Nett Weight | 29kg |
| Noise Level | 96dB(A) |
| Oil Capacity | 0.27L |
| Outlet | Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 50L |

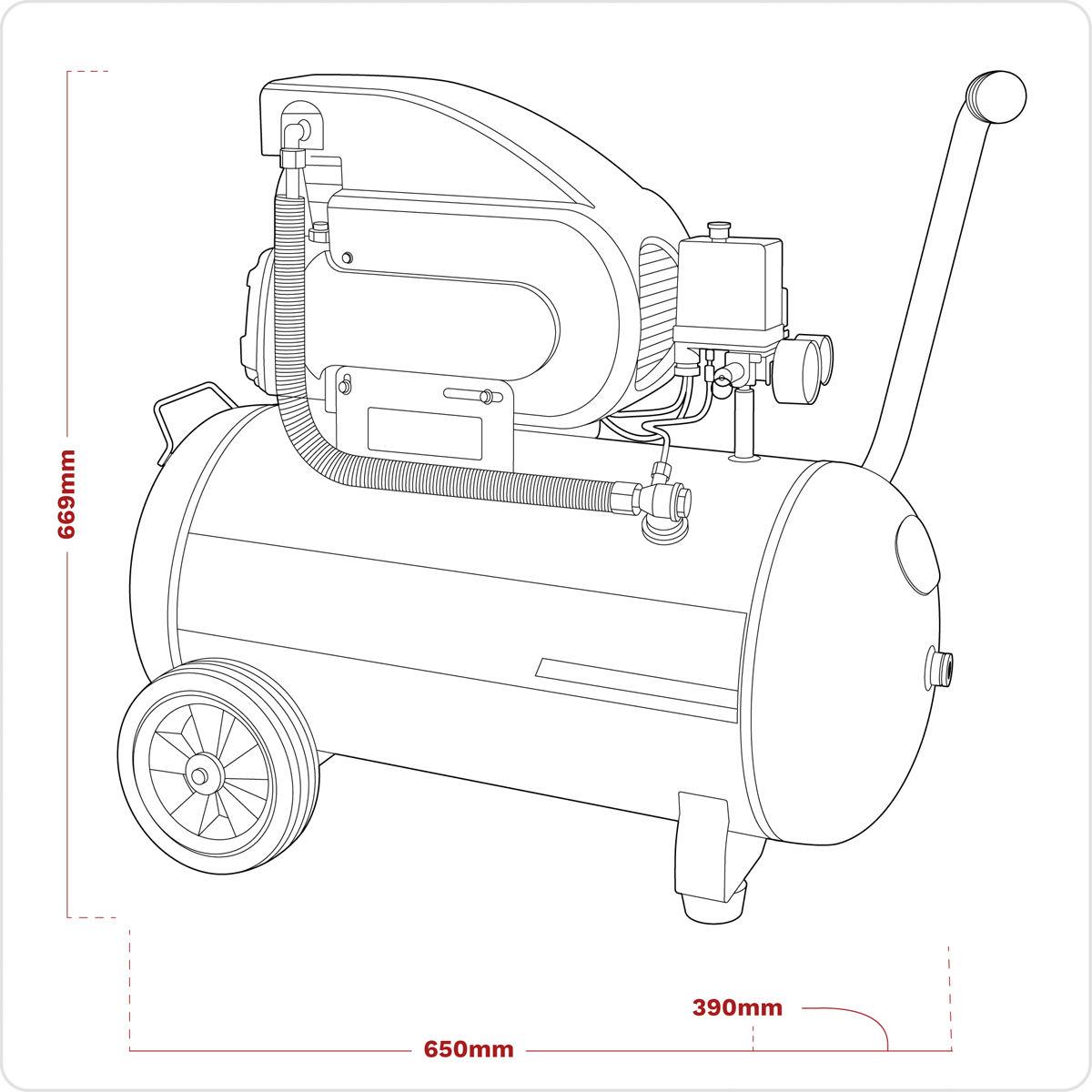

| Size (W x D x H) | 650 x 390 x 669mm |
| Supply | 230V/13A |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC5020E Air Compressor 50L Direct Drive 2hp
£230.36
£225.75
2% OFF
Free delivery in UK Mainland
|
Sealey SAC5030VE Air Compressor 50L V-Twin Direct Drive 3hp
£344.16
£337.28
2% OFF
Free delivery in UK Mainland
|
SIP 05480 Low Noise Oil-Free Direct Drive Compressor, Motor Power - 2238 Hp, Air Pressure - 8 Bar
£278.95
£273.48
2% OFF
Free delivery in UK Mainland
|
Sealey SAC5020E110V Air Compressor 50L Direct Drive 2hp 110V
£242.80
£237.94
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC5020E | SAC5030VE | 05479 | 05480 | SAC5020E110V |
| Type | Oil Free | Oil Free | |||
| Capacity (L) | 50 | 50 | 50 | 50 | 50 |
| Max Pressure (psi) | 116 | 116 | 116 | 116 | 116 |
| Maximum Pressure (bar) | 8 | 8 | 8 | 8 | 8 |
| Voltage (V) | 230 | 230 | 230 | 230 | 110 |
| Weight (kg) | 29.0 | 39 | 34 | ||
A. It is a 50 litre, 2hp direct-drive compressor with aluminium head and cast iron cylinder for workshop applications.
A. It delivers 6.8cfm air displacement and 4.6cfm free air delivery, supporting a variety of workshop tools.
A. The unit operates up to 116psi, about 8bar, suitable for many general-purpose pneumatic tasks.
A. It uses 230V, 13A single-phase supply to drive a 2hp induction motor.
A. It suits general-purpose workshop environments requiring reliable, quiet direct-drive air.
A. This configuration provides added resistance to wear and improved heat management in the pump assembly.
A. Variants include SAC0607S, SAC0610E, SAC10001S, SAC2410S, SAC2420A, SAC2420E, SAC5000S, SAC5001S, SAC5002, SAC5016S and SAC5020E.
A. The cut-out switch controls pressure and twin gauges display tank and working pressures for safe operation.
A. The 50 litre receiver offers longer tool run times and better pressure stability during continuous use.

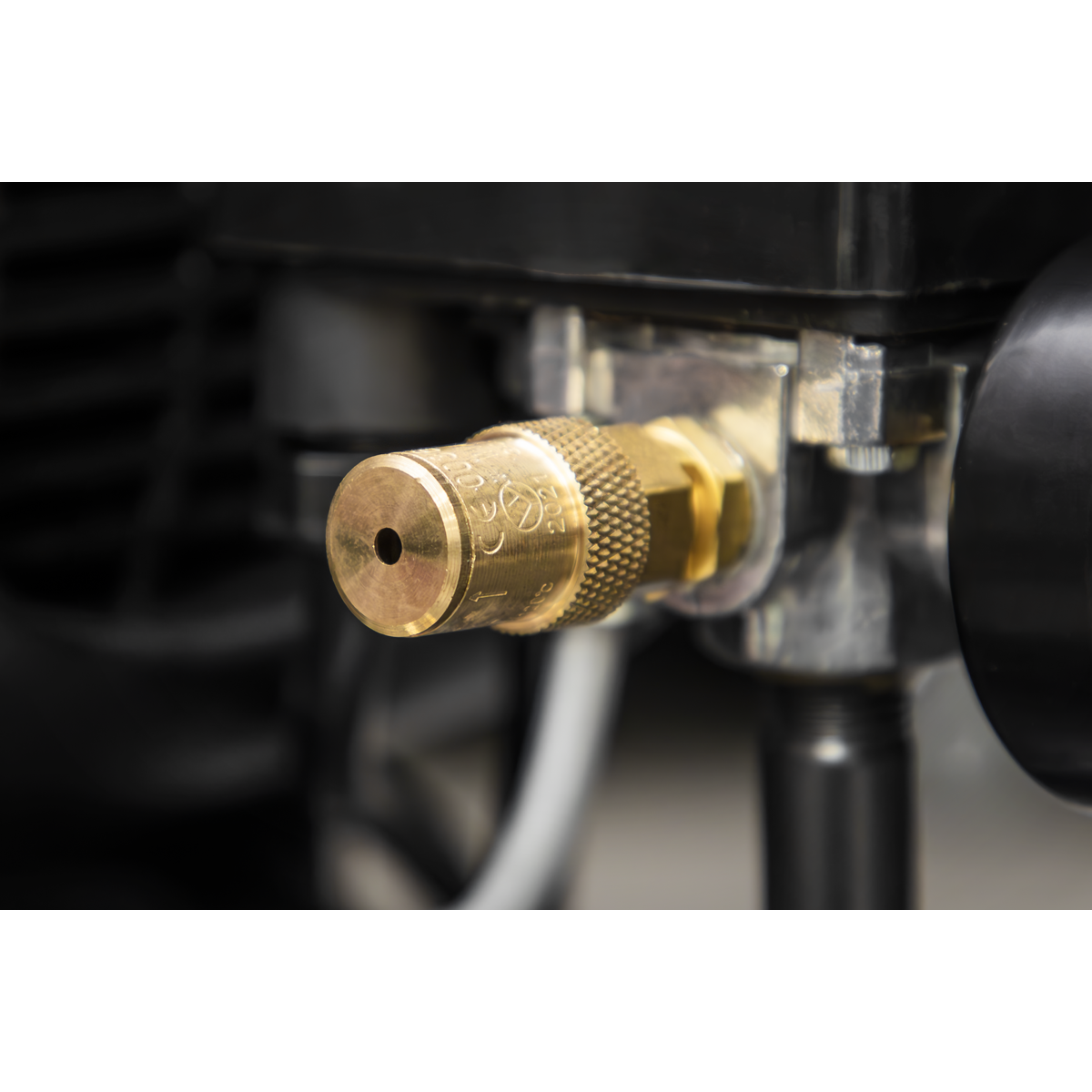

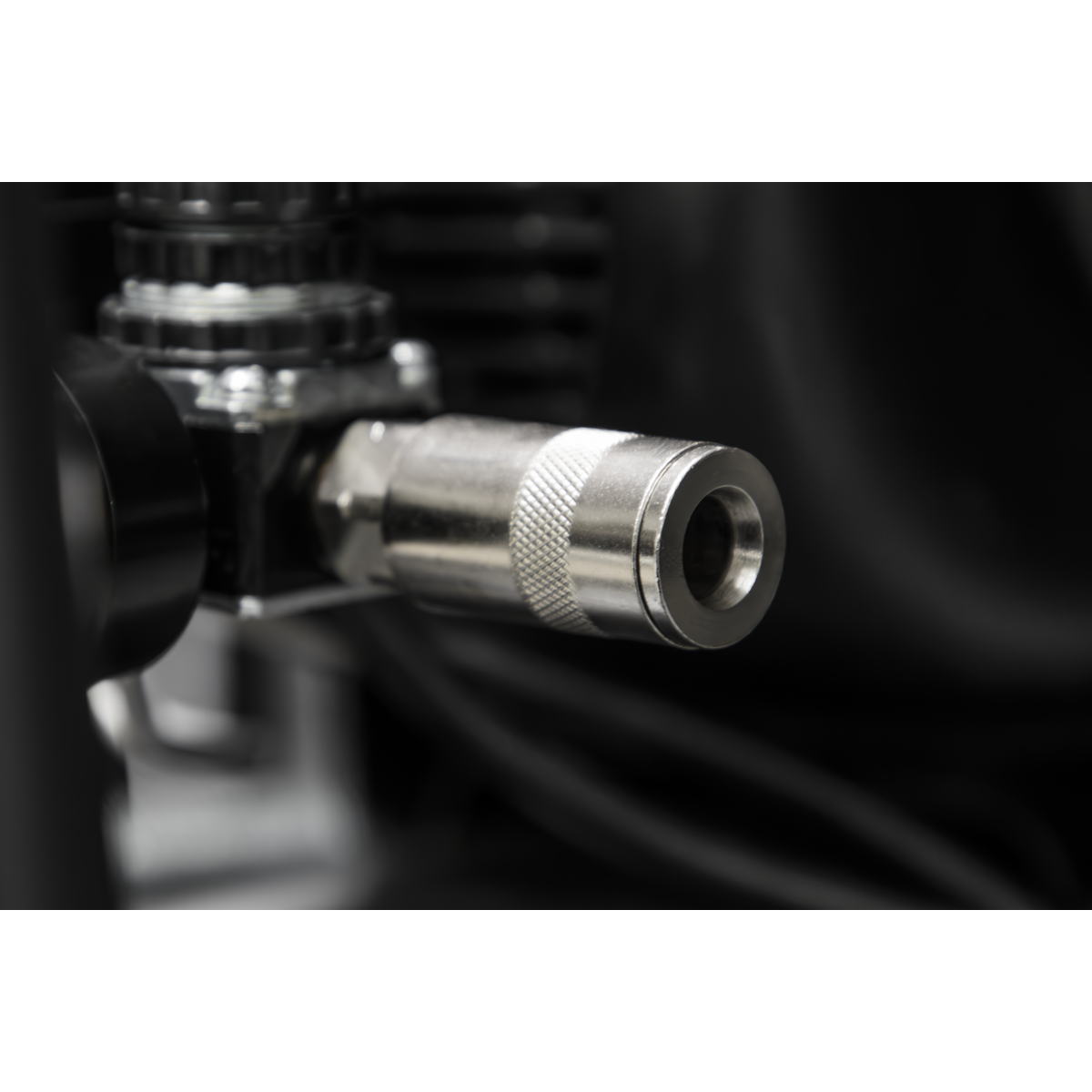

A. A quick release coupling enables rapid tool attachment and switch-over.
A. Ensuring air consumption stays within FAD capacity maintains pressure and prevents excessive cycling.
